first, then connect the negative cable. Apply multipurpose grease to prevent corrosion.

34. Check the shift lever and clutch operation.

35. Check the front wheel alignment (see WHEEL ALIGNMENT ).

36. Enter the anti-theft code for the audio unit, and set the clock.

37. Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW

CONTROL UNIT ).

38. Test-drive the vehicle.

TRANSMISSION DISASSEMBLY

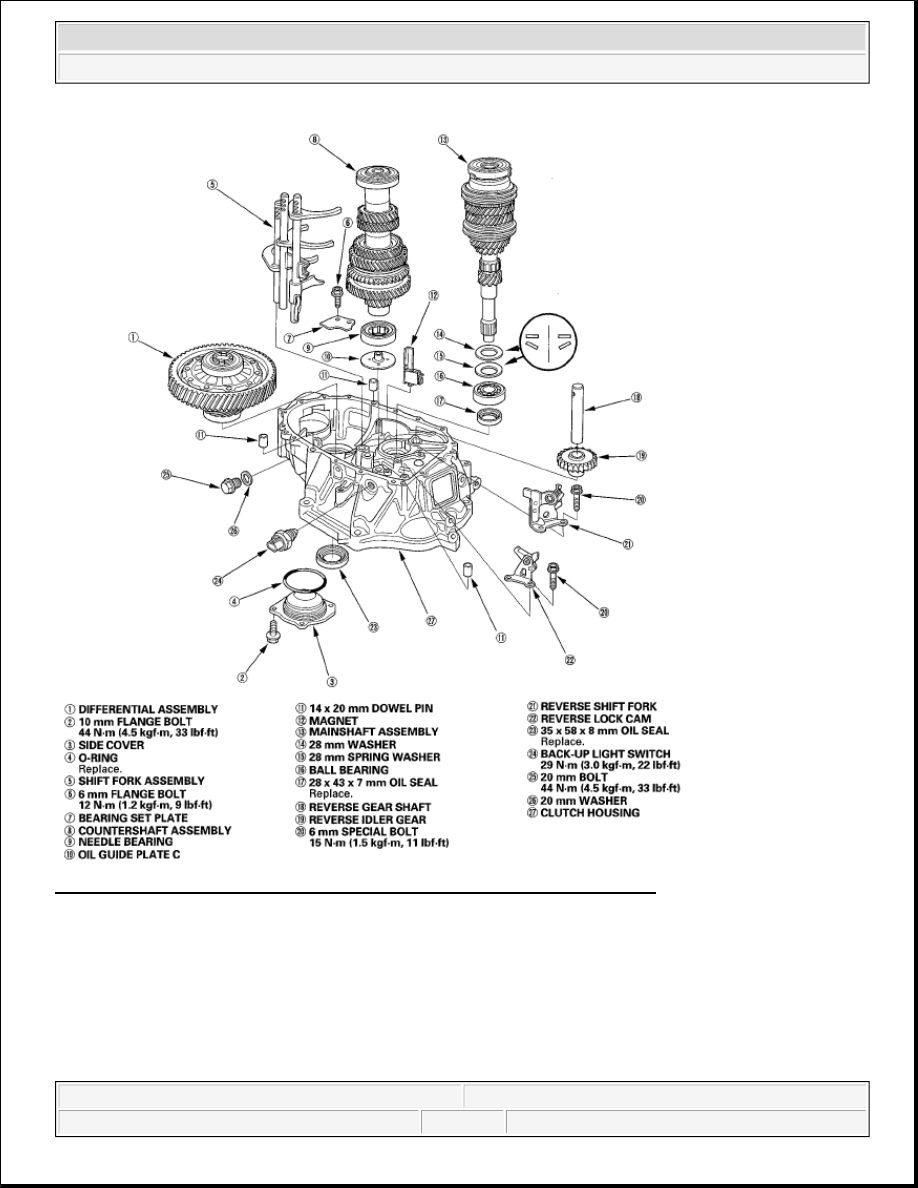

EXPLODED VIEW - CLUTCH HOUSING: 2WD



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 41: Exploded View Of Clutch Housing (2WD) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

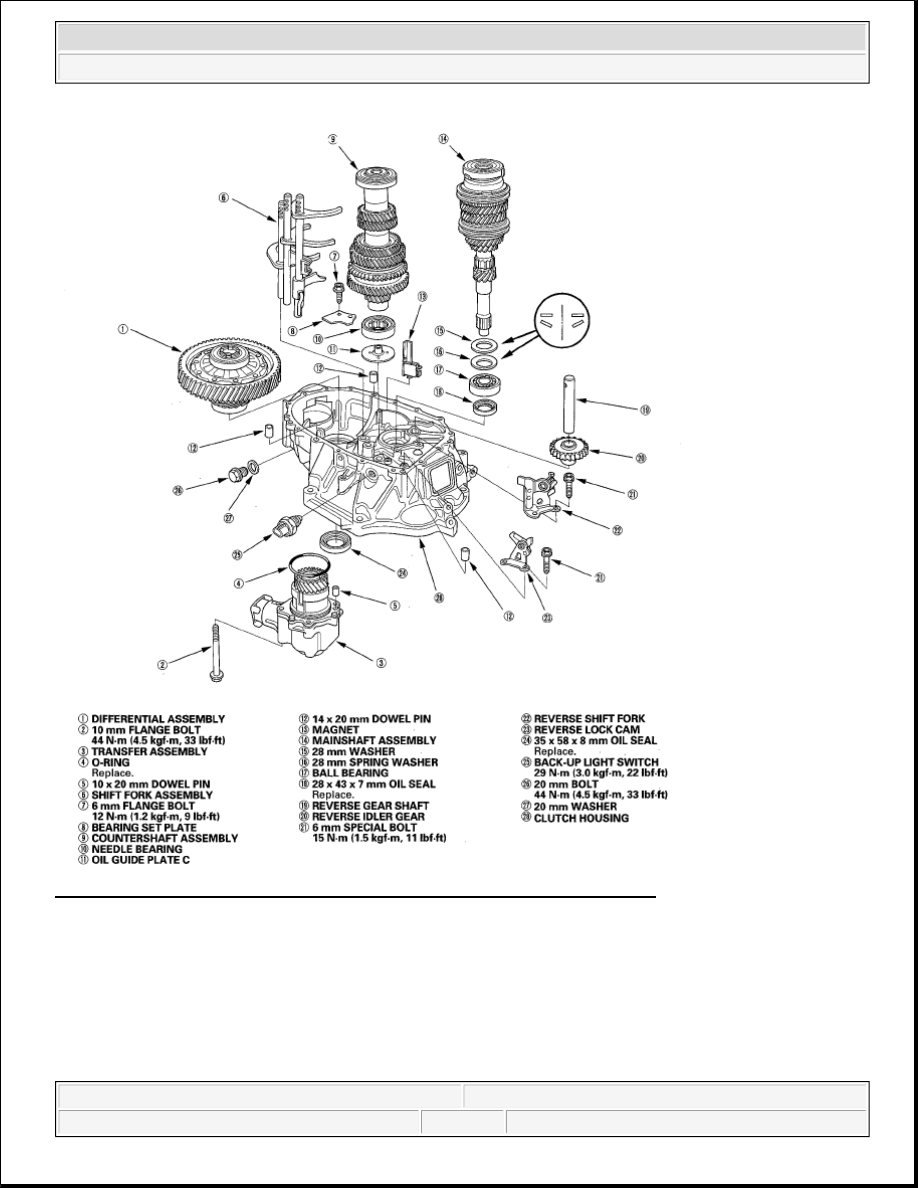

EXPLODED VIEW - CLUTCH HOUSING: 4WD



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 42: Exploded View Of Clutch Housing (4WD) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

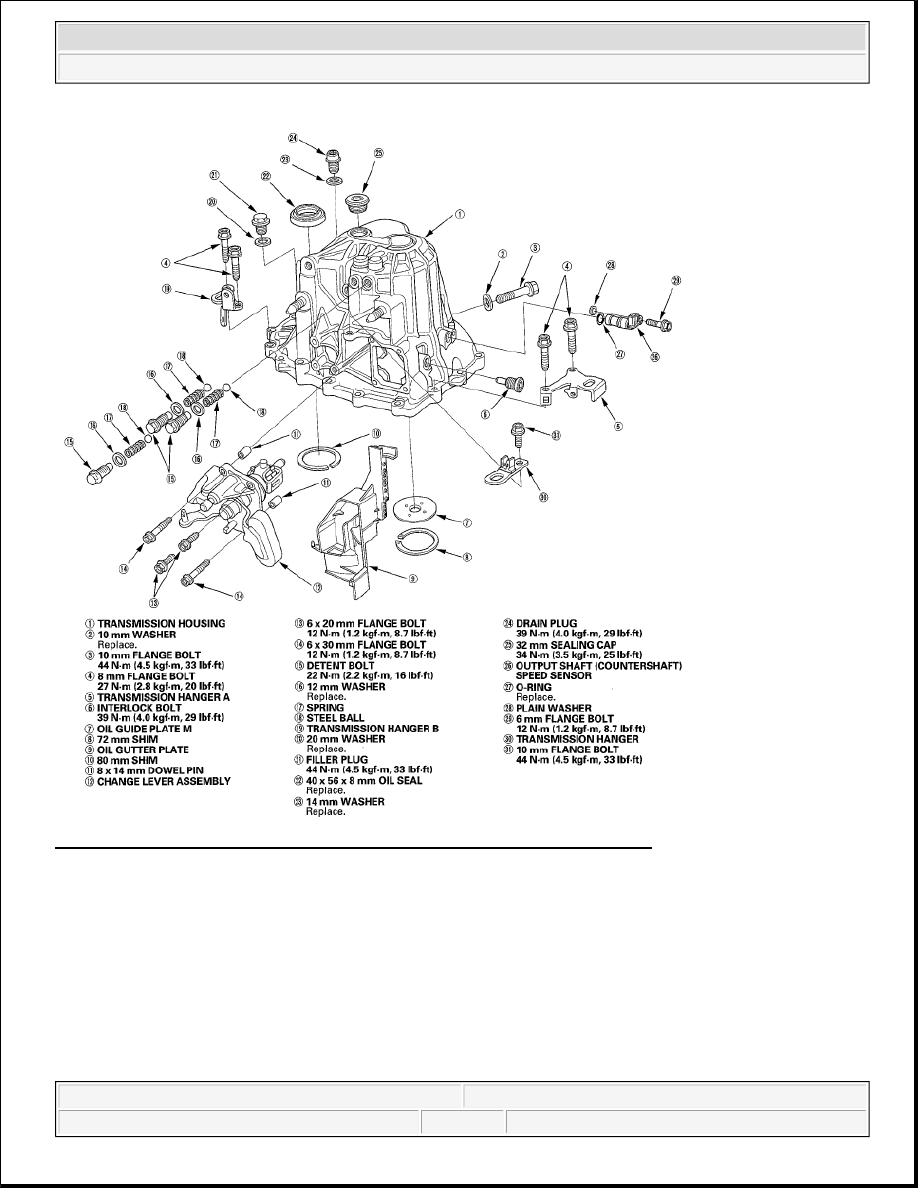

EXPLODED VIEW - TRANSMISSION HOUSING



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 43: Exploded View Of Transmission Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. 2WD: Remove the side cover (A) and O-ring (B).

NOTE:

Place the clutch housing on two pieces of wood thick enough to keep the
mainshaft from hitting the workbench.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element
