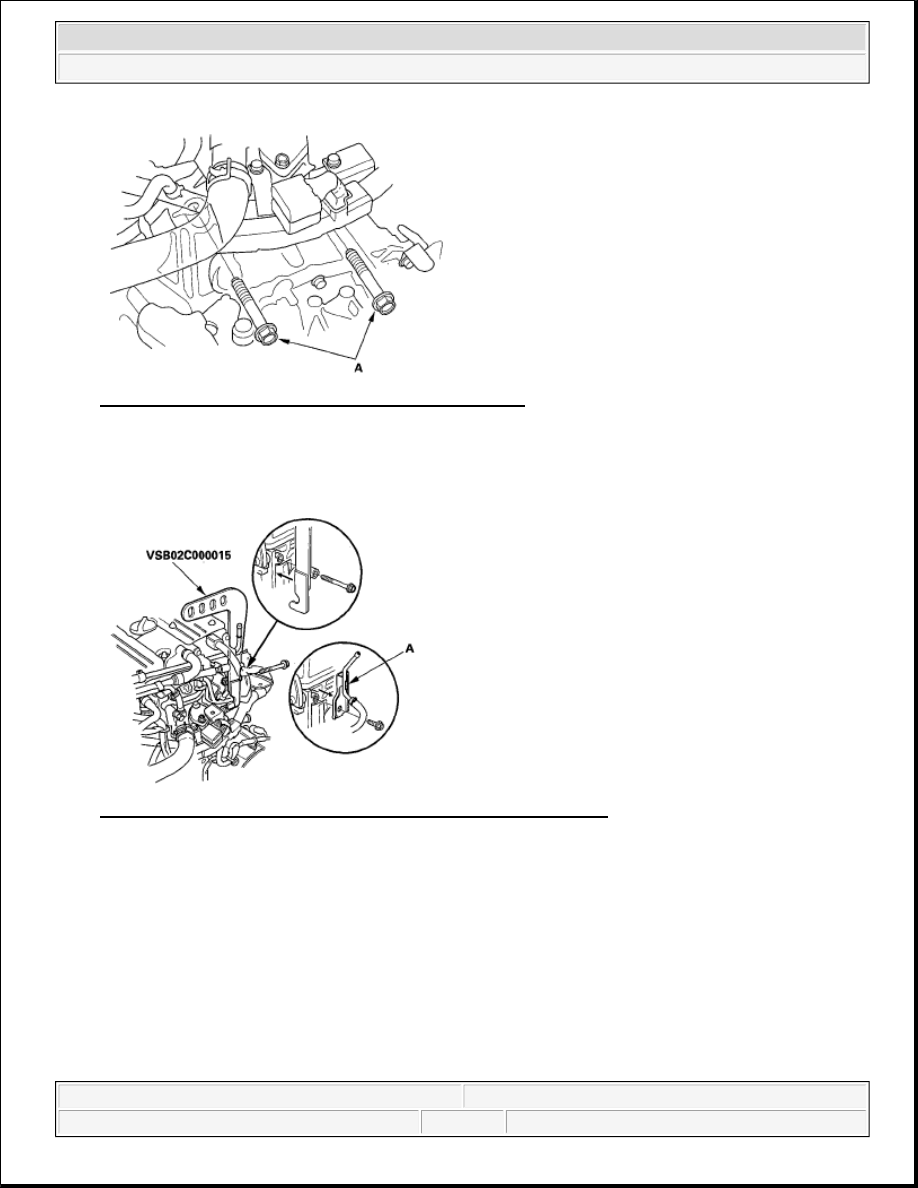

Fig. 9: Identifying Upper Transmission Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the purge joint pipe (A), then attach the engine hanger/adapter (A) to the threaded hole in the

cylinder head.

Fig. 10: Identifying Purge Joint Pipe And Engine Hanger/Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

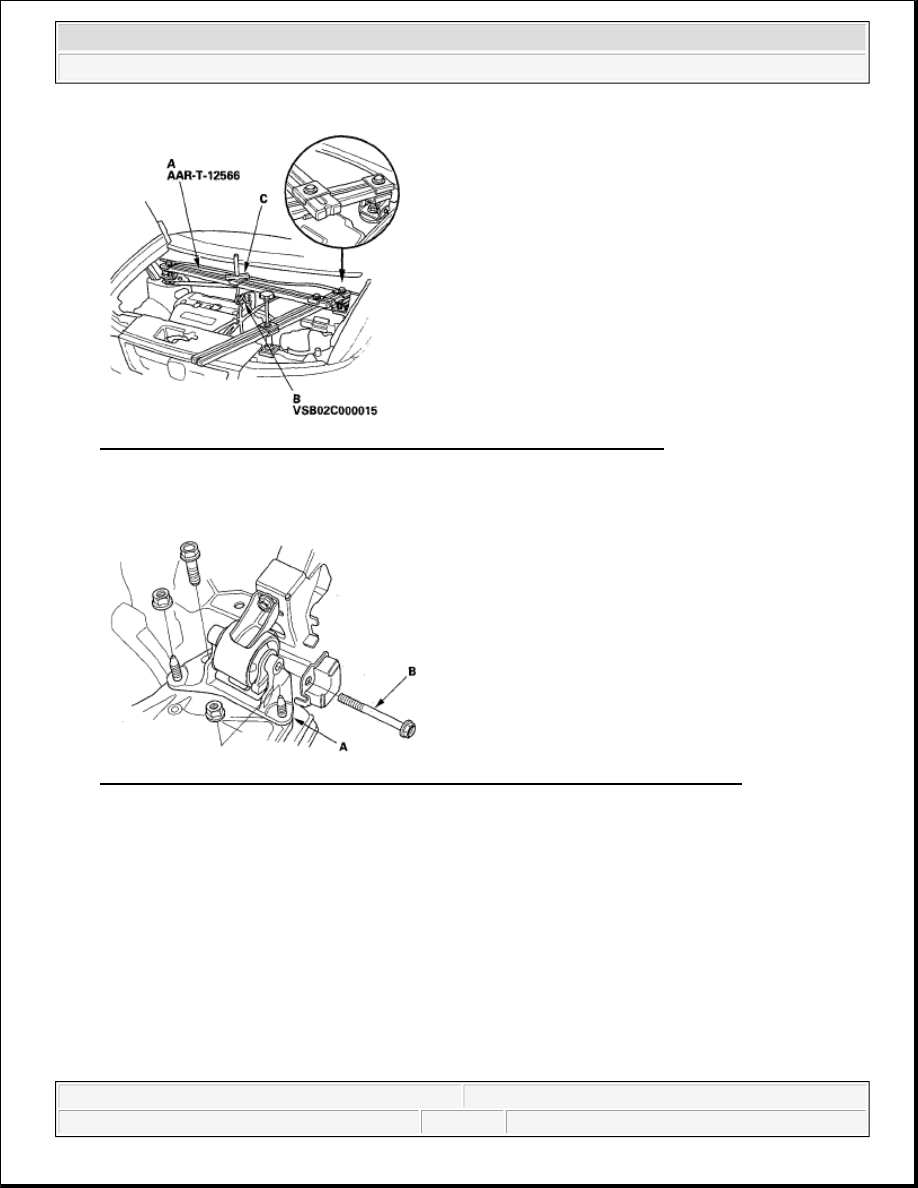

15. Install the engine support hanger (A) to the vehicle, then attach the hook to the engine hanger/adapter (B).

Tighten the wing nut (C) by hand to lift and support the engine.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 11: Identifying Engine Support Hanger And Engine Hanger/Adapter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. Remove the transmission mount bracket (A) and transmission mounting bolt (B).

Fig. 12: Identifying Transmission Mount Bracket And Transmission Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Raise the vehicle on the lift, and make sure it is securely supported.

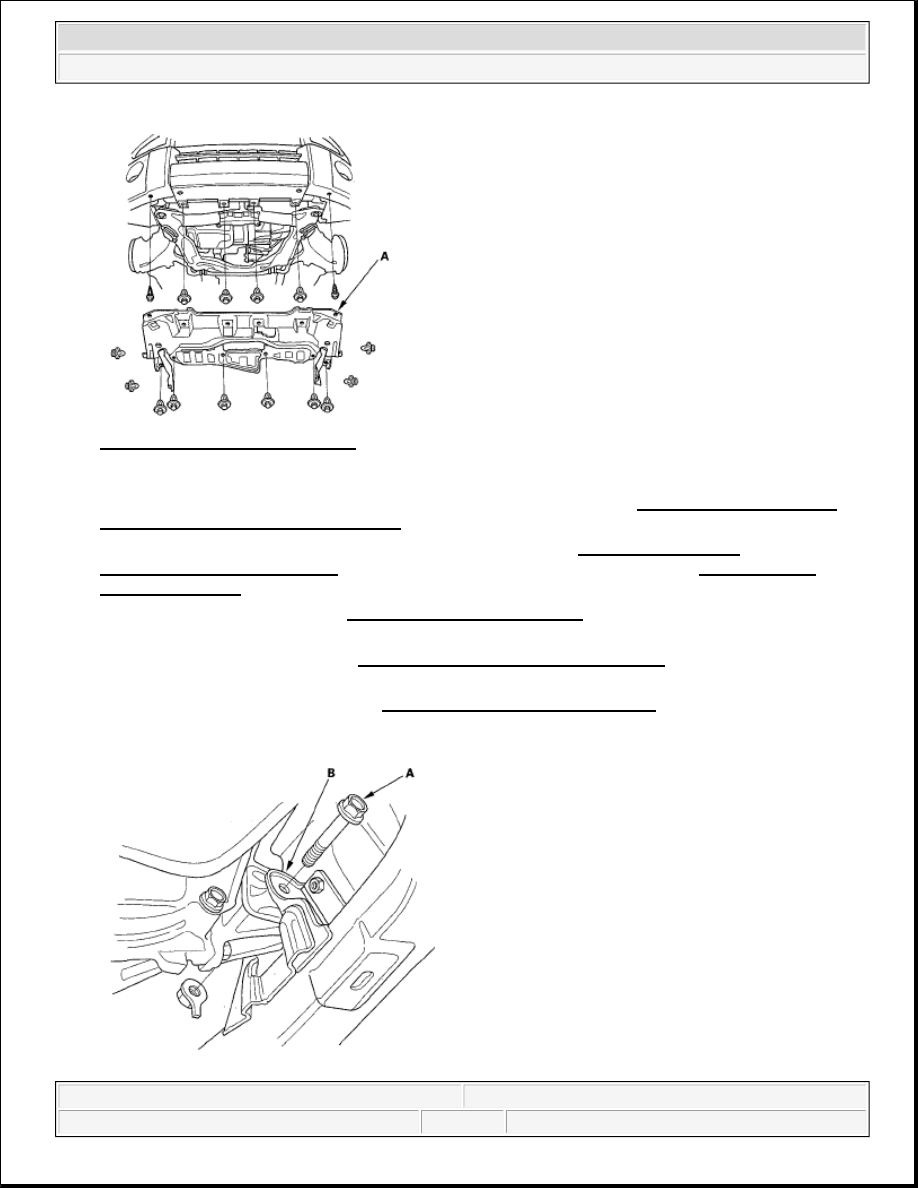

18. Remove the splash shield (A).



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Fig. 13: Identifying Splash Shield
Courtesy of AMERICAN HONDA MOTOR CO., INC.

19. Drain the transmission fluid. Install the drain plug with a new washer (see TRANSMISSION FLUID

INSPECTION AND REPLACEMENT ).

20. Separate the front stabilizer link from the lower arm (see step 3 in STABILIZER LINK

REMOVAL/INSTALLATION ), and ball joint from the lower arm (see step 4 in LOWER ARM
REPLACEMENT ).

21. Remove the front driveshafts (see DRIVESHAFT INSPECTION ). Coat all precision finished surfaces

with new engine oil, then tie a plastic bags over the driveshaft ends.

22. Remove the intermediate shaft (see INTERMEDIATE SHAFT REMOVAL ). Coat all precision

finished surfaces with new engine oil, then tie a plastic bag over the intermediate shaft.

23. 4WD: Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).

24. Remove the bolt (A) from the front engine mount bracket (B).

Fig. 14: Identifying Front Engine Mount Bracket And Bolt



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

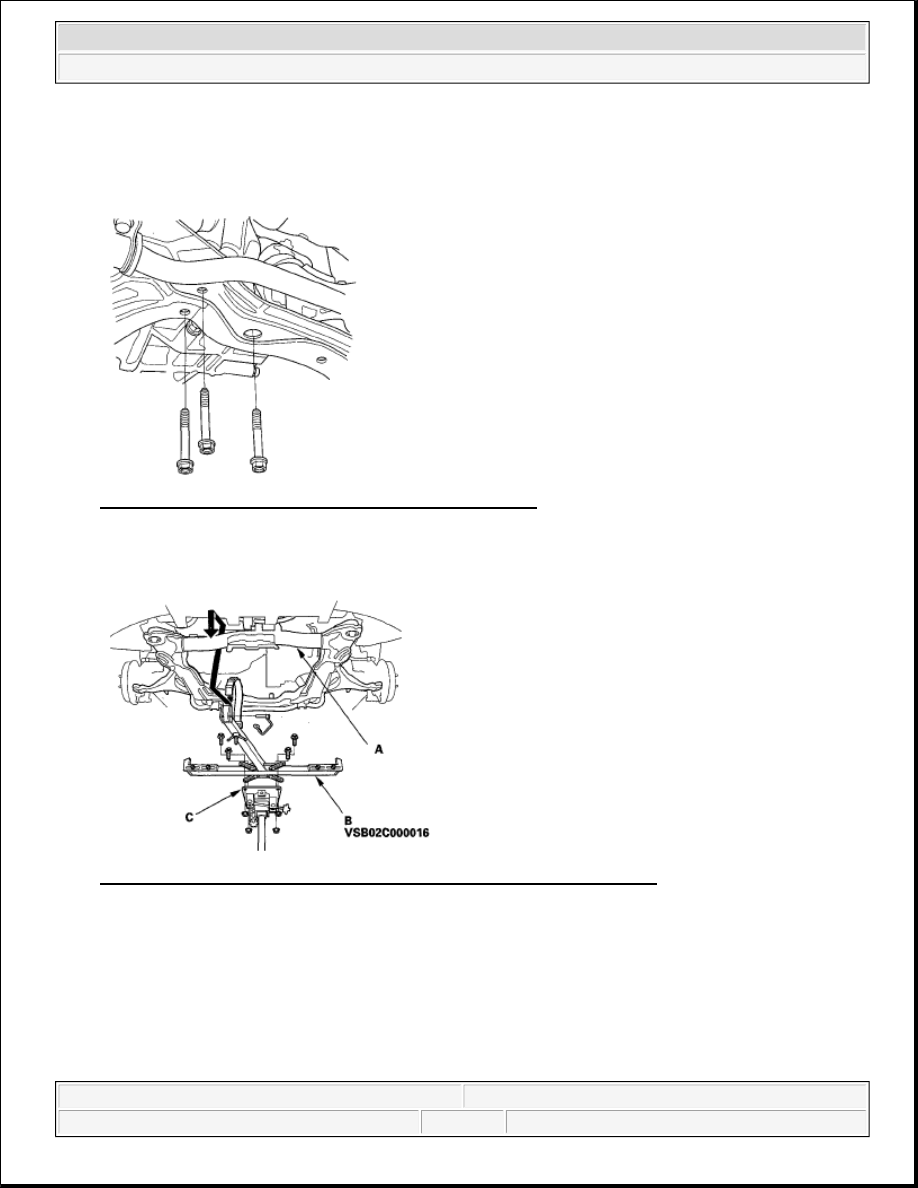

25. Remove the three bolts securing the rear transmission mount.

Fig. 15: Identifying Rear Transmission Mount And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

26. Support the front subframe (A) with the front subframe adapter (B) and a jack (C).

Fig. 16: Identifying Front Subframe, Front Subframe Adapter And Jack
Courtesy of AMERICAN HONDA MOTOR CO., INC.

27. Make reference marks (A) on the front subframe (B). Remove the mounting bolts (C), then remove the

front subframe.



2007 Honda Element EX

2007-2008 TRANSMISSION Manual Transmission - Element
