ERROR CODE LIST

Example Indication

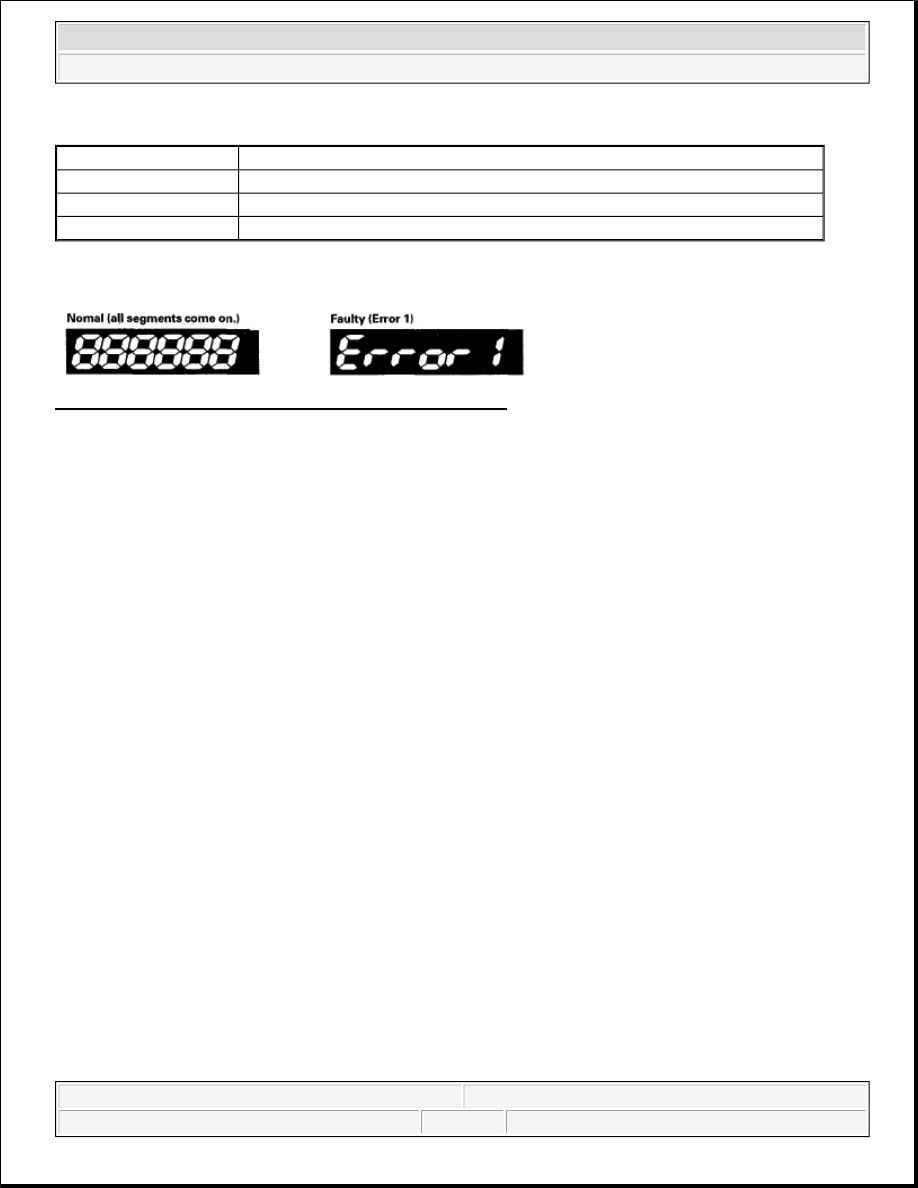

Fig. 5: Identifying Odometer Display (Example Indication)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



If the word "Error 1" is indicated, there is a malfunction in the communication line between the gauge
control module and the fast-controller area network (F-CAN). Check for DTCs in the ECM/PCM and
troubleshoot any DTCs found. If no DTCs are found, go to indicated troubleshooting.



If the word "Error 2" is indicated, there is a malfunction in the UART communication line between the
gauge control module and the multiplex control unit. Go to the gauge control module input test and check
the No. 27 terminal. If the wire harness is OK, substitute a known-good gauge control module and
recheck.



If the word "Error 3" is indicated, there is a malfunction in the communication line between the gauge
control module and F-CAN and UART. Check for DTCs in the ECM/PCM and troubleshoot any DTCs
found.

ENDING THE SELF-DIAGNOSTIC FUNCTION

Turn the ignition switch OFF.

CIRCUIT DIAGRAM

Error code

Type of communication line(s) error

Error 1

F-CAN communication

Error 2

UART communication

Error 3

F-CAN and UART communication

NOTE:

If the vehicle speed exceeds 1.2 mph (2 km/h), the self-diagnostic function ends.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element

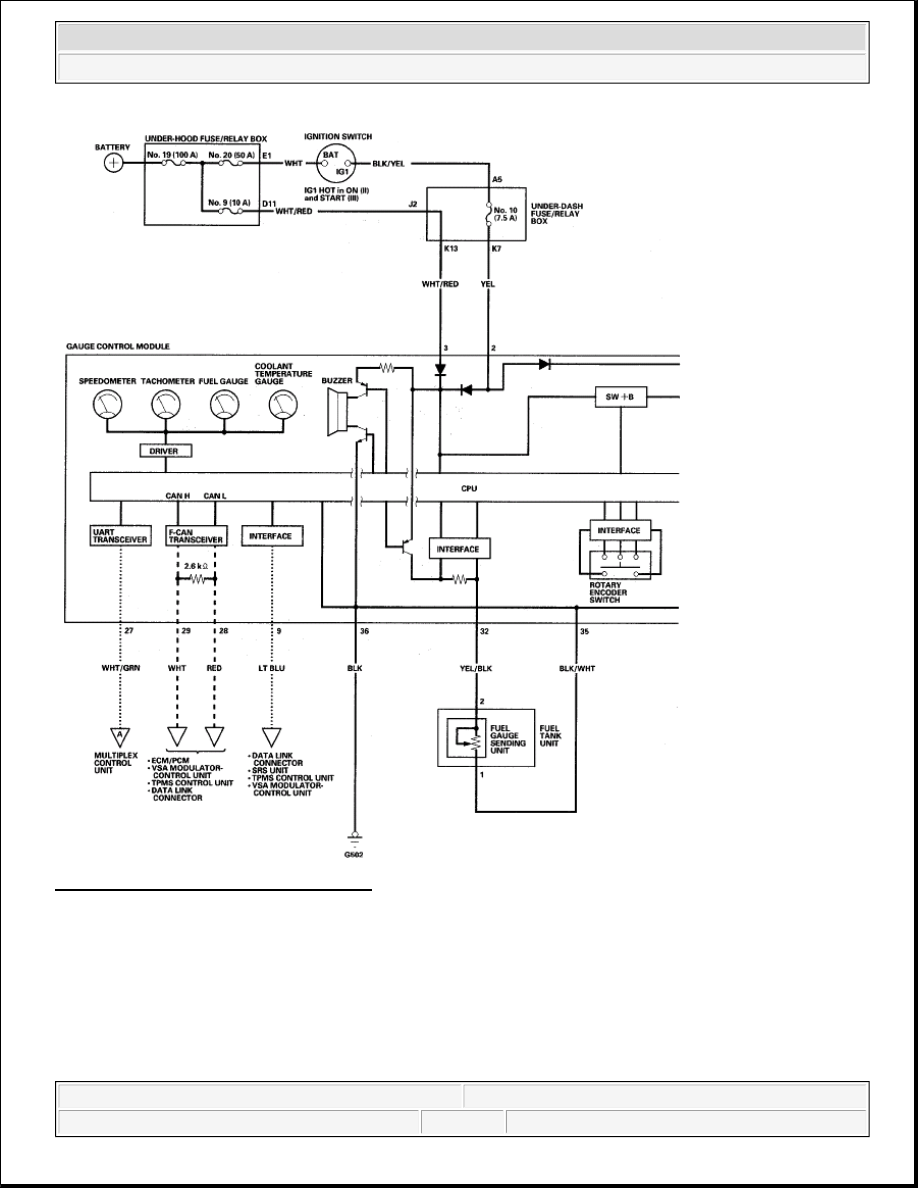

Fig. 6: Gauges - Circuit Diagram (1 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element

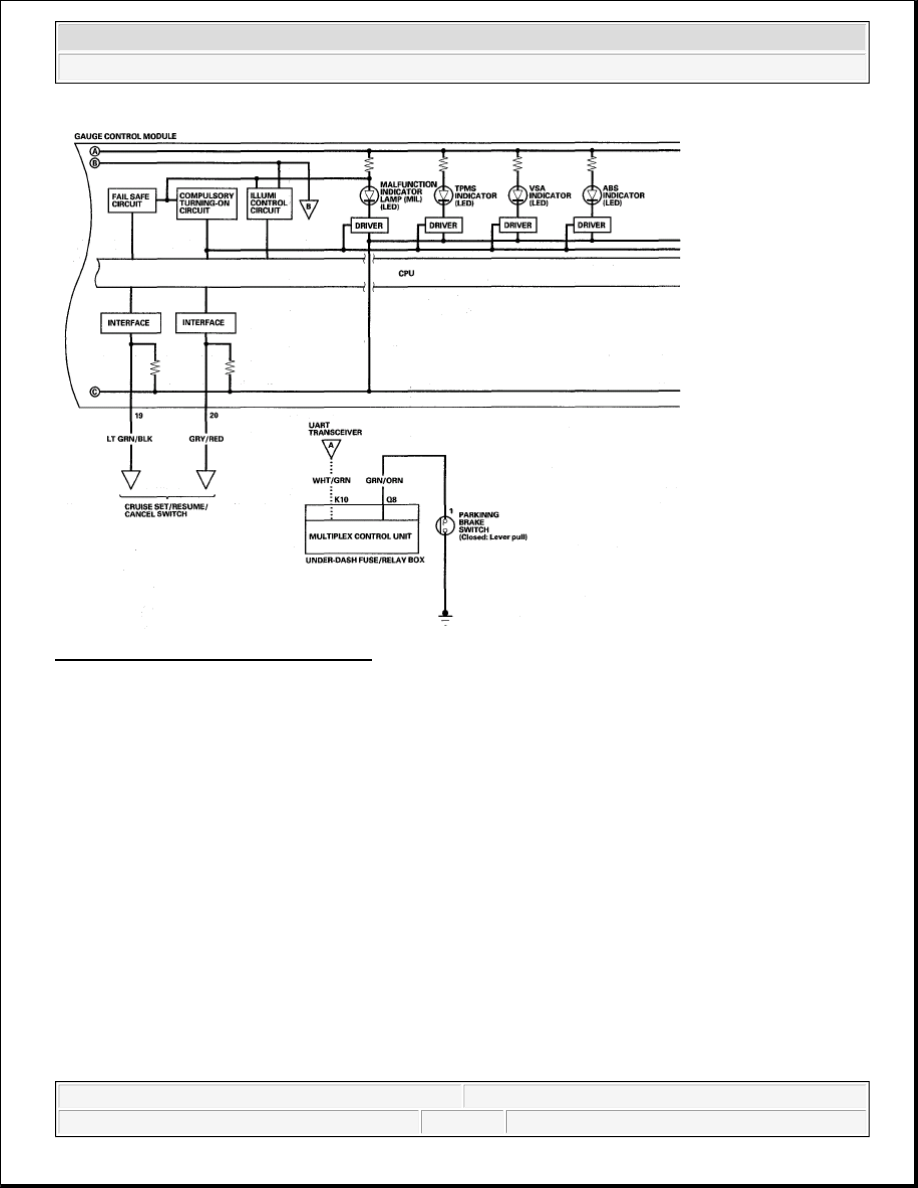

Fig. 7: Gauges - Circuit Diagram (2 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element

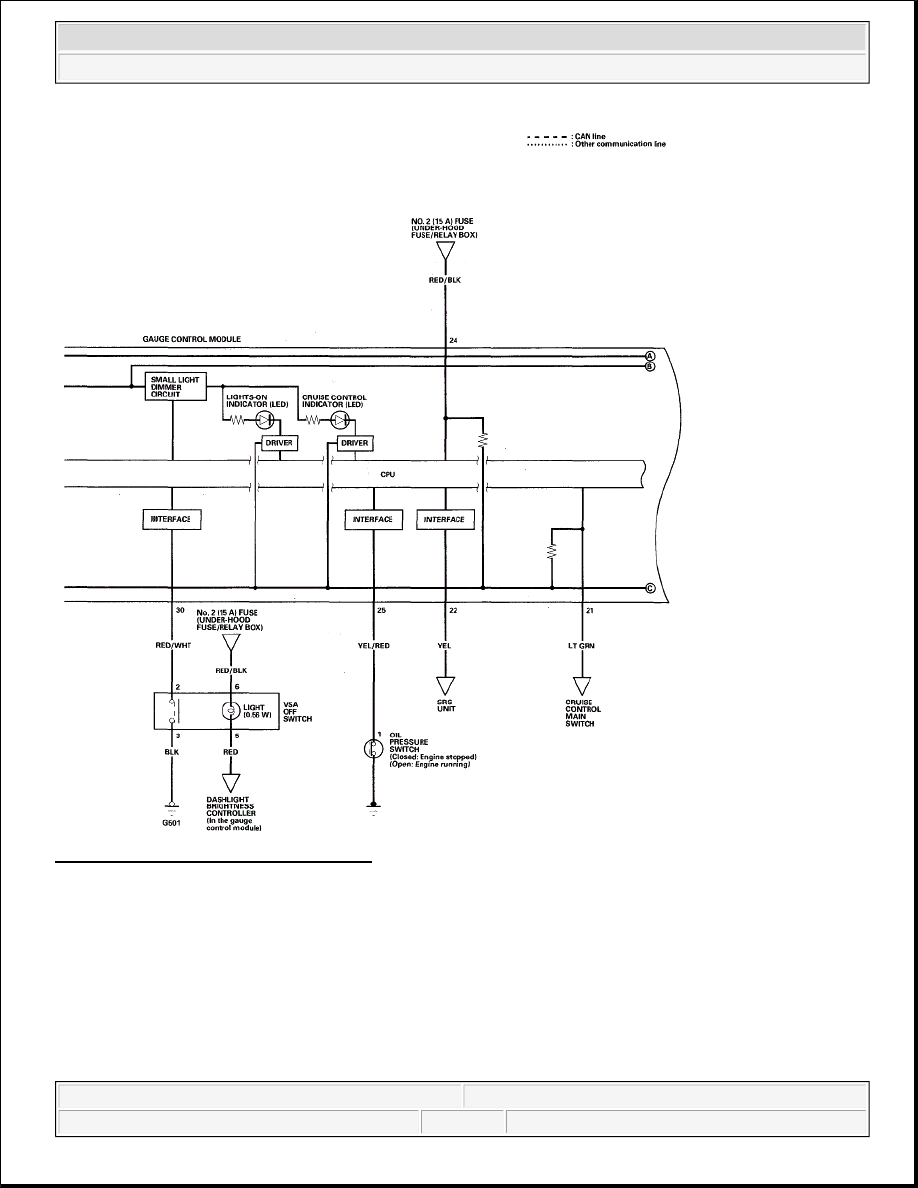

Fig. 8: Gauges - Circuit Diagram (3 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
