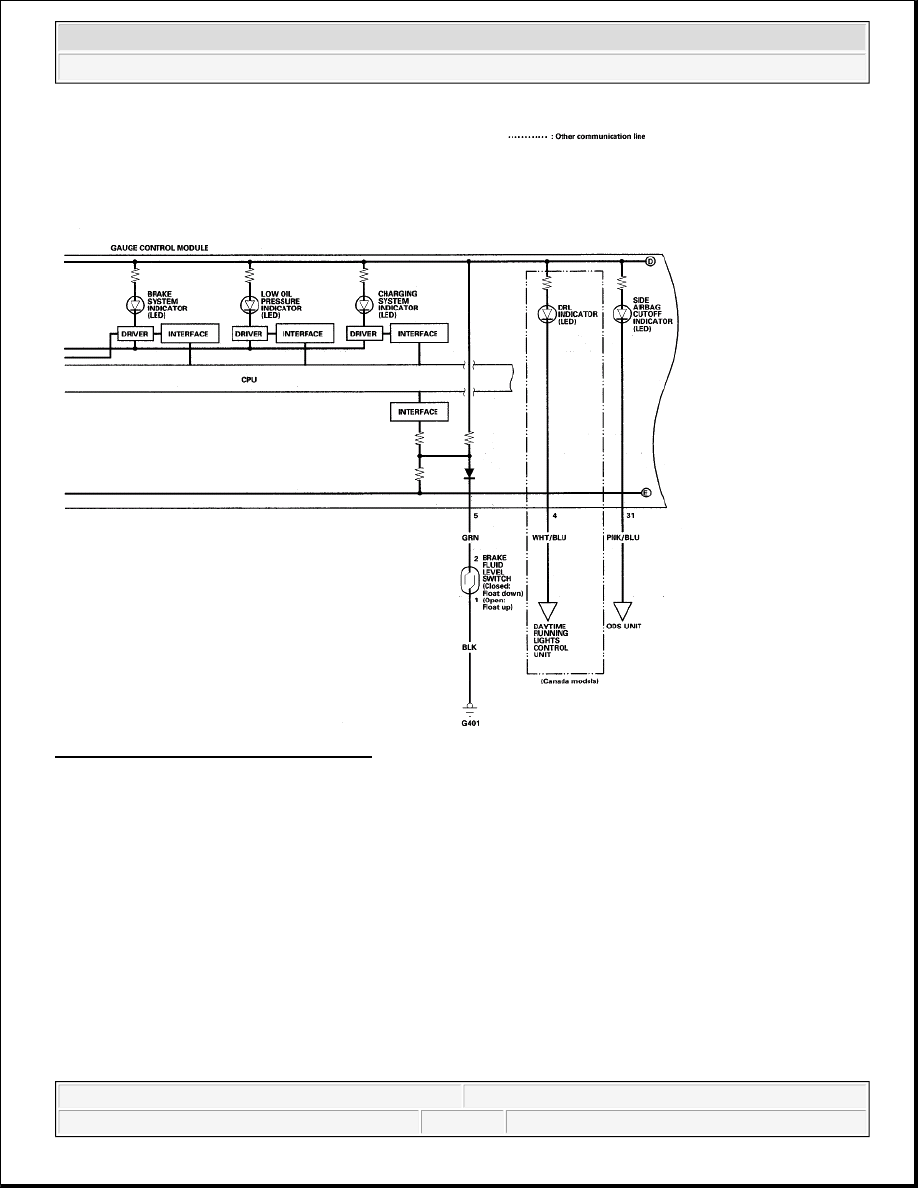

Fig. 9: Gauges - Circuit Diagram (4 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element



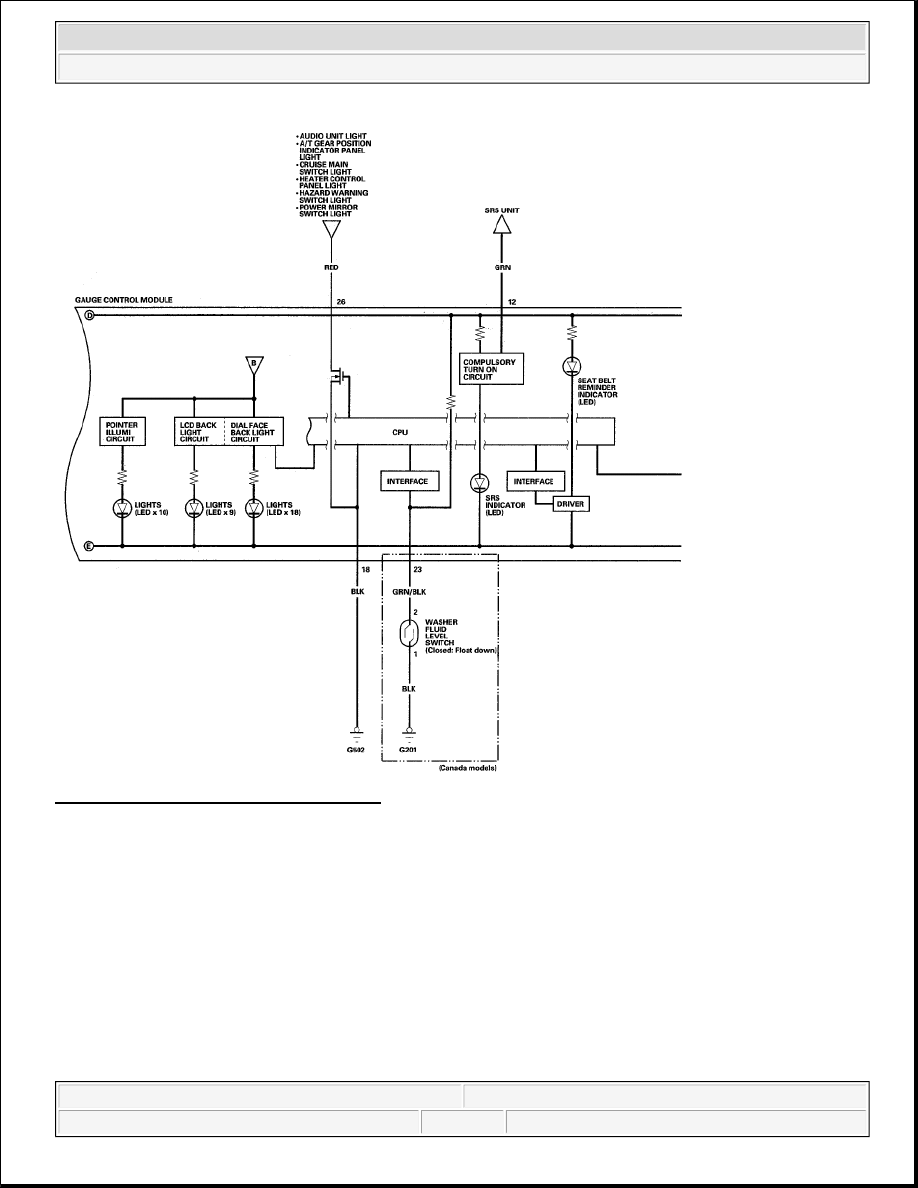

Fig. 10: Gauges - Circuit Diagram (5 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element



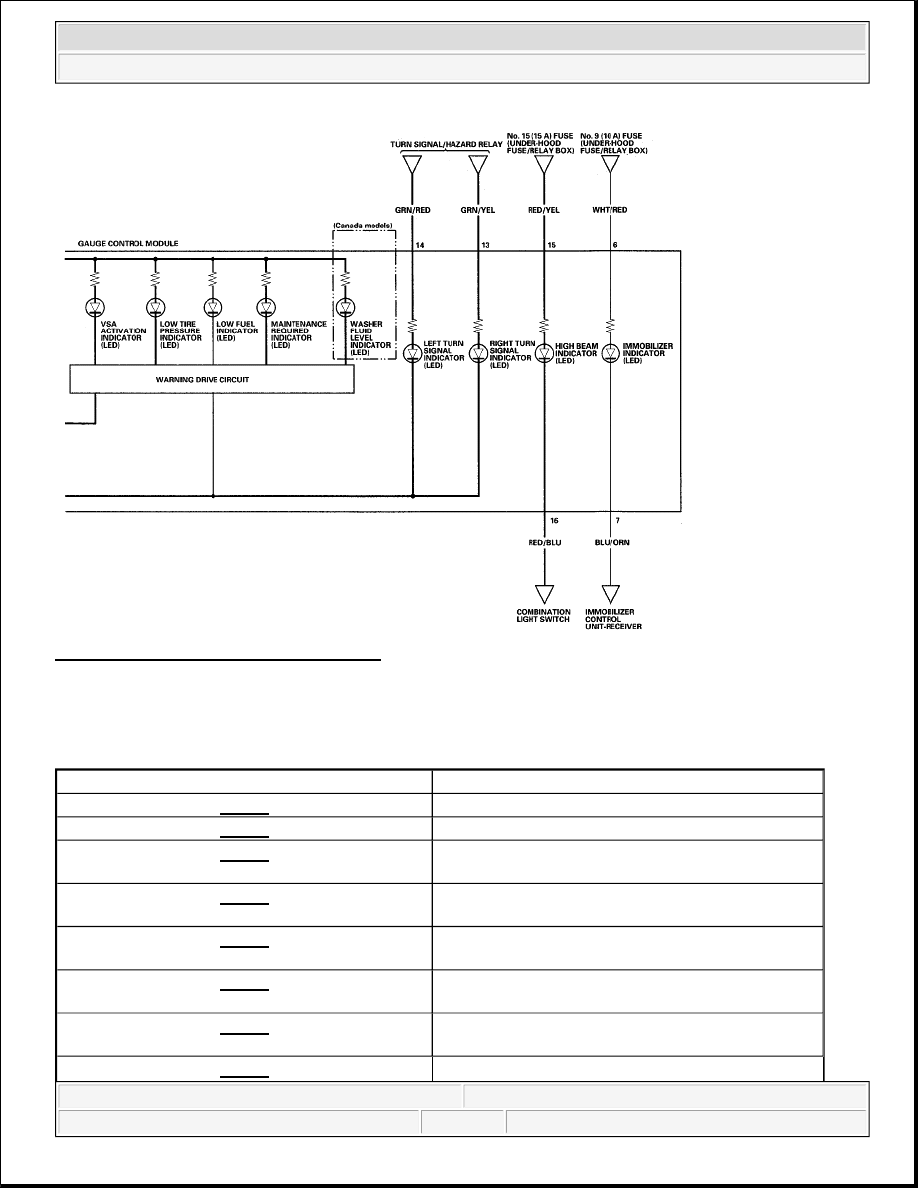

Fig. 11: Gauges - Circuit Diagram (6 Of 6)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING INDEX

DTC TROUBLESHOOTING INDEX

DTC

Description

B1152

Gauge Control Module (EEPROM) Error

B1154

Lost Communication UART

B1168

Gauge Control Module Lost Communication with the
ECM/PCM (Engine Messages)

B1169

Gauge Control Module Lost Communication with the
PCM (A/T Messages)

B1170

Gauge Control Module Lost Communication with
VSA Modulator-Control Unit (VSA Message)

B1173

Gauge Control Module Lost Communication with
TPMS Control Unit (TPMS Message)

B1175

Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit
Open

B1176

Fuel Level Sensor (Fuel Gauge Sending Unit) Circuit



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Gauges - Element



DTC TROUBLESHOOTING

DTC B1152: GAUGE CONTROL MODULE (EEPROM) ERROR

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

3. Check for DTCs with the HDS.

Is DTC B1152 indicated?

YES - Replace the gauge control module.

NO - Intermittent failure, the system is OK at this time. Check for loose or poor connections. If the
connections are good, check the battery condition (see BATTERY TEST ), and the charging system.

DTC B1154: LOST COMMUNICATION UART

1. Clear the DTCs with the HDS.

2. Turn the ignition switch OFF, and then back ON (II).

3. Check for DTCs with the HDS.

Is DTC B1154 indicated?

YES - Go to step 4.

NO - Intermittent failure, the UART communication line is OK at this time. Check for loose or poor
connections. If the connections are good, check the battery condition (see BATTERY TEST ), and the
charging system.

4. Turn the ignition switch OFF.

5. Disconnect the gauge control module 36P connector.

6. Disconnect the keyless receiver unit 5P connector.

7. Disconnect under-dash fuse/relay box connector K (17P).

8. Check for continuity between body ground and under-dash fuse/relay box connector K (17P) No. 2 and

No. 10 terminals.

Short

B1177

Abnormal Battery Voltage

B1178

F-CAN Communication Line Error
