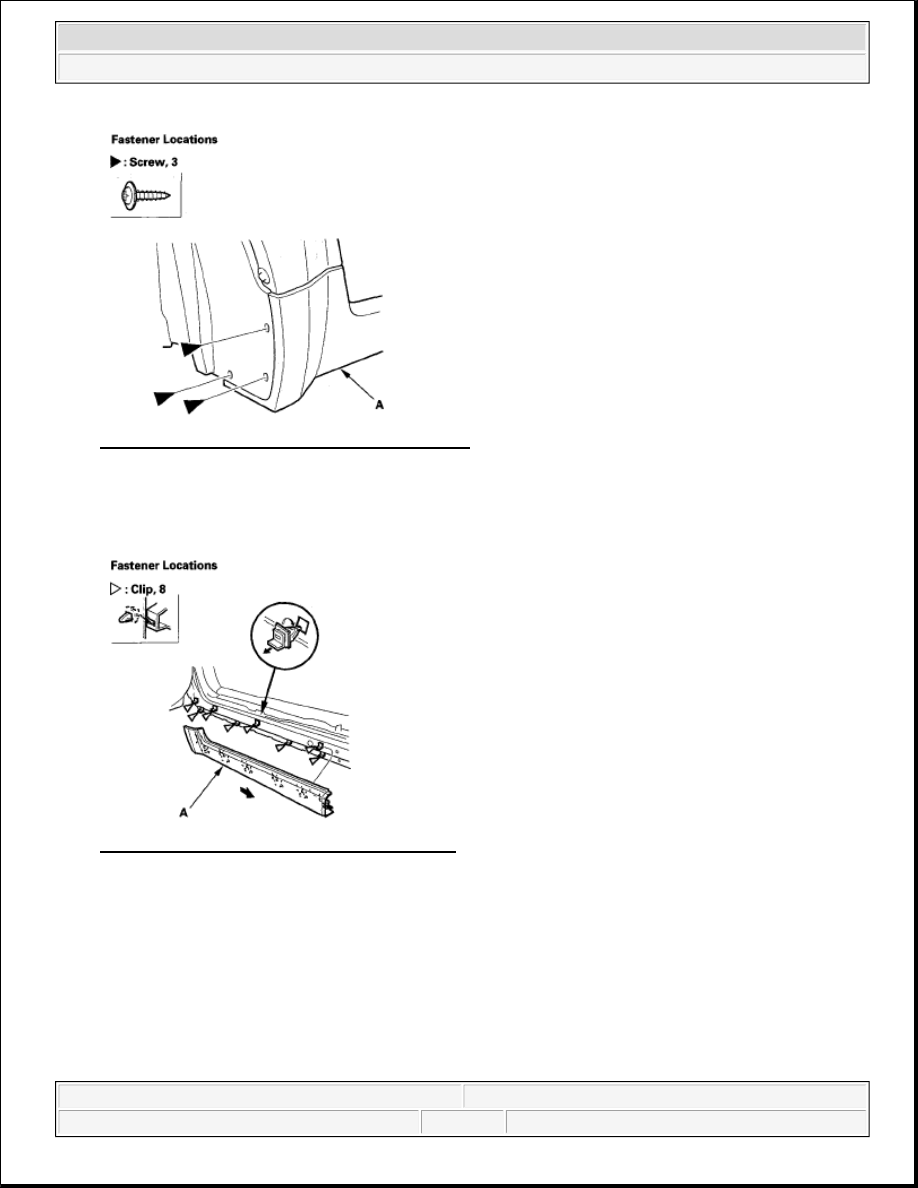

Fig. 34: Identifying Front Side Sill Panel Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Slide the front side sill panel (A) rearward to release it from the clips, then remove the panel. The clips

will stay in the body.

Fig. 35: Identifying Front Side Sill Panel Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the clips by turning them 45° from the body.

7. Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.

8. Install the clips on the side sill panels.

9. Hold the front side sill panel (A) up, and fit all the clips (B) into the holes in the body, then push on the

panel until the clips snap into place.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Trim - Element

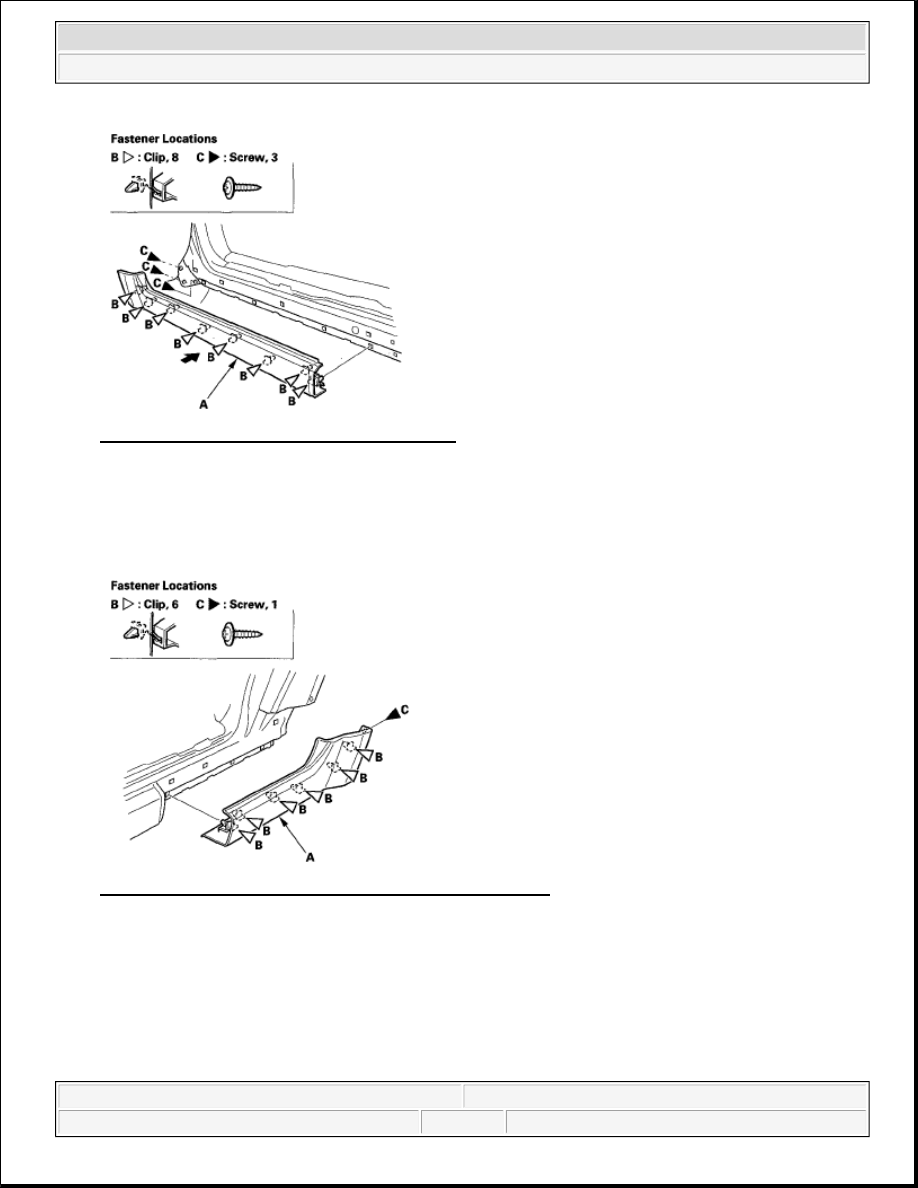

Fig. 36: Identifying Front Side Sill Panel Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Install the screws (C).

11. Hold the rear side sill panel (A) up, and fit all the clips (B) into the holes in the body, then push on the

panel until the clips snap into place.

Fig. 37: Identifying Rear Side Sill Panel, Clips And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the screw (C).

FRONT FENDER CLADDING REPLACEMENT

NOTE:



Put on gloves to protect your hands.



Take care not to scratch the body.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Trim - Element



1. From the wheel arch, remove the screws (A, B) and clips (C).

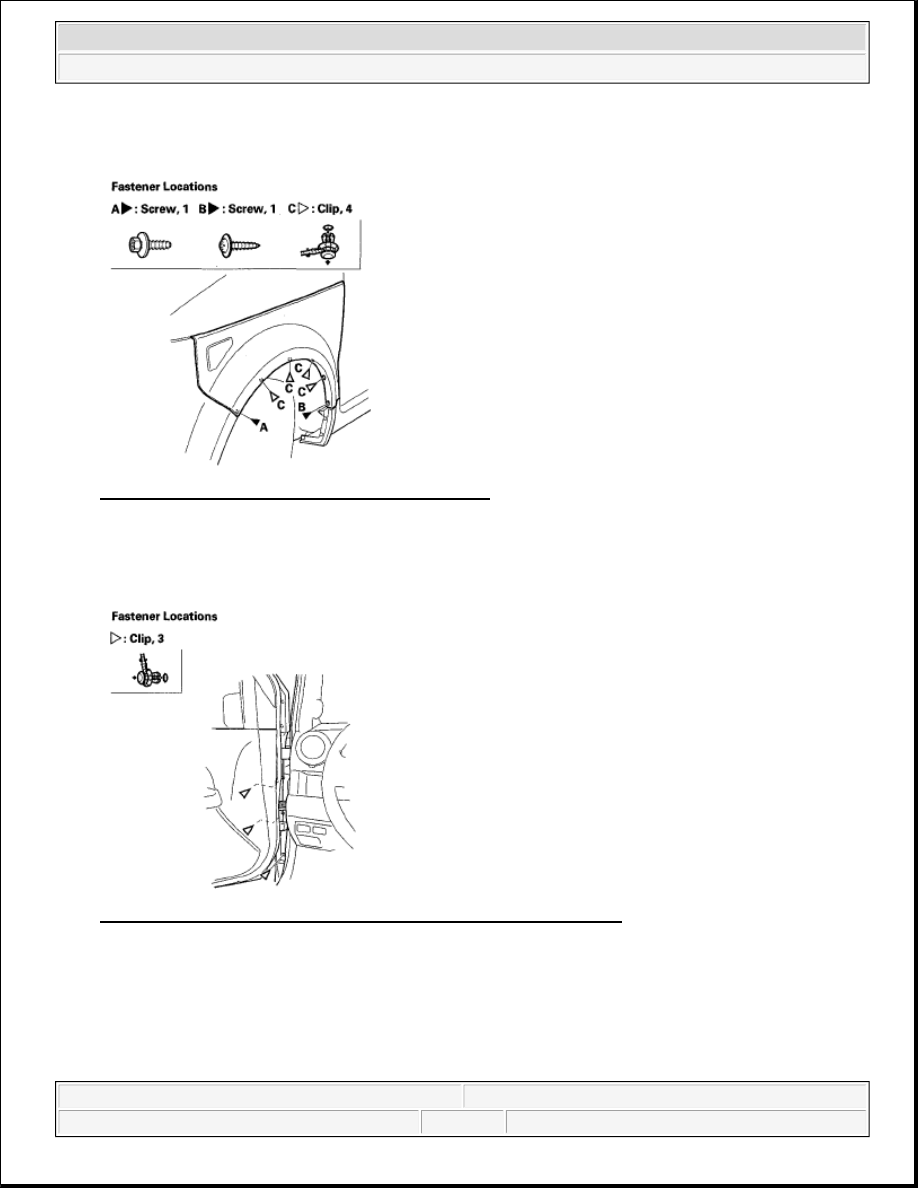

Fig. 38: Identifying Wheel Arch, Screws And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Open the door. From outside the door, remove the upper and middle clips, and from inside the door,

remove the lower clip securing the front fender cladding and front fender.

Fig. 39: Identifying Front Fender Cladding And Front Fender Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Pull out along the upper edge on the front fender cladding (A) to release clips, then remove the cladding

from the body. LX, EX, models: Disconnect the front turn signal light connector (B).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Trim - Element

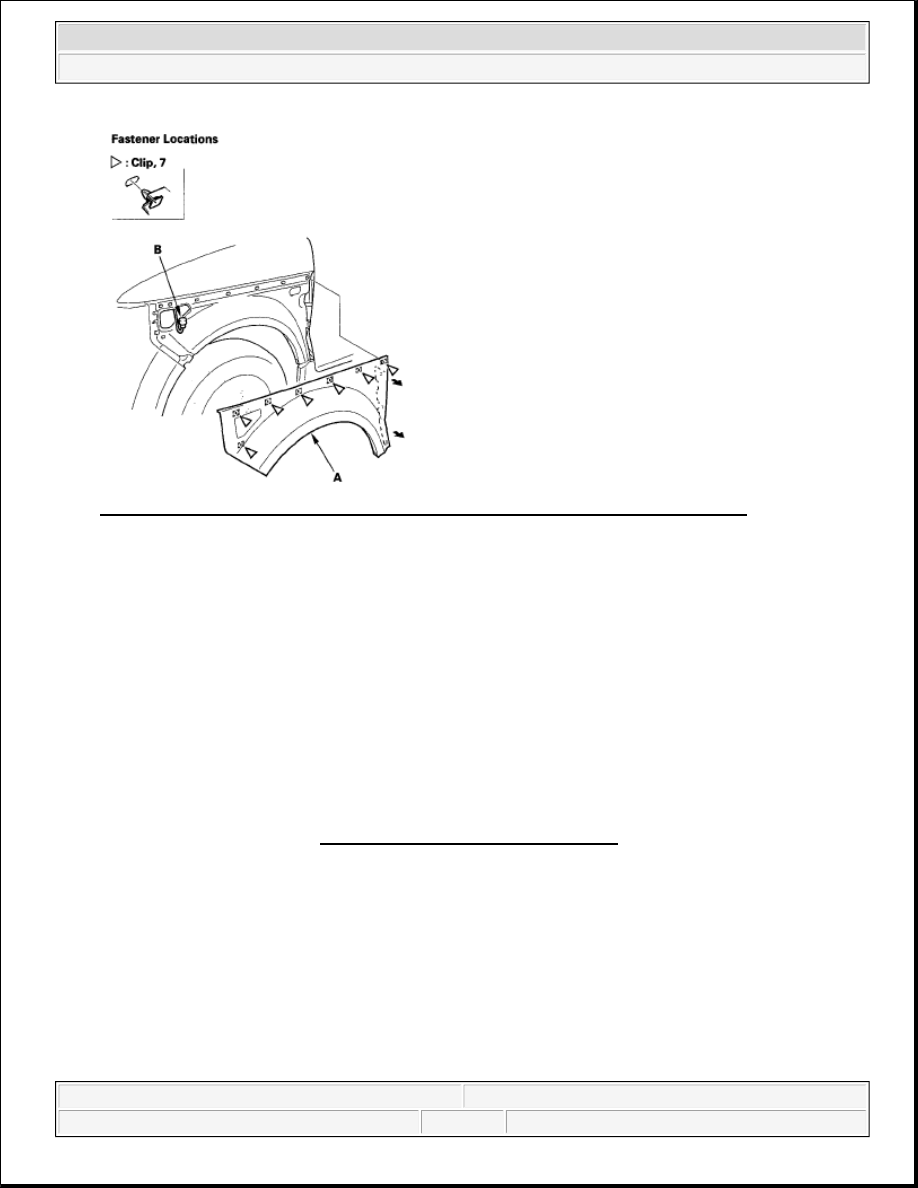

Fig. 40: Identifying Front Fender Cladding And Front Turn Signal Light Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the cladding in the reverse order of removal, and note these items:



When removing the remaining clips from the body, turn the clip 90°, and pull it out.



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Make sure the front turn signal light connector is plugged in properly.



Push the clip portions into place securely.

REAR QUARTER PANEL CLADDING REPLACEMENT

1. Remove the fuel fill door (see FUEL FILL DOOR REPLACEMENT ).

2. From the rear wheel arch, remove the screws (A) and clips (B).

NOTE:



Put on gloves to protect your hands.



Take care not to scratch the body.
