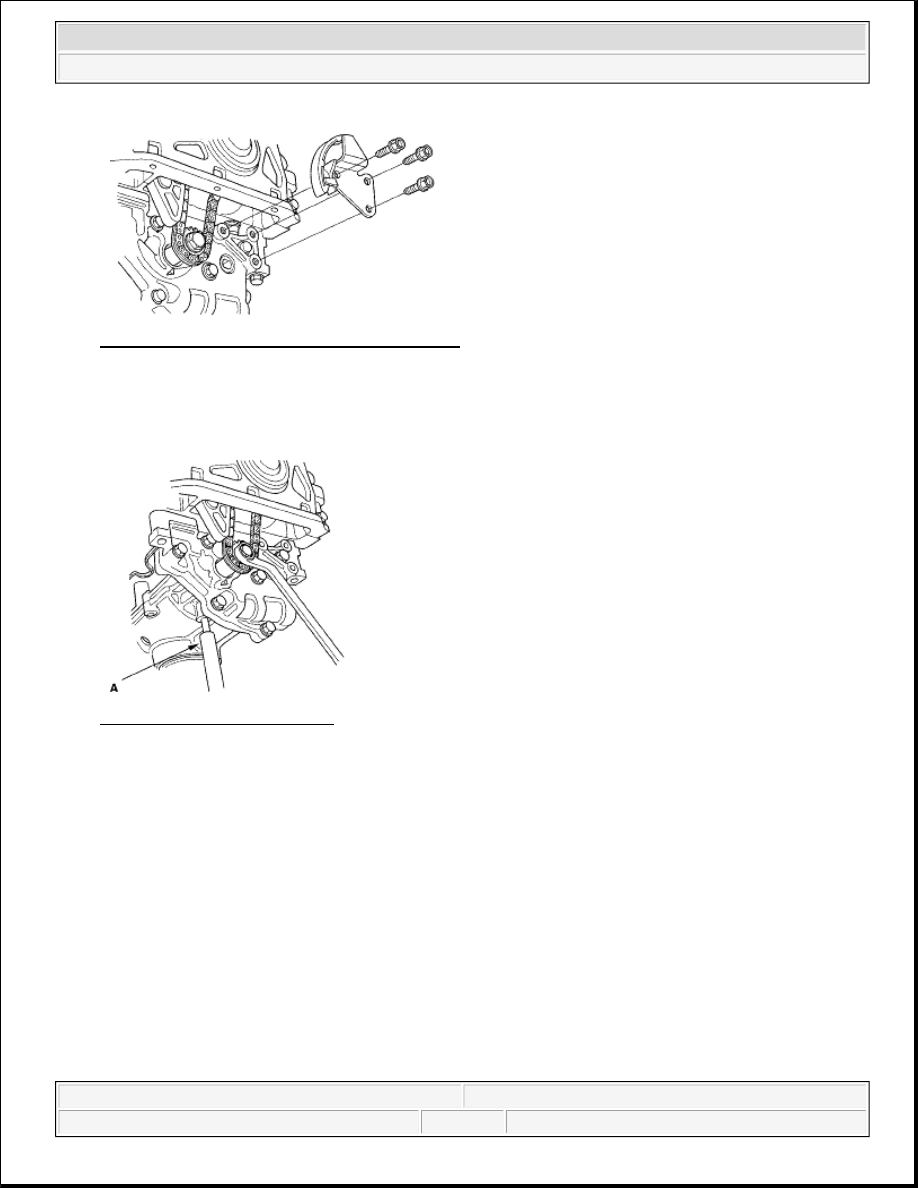

Fig. 13: Identifying Oil Pump Chain Tensioner
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. To hold the rear balancer shaft, insert a 6 mm pin driver (A) into the maintenance hole in the lower

balancer shaft holder and through the rear balancer shaft.

Fig. 14: Identifying Pin Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Loosen the oil pump sprocket mounting bolt.

6. Remove the oil pump sprocket (A), then remove the oil pump(B).



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



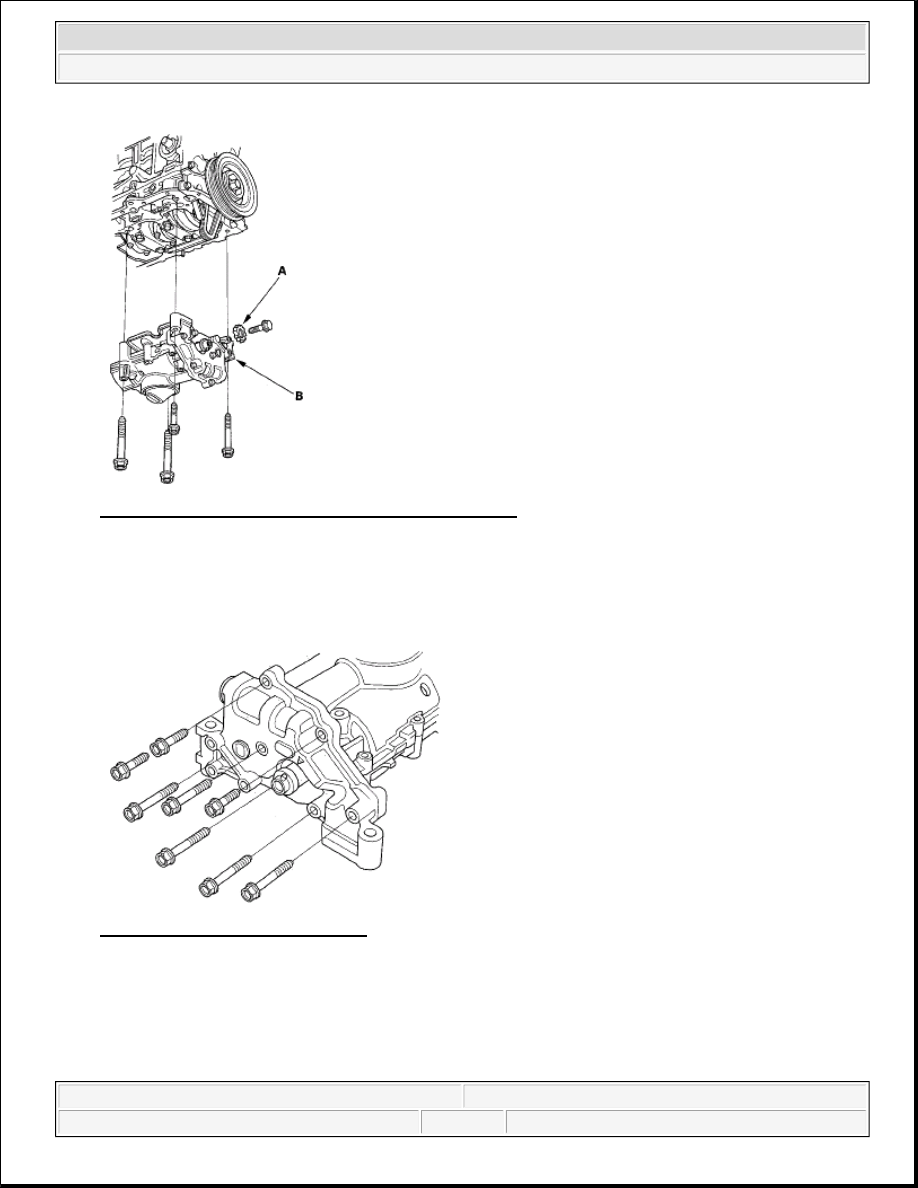

Fig. 15: Identifying Oil Pump Sprocket And Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL PUMP INSPECTION

1. Remove the pump housing.

Fig. 16: Identifying Pump Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check the inner-to-outer rotor radial clearance between the inner rotor (A) and outer rotor (B). If the

inner-to-outer rotor radial clearance exceeds the service limit, replace the oil pump.

Inner Rotor-to-Outer Rotor Radial Clearance



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



Standard (New): 0.06-0.16 mm (0.002-0.006 in.)

Service Limit: 0.20 mm (0.008 in.)

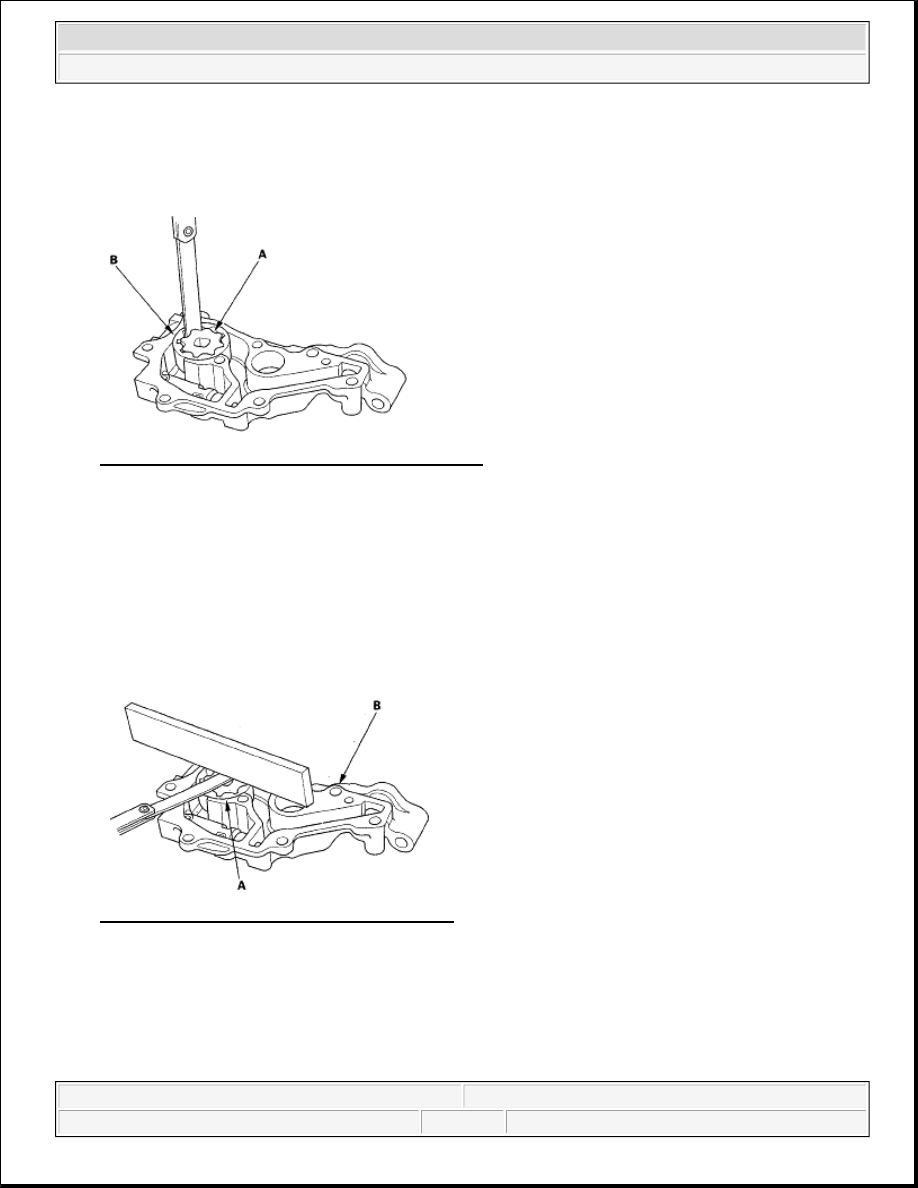

Fig. 17: Identifying Inner Rotor And Outer Rotor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check the housing-to-rotor axial clearance between the rotor (A) and pump housing (B). If the housing-

to-rotor axial clearance exceeds the service limit, replace the oil pump.

Housing-to-Rotor Axial Clearance

Standard (New): 0.035-0.070 mm (0.0014-0.0028 in.)

Service Limit: 0.12 mm (0.005 in.)

Fig. 18: Identifying Rotor And Pump Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Check the housing-to-outer rotor radial clearance between the outer rotor (A) and pump housing (B). If

the housing-to-outer rotor radial clearance exceeds the service limit, replace the oil pump.

Housing-to-Outer Rotor Radial Clearance

Standard (New): 0.15-0.21 mm (0.006-0.008 in.)



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



Service Limit: 0.23 mm (0.009 in.)

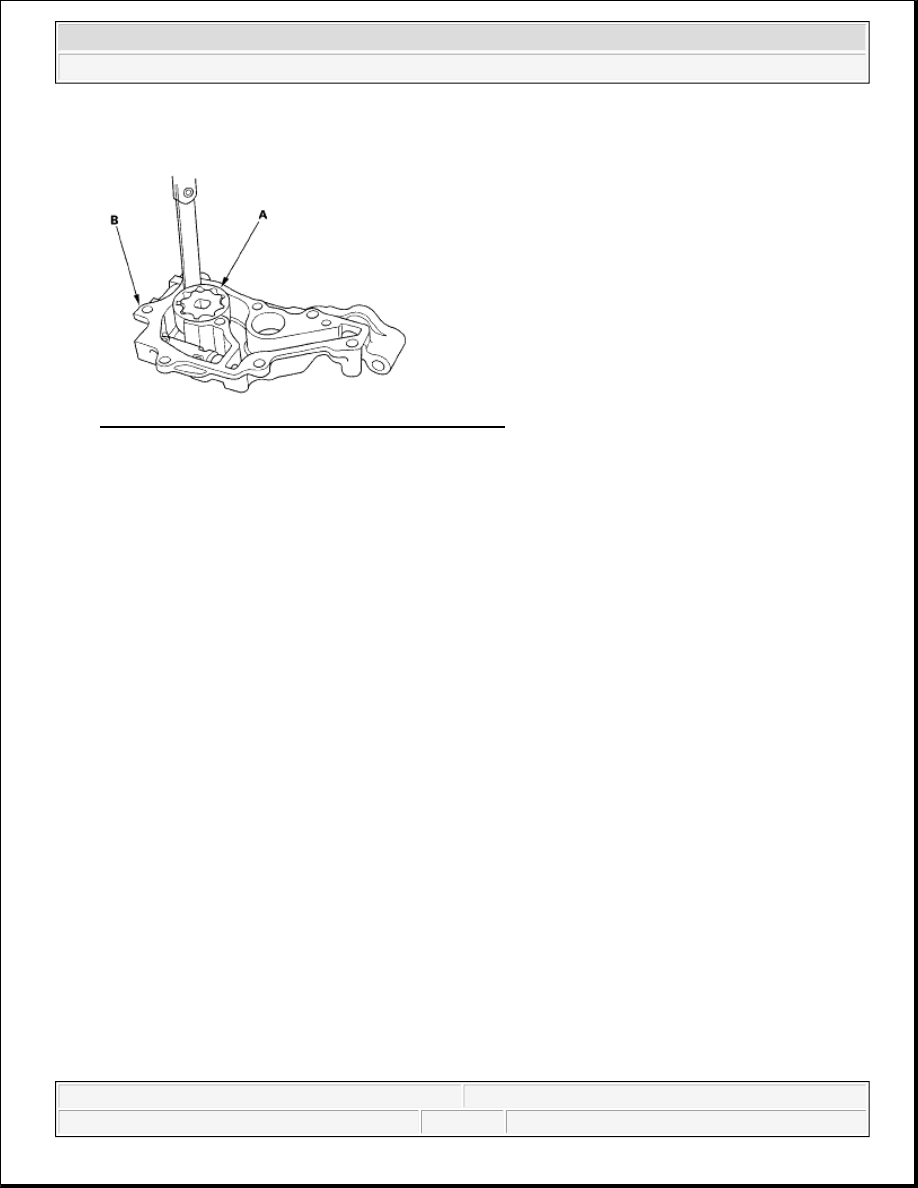

Fig. 19: Identifying Outer Rotor And Pump Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Inspect both rotors and the pump housing for scoring or other damage. Replace the parts if necessary.

BALANCER SHAFT INSPECTION

1. Seat the balancer shaft by pushing it away from the oil pump sprocket end of the oil pump.

2. Zero the dial indicator against the end of the balancer shaft, then push the balancer shaft back and forth

and read the end play.

Balancer Shaft End Play

Front Balancer Shaft:

Standard (New): 0.063-0.108 mm (0.0025-0.0043 in.)

Service Limit: 0.14 mm (0.0055 in.)

Rear Balancer Shaft:

Standard (New): 0.063-0.108 mm (0.0025-0.0043 in.)

Service Limit: 0.14 mm (0.0055 in.)
