OIL PRESSURE SWITCH TEST

1. Remove the YEL/RED wire (A) from the oil pressure switch (B).

Excessive engine oil
consumption

1. Verify the engine oil filter cap, oil drain bolt,

and oil filter are torque.

2. Check for oil leaks.

3. Check for worn valve guide(s) (see VALVE

INSPECTION ) or worn valve stem seal(s)
(see VALVE INSPECTION ).

4. Check for damaged or worn piston ring(s)

(see PISTON RING REPLACEMENT ).

5. Check for damaged or worn engine internal

parts (cylinder wall, pistons, etc.) (see
BLOCK AND PISTON INSPECTION ).



Low oil pressure indicator
does not come on with the
ignition switch ON (II)

1. Do the gauge control module self-diagnostic

function (see SELF-DIAGNOSTIC
FUNCTION ).

2. Test the oil pressure switch (see OIL

PRESSURE SWITCH TEST ).

An open in the wire
between the gauge
assembly and the oil
pressure switch

Low oil pressure indicator
stays on

1. Check the engine oil level.

2. Do the gauge control module self-diagnostic

function (see SELF-DIAGNOSTIC
FUNCTION ).

3. Test the oil pressure switch (see OIL

PRESSURE SWITCH TEST ).

4. Check the engine oil pressure (see ENGINE

OIL REPLACEMENT ).

5. Check the oil filter for clogging.

6. Check the oil screen for clogging.

7. Check the relief valve.

8. Check the oil pump (see OIL PUMP

INSPECTION ).

A wire shorted to ground
between the gauge
assembly and the oil
pressure switch



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



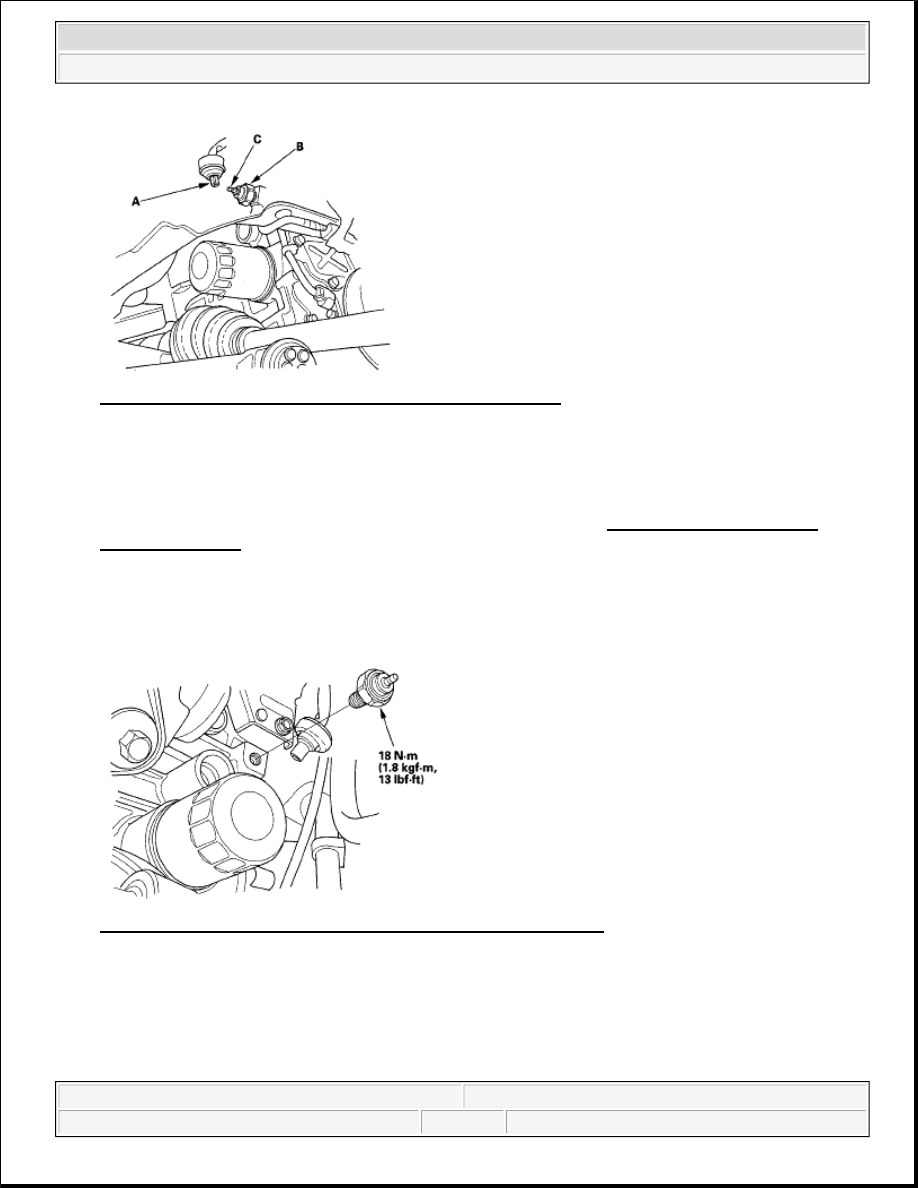

Fig. 3: Identifying YEL/RED Wire And Oil Pressure Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Check for continuity between the positive terminal (C) and the engine (ground). There should be

continuity with the engine stopped. There should be no continuity with the engine running.

3. If the switch fails to operate, check the engine oil level. If the engine oil level is OK, check the engine oil

pressure. If the oil pressure is OK, replace the oil pressure switch (see OIL PRESSURE SWITCH
REPLACEMENT ).

OIL PRESSURE SWITCH REPLACEMENT

1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

Fig. 4: Identifying Oil Pressure Switch With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove any old liquid gasket from the switch and switch mounting hole.

3. Apply a very small amount of liquid gasket to the new oil pressure switch threads, then install the oil

pressure switch.



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



4. Connect the oil pressure switch connector.

OIL PRESSURE TEST

If the oil pressure warning indicator stays on with the engine running, check the engine oil level. If the oil level
is correct:

1. Remove the engine oil pressure switch, and install an oil pressure gauge (A).

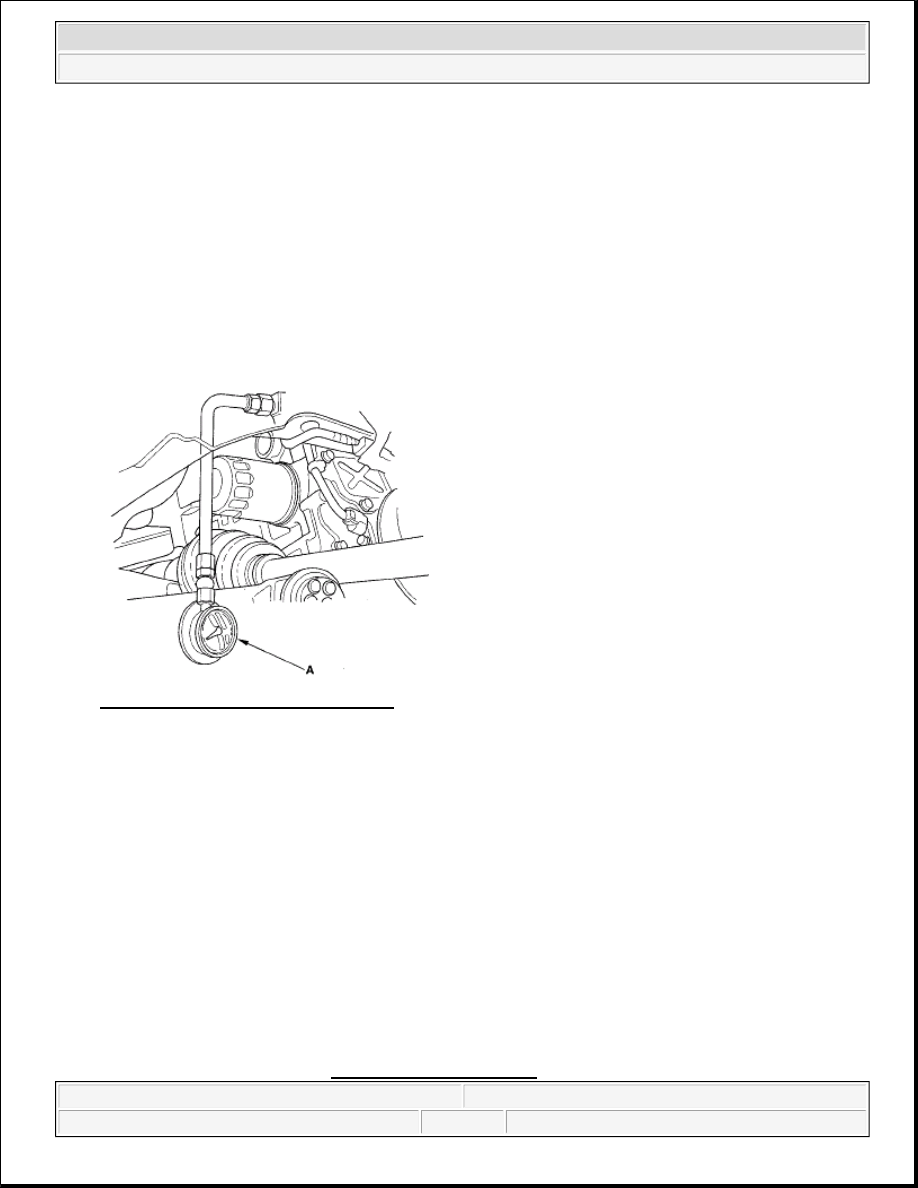

Fig. 5: Identifying Oil Pressure Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Start the engine. Shut it off immediately if the gauge registers no oil pressure. Repair the problem before

continuing.

3. Allow the engine to reach operating temperature (fan comes on at least twice). The pressure should be:

Engine Oil Temperature: 176°F (80°C)

Engine Oil Pressure:

At Idle: 70 kPa (0.7 kgf/cm

2

 , 10 psi) min.



At 3,000 rpm: 300 kPa (3.1 kgf/cm

2

 , 44 psi) min.



4. If the oil pressure is not within specifications, inspect these items:



Check the oil screen for clogging.



Inspect the oil pump (see OIL PUMP INSPECTION ).

NOTE:

Using too much liquid gasket may cause liquid gasket to enter the oil
passage or the end of the new oil pressure switch.



2007 Honda Element EX

2007-08 ENGINE Engine Lubrication - Element



ENGINE OIL REPLACEMENT

1. Warm up the engine.

2. Remove the drain bolt (A), and drain the engine oil.

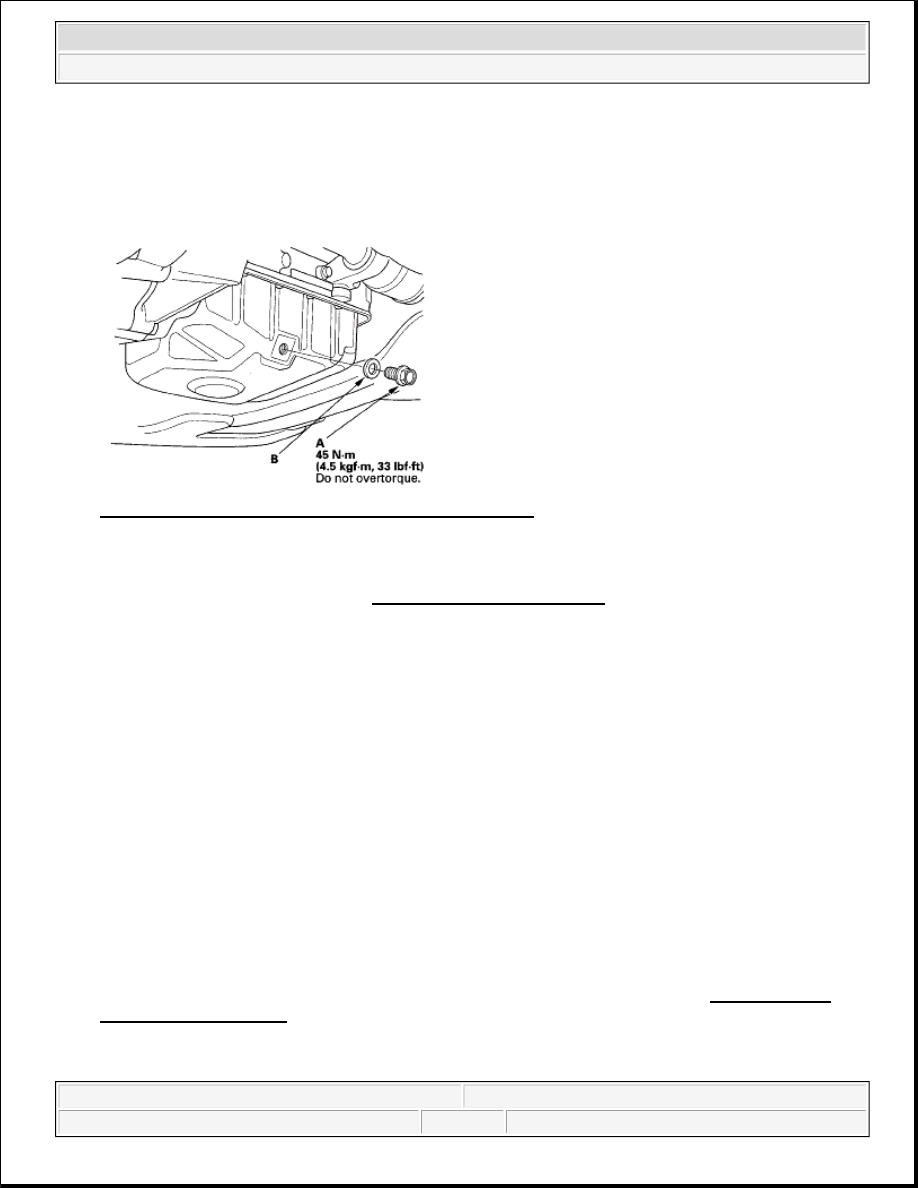

Fig. 6: Identifying Drain Bolt With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Reinstall the drain bolt with a new washer (B).

4. Refill with the recommended oil (see LUBRICANTS AND FLUIDS ).

Capacity

At Oil Change:

4.0 L (4.2 US qt)

At Oil Change including Filter:

4.2 L (4.4 US qt)

After Engine Overhaul:

5.3 L (5.6 US qt)

5. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3).

6. Turn the ignition switch ON (II).

7. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain

control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING ).

8. Select BODY ELECTRICAL with the HDS.

9. Select ADJUSTMENT in the GAUGES MENU with the HDS.
