Fig. 13: Identifying Automatic Transmission Fluid (ATF) Cooler Hoses And ATF Filter Mounting
Bolt

38. Remove the upper radiator hose (A) and heater hoses (B).

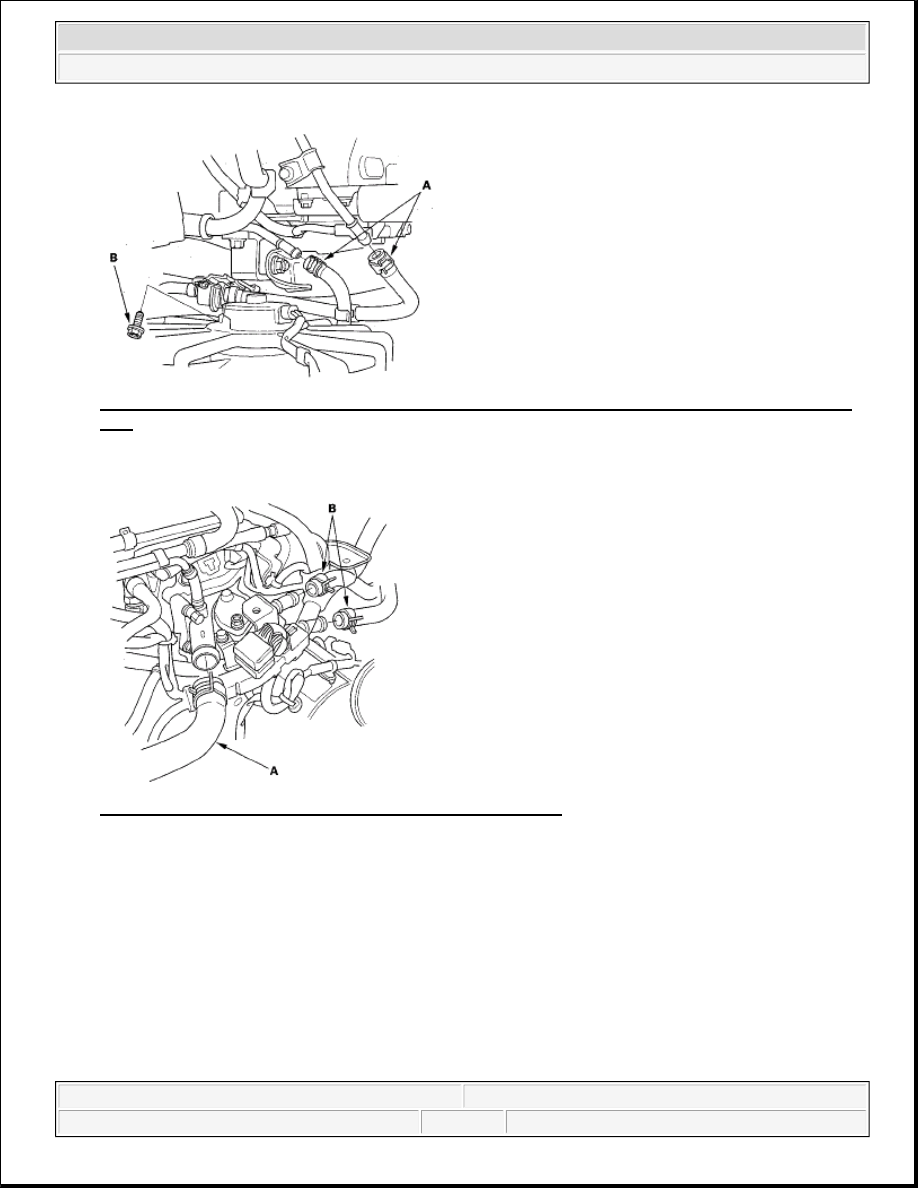

Fig. 14: Identifying Upper Radiator Hose And Heater Hoses

39. Clean any dirt off the quick connector (A), thermostat cover, and lower radiator hose.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element



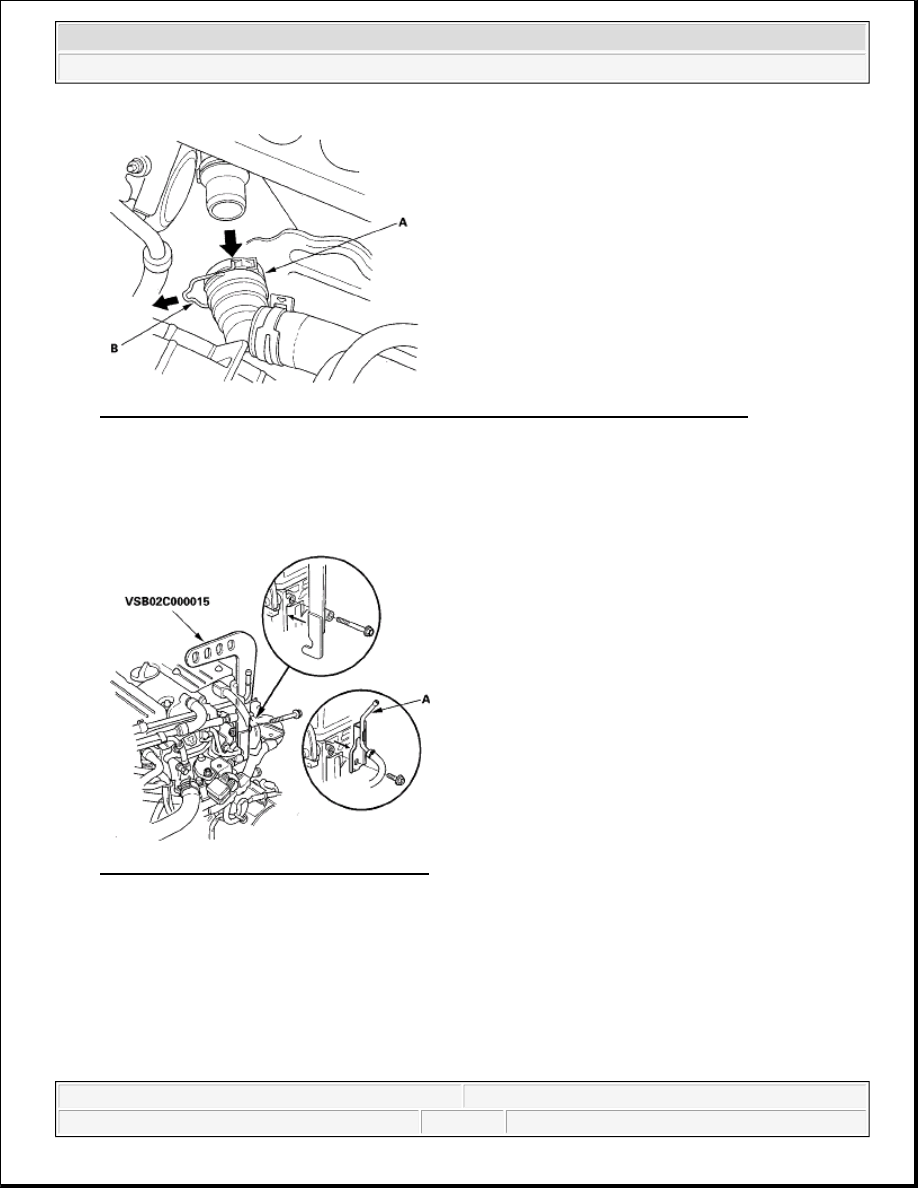

Fig. 15: Identifying Quick Connector, Thermostat Cover, And Lower Radiator Hose

40. Pull out the lock (B) by hand, then wiggle the quick connector loose, and remove it from the thermostat

cover. Do not use any tools to remove the quick connector.

41. Remove the purge joint pipe (A), then attach the engine hanger/adapter (VSB02C000015) to the threaded

hole in the cylinder head.

Fig. 16: Attaching Engine Hanger/Adapter

42. Install the front leg assembly (A), hook (B), and wing nut (C) onto the engine support hanger (AAR-T-

12566). Carefully position the engine support hanger on the vehicle, and attach the hook to the slotted
hole in the engine hanger/adapter. Torque the wing nut by hand to lift and support the
engine/transmission.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element

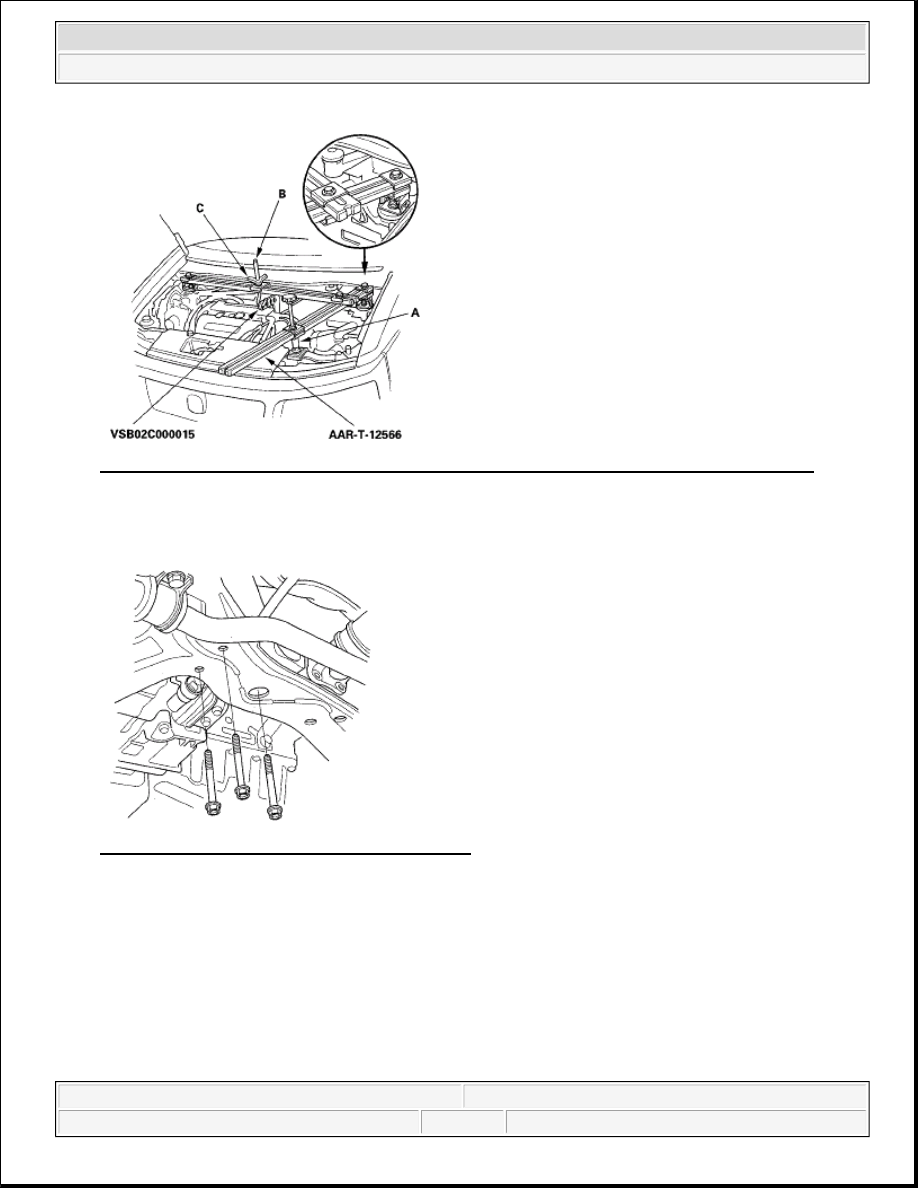

Fig. 17: Identifying Front Leg Assembly, Hook, And Wing Nut Onto Engine Support Hanger

43. Raise the vehicle on the lift to full height.

44. Remove the rear mount mounting bolts.

Fig. 18: Identifying Rear Mount Mounting Bolts

45. Remove the front mount mounting bolt.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element

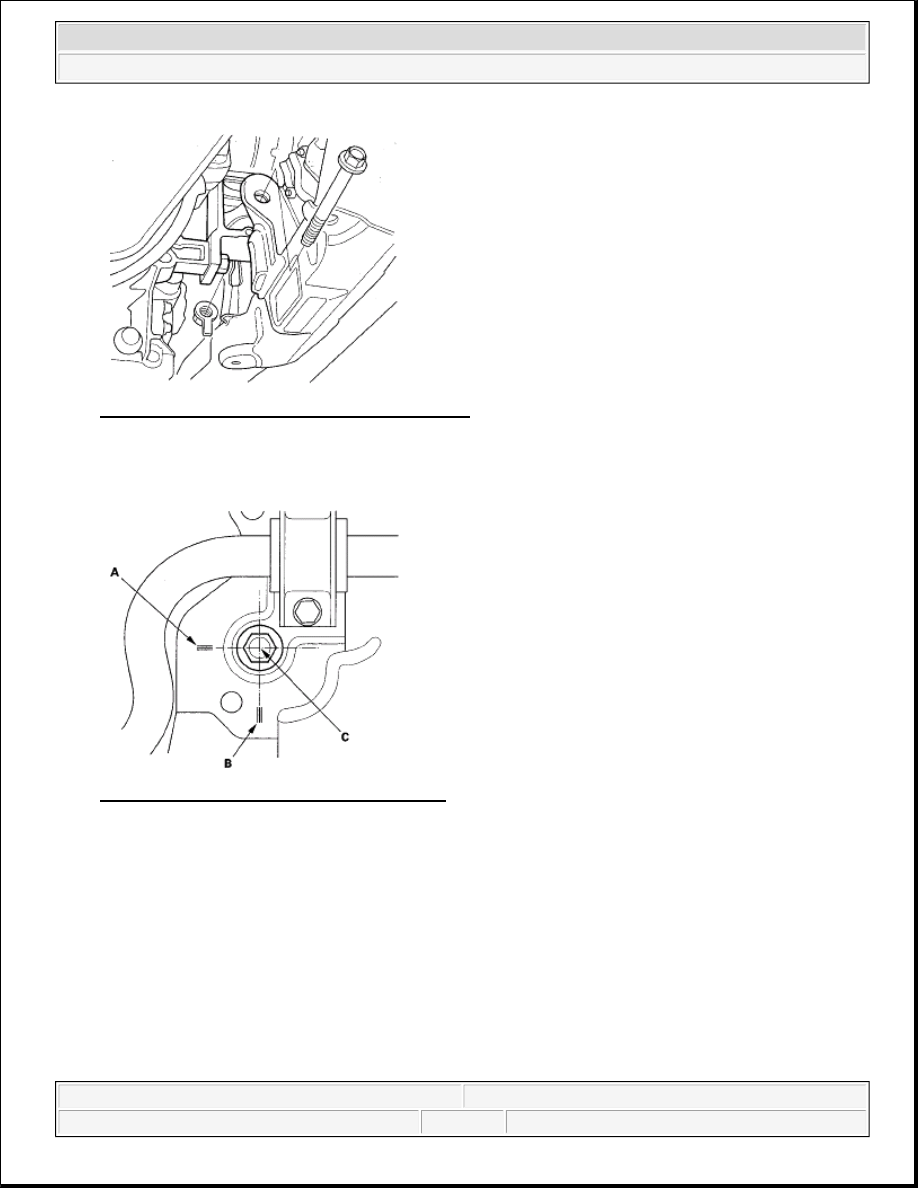

Fig. 19: Identifying Front Mount Mounting Bolt

46. Make the appropriate reference lines at positions (A) and (B) that line up with the center of each subframe

mounting bolt (C).

Fig. 20: Identifying Subframe Mounting Bolt

47. Attach the subframe adapter (VSB02C000016) to the subframe by hanging the belt (A) over the front of

the subfame (B), then secure the belt with its stop (C).
