Honda Element. Manual - part 462





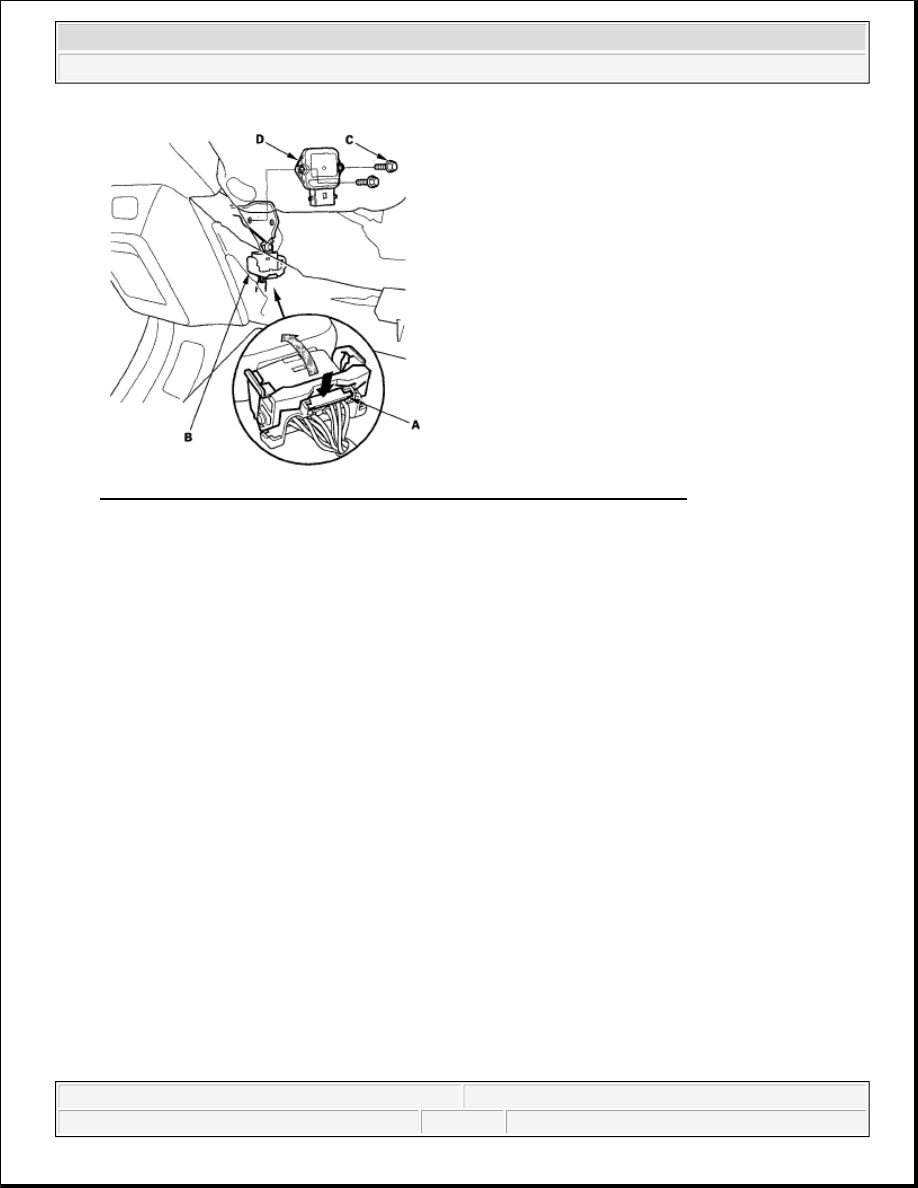

Fig. 66: Pushing Tab And Throttle Actuator Control Module 16P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the bolts (C), and the throttle actuator control module (D).

3. Install the parts in the reverse order of removal.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Electronic Throttle Control System - Element



2007-08 ENGINE

Engine Assembly - Element

SPECIAL TOOLS

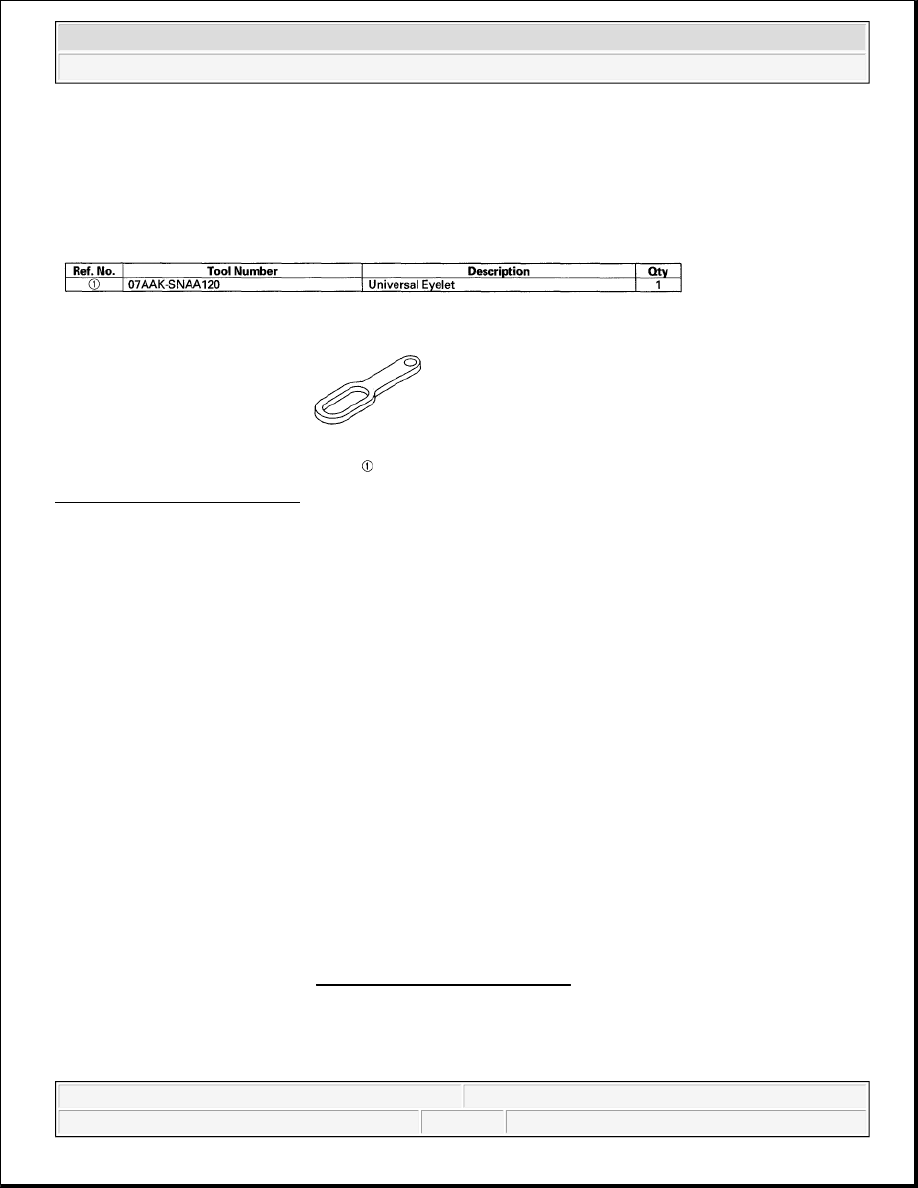

Fig. 1: Identifying Special Tools

ENGINE REMOVAL

Special Tools Required

Universal eyelet 07AAK-SNAA120

Engine hanger/adapter VSB02C000015

Engine support hanger, A & Reds AAR-T-12566

Subframe adapter VSB02C000016

These special tools are available through the Honda Tool and Equipment Program, 1-888-424-6857.

1. Remove the hood.

2. Make sure you have the anti-theft code for the audio system.

3. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).

4. Disconnect the negative cable from the battery first, then disconnect the positive cable.

5. Disconnect the mass air flow (MAF) sensor/intake air temperature (IAT) sensor connector (A).

NOTE:

Use fender covers to avoid damaging painted surfaces.

To avoid damaging the wires and terminals, unplug the wiring connectors
carefully while holding the connector portion.

Mark all wiring and hoses to avoid misconnection. Also, be sure that they
do not contact other wiring or hoses, or interfere with other parts.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element





2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element



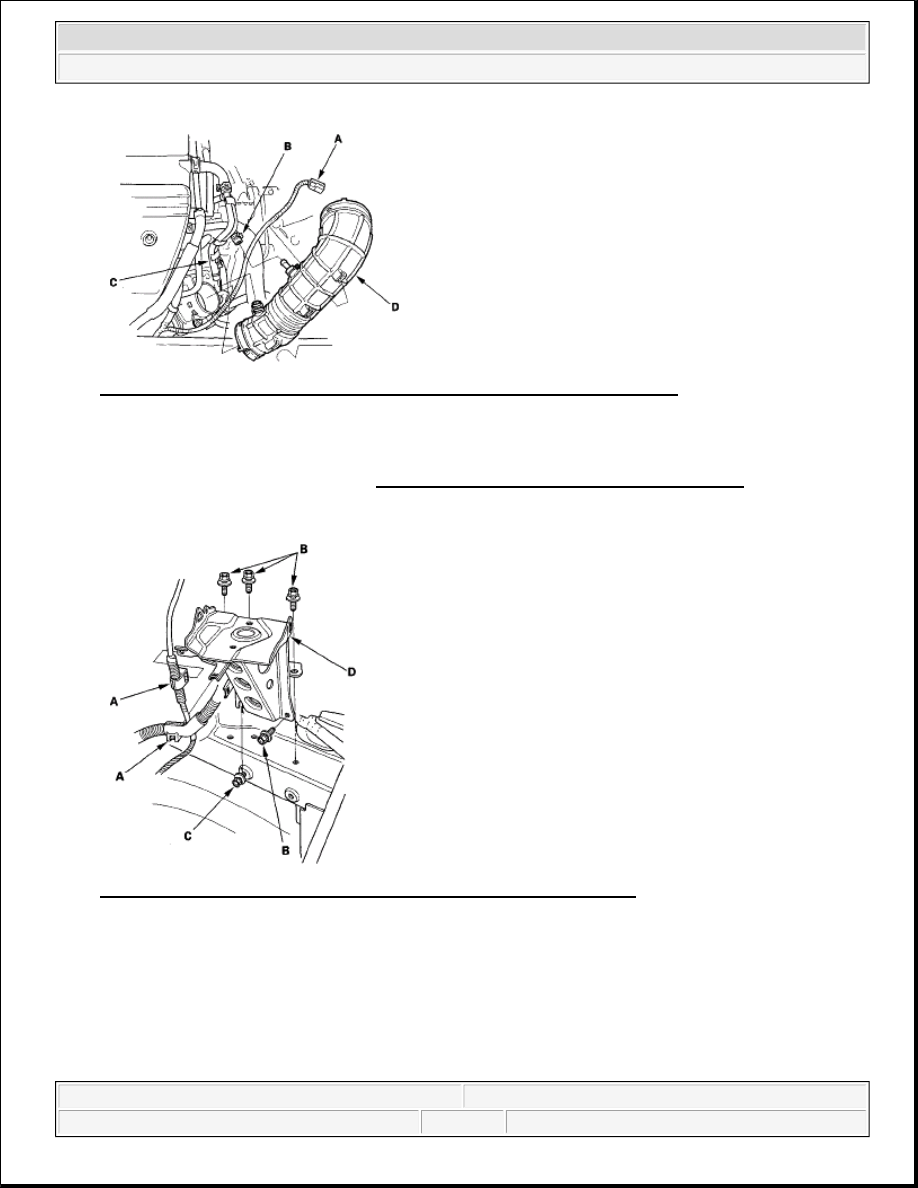

Fig. 2: Identifying Sensor/Intake Air Temperature (IAT) Sensor Connector

6. Disconnect the vacuum hose (B) and breather pipe (C), then remove the intake air duct (D).

7. Remove the battery.

8. Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).

9. Remove the harness clamps (A).

Fig. 3: Identifying Harness Clamps, Vacuum Hose And Breather Pipe

10. Remove the four bolts (B), and loosen the bolt (C) securing the battery base, then remove the battery base

(D).

11. Remove the positive (+) terminals (A) and harness clamps (B) from the under-hood fuse/relay box.



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element

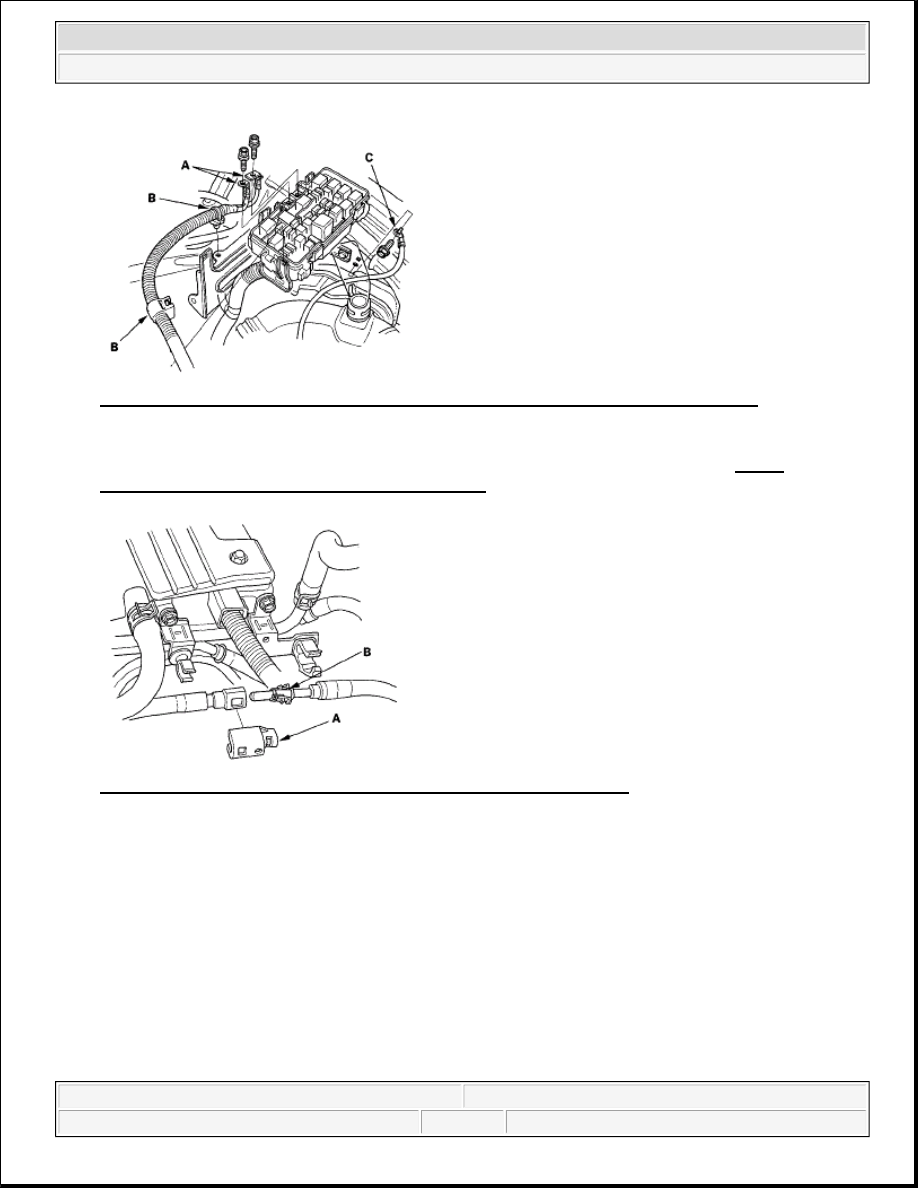

Fig. 4: Identifying Under-Hood Fuse/Relay Box And And Harness Clamps With Bolts

12. Remove the under-hood fuse/relay box from the bracket, then remove the ground cable (C).

13. Remove the quick-connect fitting cover (A), then disconnect the fuel feed hose (B) (see FUEL

LINE/QUICK-CONNECT FITTING REMOVAL ).

Fig. 5: Identifying Quick-Connect Fitting Cover And Fuel Feed Hose

14. Remove the evaporative emission (EVAP) canister hose (A) and brake booster vacuum hose (B).



2007 Honda Element EX

2007-08 ENGINE Engine Assembly - Element
