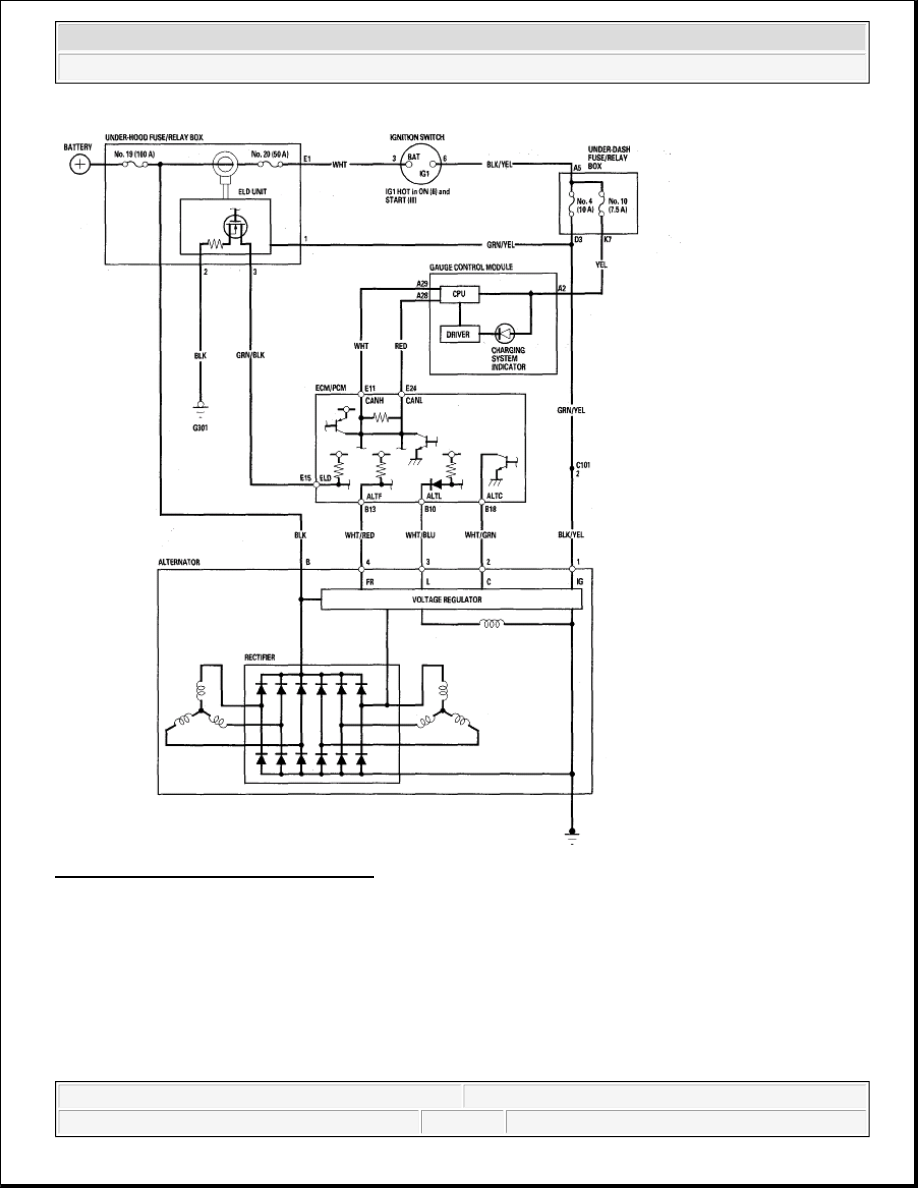

Fig. 2: Charging System Circuit Diagram

CHARGING SYSTEM INDICATOR CIRCUIT TROUBLESHOOTING

1. Turn the ignition switch ON (II).

Does the charging system indicator come on?

YES -Go to step 2.



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element



NO -Go to step 14.

2. Start the engine. Hold the engine speed at 2,000 rpm for 1 minute.

Does the charging system indicator go off?

YES -Charging system indicator circuit is OK. Go to the alternator and regulator circuit troubleshooting
(see ALTERNATOR AND REGULATOR CIRCUIT TROUBLESHOOTING ).

NO -Go to step 3.

3. Do the gauge control module self-diagnostic function procedure (see SELF-DIAGNOSTIC

FUNCTION ).

Does the charging system indicator flash?

YES -Go to step 4.

NO -Replace the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).

4. Turn the ignition switch OFF.

5. Disconnect the alternator 4P connector.

6. Turn the ignition switch ON (II).

Does the charging system indicator go off?

YES -Replace the alternator (see ALTERNATOR REMOVAL AND INSTALLATION ), or repair the
alternator (see ALTERNATOR OVERHAUL ).

NO -Go to step 7.

7. Turn the ignition switch OFF.

8. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 in HOW TO

USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ).

9. Turn the ignition switch ON (II).

10. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain

control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING ).

11. Jump the SCS line with the HDS, then turn the ignition switch OFF.

NOTE:

The charging system indicator may come on and then go off.

NOTE:

This step must be done to protect the ECM/PCM from damage.



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element



12. Disconnect ECM/PCM connector B (24P).

13. Check for continuity between ECM/PCM connector terminal B10 and body ground.

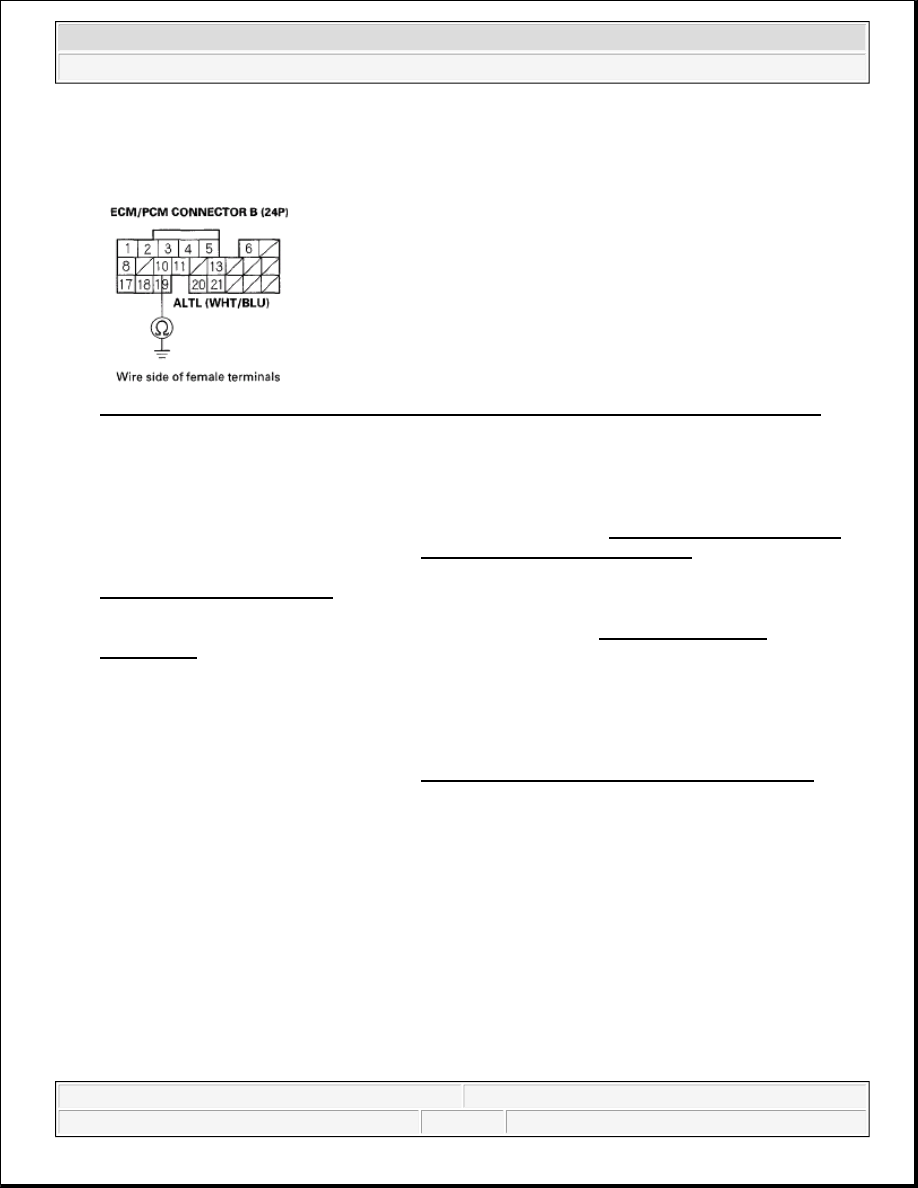

Fig. 3: Checking Continuity Between ECM/PCM Connector Terminal B10 And Body Ground

Is there continuity?

YES -Repair short in the wire between the alternator and the ECM/PCM.

NO -Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ),
or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the
symptom/indication goes away with a known-good ECM/PCM, replace the original ECM/PCM (see
ECM/PCM REPLACEMENT ).

14. Do the gauge control module self-diagnostic function procedure (see SELF-DIAGNOSTIC

FUNCTION ).

Does the charging system indicator flash?

YES -Go to step 15.

NO -Replace the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ).

15. Turn the ignition switch OFF.

16. Disconnect the alternator 4P connector.

17. Connect alternator 4P connector terminal No. 3 and body ground with a jumper wire.



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element



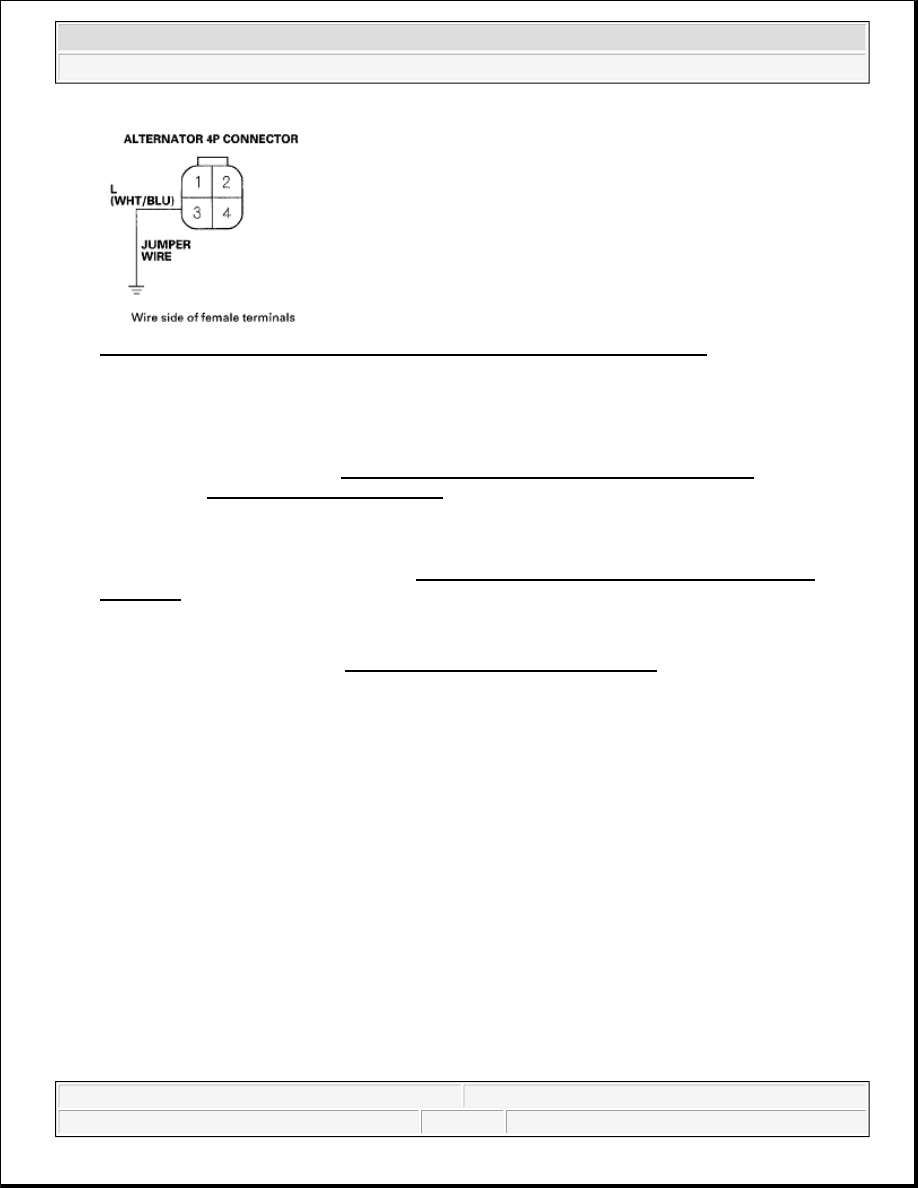

Fig. 4: Connecting Alternator 4P Connector Terminal No. 3 And Body Ground

18. Turn the ignition switch ON (II).

Does the charging system indicator come on?

YES -Replace the alternator (see ALTERNATOR REMOVAL AND INSTALLATION ), or repair the
alternator (see ALTERNATOR OVERHAUL ).

NO -Disconnect the jumper wire, then go to step 19.

19. Connect the HDS to the DLC (see step 2 in HOW TO USE THE HDS (HONDA DIAGNOSTIC

SYSTEM) ).

20. Turn the ignition switch ON (II).

21. Make sure the HDS communicates with the vehicle and the ECM/PCM. If it doesn't communicate,

troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).

22. Jump the SCS line with the HDS, then turn the ignition switch OFF.

23. Disconnect ECM/PCM connector B (24P).

24. Check for continuity between ECM/PCM connector terminal B10 and the alternator 4P connector

terminal No. 3.

NOTE:

This step must be done to protect the ECM/PCM from damage.



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element
