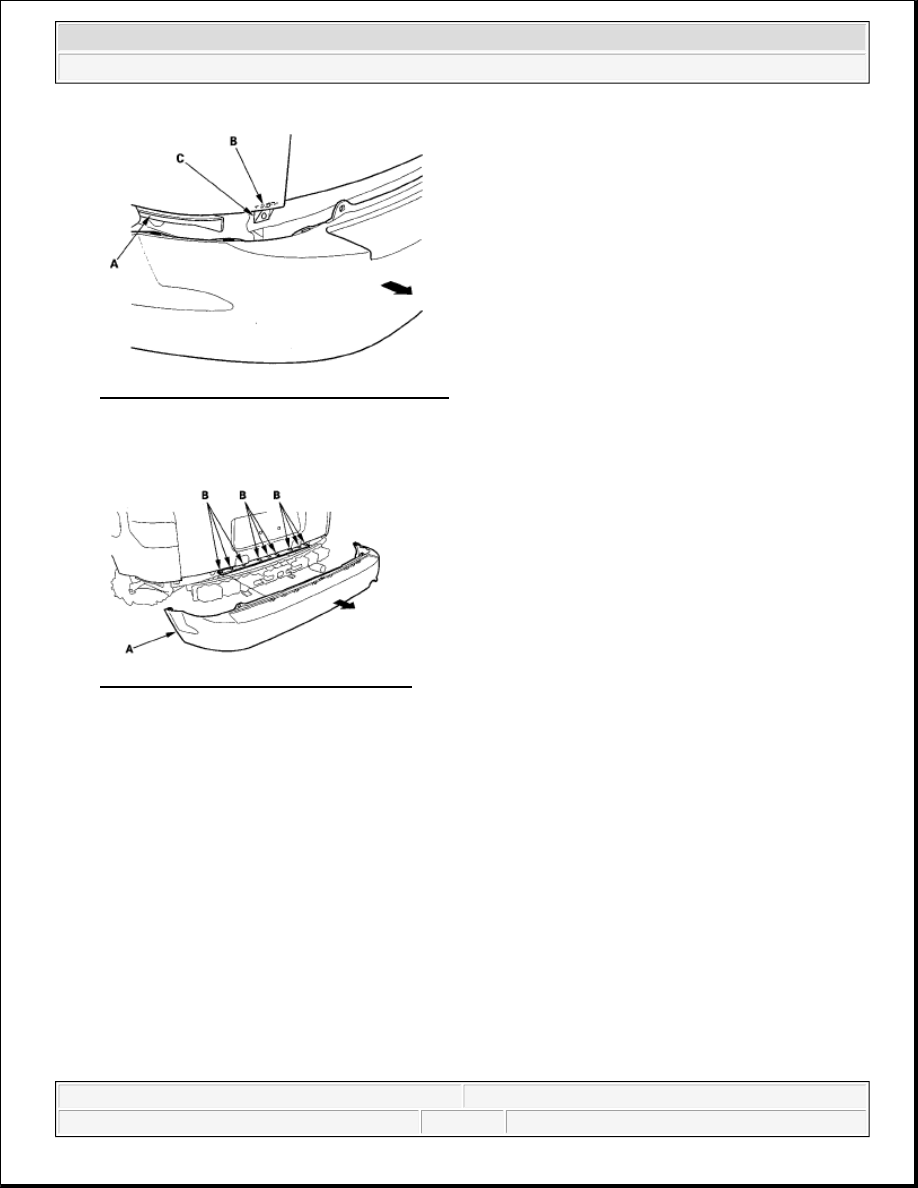

Fig. 11: Identifying Bumper Support Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. With the help of an assistant, pull the rear bumper (A) to release the rear bumper from the hooks (B).

Fig. 12: Identifying Rear Bumper Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Using a flat-tip screwdriver, release the hooks (A) from the under portion of the absorber, then release the

hooks. Pull out the rear bumper absorber (B) to remove it from the rear bumper beam (C).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Bumpers - Element

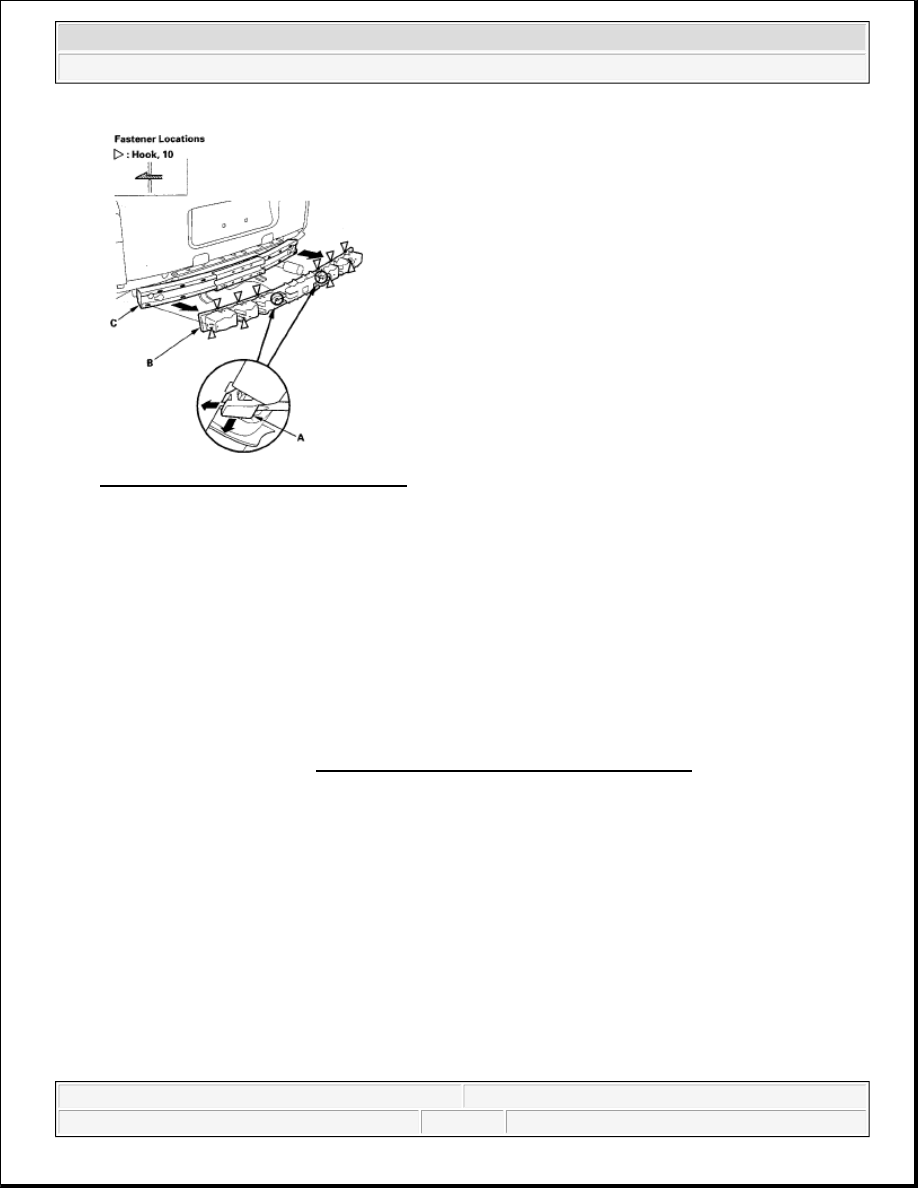

Fig. 13: Identifying Rear Bumper Beam
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the bumper in the reverse order of removal, and note these items:



Make sure the rear bumper engages the hooks (of both the upper bracket and bumper support
bracket) on each side securely.



Push the clips and hooks into place securely.



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.

REAR BUMPER TRIM REPLACEMENT

LX, EX MODELS

1. Remove the rear bumper (see REAR BUMPER REMOVAL/INSTALLATION ).

2. Remove the clips, and release the hooks (A), then remove the rear bumper trim (B) from the rear bumper

(C) by pulling it out. Take care not to scratch the rear bumper.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Bumpers - Element

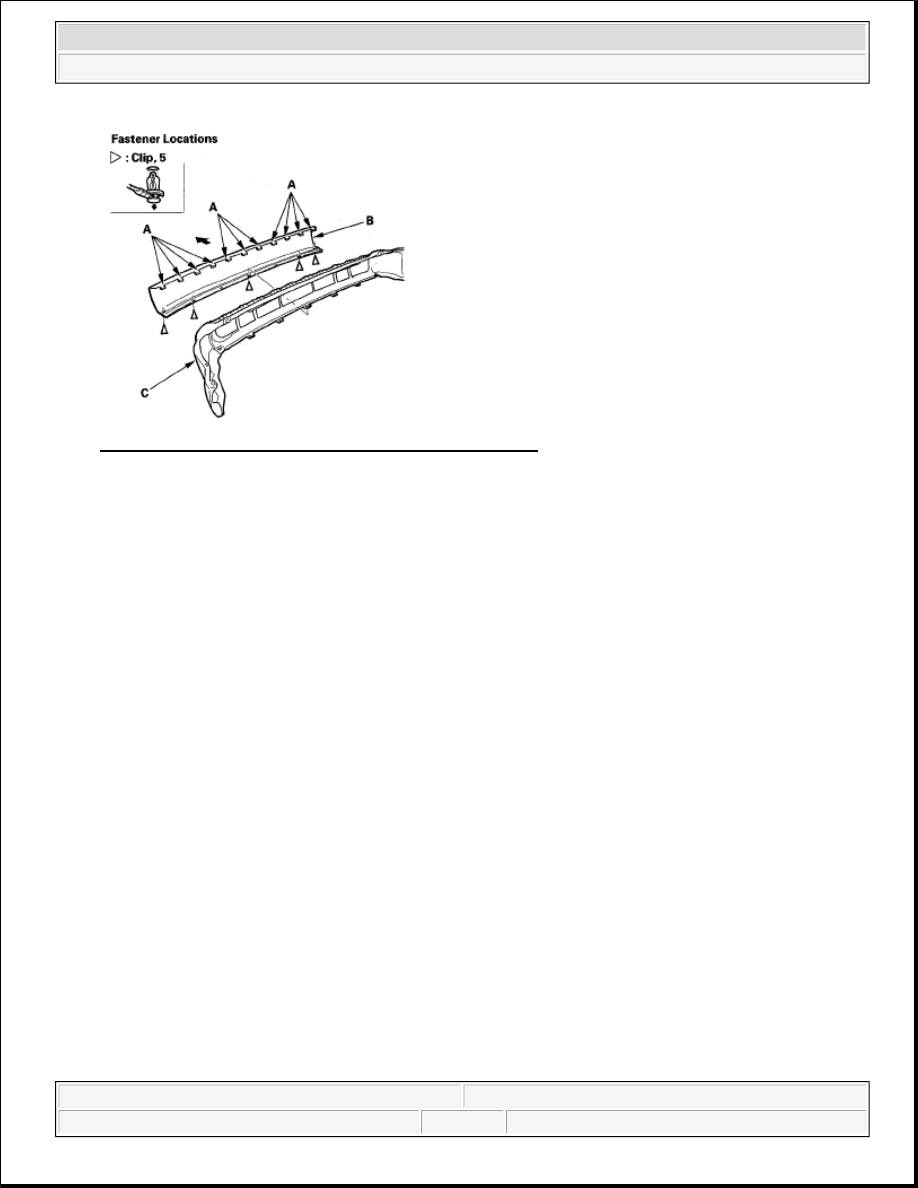

Fig. 14: Identifying Rear Bumper Trim Clips And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the trim in the reverse order of removal, and note these items:



Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.



Push the hook portions into place securely.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Bumpers - Element



CABIN AIR FILTERS

Dust & Pollen Filter - Element & RSX

REMOVAL & INSTALLATION

CABIN AIR FILTER

Removal & Installation

1. Open the glove box. Remove the glove box stop on each side, then hang the glove box down. See Fig. 1.

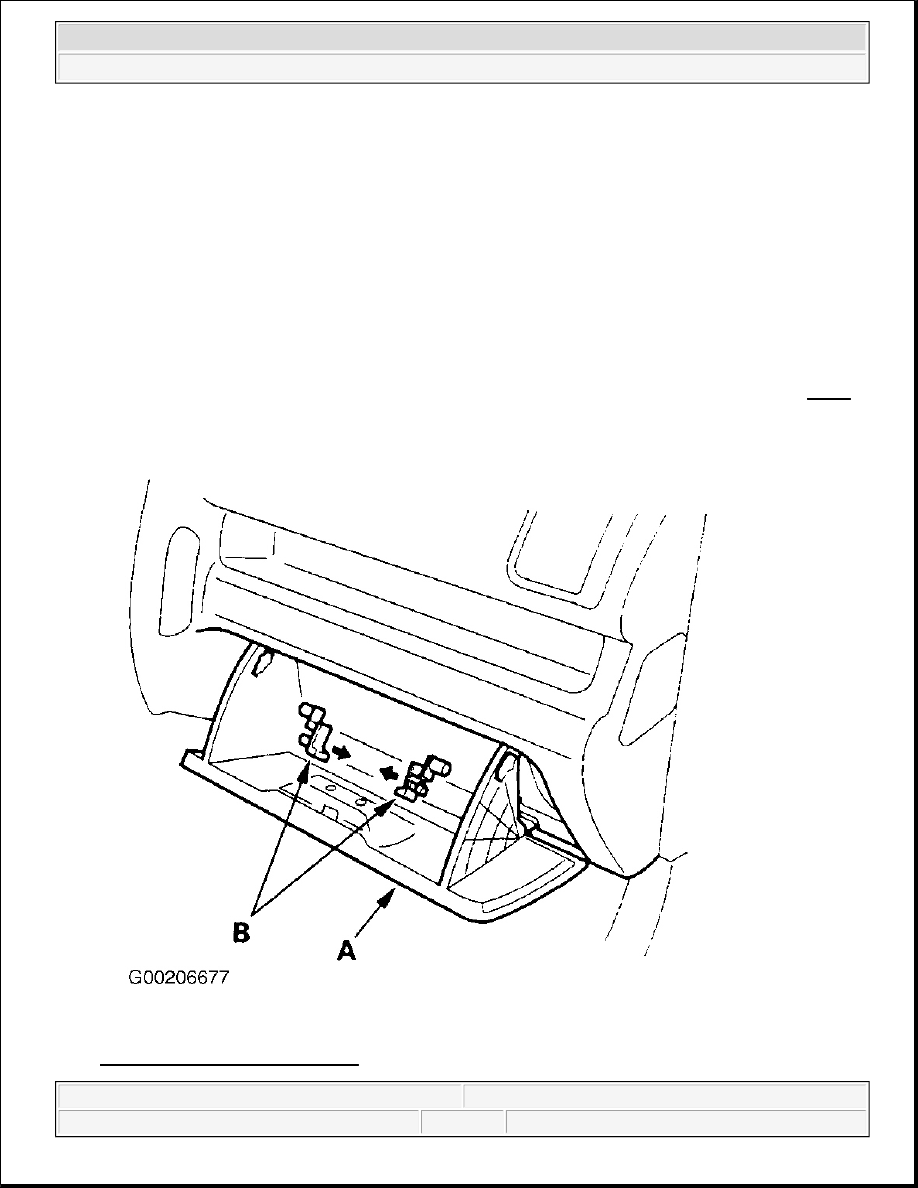

Fig. 1: Releasing Glove Box Stops

NOTE:

Manufacturer's terminology for this filter is dust and pollen filter.
