Fig. 89: Identifying Marks On Inboard Joint And Rollers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Fit the boot (A) ends onto driveshaft (B) and the inboard joint (C).

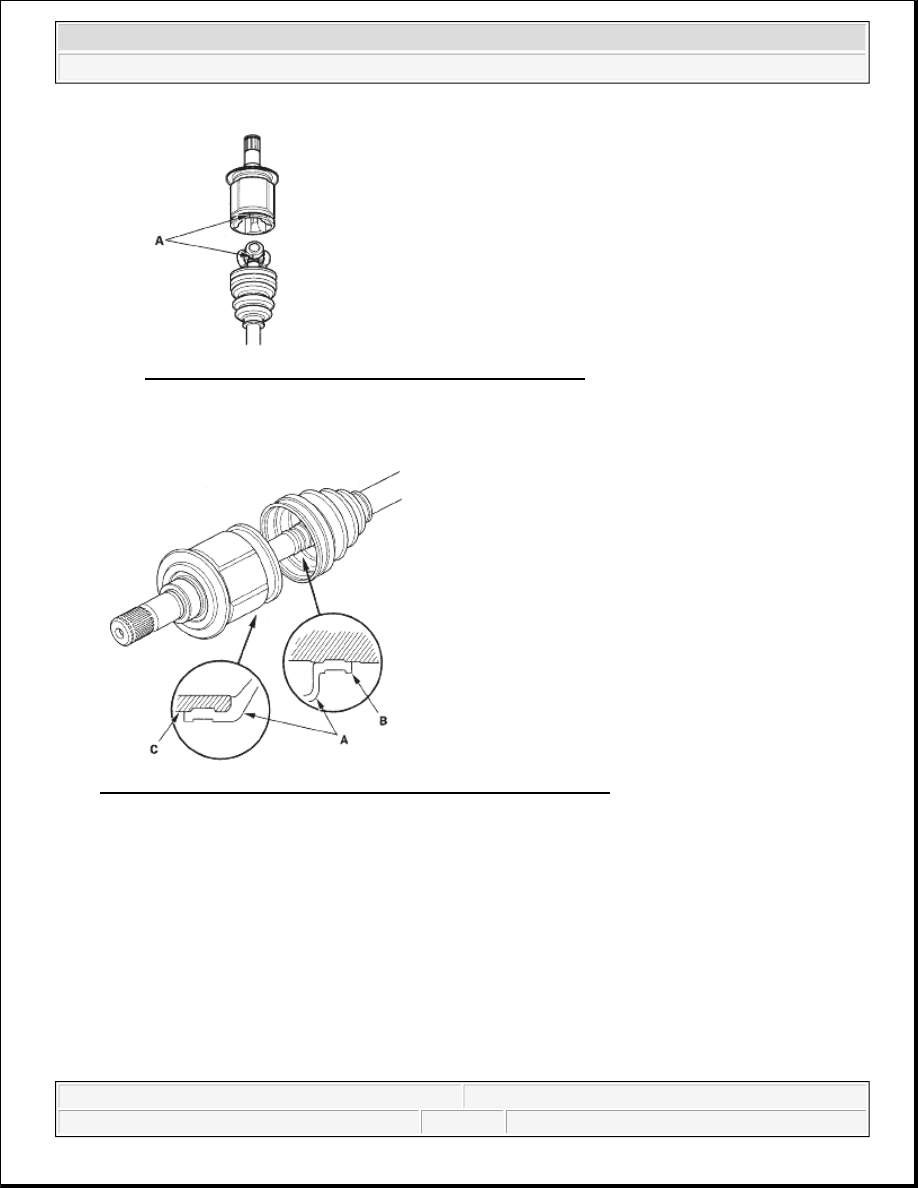

Fig. 90: Identifying Boot Ends Onto Driveshaft And Inboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. Adjust the length of the driveshafts to these measurements, then adjust the boots to halfway between full

compression and full extension.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



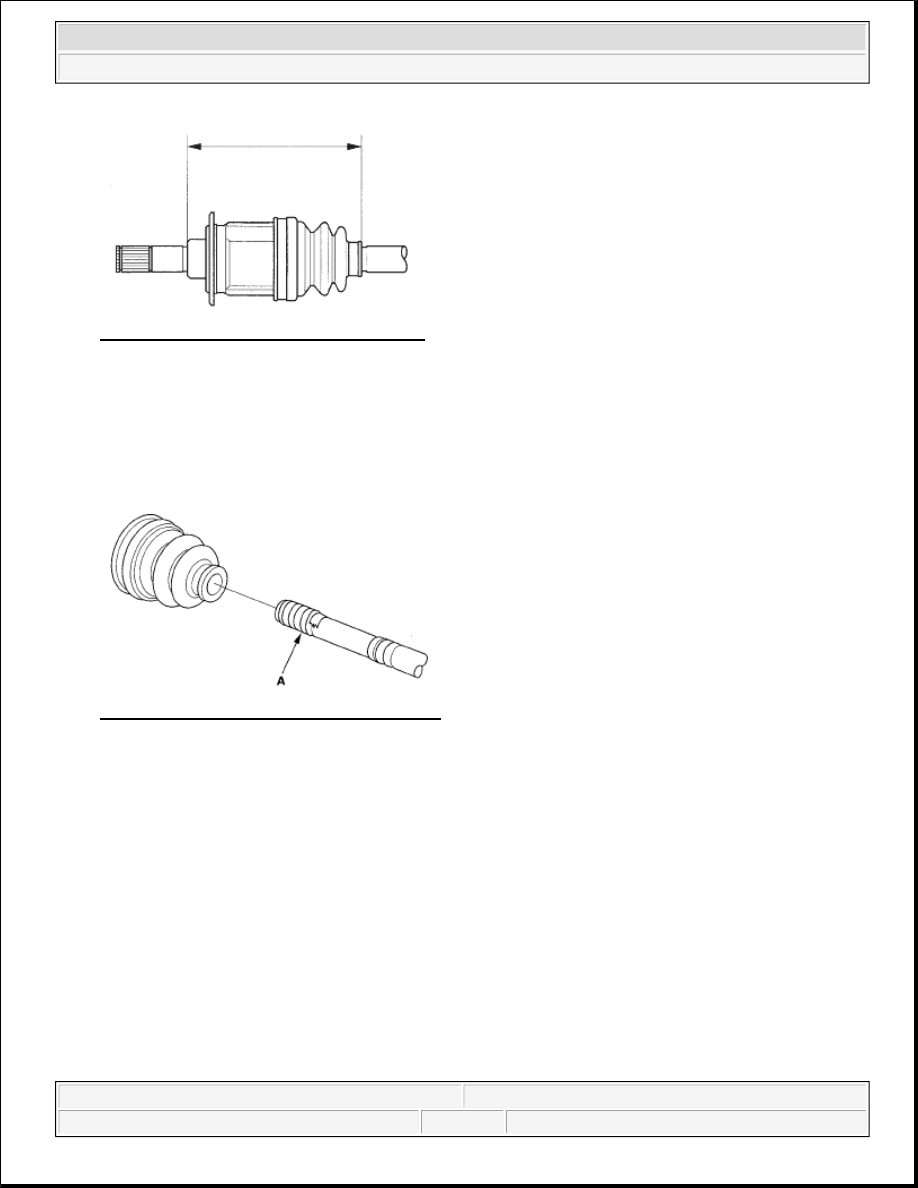

Fig. 91: Identifying Length Of Driveshafts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. Install the boot band (see step 10 ).

OUTBOARD JOINT SIDE

1. Wrap the splines with vinyl tape (A) to prevent damaging the outboard boot.

Fig. 92: Identifying Splines With Vinyl Tape
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install the outboard boot onto the driveshaft, then remove the vinyl tape. Be careful not to damage the

outboard boot.

3. Install the spider (A) onto the driveshaft by aligning the marks (B) you made on the spider and the end of

the driveshaft.

NOTE:

If you are installing a new joint, install the spider aligning its position to
differ by 60° from the position of the inboard side spider.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



Fig. 93: Aligning Mark Of Splines
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Install the new circlip (C) into the driveshaft groove. Always rotate the circlip in its groove to make sure

it is fully seated.

5. Fit the rollers (A) onto the spider (B) with their high shoulders facing outward and note these items:



Reinstall the rollers in their original positions on the spider by aligning the marks (C) you made.



Hold the driveshaft pointed up to prevent the rollers from falling off.

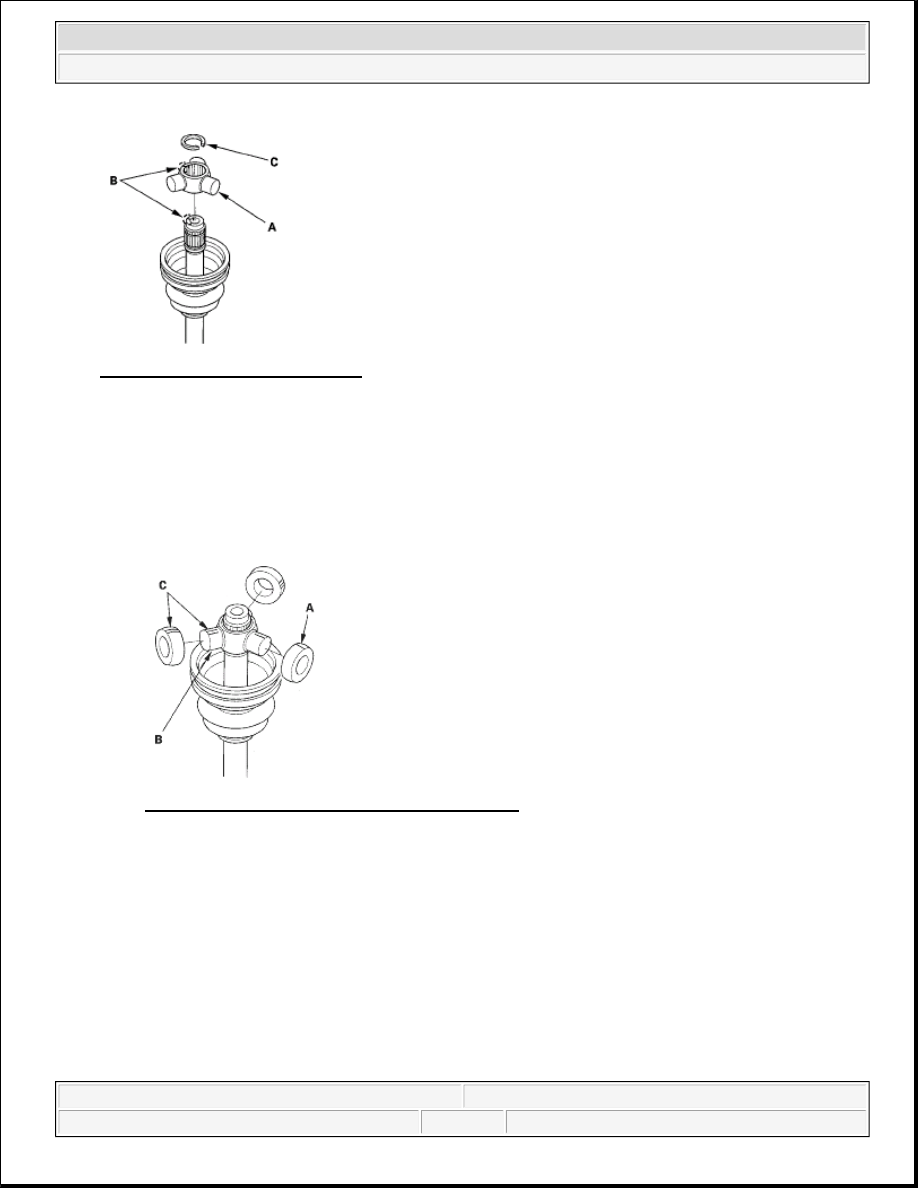

Fig. 94: Identifying Mark Of Rollers And Spider
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. Pack the outboard joint with the joint grease included in the new outboard boot set.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



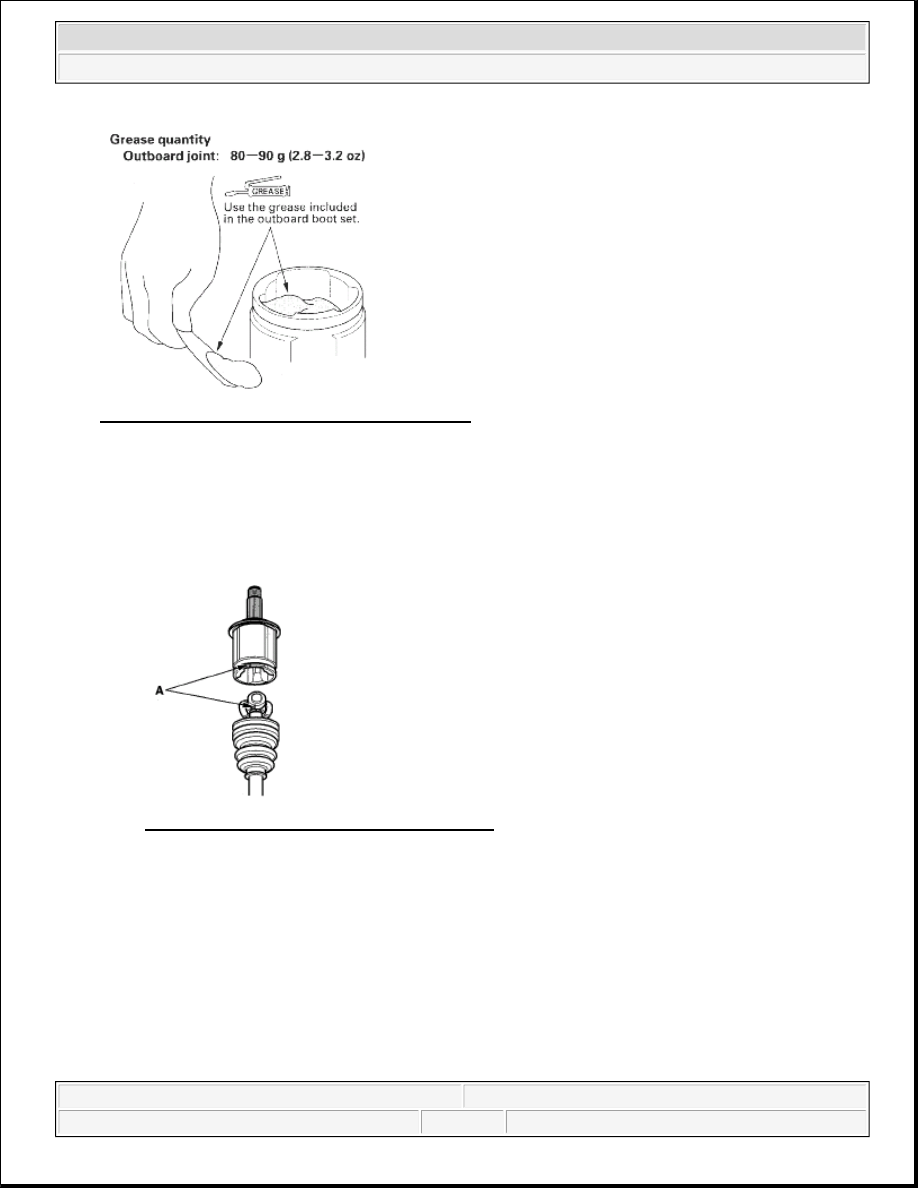

Fig. 95: Applying Grease On Outboard Boot Set
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. Fit the outboard joint onto the driveshaft and note these items:



Reinstall the outboard joint onto the driveshaft by aligning the marks (A) you made on the outboard
joint and the rollers.



Hold the driveshaft so the outboard joint is pointing up to prevent it from falling off.

Fig. 96: Identifying Mark On Outboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Fit the boot (A) ends onto driveshaft (B) and the outboard joint (C).



2007 Honda Element EX
