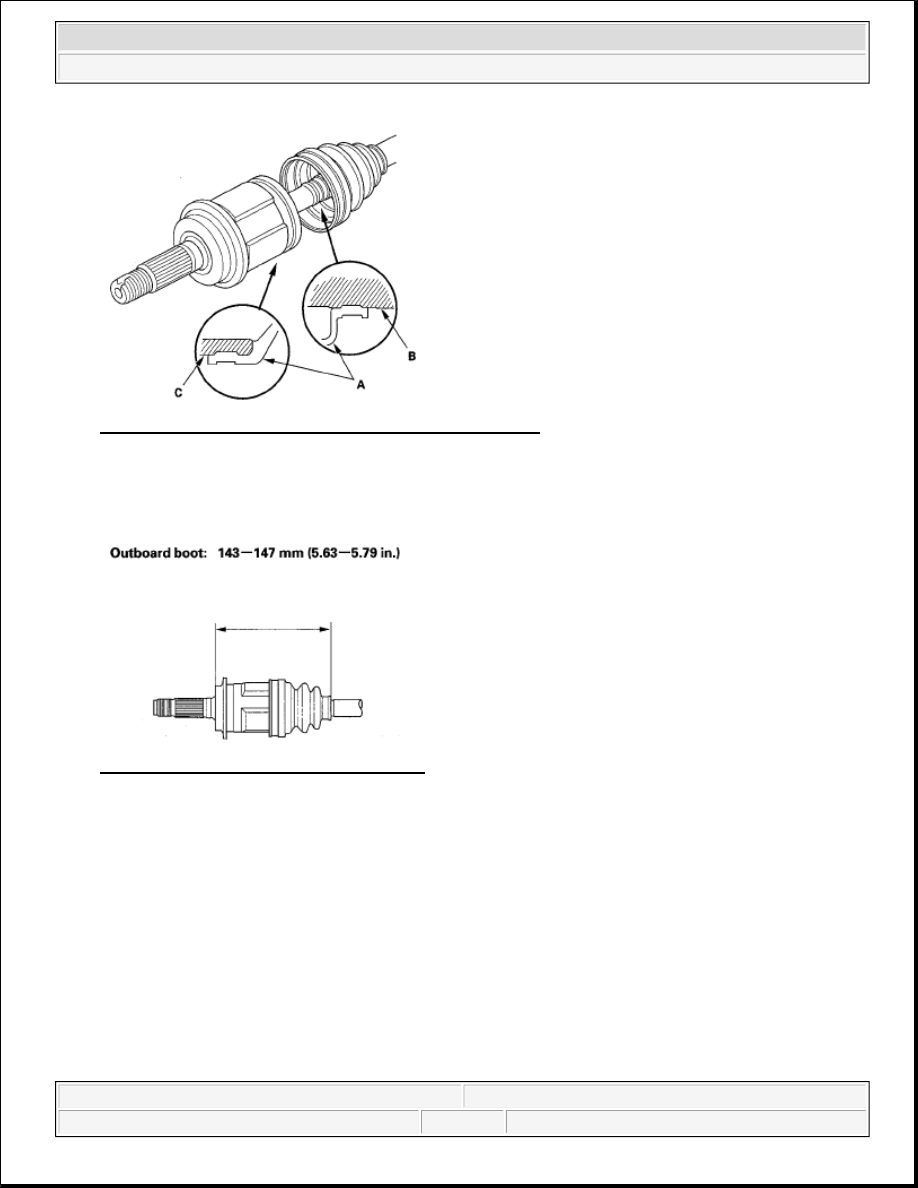

Fig. 97: Identifying Boot, Driveshaft And Outboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. Adjust the length of the driveshafts to these measurements, then adjust the boots to halfway between full

compression and full extension.

Fig. 98: Identifying Length Of Driveshafts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. Install the boot band (see step 10 ).

REAR DRIVESHAFT INSTALLATION

1. Install the new set ring (A).

NOTE:

Before starting installation, make sure the mating surfaces of the joint and the
splined section are free from dirt or dust.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



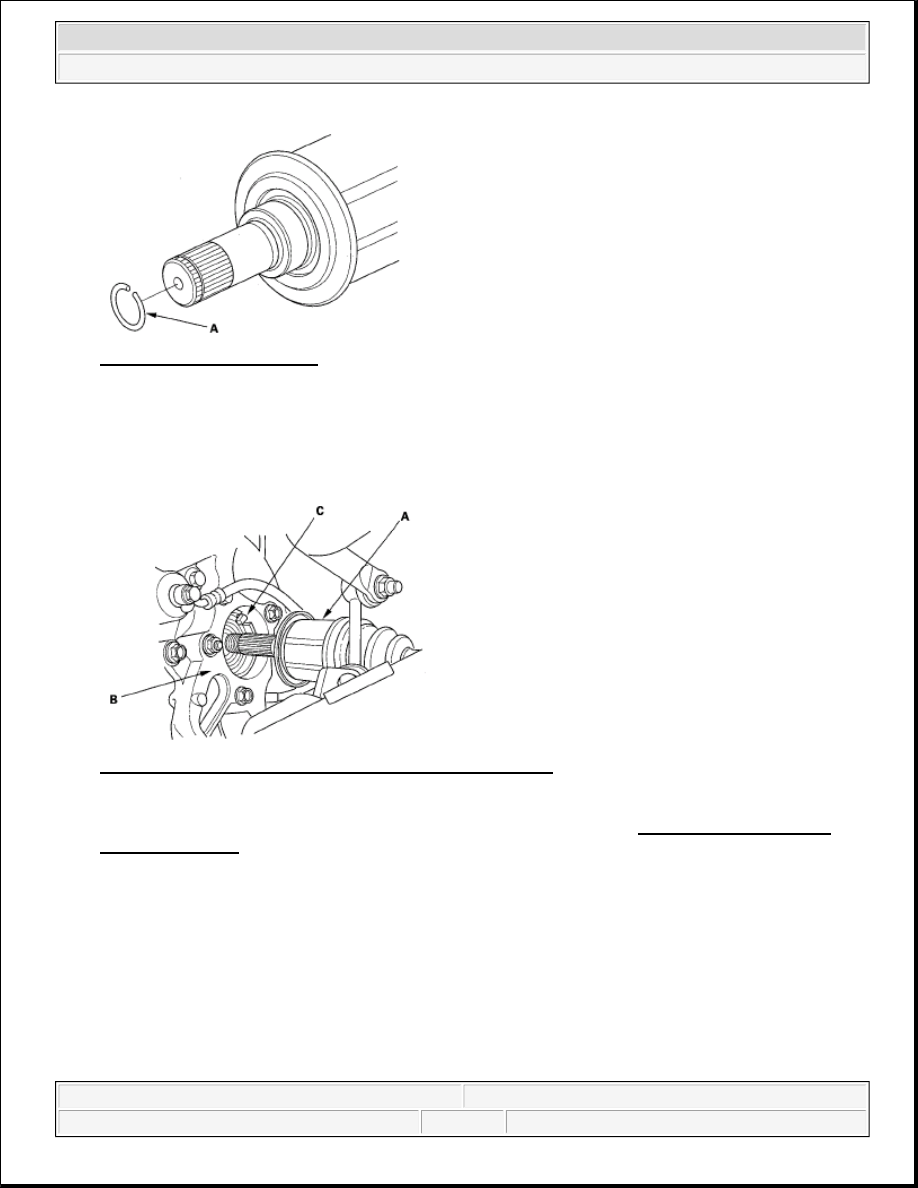

Fig. 99: Identifying Set Ring
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install the outboard joint (A) into the rear wheel hub (B).

Fig. 100: Identifying Outboard Joint And Rear Wheel Hub
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Install the rear driveshafts into the rear differential assembly (see step 3 in REAR DIFFERENTIAL

INSTALLATION ).

4. Apply a small amount of engine oil to the seating surface of the new spindle nut (A).

NOTE:

Be careful not to damage the wheel sensor (C).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



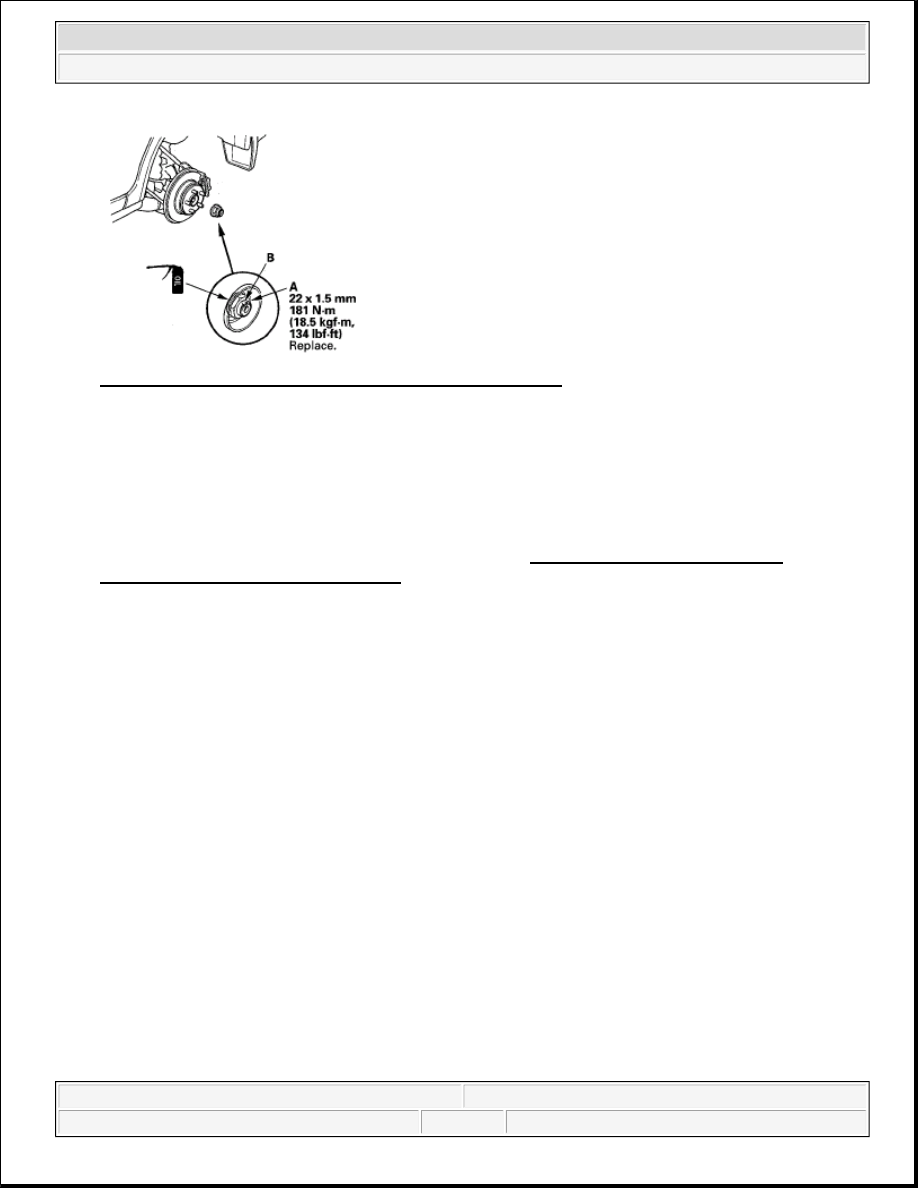

Fig. 101: Identifying Spindle Nut With Torque Specification
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

5. Install a new spindle nut, then tighten the nut. After tightening, use a drift to stake the spindle nut

shoulder (B) against the driveshaft.

6. Clean the mating surfaces of the brake disc and the rear wheel, then install the rear wheel.

7. Turn the rear wheel by hand, and make sure there is no interference between the driveshaft and

surrounding parts.

8. Refill the rear differential with the recommended fluid (see REAR DIFFERENTIAL FLUID

INSPECTION AND REPLACEMENT ).

9. Lower the vehicle on the lift.

10. Test-drive the vehicle.

PROPELLER SHAFT INSPECTION

UNIVERSAL JOINT AND BOOTS

1. Shift the transmission to neutral (M/T model) or the N position (A/T model).

2. Raise the vehicle on a lift.

3. Check the center support bearing (A) for excessive play or rattle. If the center support has excessive play

or rattle, replace the propeller shaft assembly (B).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



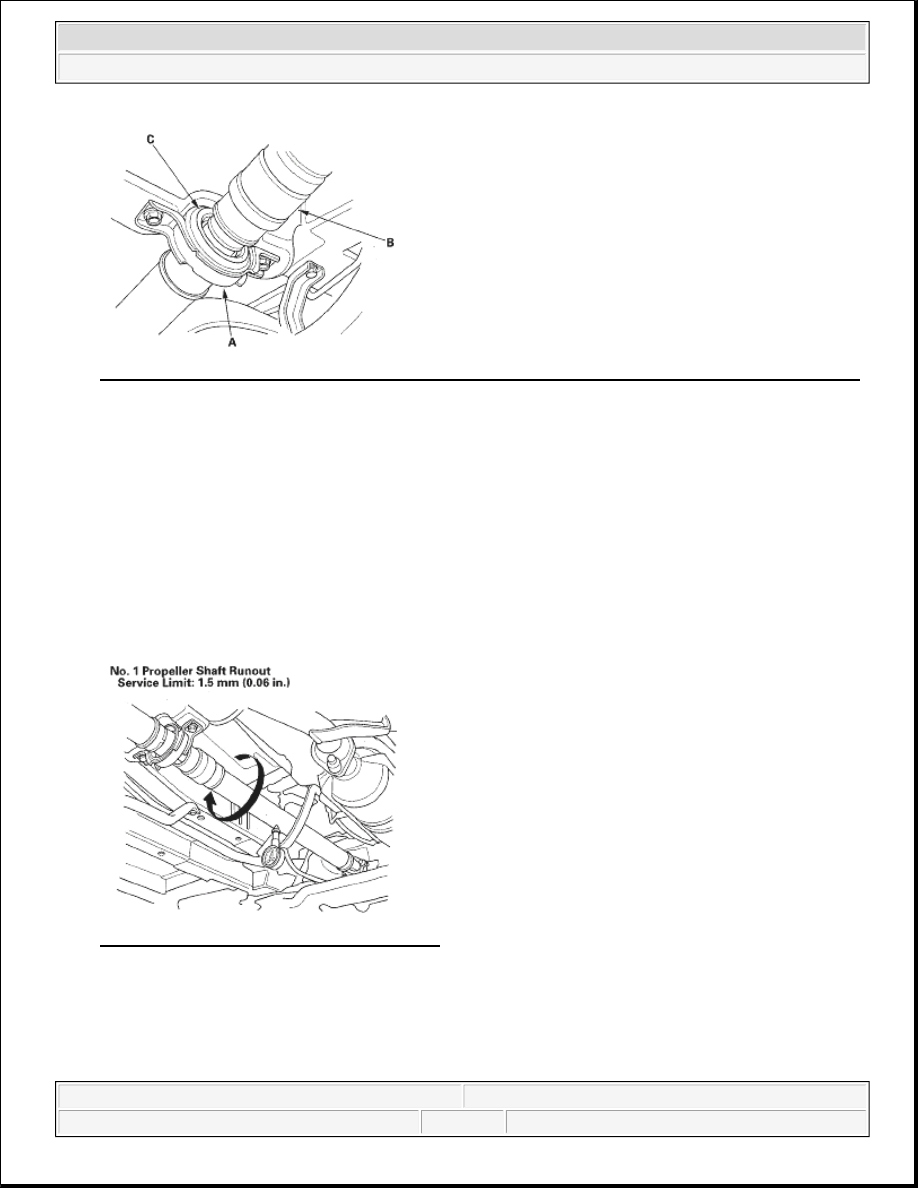

Fig. 102: Identifying Universal Joint Boots, Center Support Bearing And Propeller Shaft Assembly
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Check the universal joint boots (C) for damage and deterioration. If the boots are damaged or

deteriorated, replace the propeller shaft assembly.

5. Check the universal joints for excessive play or rattle. If the universal joints have excessive play or rattle,

replace the propeller shaft assembly.

Propeller Shaft Runout

6. Install a dial indicator with its needle on the center of the No. 1 or No. 2 propeller shaft.

7. Turn the other propeller shaft slowly, and check the runout. Repeat this procedure for the other propeller

shaft.

Fig. 103: Measuring Propeller Shaft Runout
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
