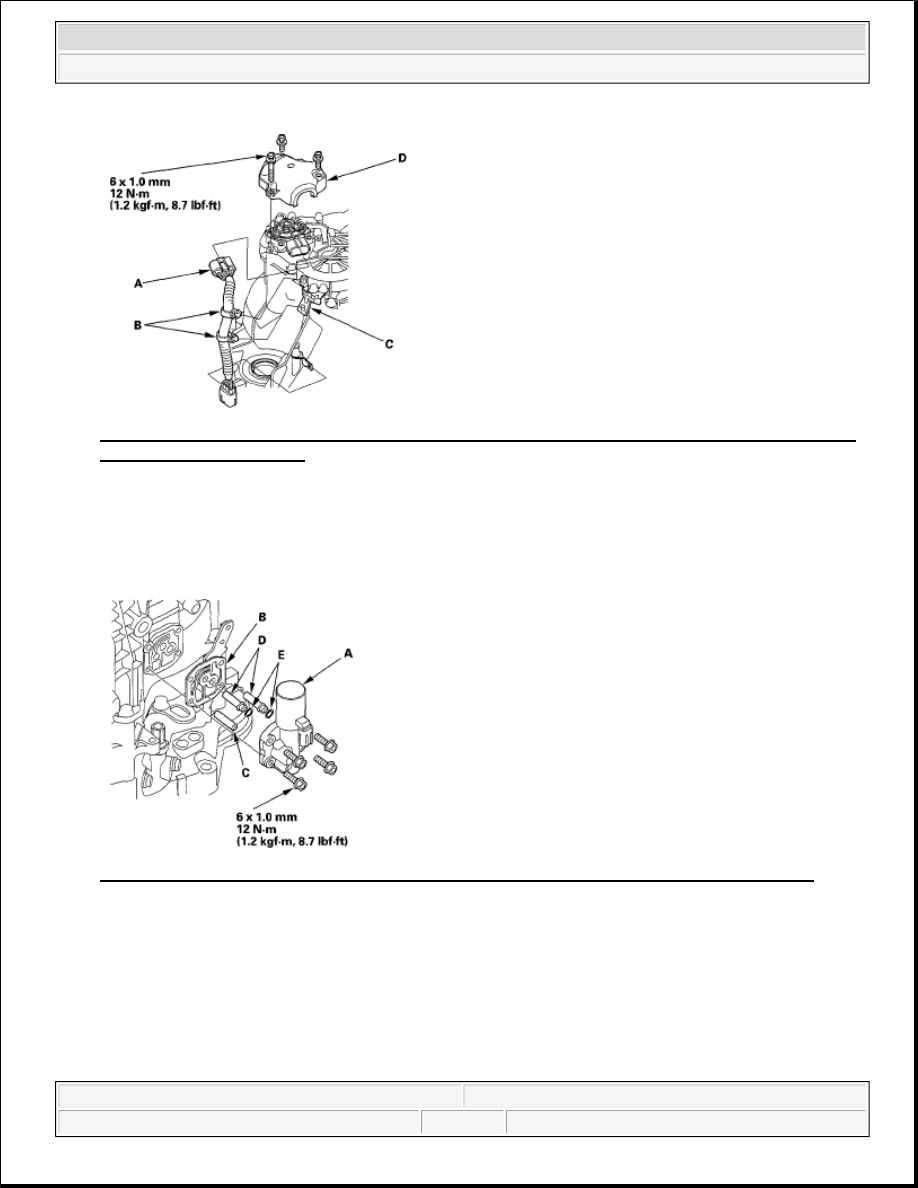

Fig. 550: Identifying Transmission Range Switch Connector, Harness Clamps And Clamp Bracket
With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

28. Install the transmission range switch cover (D).

29. Install the new gasket (B) on the transmission housing, and install the ATF pipe (C) and ATF joint pipes

(D).

Fig. 551: Identifying ATF Pipe And ATF Joint Pipes With Gasket With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

30. Install the new O-rings (E) over the ATF joint pipes, and install A/T clutch pressure control solenoid

valve A.

31. Install the new gasket (A) on the transmission housing, and install the ATF joint pipes (D).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

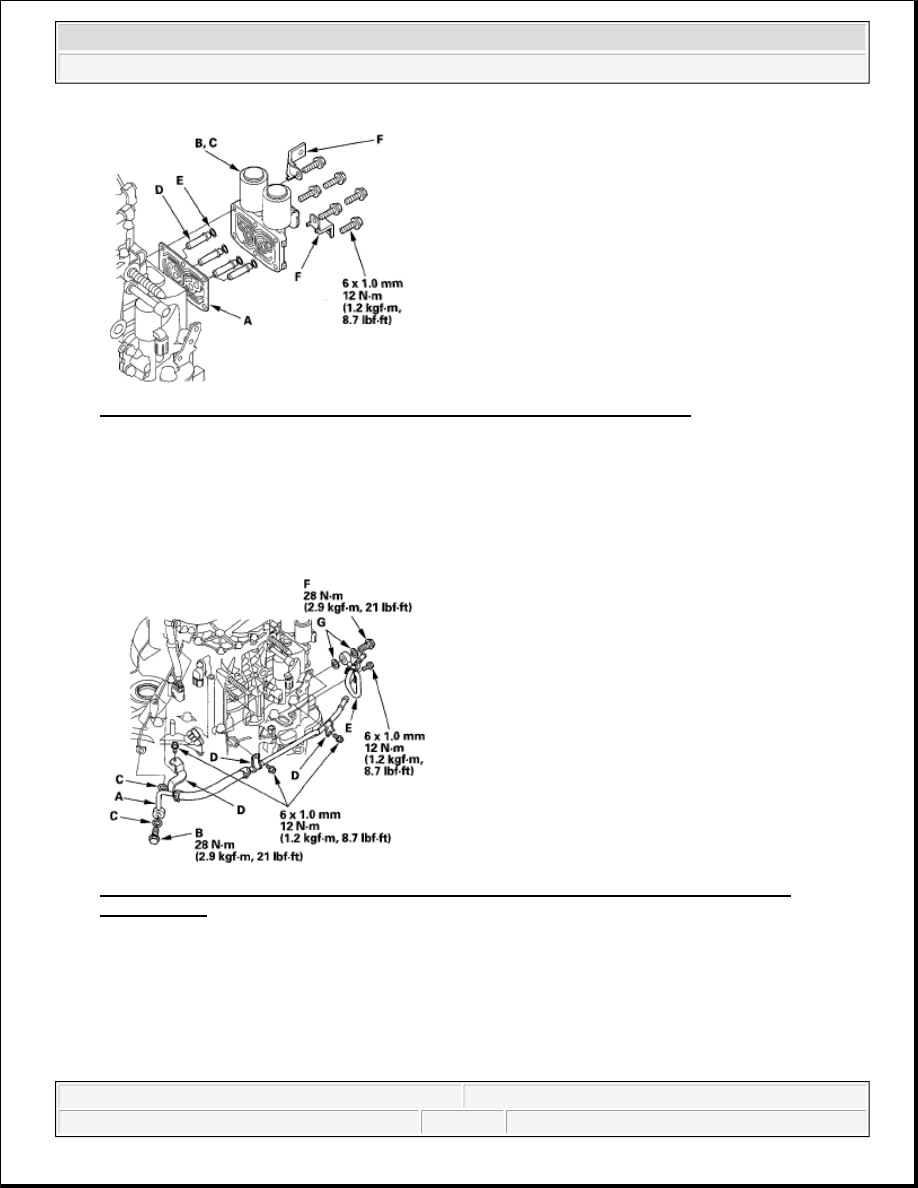

Fig. 552: Identifying ATF Joint Pipes And Gasket With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

32. Install the new O-rings (E) over the ATF joint pipes.

33. Install A/T clutch pressure control solenoid valves B and C, and harness clamp bracket (F).

34. Install the ATF cooler inlet line (A) with the line bolt (B) and new sealing washers (C), and install the

brackets (D).

Fig. 553: Identifying ATF Cooler Inlet Line With Line Bolt Sealing Washers With Torque
Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

35. Install the ATF cooler outlet line (E) with the line bolt (F) and new sealing washers (G).

36. 4WD: Install the transfer assembly (A) with a new O-ring (B) and the dowel pin (C).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

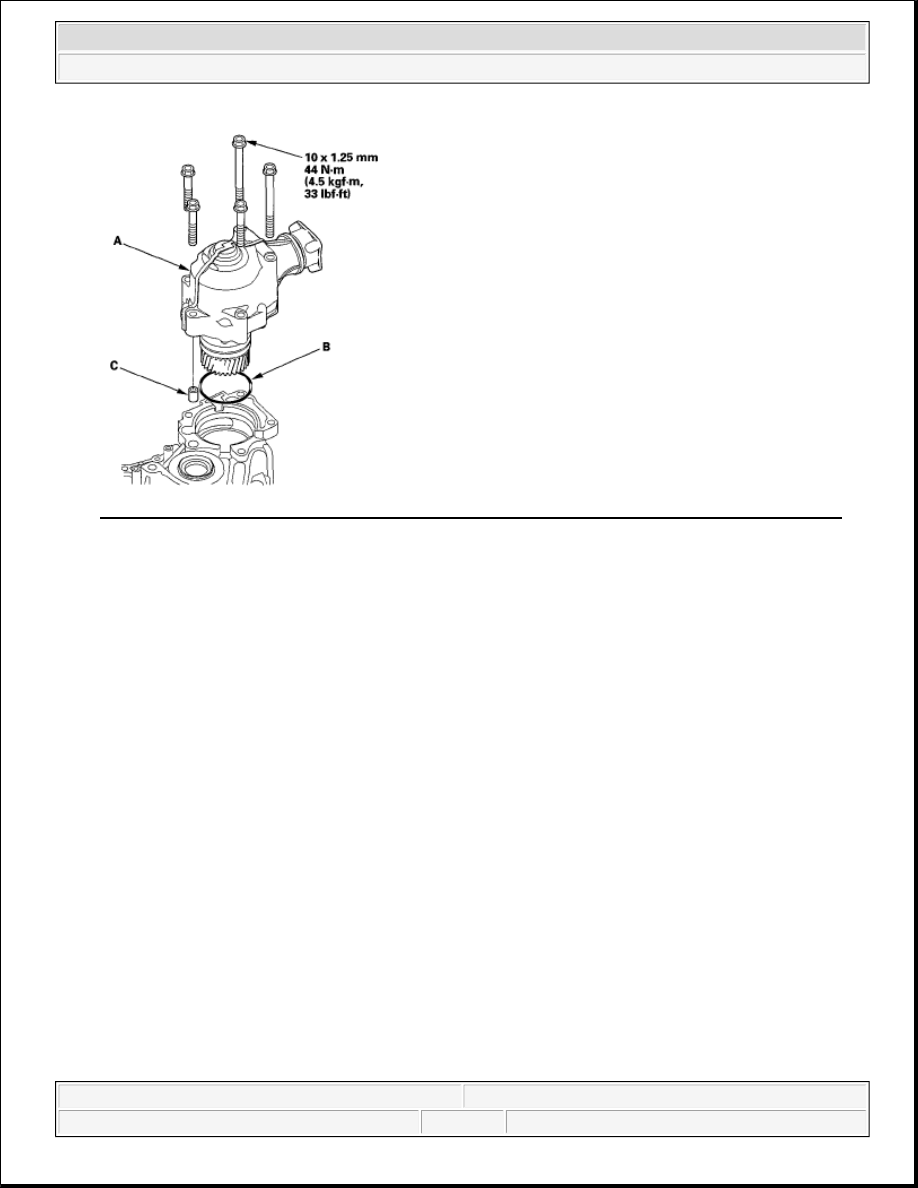

Fig. 554: Identifying Transfer Assembly With O-Ring And Dowel Pin With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX

4WD



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

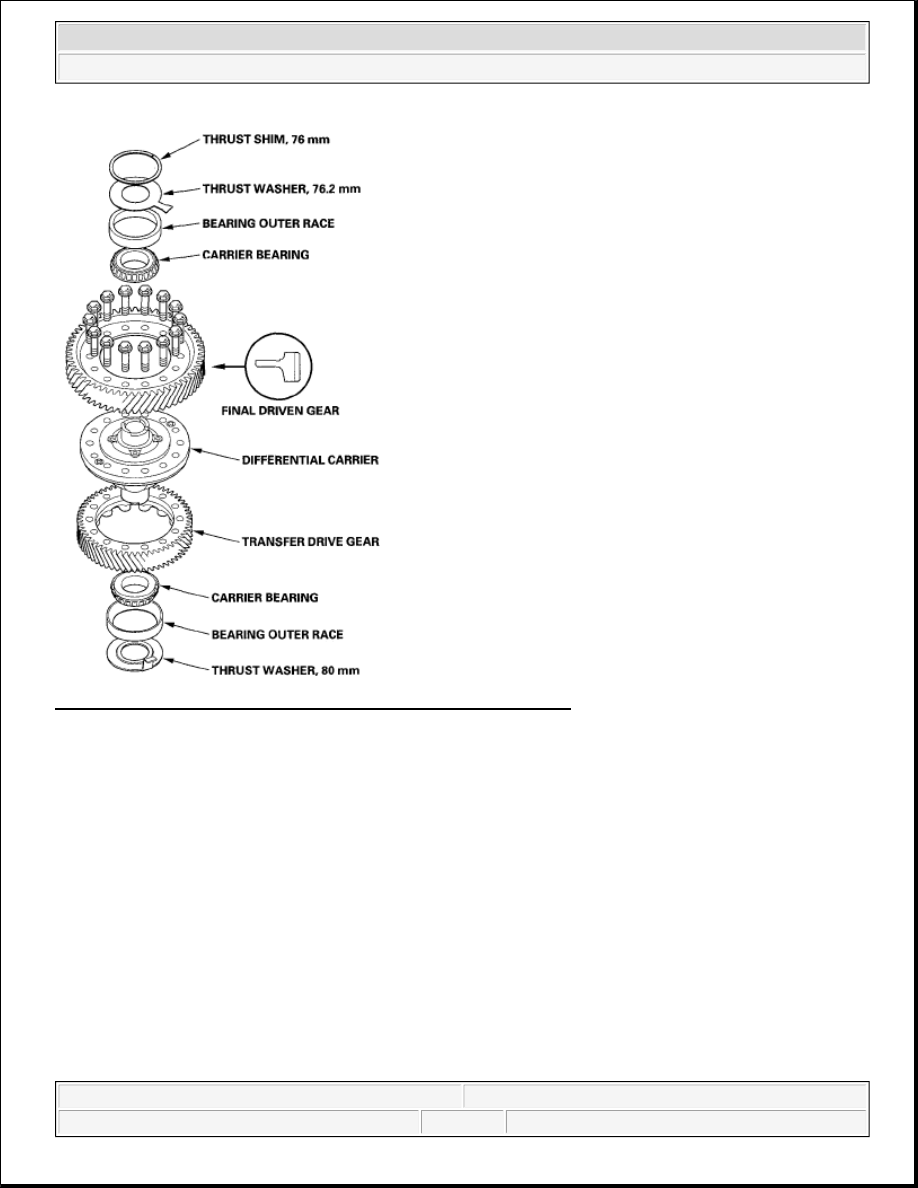

Fig. 555: Identifying A/T Differential Components Location (4WD)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2WD



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element
