Honda Element. Manual - part 170

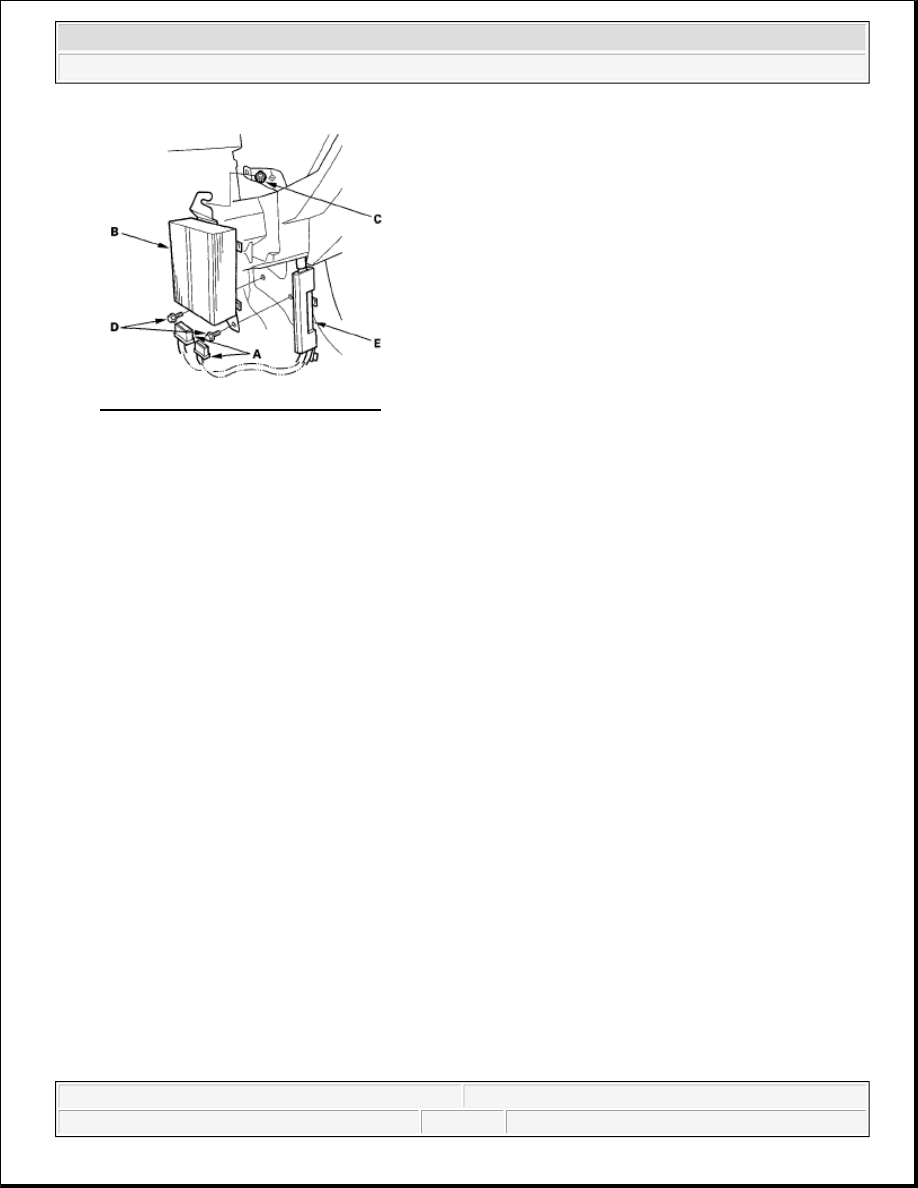

Fig. 67: Identifying Stereo Amplifier
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Loosen the mounting nut (C), and remove the two mounting bolts (D).

4. Remove the harness band (E) and the stereo amplifier.

5. Install the stereo amplifier in the reverse order of removal.

SPEAKER REPLACEMENT

DOOR SPEAKER

1. Remove the speaker cover (A).



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



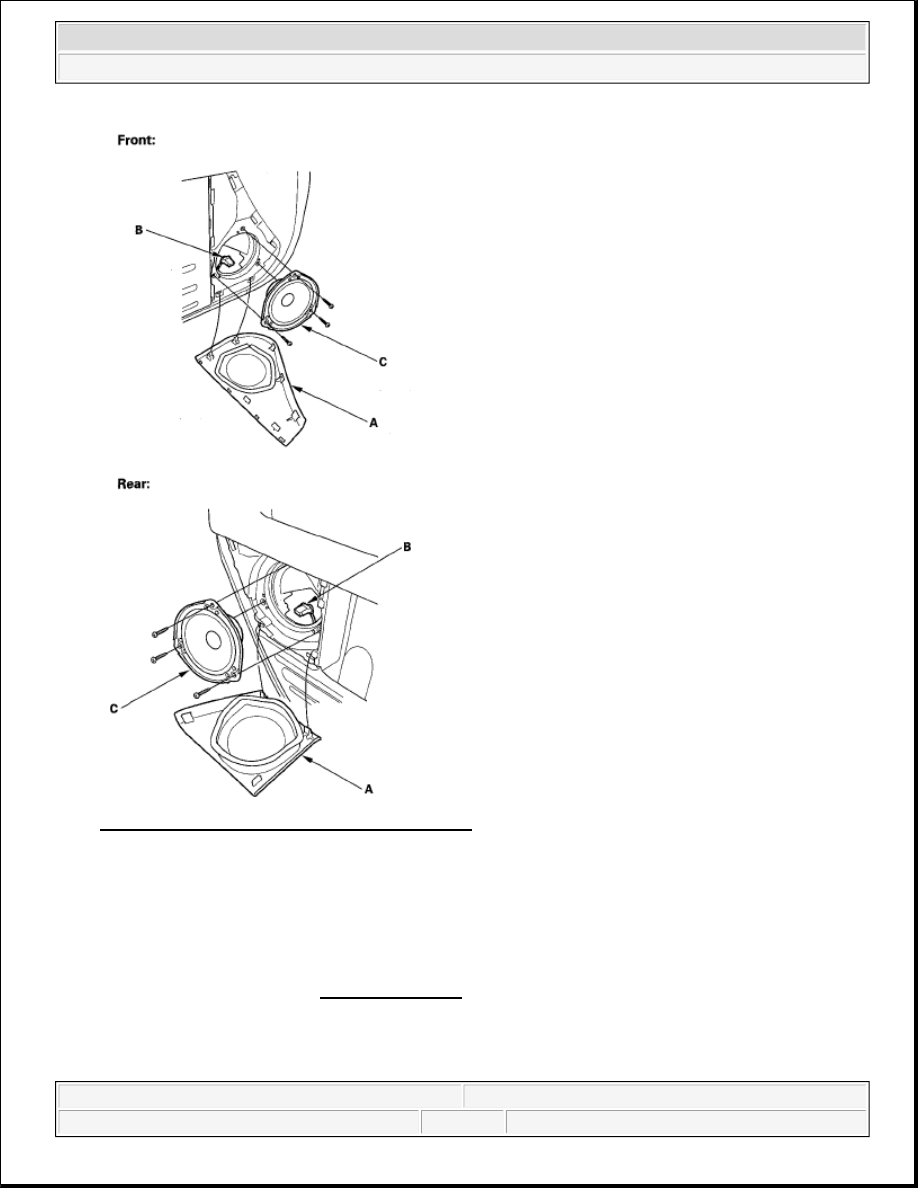

Fig. 68: Identifying Speaker And Speaker Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the three screws, then disconnect the 2P connector (B) from the speaker (C).

3. Install the speaker in the reverse order of removal.

TWEETER

1. Remove the A-pillar trim (see A-PILLAR TRIM ).

2. Disconnect the 2P connector (A).



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



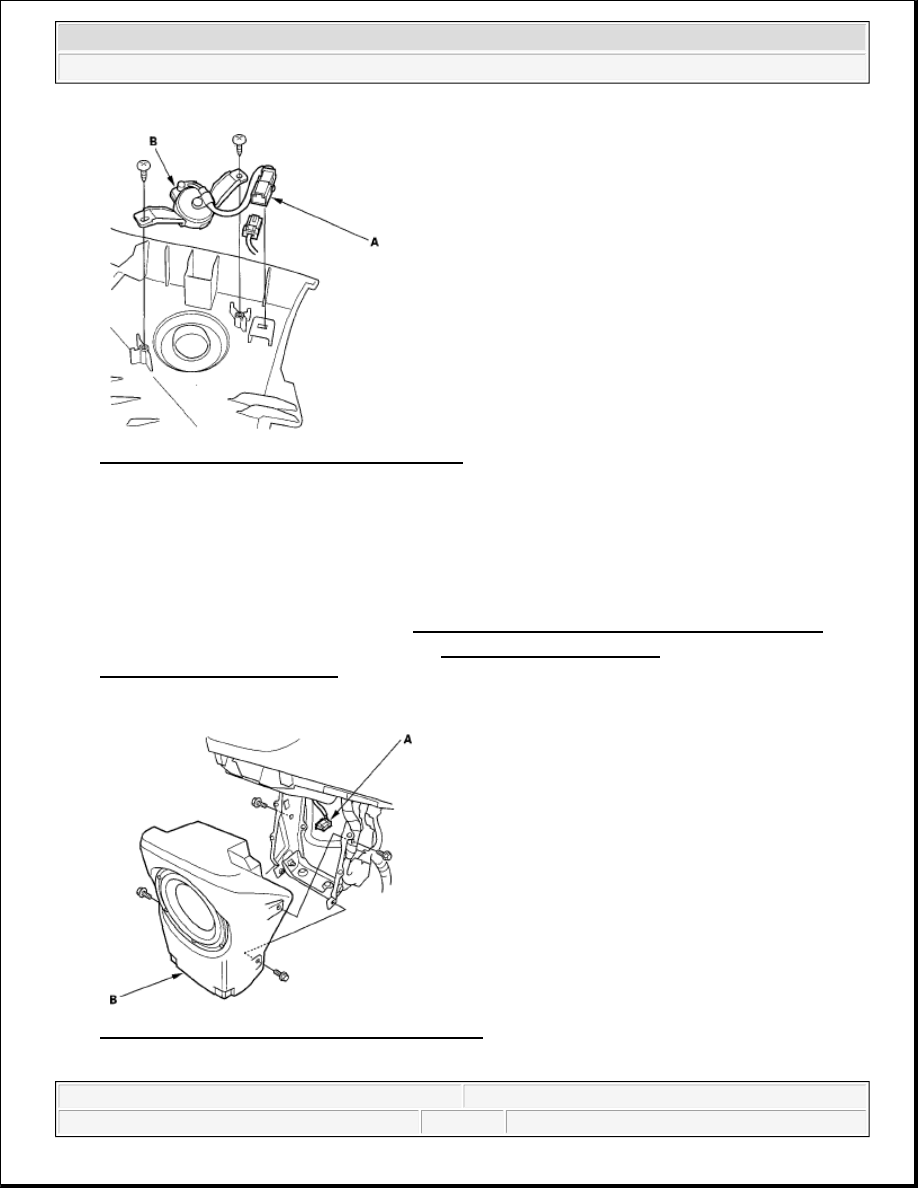

Fig. 69: Identifying 2P Connector And Tweeter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the two mounting screws from the tweeter (B).

4. Install the tweeter in the reverse order of removal.

SUBWOOFER

1. SC model: Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

2. Remove the dashboard center lower cover (see CENTER LOWER COVER

REMOVAL/INSTALLATION ).

3. Disconnect the 4P connector (A) from the subwoofer (B).

Fig. 70: Identifying 4P Connector And Subwoofer
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



4. Remove the four mounting bolts from the subwoofer.

5. Install the subwoofer in the reverse order of removal.

AUXILIARY JACK ASSEMBLY REPLACEMENT

EX MODEL

1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

2. Remove the front accessory power socket (see ACCESSORY POWER SOCKET

TEST/REPLACEMENT ).

3. Disconnect the 5P connector (A) from the auxiliary jack assembly (B).

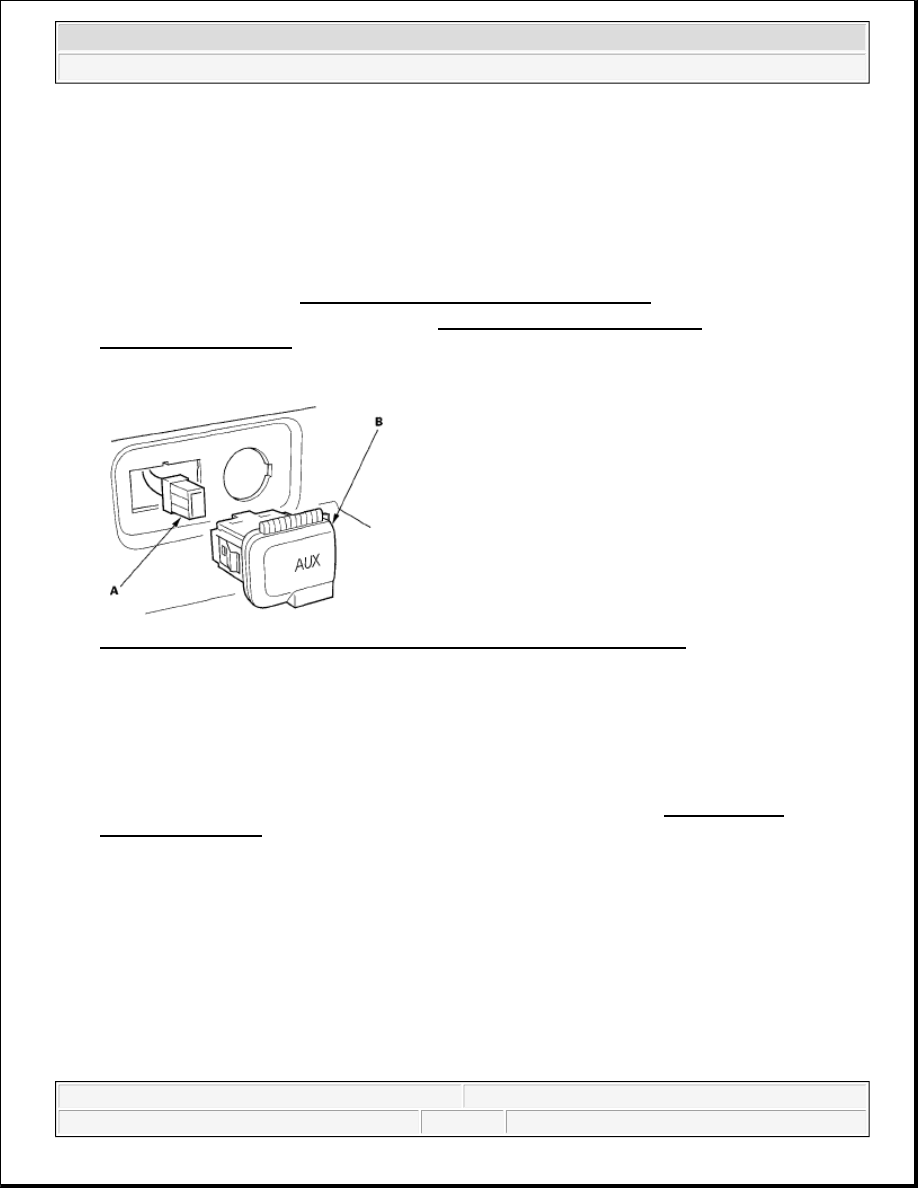

Fig. 71: Identifying 5P Connector And Auxiliary Jack Assembly - EX Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Push out the auxiliary jack assembly (B) from behind the dashboard.

5. Install the auxiliary jack assembly in the reverse order of removal.

SC MODEL

1. Remove the console accessory power socket from the center console box (see COMPONENT

LOCATION INDEX ).

2. Carefully pry the auxiliary jack assembly (A) out from the center console box.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element
