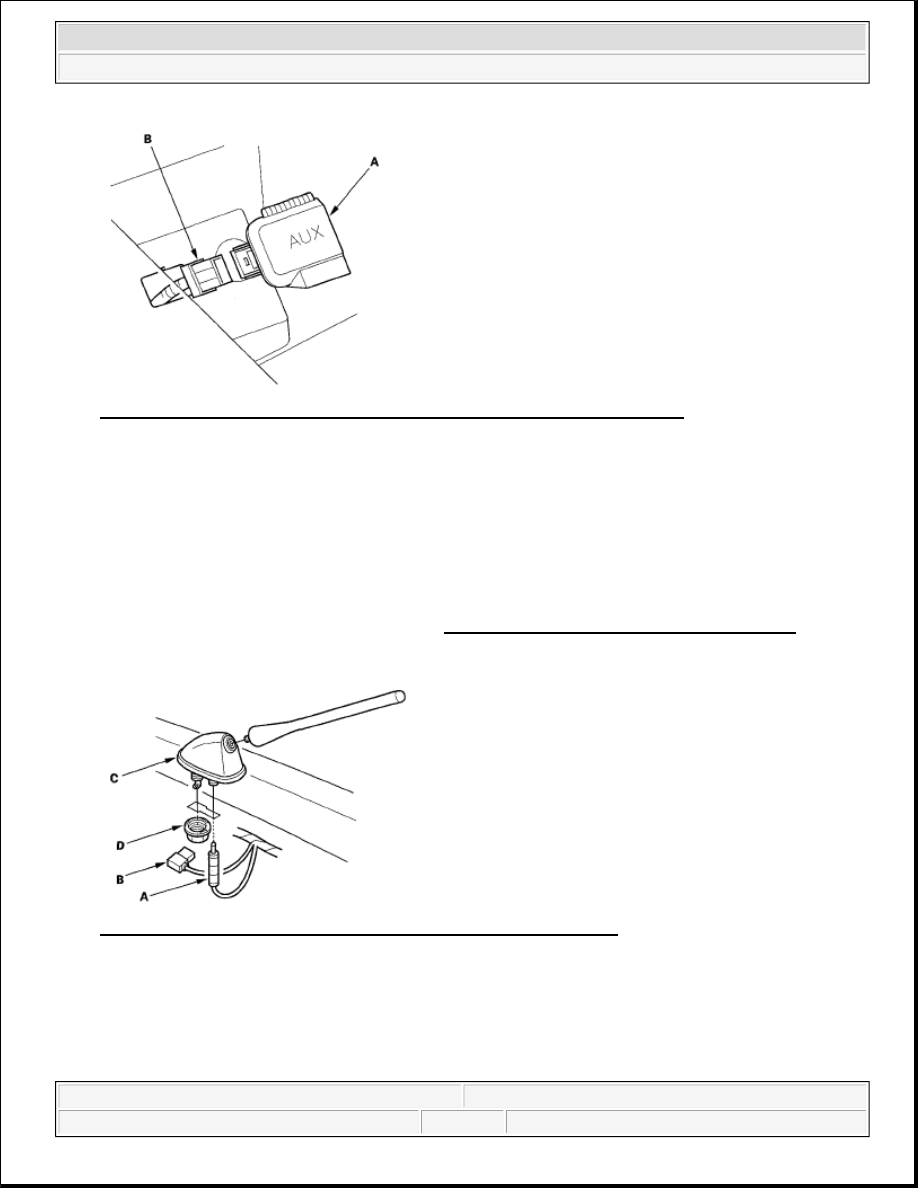

Fig. 72: Identifying 5P Connector And Auxiliary Jack Assembly - SC Model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Disconnect the 5P connector (B) from the auxiliary jack assembly.

4. Install the auxiliary jack assembly in the reverse order of removal.

AM/FM ANTENNA REPLACEMENT

WITHOUT XM

1. Pull down the rear portion of the headliner (see HEADLINER REMOVAL/INSTALLATION ).

2. Disconnect the AM/FM antenna lead jack (A) and 1P connector (B) from the roof antenna (C).

Fig. 73: Identifying AM/FM Antenna Lead Jack And 1P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the mounting nut (D) and the AM/FM antenna.

4. Install the antenna in the reverse order of removal.

AM/FM/XM ANTENNA REPLACEMENT



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



WITH XM

1. Pull down the rear portion of the headliner (see HEADLINER REMOVAL/INSTALLATION ).

2. Disconnect the AM/FM antenna lead connector (A) and XM antenna lead connector (B) from the

AM/FM/XM antenna (C).

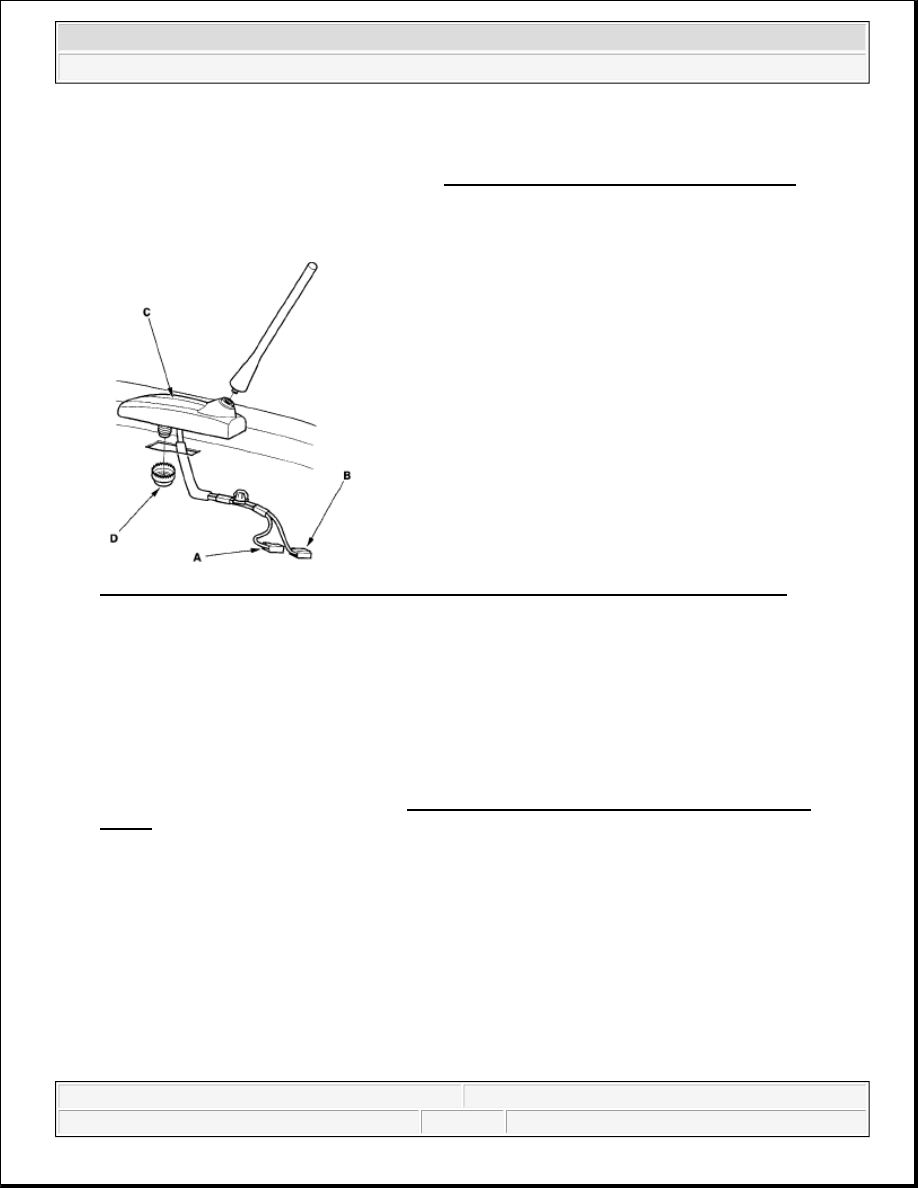

Fig. 74: Identifying AM/FM Antenna Lead Connector And XM Antenna Lead Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the mounting nut (D) and the AM/FM/XM antenna.

4. Install the antenna in the reverse order of removal.

XM RECEIVER REPLACEMENT

WITH XM

1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE

AREA ).

2. Disconnect the XM receiver connector (A) and the XM antenna lead connector (B).



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



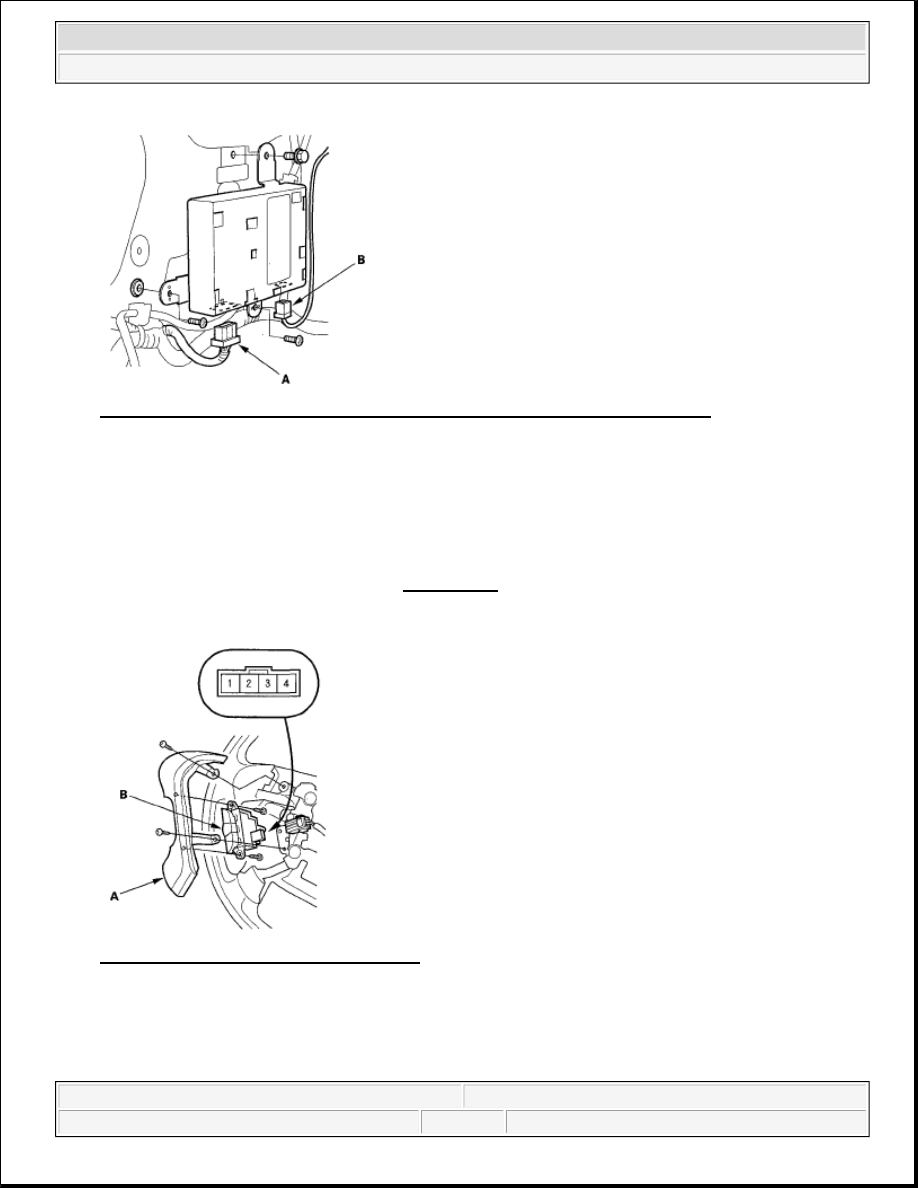

Fig. 75: Identifying XM Receiver Connector And XM Antenna Lead Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the bolts and screws, then remove the XM receiver.

4. Install the XM receiver in the reverse order of removal.

AUDIO REMOTE SWITCH TEST/REPLACEMENT

1. Remove the driver's airbag assembly (see REMOVAL ).

2. Remove the two screws and cover (A) from the steering wheel.

Fig. 76: Identifying Audio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the two screws from the audio remote switch (B).

4. Disconnect the 4P connector from the audio remote switch.

5. Measure the resistance between the No. 3 and No. 4 terminals in each switch position according to the



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



table.

RESISTANCE REFERENCE

6. If the resistance is not as specified, replace the audio remote switch.

Position

Resistance

OFF

About 10 kohms

MODE

About 2.4 kohms

CH

About 900 ohms

? (VOL. UP)

About 300 ohms

? (VOL. DOWN) About 50 ohms
