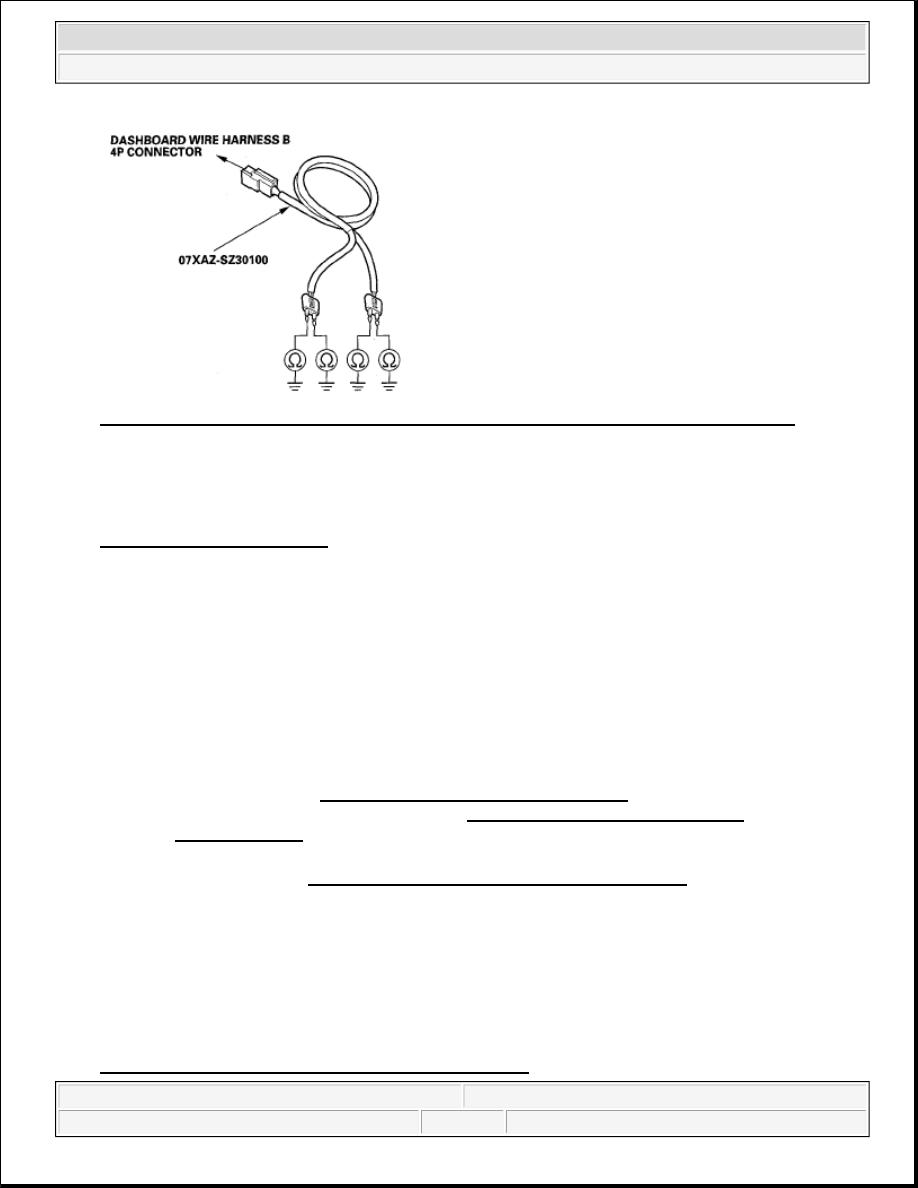

Fig. 69: Measuring Resistance Between SRS Simulator Lead Terminals And Body Ground

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector A (28P) and the SRS unit. Check the
connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit (see
SRS UNIT REPLACEMENT ).

NO -Short to ground in dashboard wire harness B; replace dashboard wire harness B.

DTC 21-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN DRIVER'S SEAT BELT TENSIONER

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead K 070AZ-SNAA200

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 21-1x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt tensioner.

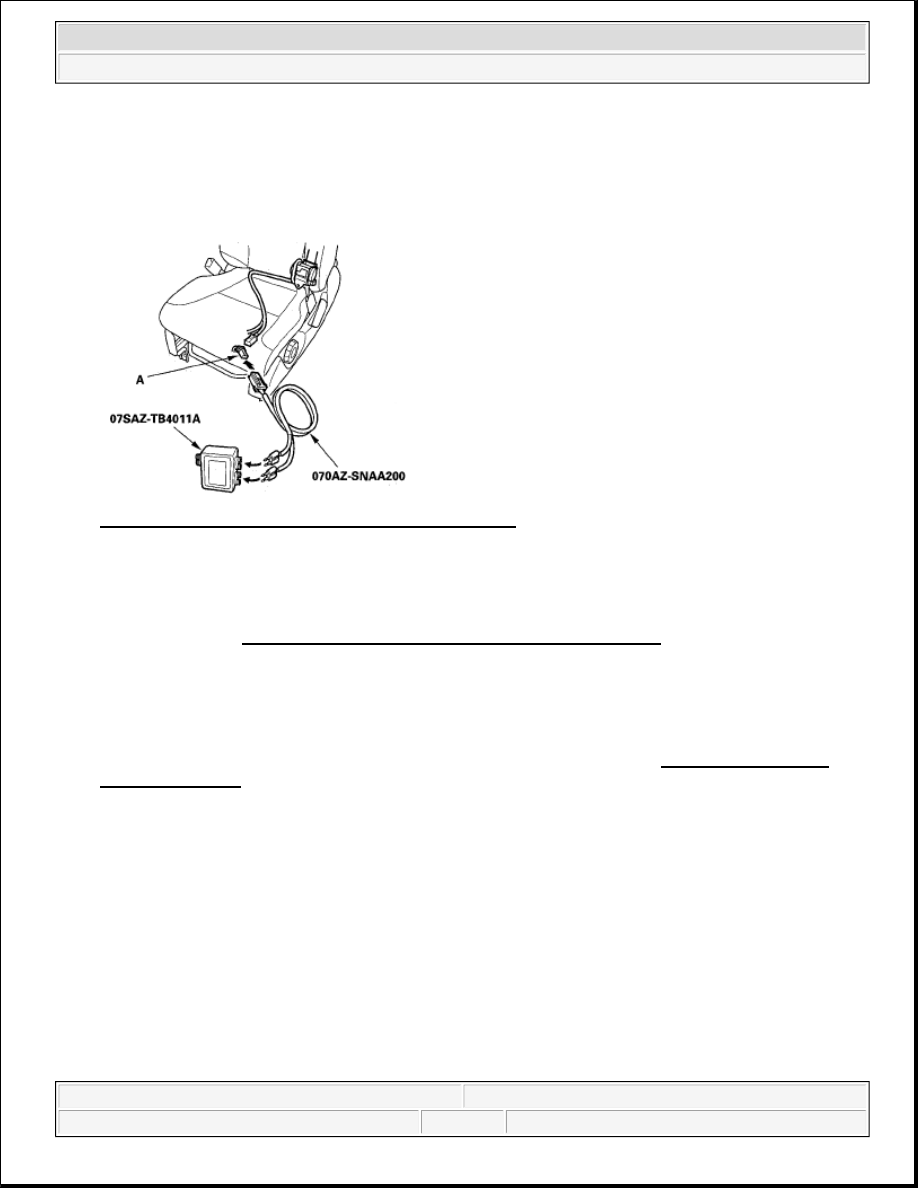

Fig. 70: Identifying Floor Wire Harness 4P Connector

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead K to the floor wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 21-1x indicated?

YES -Go to step 9.

NO -Open in the driver's seat belt tensioner; replace the driver's seat belt (see FRONT SEAT BELT
REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect the front passenger's seat belt tensioner 4P connector (see step 7 on ) and both seat belt buckle

tensioner 4P connectors (see step 8 on ).

11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on ).

12. Measure the resistance between the No. 1 and the No. 2 terminals of SRS unit connector B (28P). There

should be 2.0-3.0 0,.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



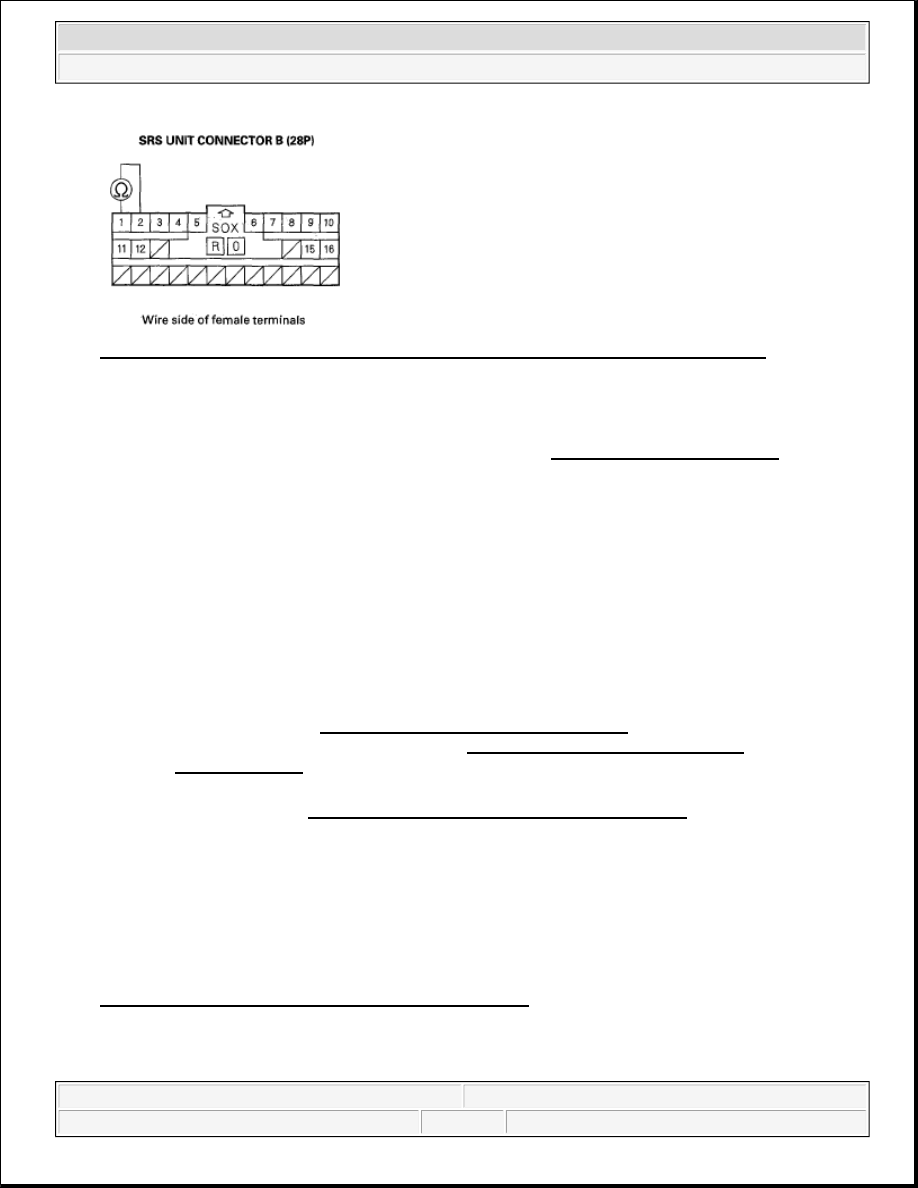

Fig. 71: Measuring Resistance Between SRS Unit Connector B (28P) Terminal 1 And 2

Is resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the SRS unit (see SRS UNIT REPLACEMENT ).

NO -Open in the floor wire harness; replace the floor wire harness.

DTC 21-3X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT TO ANOTHER WIRE OR
DECREASED RESISTANCE IN DRIVER'S SEAT BELT TENSIONER

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead K 070AZ-SNAA200

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 21-3x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt tensioner.

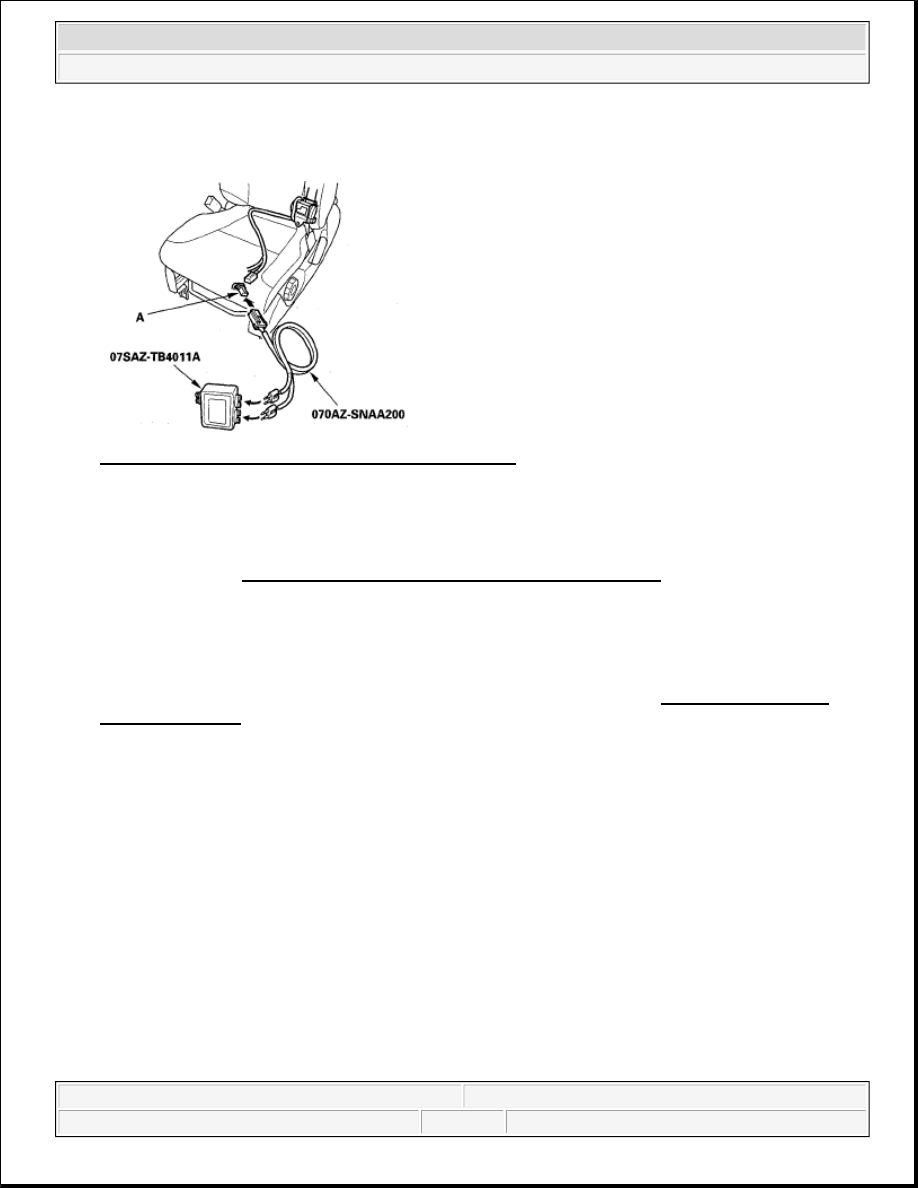

Fig. 72: Identifying Floor Wire Harness 4P Connector

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead K to the floor wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 21-3X indicated?

YES -Go to step 9.

NO -Short in the driver's seat belt tensioner; replace the driver's seat belt (see FRONT SEAT BELT
REPLACEMENT ).

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect the front passenger's seat belt tensioner 4P connector (see step 7 on ) and both seat belt buckle

tensioner 4P connectors (see step 8 on ).

11. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on ).

12. Disconnect the simulator lead from the floor wire harness.

13. Measure the resistance between the No. 1 and the No. 2 terminals of SRS unit connector B (28P). There

should be an open circuit or at least 1Mohms.
