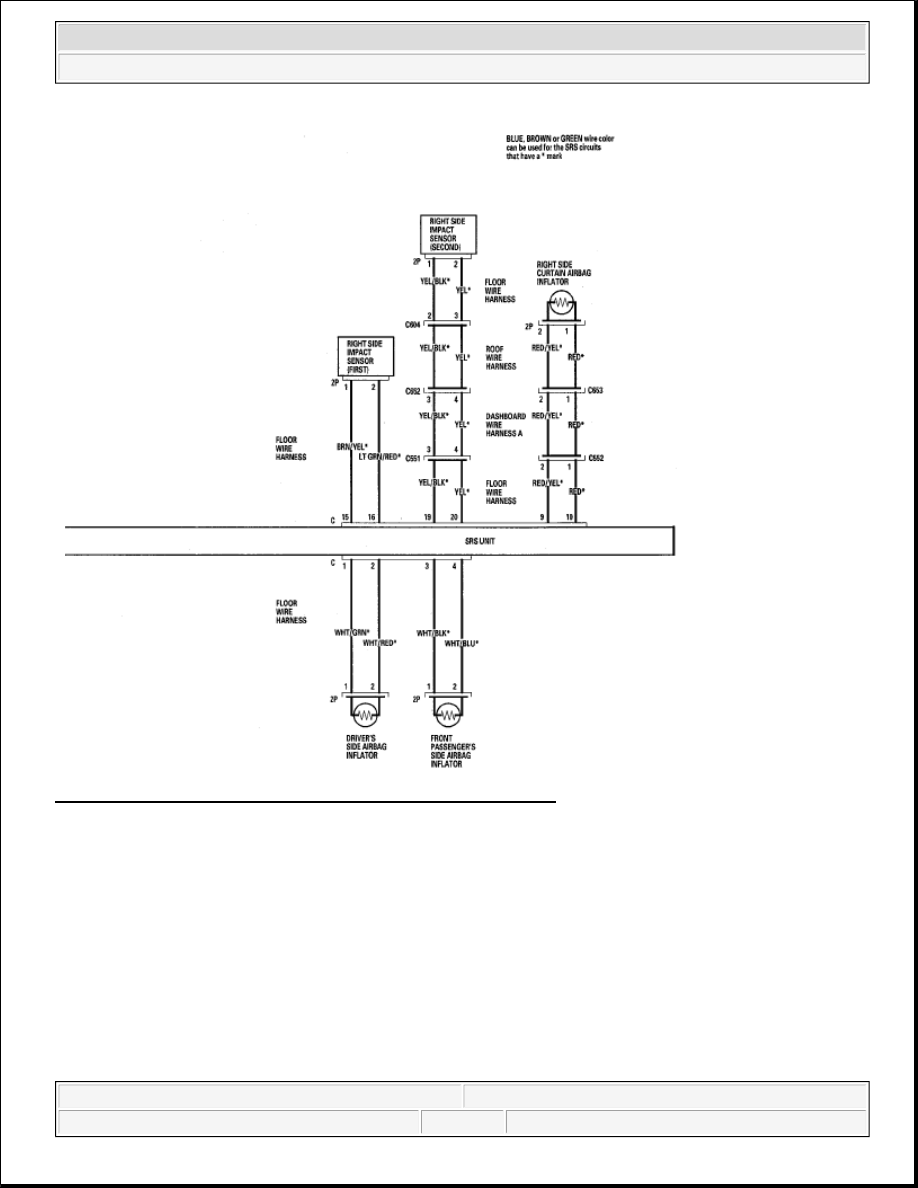

Fig. 48: Supplemental Restraint System Circuit Diagram (3 Of 4)



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

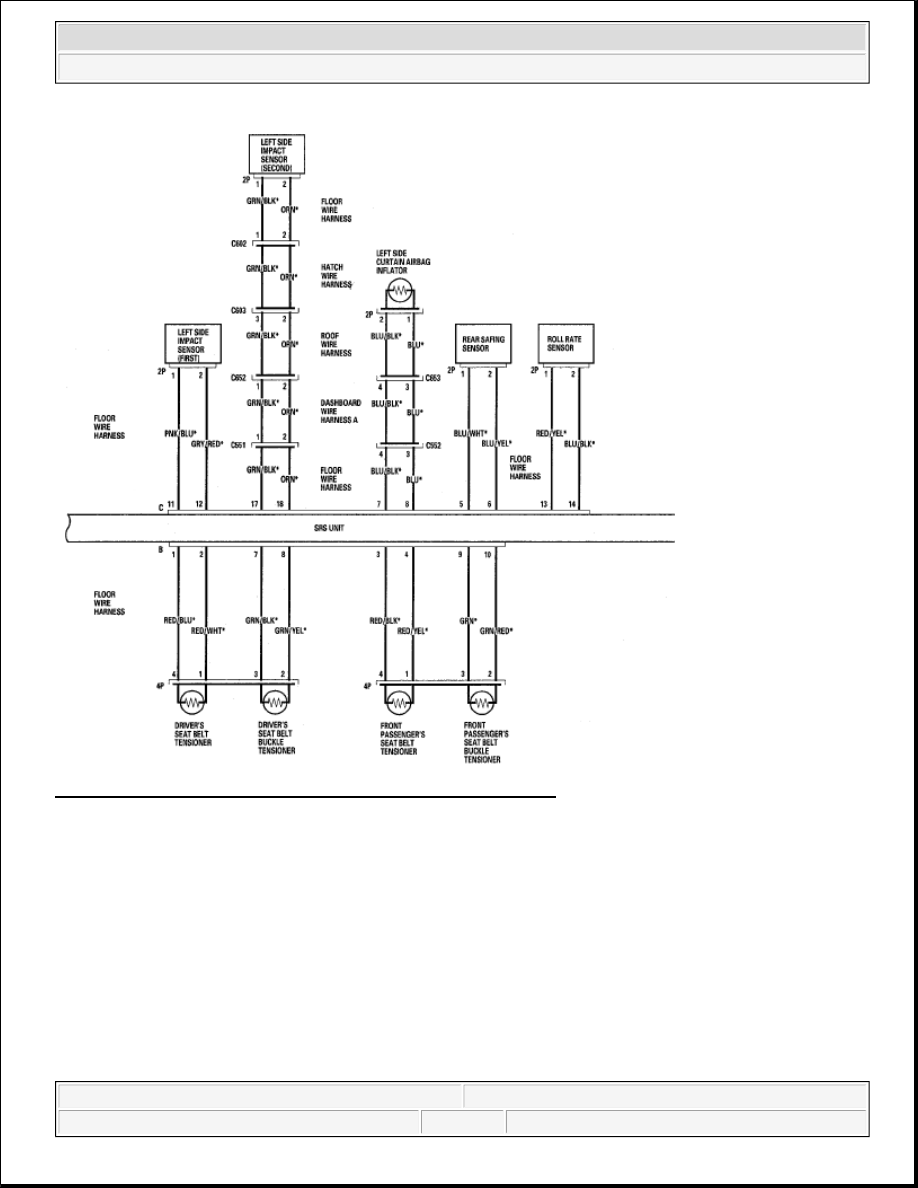

Fig. 49: Supplemental Restraint System Circuit Diagram (4 Of 4)

DTC TROUBLESHOOTING

DTC 11-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN DRIVER'S AIRBAG FIRST
INFLATOR; DTC 11-4X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN DRIVER'S AIRBAG
SECOND INFLATOR

Special Tools Required



SRS inflator simulator 07SAZ-TB4011A



SRS simulator lead F 07XAZ-SZ30100

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then

goes off.

Does the SRS indicator stay on, and is DTC 11-1x or 11-4x indicated?

YES -Go to step 3.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

4. Disconnect the driver's airbag 4P connector (A) from the cable reel.

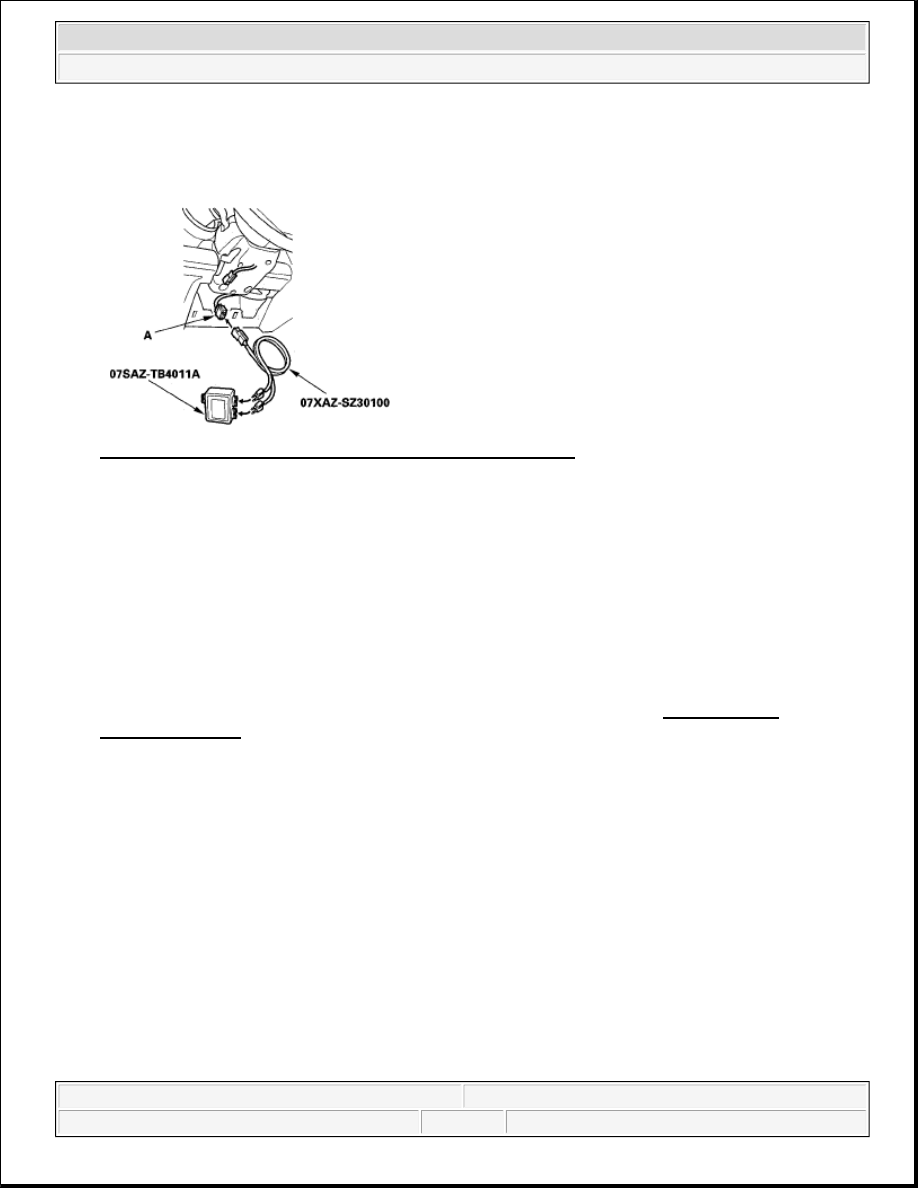

Fig. 50: Identifying Driver's Airbag 4P Connector

5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead F to the cable reel.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 11-1x or 11-4x indicated?

YES -Go to step 9.

NO -Open in the driver's airbag first or second inflator; replace the driver's airbag (see DRIVER'S
AIRBAG REPLACEMENT ).

Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

10. Disconnect the dashboard wire harness B 4P connector (A) from the cable reel.

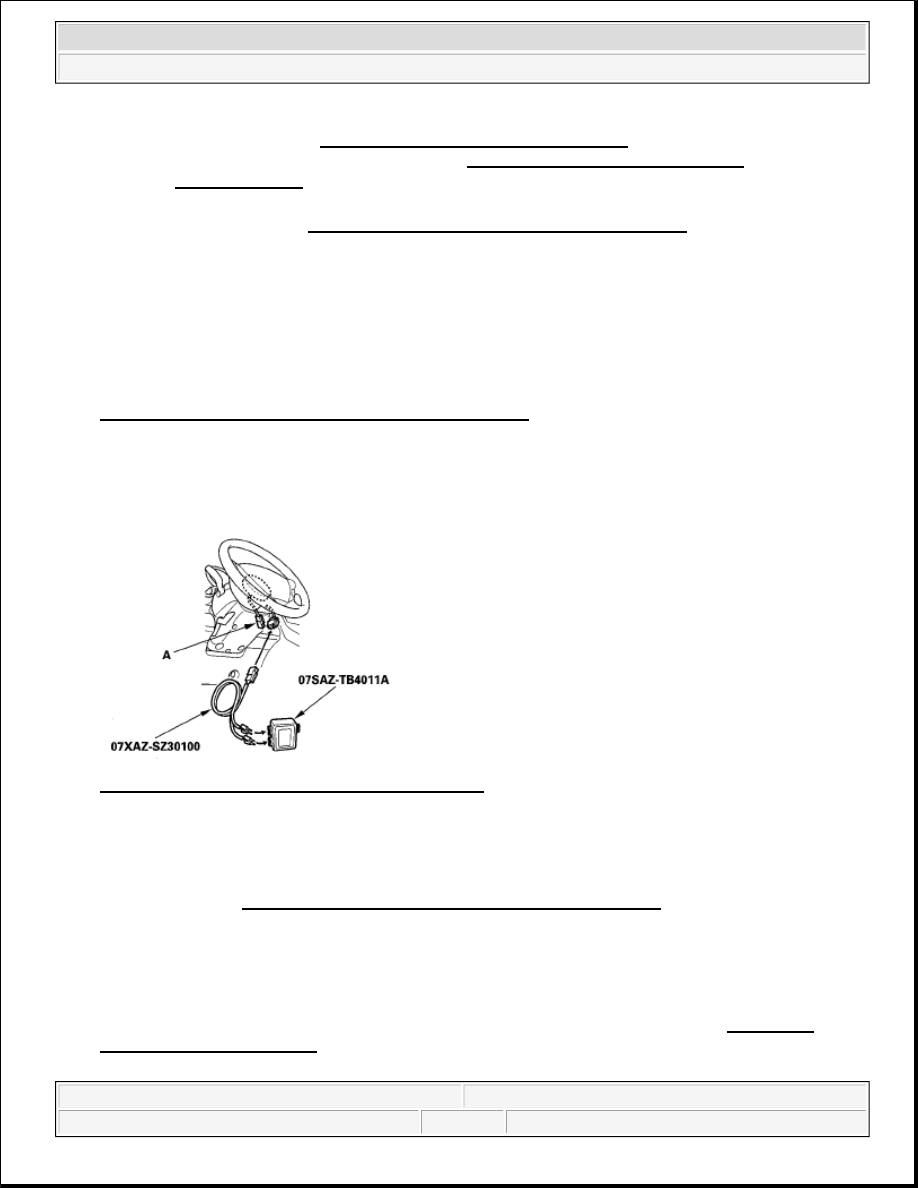

Fig. 51: Identifying Dashboard Wire Harness B 4P Connector

11. Connect the SRS inflator simulator (2 ohms connectors) and the simulator lead to dashboard wire harness

B.

12. Reconnect the negative cable to the battery.

13. Clear the DTC memory.

14. Read the DTC.

Is DTC 11-1x or 11-4x indicated?

YES -Go to step 15.

NO -Open or increased resistance in the cable reel; replace the cable reel (see CABLE REEL
REPLACEMENT ).

15. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes.

16. Disconnect SRS unit connector A (28P) from the SRS unit (see step 9 on ).

17. Disconnect the SRS inflator simulator from the SRS simulator lead. Do not disconnect the simulator lead

from the dashboard wire harness B 4P connector.

18. Measure the resistance between the terminals of both SRS simulator leads. There should be 1 0, or less.
