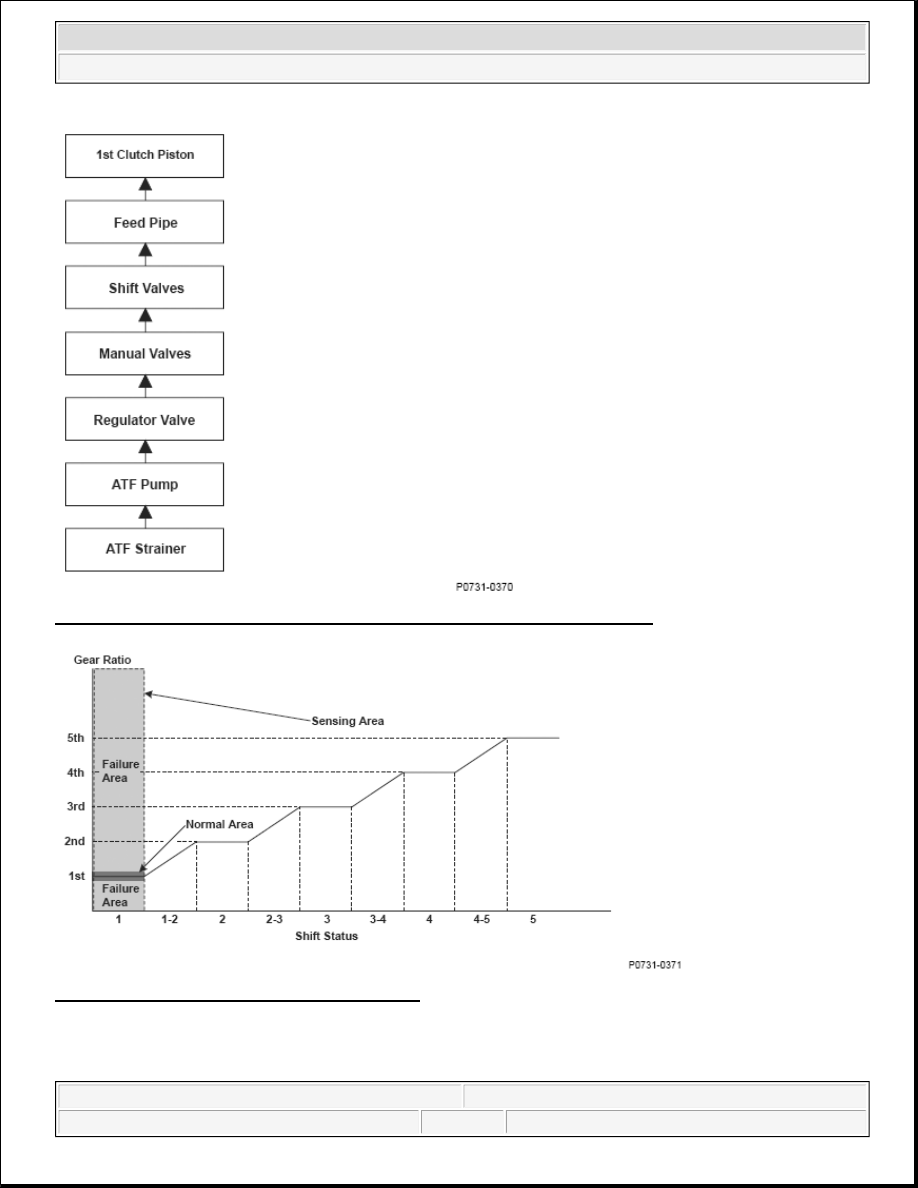

Fig. 110: Problem In 1st Clutch And 1st Clutch Hydraulic Circuit Flow Chart

Fig. 111: Gear Ratio Versus Shift Status Graph

General Description

To engage 1st gear, line pressure is supplied to the 1st clutch piston, engaging the 1st clutch, and the secondary



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



shaft and the secondary shaft 1st gear are connected and revolve together. Hydraulic pressure is supplied to the
1st clutch through the ATF strainer --> the ATF pump --> the regulator valve --> the manual valve --> the shift
valves --> the feed pipe --> 1st clutch piston. (A shift valve failure in the supply route above is detected by the
malfunction detection of each shift solenoid valve.) The powertrain control module (PCM) computes the ratio
of the input shaft (mainshaft) speed to the output shaft (countershaft) speed. When the ratio is not the 1st gear
ratio, it is detected as a malfunction of the hydraulic circuit or the 1st clutch, and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The actual gear ratio must match one of these conditions for at least 12 seconds with the 1st gear command:



Actual gear ratio > 1st gear ratio by a factor of 1.2



Actual gear ratio < 1st gear ratio by a factor of 0.75

Driving Pattern

Start the engine, shift to D position, and drive the vehicle at a speed of 8 mph (12 km/h) or more for at least 12
seconds in 1st gear.

Execution

Continuous

Sequence

None

Duration

12 seconds or more

DTC Type

Two drive cycles, MIL OFF, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine
speed

1,000 rpm

-

Vehicle
speed

8 mph (12 km/h)

-

Battery
voltage

11.0 V

-

Shift lever
position

D

No active
DTCs

P0116, P0117, P0118, P0122, P0123, P0705, P0706, P0716, P0717, P0718, P0721, P0722,
P0723, P0747, P0752, P0756, P0757, P0761, P0771, P0776, P0777, P0780, P0796, P0797,
P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974, P0976, P0977, P0979, P0980,
P0982, P0983, P0985, P0986, P1730, P1731, P1732, P1733, P1734



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element





Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the indicator

When a malfunction is detected, the D indicator blinks, and the DTC and the freeze frame data are stored in the
PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting
the battery.

DTC P0732 (64): ADVANCED DIAGNOSTICS

DTC P0732: PROBLEM IN 2ND CLUTCH AND 2ND CLUTCH HYDRAULIC CIRCUIT (2ND GEAR
INCORRECT GEAR RATIO)

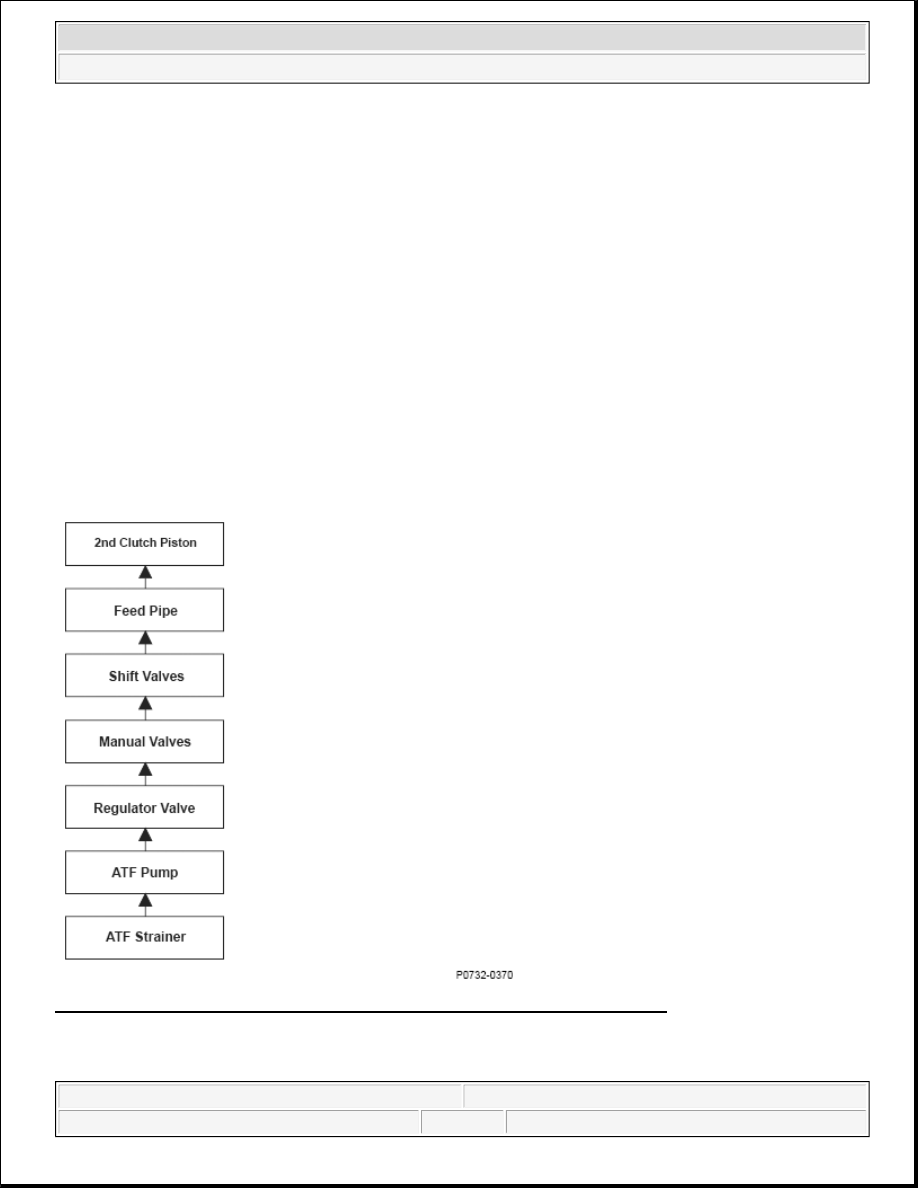

Fig. 112: Problem In 2nd Clutch And 2nd Clutch Hydraulic Circuit Flow Chart



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



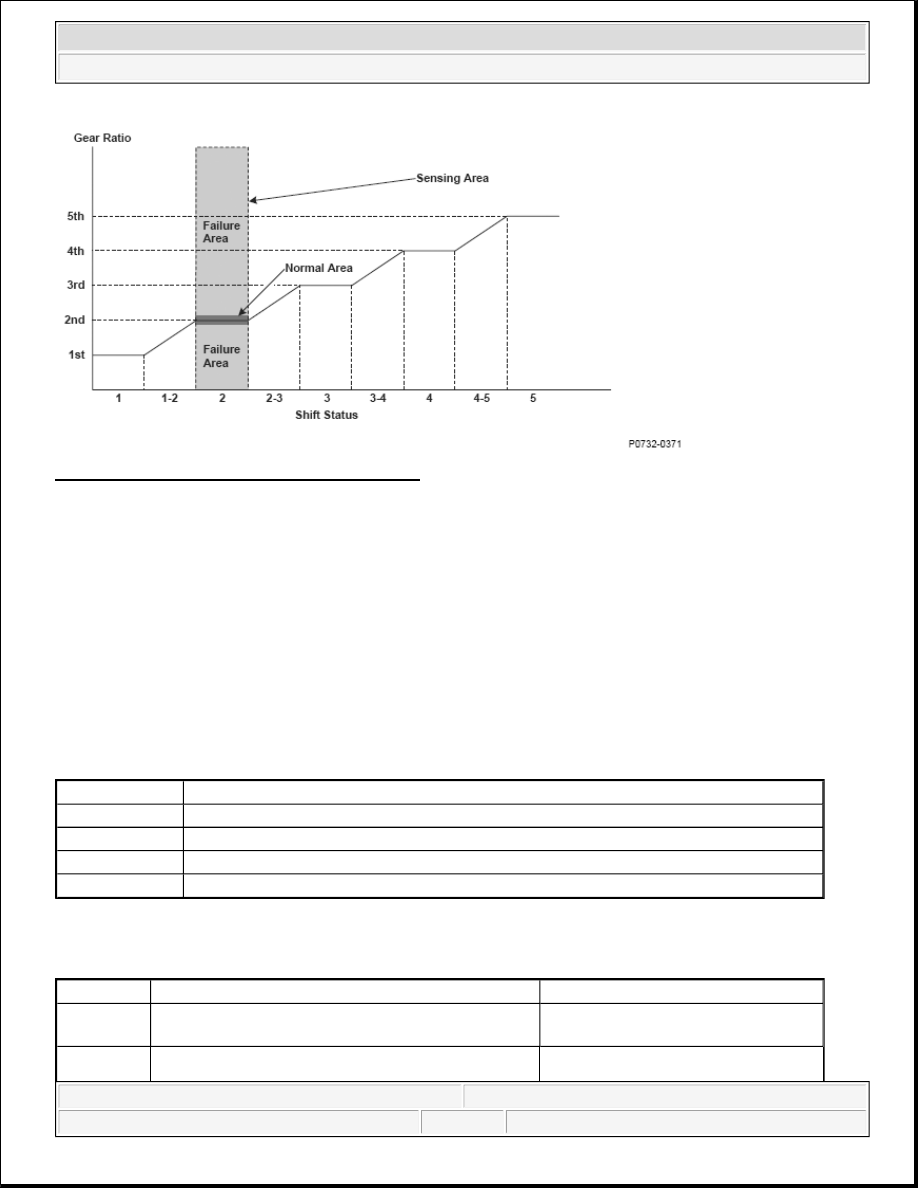

Fig. 113: Gear Ratio Versus Shift Status Graph

General Description

To engage 2nd gear, line pressure is supplied to the 2nd clutch piston, engaging the 2nd clutch, and the
secondary shaft and the secondary shaft 2nd gear are connected and revolve together. Hydraulic pressure is
supplied to the 2nd clutch through the ATF strainer --> the ATF pump --> the regulator valve --> the manual
valve --> the shift valves --> the feed pipe --> 2nd clutch piston. (A shift valve failure in the supply route above
is detected by the malfunction detection of each shift solenoid valve.) The powertrain control module (PCM)
computes the ratio of the input shaft (mainshaft) speed to the output shaft (countershaft) speed. When the ratio
is not the 2nd gear ratio, it is detected as a malfunction of the hydraulic circuit or the 2nd clutch, and a DTC is
stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

12 seconds or more

DTC Type

Two drive cycles, MIL OFF, D indicator blinks

OBD status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine
speed

1,000 rpm

-

Vehicle

8 mph (12 km/h)

-
