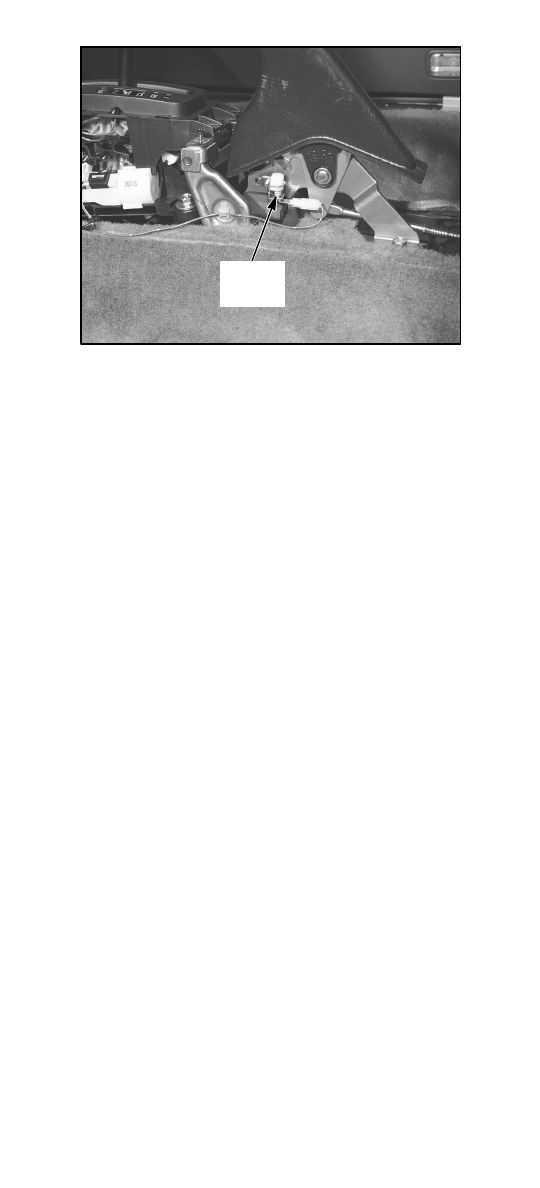

112. Below Center Console

PARKING
BRAKE
SWITCH

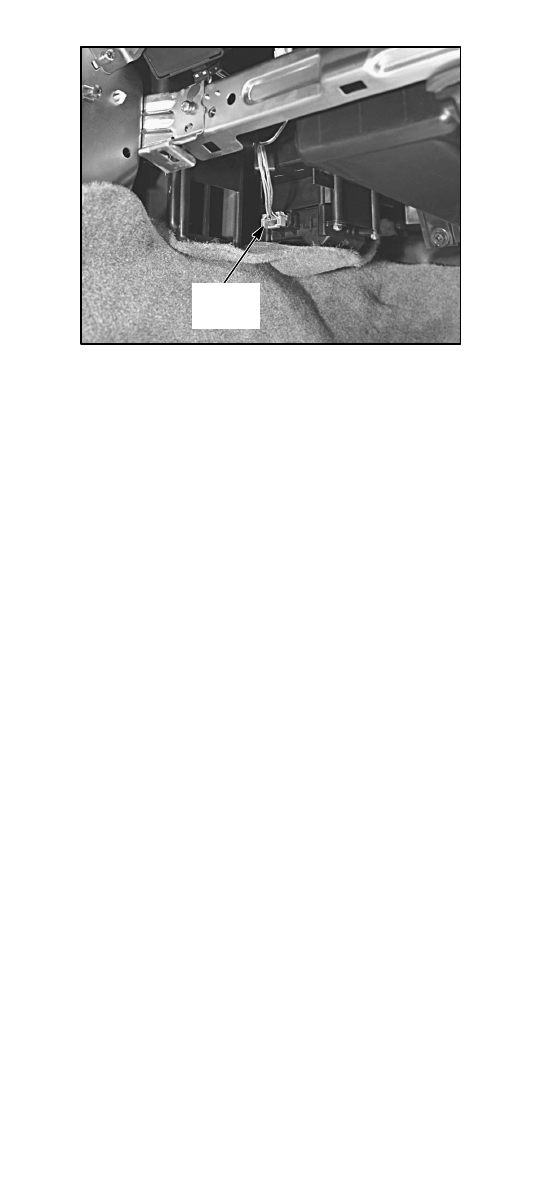

113. Below Dash, Right Side of Heater Unit

AIR MIX
CONTROL
MOTOR

114. Below Center of Dash, Right Side of Heater Unit

CONNECTOR A
(32-GRY)

CONNECTOR B
(25-GRY)

CONNECTOR C
(31-BLU)

CONNECTOR D
(16-GRY)

PCM/ECM

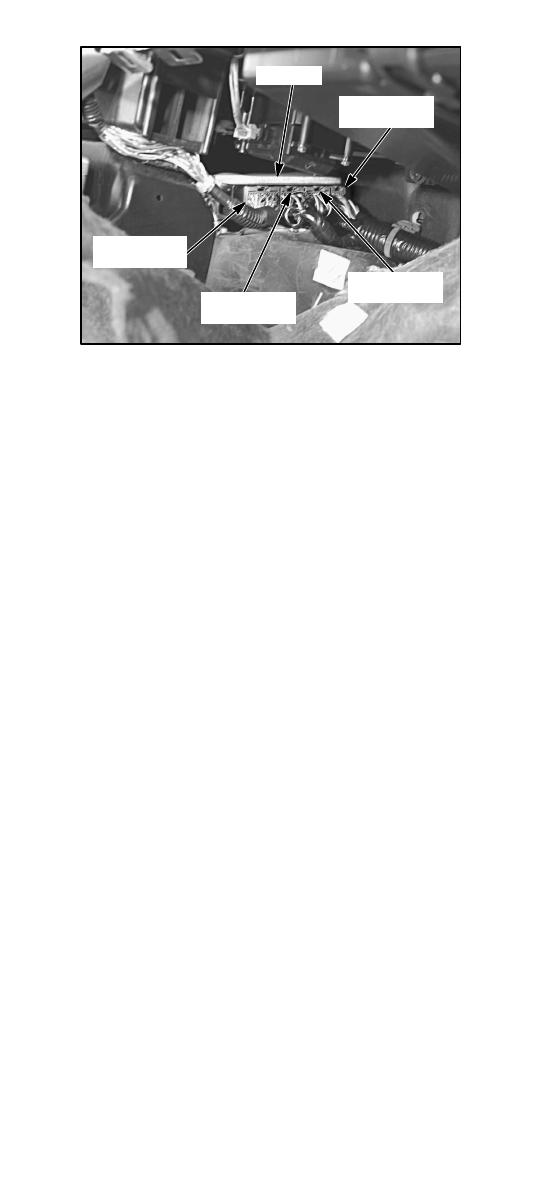

115. Below Right Side of Dash

C105
JUNCTION
CONNECTOR
(20-BLK) (’98-’99)
(20-ORN) (’00-’02)

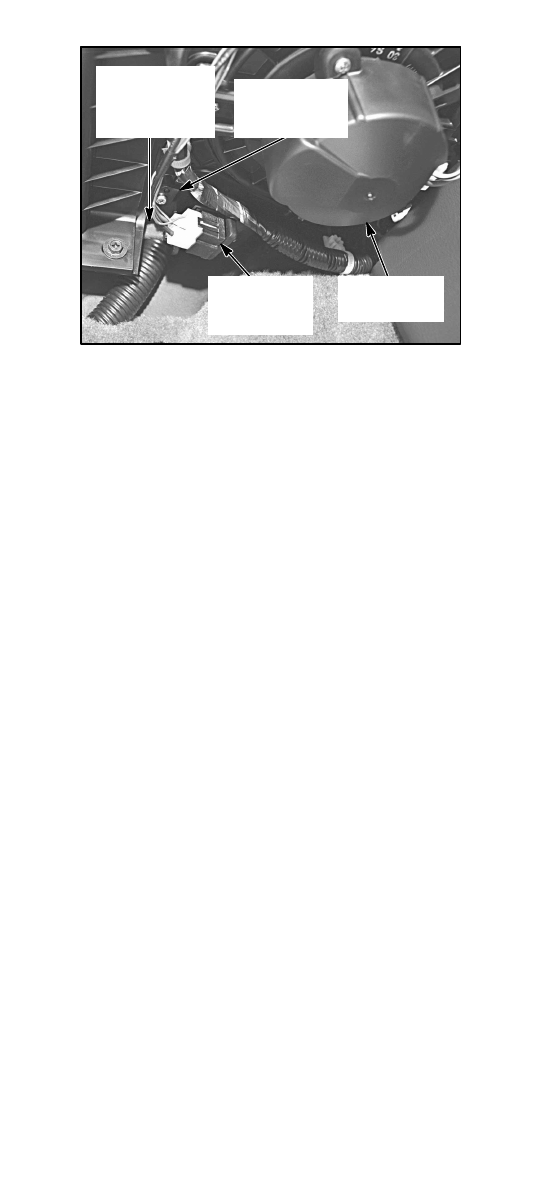

BLOWER
MOTOR
(Climate Control)

BLOWER
POWER
TRANSISTOR
(Climate Control)

C108 (’00-’02) (V6)
JUNCTION
CONNECTOR
(20-ORN)
