Safety airbag-1

Chapter 12

Safety airbag

Safety airbag-2

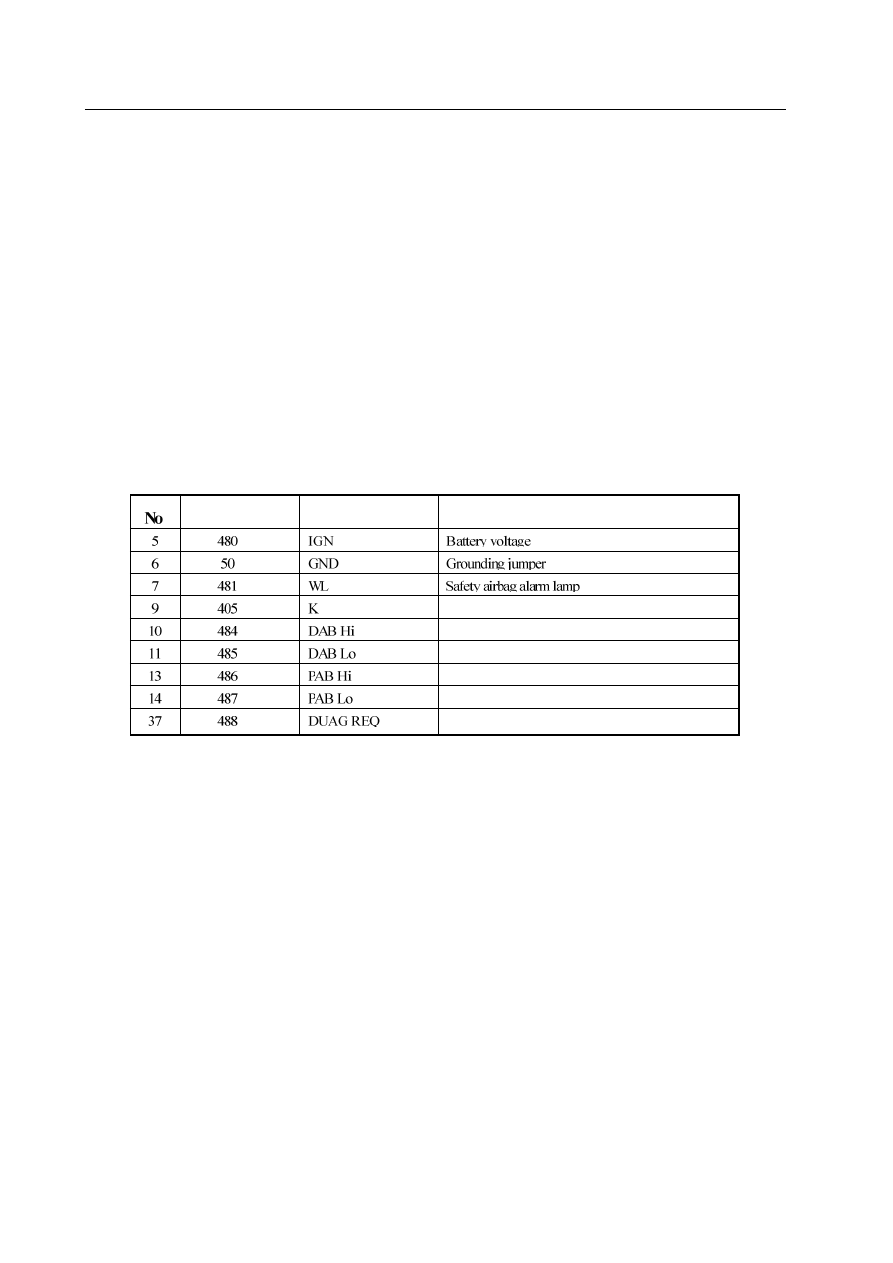

Table 1   SRS-ECU stitch description

5.  The maintenance operation must be started after 60 seconds following the removal of negative connection of

accumulator, wrap the negative with insulating tape for insulation.

Due to the capacitance in SRS-ECU to maintain certain power to make the safety airbag release within a certain time after the

power-off of accumulator, the operation must be started after a while to avoid any possible major damaging accident caused

by the safety airbag’s improper release.

6. The parts such as SRS-ECU, safety airbag module as well as clock spring should be removed off and well preserved

providing the temperature is high enough to cause any damage(above93¡æ) in the painting operation.

The failure codes must be debugged with the diagnostic scanner following the repairing of SRS safety airbag system so as to

make alarm lamp work functionally.

Instructions for maintenance

          For your safe operation, please read the following instructions prior to your operation.

1.  The maintenance of SRS safety airbag must be operated under the procedure and directions instructed in this

chapter.

2.  The operation must be done with the test instruments and special tools designated by the chapter.

3.  The following parts must be replaced by new ones providing something wrong with them.

a. SRS safety airbag control unit (SRS-ECU)

b. Clock spring module

c. The driver’s side safety airbag module
d. The passengers’ side safety airbag module.

e. Safety airbag wiring harness.

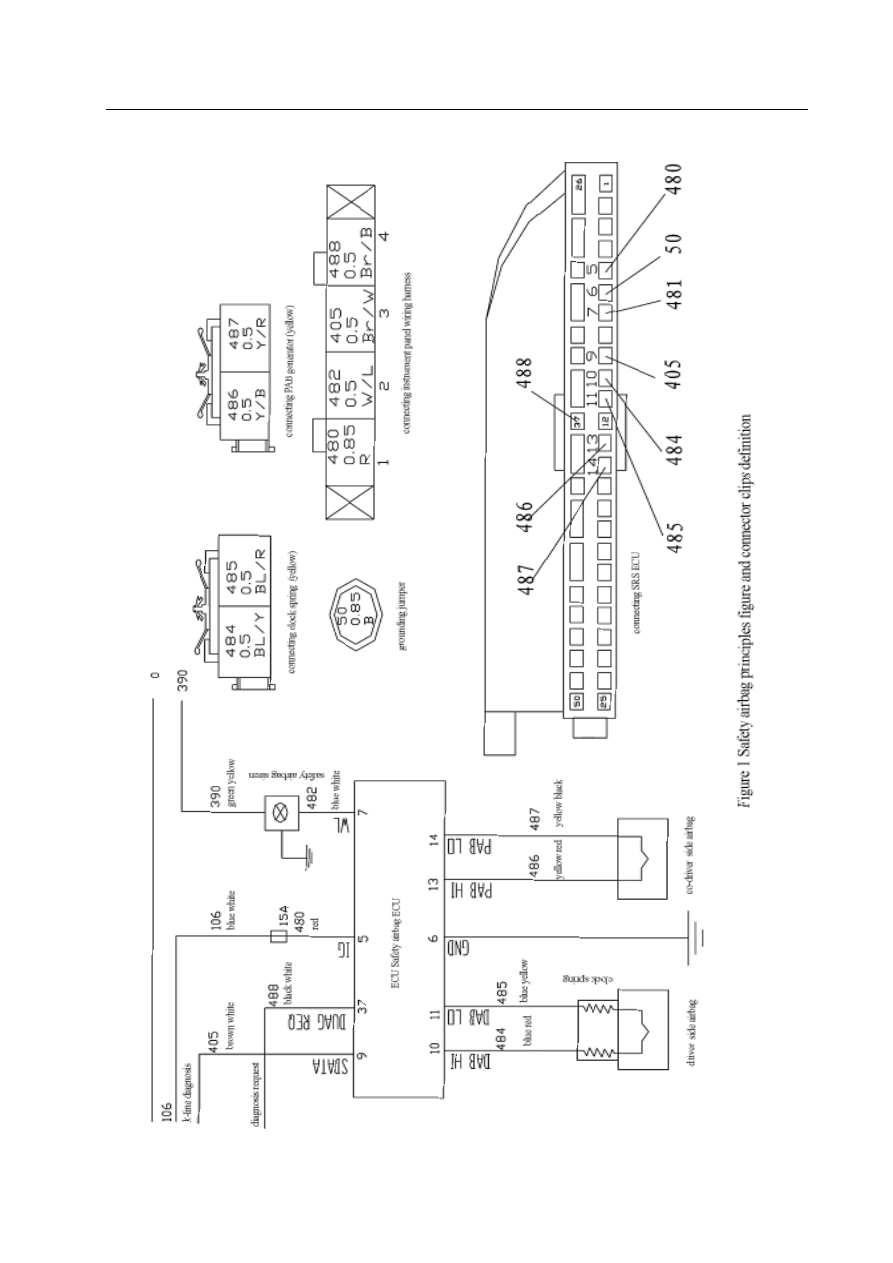

4. The safety airbag electric principles figure and definitions of connector clips are in Figure 1,SRS-ECU stitch

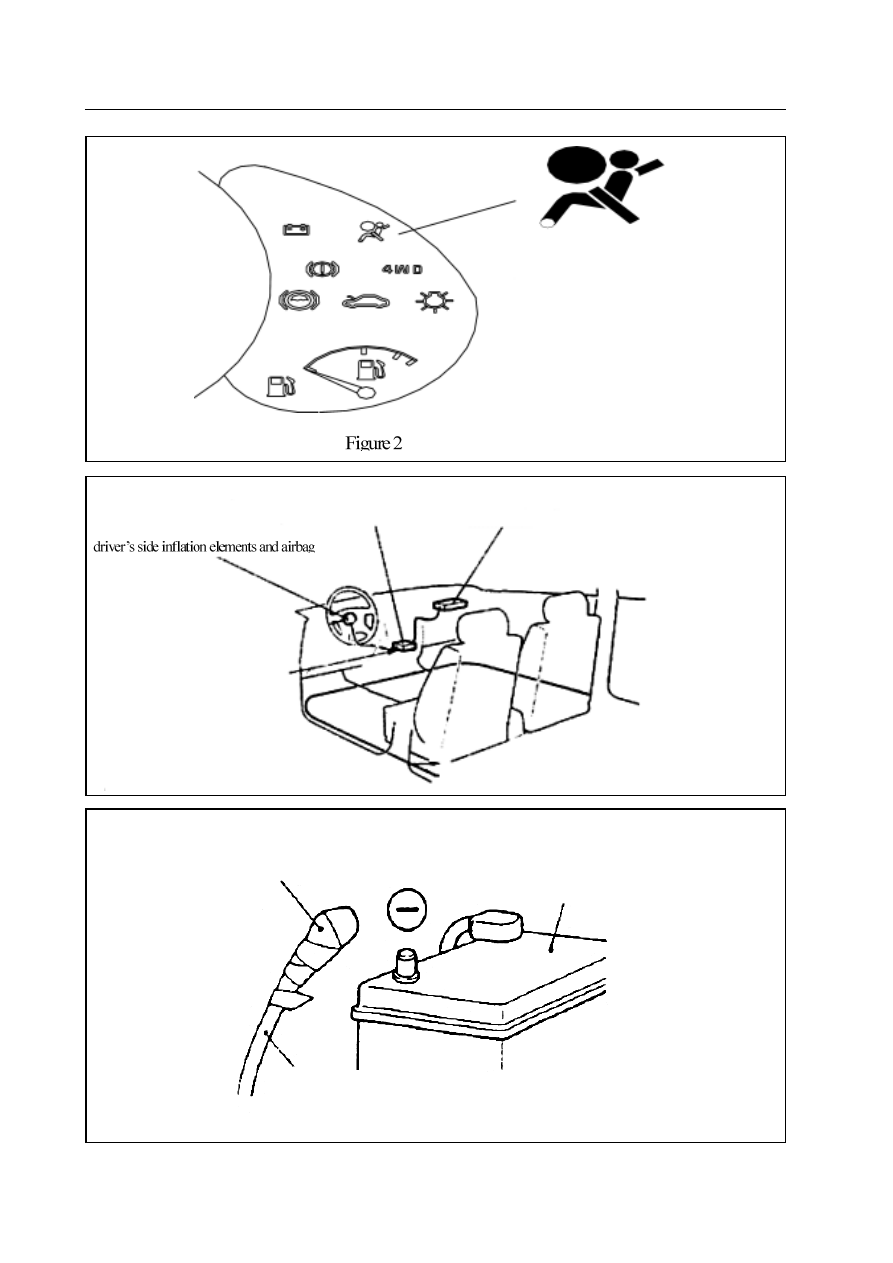

    definition in Table 1 and the position and form of safety airbag failures indicator lamp in combined instrument in

    Figure 2.

The driver’s side safety airbag, low position

Wire#

Description

Name

Diagnosis request



The driver’s side safety airbag, high position

Passengers’ side safety airbag, high position

Passengers’ side safety airbag, low position



Diagnosis of serial data I/O (K-line)

Safety airbag-3

Safety airbag-4

safety airbag system alarm lamp

impact sensor and diagnosis module

passengers’ side inflation elements and airbag

insulating tape

battery

wire
