Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 26

Cab

BF-2

Cab Front Panel

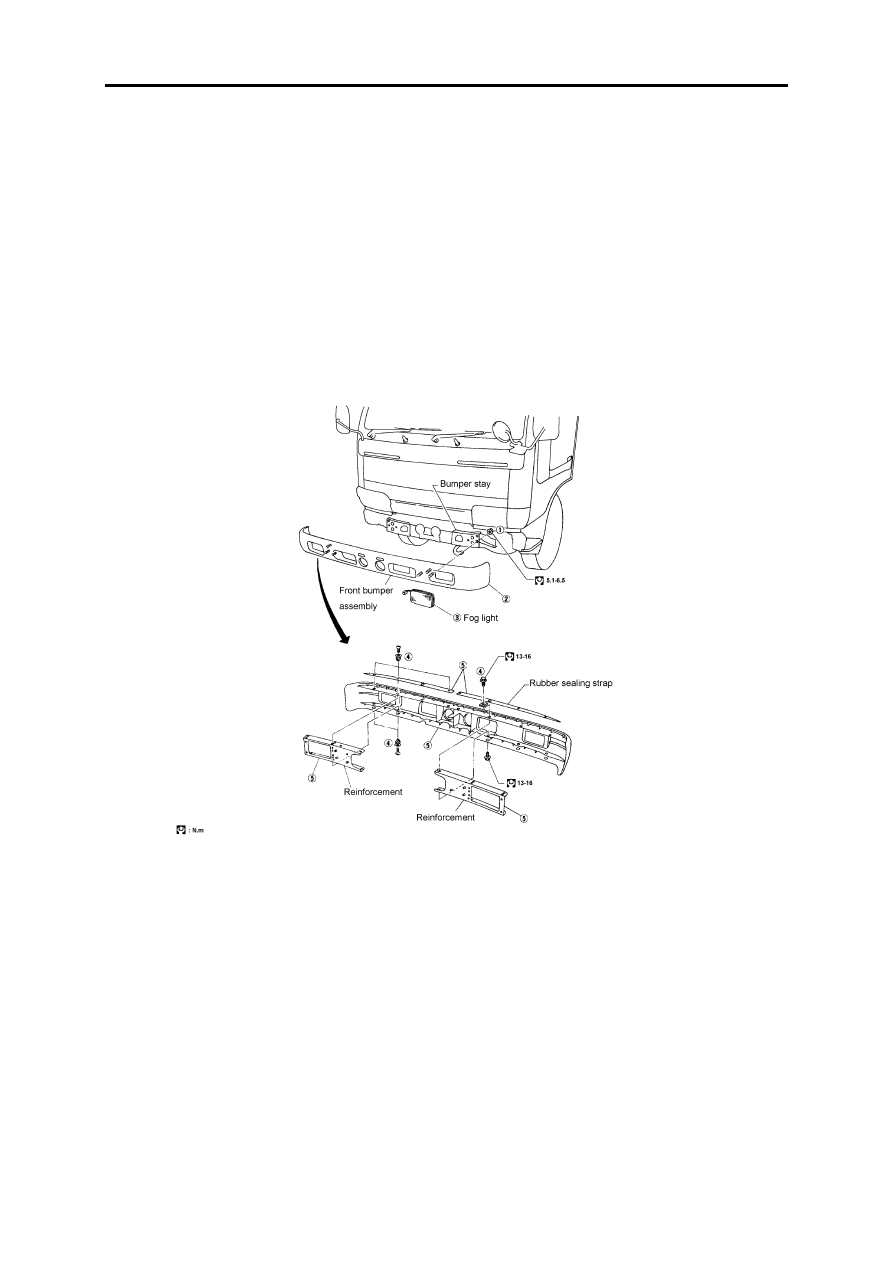

Disassembling the front bumper ass'y:

1.Release off the six fixed nuts from the front bumper (each three on left and right side).

2.Release off the bumper ass'y.

3.Disassemble the connection device for right and left fog light.

4.Disassemble the clip and bolt.

5.Disassemble reinforcement, seal washer and i

6.nstallation board for the lights

.

Cab

BF-3

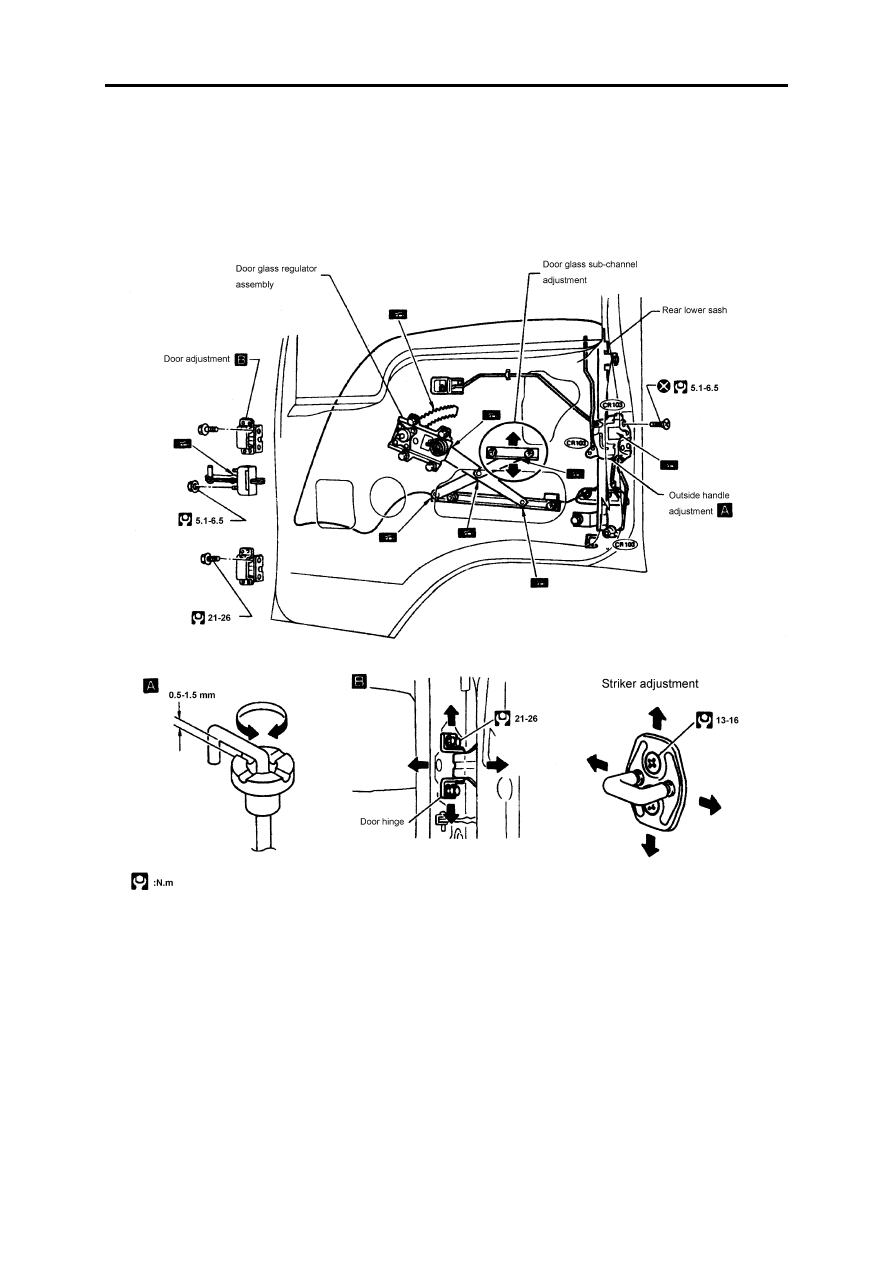

Door

Front Door

When disassembling the front door, it is better to disassemble the cover at  front side first.
Afler adjusting the door or door lock, check the door lock open and lock condit ion
.

Cab

BF-4

Instrument Panel

Caution:

Before disassembling the instrument panel, switch off the power-supply.
Be careful not to scratch pad and other parts.
These parts are made of plactic. Excessive force will damage them.

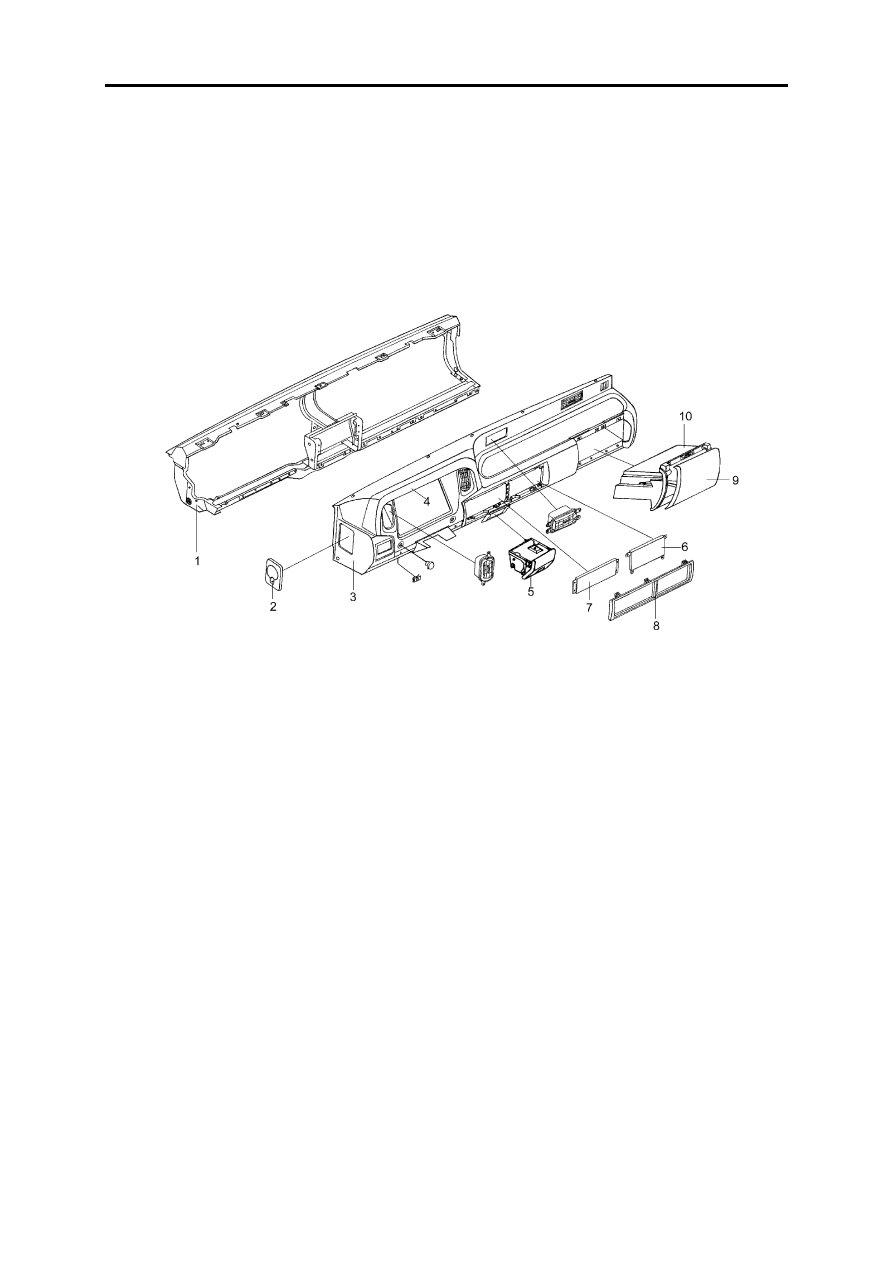

The structune of the instrument panel in shown as below:

•

Cab Internal Trims and External Trims

Internal trims

Side ard floor trims-Passenger area

Caution:

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

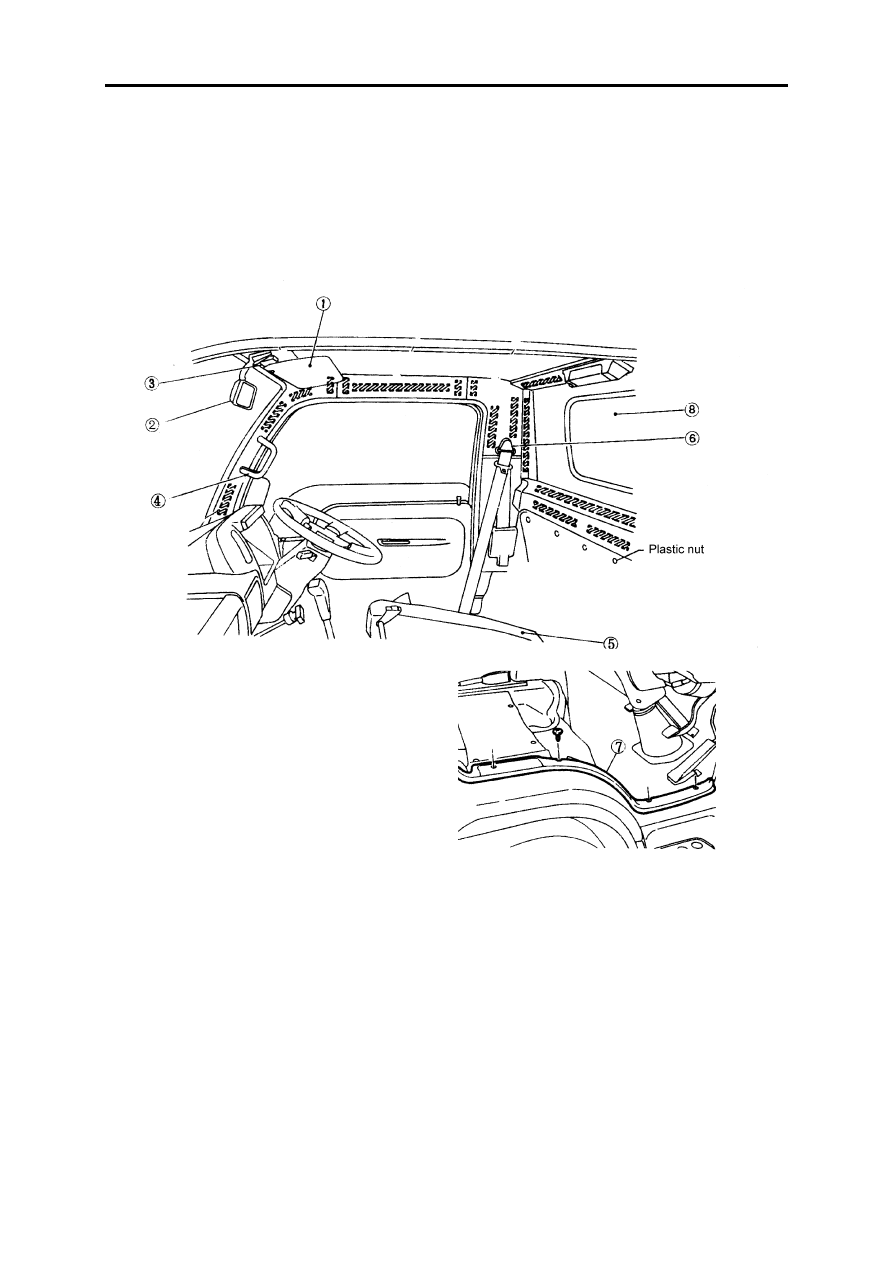

Disassembly of the side inner trims:

①

Disassemble the sun visor.

②

Disassemble the rearview mirror.

1.Instrument frame welding ass'y.
2.Oil can cap
3.Instrument frame welding ass'y.
4.Instrument panel upper cover ass'y.
5.Ashtray assy.
6.Block cover, Small glove box ass'y.

7.Block cover, warm air control
8.Lower trim grille ass'y.
9.Glove box cover
10.Glove box ass'y.

Cab

BF-5

③

Disassemble the roof lamp ass'y.

④

Disassemble the handrail.

⑤

Disassemble the seats.

⑥

Disassemble the safely belt.

⑦

Disassemble the door guardrail.

⑧

Disassemble the rear window glass.

Door trims

Disassembly of the door trims:

①

Disassemble lock knob.

②

Disassemble inside seal.

③

Disassemble inside handle escutcheon rear door).

④

Disassemble pull handle.

⑤

Pull out regulator handle.
