Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 25





Brake System

BR-10

Cab Brake Pipeline

1.Brake Valve Assy
2.Hose Bracket
3.Upper bracket--4 pipes bracket
4.Nylon pipe assy--brake valve 21 to hose
bracket
5.Nylon pipe assy--brake valve 22 to hose
bracket

6.Nylon pipe assy--brake valve 12 to hose
bracket
7.Nylon pipe assy--brake valve 11 to hose
bracket
8.Jacket sleeve
9.Transition joint

Brake System

BR-11

Parking Brake Control  Mechanism

1.Parking brake control device assy
2.Adjusting nut seat--wiredrawing
3.Spring washer
4.Bracket
5.Parking brake steel wire assy
6.Clip--single tube
7.Clamping piece
8.Upper bracket--single tube clip
9.Lower bracket--single tube clip
10.Axis pin
11.Rocker and bush assy

12.Axis pin
13.Cotter pin
14.Shackle
15.Axis pin--parking brake rocker
16.Return spring
17.Bracket--spring
18.Bracket
19.Spherical washer
20.Release pull rod spring--clutch
21.Parking brake puller lever assy

Cab

BF

Table of Contents

Clip and Fastener ............................................................................................ BF-1
Cab Front Panel .............................................................................................. BF-2
Door ................................................................................................................ BF-3
Instrument Panel ............................................................................................. BF-4
Cab Internal Trims and External Trims.......................................................... BF-4
Seat ............................................................................................................... BF-11
Cab Mounting ............................................................................................... BF-12
Cab and Cargo Body..................................................................................... BF-13
Chassis Frame............................................................................................... BF-15
Construction of the Heater............................................................................ BF-16

Cab

BF-1

Cab

Precautions

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

Disassemble or assemble the handle device, molding parts, instrument, inner trims and so on carefully not to

soil or damage them.

Apply seal glue on necessary place when assembling.
Be careful not let the glue flow out of the parts when applying.
When replacing the metal parts extarnal plate of the body, be sure to take rust prevention measures.

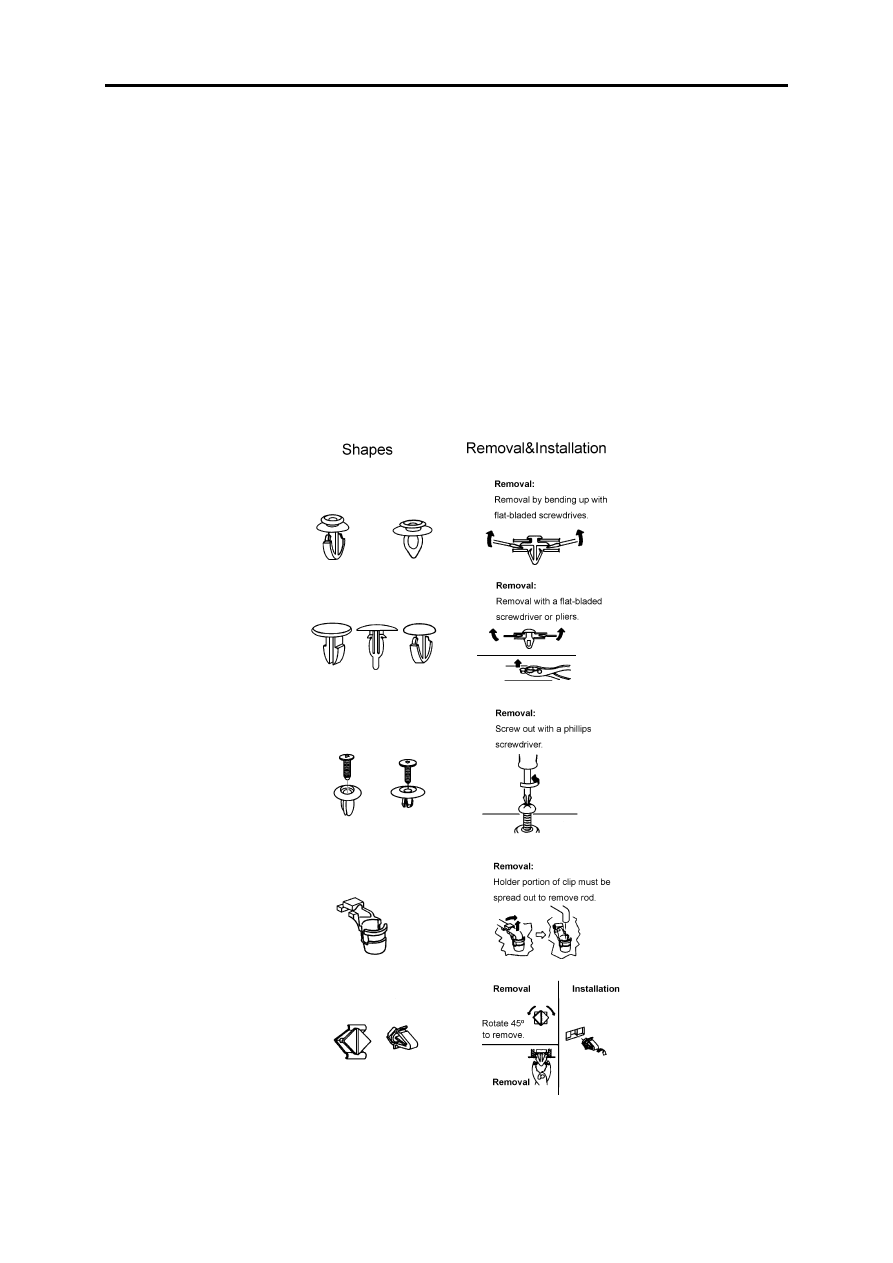

Clip and Fastener

The following codel and pictures and symbols are subiect ot the clip and fastener in the BF section.
The clip and fastener must be replaced if damaged during assembling or disassembling.
