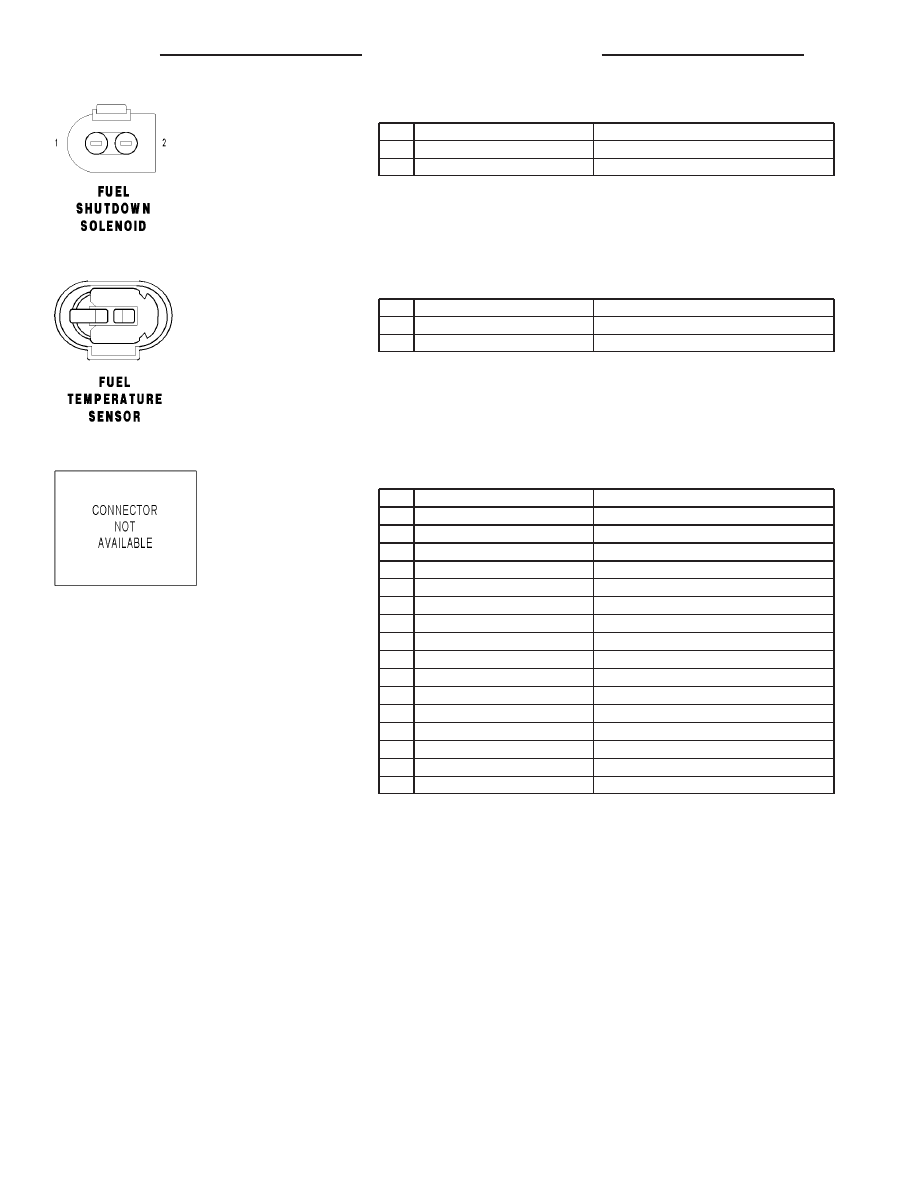

FUEL SHUTDOWN SOLENOID

CAV

CIRCUIT

FUNCTION

1

20BR/YL

FUEL SHUTDOWN SOLENOID CONTROL

2

18RD/BK

FUEL SHUTDOWN SOLENOID 12 VOLT SUPPLY

FUEL TEMPERATURE SENSOR

CAV

CIRCUIT

FUNCTION

1

18DG/BK

FUEL TEMPERATURE SENSOR GROUND

2

18BL/GY

FUEL TEMPERATURE SENSOR SIGNAL

FUSE BLOCK NO. 1 C1

CAV

CIRCUIT

FUNCTION

1

INTERNAL

FOG LAMP SWITCH OUTPUT

3

INTERNAL

HIGH BEAM SWITCH OUTPUT

4

16RD/BL

FUSED RIGHT LAMP RELAY OUTPUT

5

INTERNAL

HIGH BEAM SELECT

6

INTERNAL

FUSED LEFT RELAY OUTPUT

8

INTERNAL

LAMP DRIVER

9

INTERNAL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

10

INTERNAL

FUSED B(+)

11

INTERNAL

TURN SIGNAL RELAY OUTPUT

14

INTERNAL

GROUND

15

INTERNAL

WIPER SWITCH OUTPUT

16

INTERNAL

WIPER SWITCH OUTPUT

18

INTERNAL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

19

INTERNAL

12 VOLT SUPPLY

21

INTERNAL

WIPER ON/OFF SWITCH OUTPUT

22

INTERNAL

FUSED B(+)

8W - 80 - 48

8W-80 CONNECTOR PIN-OUTS

VA

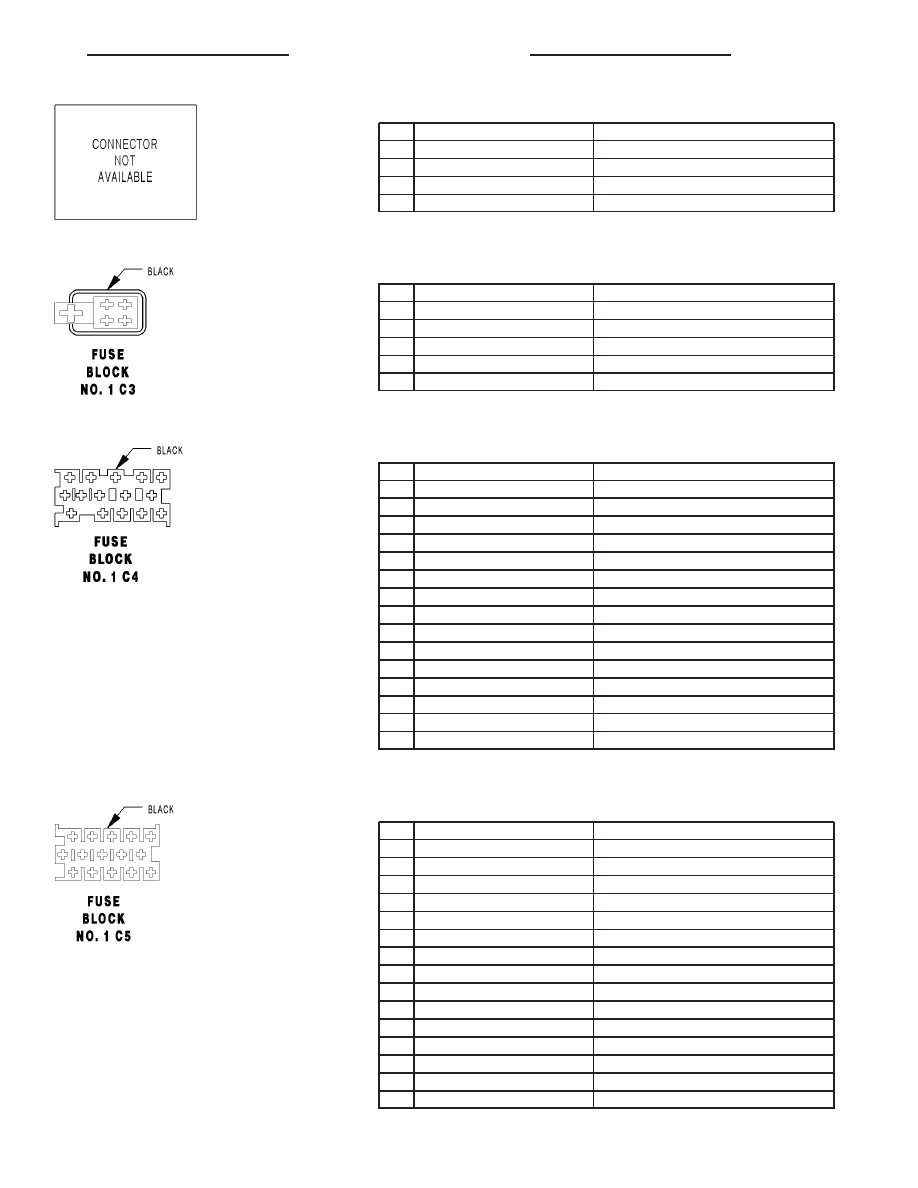

FUSE BLOCK NO. 1 C2

CAV

CIRCUIT

FUNCTION

1

14BK/RD

FUSED IGNITION SWITCH OUTPUT (RUN)

2

14BK/YL

FUSED IGNITION SWITCH OUTPUT (START)

3

16GY/DG

FUSED IGNITION SWITCH OUTPUT (ACC OFF)

4

14BK

FUSED IGNITION SWITCH OUTPUT (RUN-START)

FUSE BLOCK NO. 1 C3 - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

16BK/VT

FUSED IGNITION SWITCH OUTPUT (RUN-START)

3

12VT

IGNITION SWITCH OUTPUT (START)

4

-

-

5

12RD

FUSED B(+)

FUSE BLOCK NO. 1 C4 - BLACK

CAV

CIRCUIT

FUNCTION

1

16RD/BL

FUSED B(+)

2

14RD/BK (OBD)

FUSED B(+)

3

-

-

4

16BK/RD

ENGINE CONTROL RELAY OUTPUT

5

16WT

FUSED HIGH BEAM SWITCH OUTPUT

6

-

-

7

16BK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

8

16BK/YL/WT

FOG LAMP RELAY SIGNAL

9

-

-

10

16WT

FUSED HIGH BEAM SWITCH OUTPUT

11

16RD/YL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

12

16BR/BK

WIPER MOTOR CONTROL

13

-

-

14

16WT/BL/RD

FUSED IGNITION SWITCH OUTPUT (RUN-START)

15

-

-

FUSE BLOCK NO. 1 C5 - BLACK

CAV

CIRCUIT

FUNCTION

1

16BK/BL/WT

FUSED IGNITION SWITCH (RUN-START)

2

12BK/BL

FUSED ENGINE CONTROL RELAY OUTPUT

3

18YL

FUSED HEADLAMP SWITCH OUTPUT

4

16GY/BK

LEFT LAMP RELAY OUTPUT

5

16BK/DG

RIGHT TURN SIGNAL

6

16GY/RD

RIGHT LAMP RELAY OUTPUT

7

16GY/DG

LAMP DRIVER

8

16BK/WT

LEFT TURN SIGNAL

9

-

-

10

-

-

11

-

-

12

-

-

13

16YL

FUSED HEADLAMP SWITCH OUTPUT

14

16BK/VT/RD

WASHER ON/OFF SWITCH OUTPUT

15

18YL/BL

ENGINE CONTROL RELAY SIGNAL

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 49

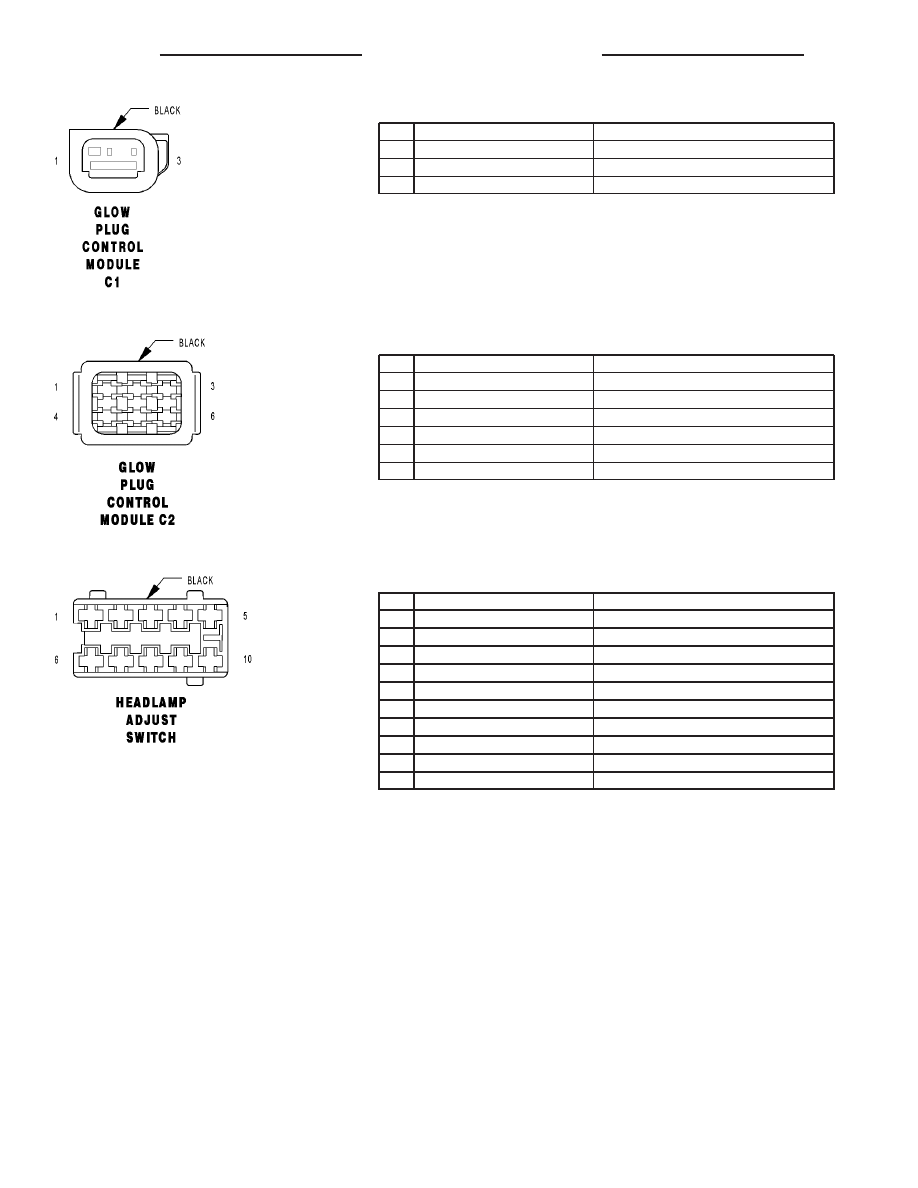

GLOW PLUG CONTROL MODULE C1 - BLACK

CAV

CIRCUIT

FUNCTION

1

18BR

GROUND

2

18BK/RD

GLOW PLUG MODULE CONTROL

3

-

-

GLOW PLUG CONTROL MODULE C2 - BLACK

CAV

CIRCUIT

FUNCTION

1

14BK/DG

GLOW PLUG NO. 5 SUPPLY VOLTAGE

2

14BK/YL

GLOW PLUG NO. 4 SUPPLY VOLTAGE

3

14BK/RD

GLOW PLUG NO. 3 SUPPLY VOLTAGE

4

14BK/VT

GLOW PLUG NO. 2 SUPPLY VOLTAGE

5

14BK/BL

GLOW PLUG NO. 1 SUPPLY VOLTAGE

6

-

-

HEADLAMP ADJUST SWITCH - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

16BR

GROUND

4

-

-

5

16VT/WT

HEADLAMP ADJUST SWITCH OUTPUT

6

-

-

7

-

-

8

-

-

9

16GY/DG/RD

LAMP DRIVER

10

-

-

8W - 80 - 50

8W-80 CONNECTOR PIN-OUTS

VA

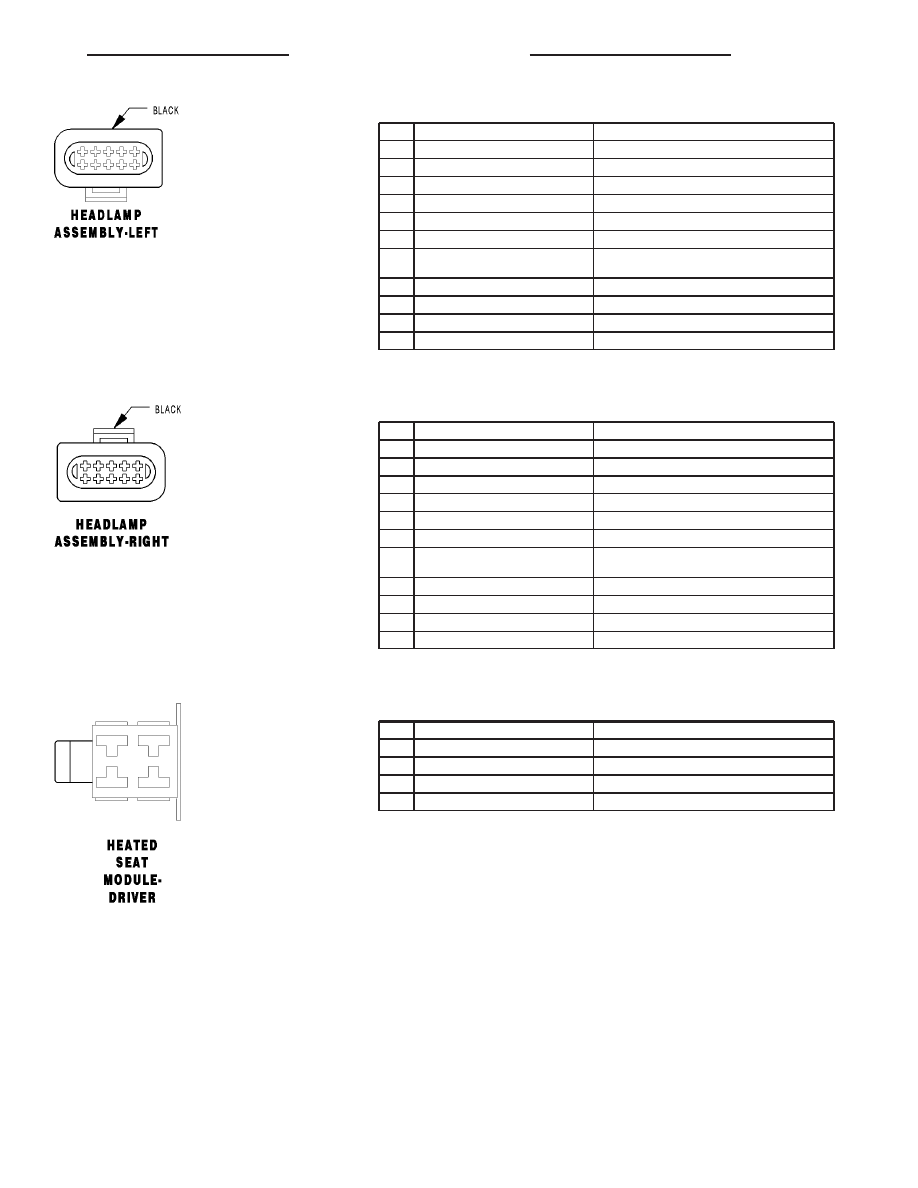

HEADLAMP ASSEMBLY-LEFT - BLACK

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

16YL/WT

FOG LAMP RELAY OUTPUT

3

16BR

GROUND

4

16BR

GROUND

5

16VT/WT

HEADLAMP ADJUST SWITCH OUTPUT

6

16BK/WT

LEFT TURN SIGNAL

7

18YL/DG (DRL)

DAYTIME RUNNING LAMPS RELAY-LEFT SIDE OUT-
PUT

7

18YL (EXCEPT DRL)

HEADLAMP SWITCH OUTPUT

8

16BR

GROUND

9

16WT

FUSED HIGH BEAM SWITCH OUTPUT

10

16GY/BK

LEFT LAMP RELAY OUTPUT

HEADLAMP ASSEMBLY-RIGHT - BLACK

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

16YL/WT

FOG LAMP RELAY OUTPUT

3

16BR

GROUND

4

16BR

GROUND

5

16VT/WT

HEADLAMP ADJUST SWITCH OUTPUT

6

16BK/DG

RIGHT TURN SIGNAL

7

18YL/DG (DRL)

DAYTIME RUNNING LAMP RELAY-RIGHT SIDE OUT-
PUT

7

18YL (EXCEPT DRL)

HEADLAMP SWITCH OUTPUT

8

16BR

GROUND

9

16WT

FUSED HIGH BEAM SWITCH OUTPUT

10

16GY/RD

RIGHT LAMP RELAY OUTPUT

HEATED SEAT MODULE-DRIVER

CAV

CIRCUIT

FUNCTION

1

16VT/DG

HEATED SEAT SWITCH-DRIVER LOW OUTPUT

2

16VT/RD

S366 COMMON CIRCUIT

3

16VT/RD

S366 COMMON CIRCUIT

4

16BR

GROUND

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 51
