Dodge Sprinter. Manual - part 68





(4) Remove the cover panel from the top of the

driver side seat riser.

(5) Remove the time delay relay from its vehicle

wire harness connector by grasping it firmly and
pulling it straight out from the connector within the
driver side seat riser.

INSTALLATION

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.

(1) Position the time delay relay to its vehicle wire

harness connector within the driver side seat riser.

(2) Align the time delay relay terminals with the

terminal cavities in the vehicle wire harness connec-
tor.

(3) Push firmly and evenly on the top of the time

delay relay until the terminals are fully seated in the
terminal cavities in the vehicle wire harness connec-
tor.

(4) Position the cover panel onto the top of the

driver side seat riser (Fig. 12).

(5) Install and tighten the two screws that secure

the cover panel to the top of the seat riser under the
driver side front seat. Tighten the screws to 2 N·m
(18 in. lbs.).

(6) Move the driver side front seat back to its driv-

ing position.

(7) Reconnect the battery negative cable.

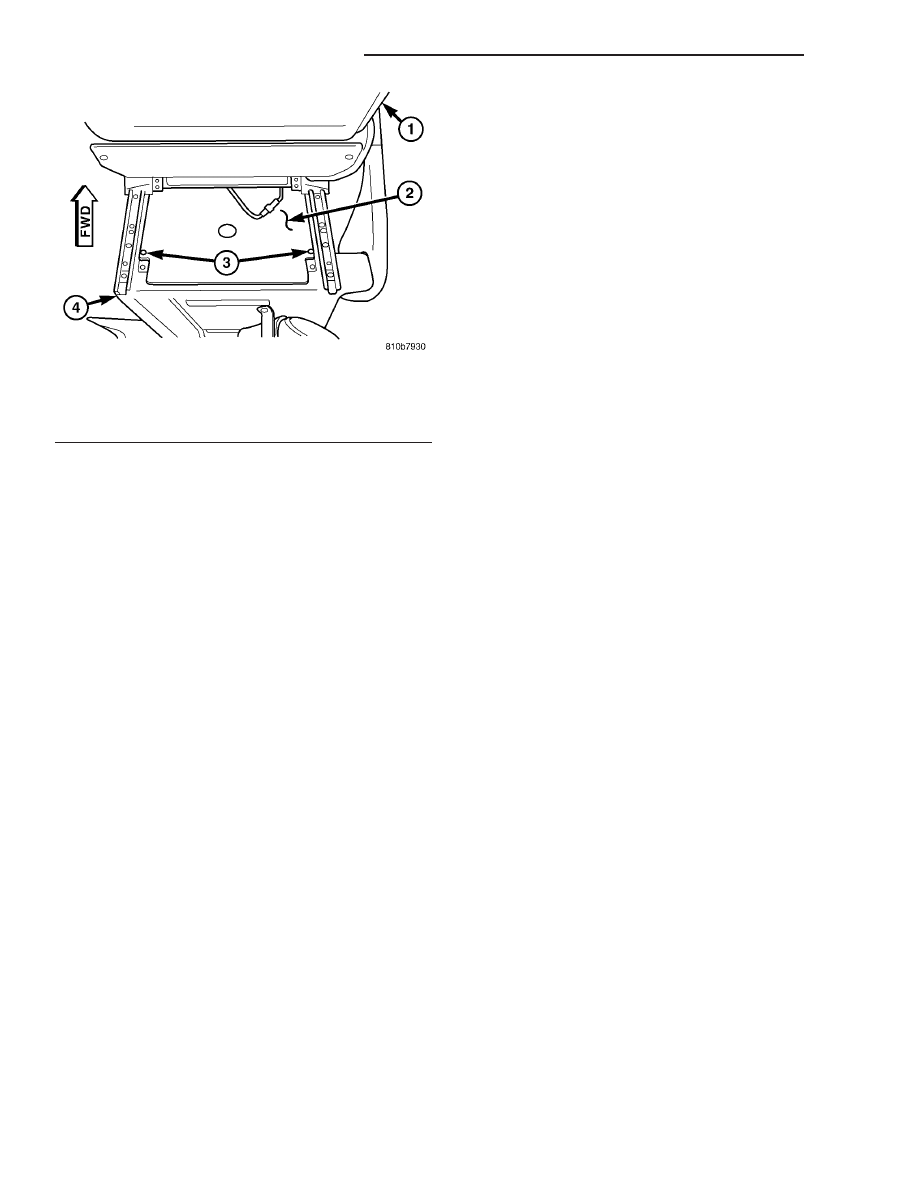

Fig. 12 Seat Riser Cover

1 - DRIVER SEAT BACK
2 - COVER PANEL
3 - SCREW (2)
4 - SEAT RISER

8L - 36

LAMPS/LIGHTING - INTERIOR

VA

POWER SYSTEMS

TABLE OF CONTENTS

page

page

POWER LOCKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
POWER MIRRORS . . . . . . . . . . . . . . . . . . . . . . . . . 3

POWER WINDOWS. . . . . . . . . . . . . . . . . . . . . . . . . 5

POWER LOCKS

TABLE OF CONTENTS

page

page

DOOR LOCK MOTOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

REMOTE KEYLESS ENTRY TRANSMITTER

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

MASTER LOCK SWITCH

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIAGNOSIS AND TESTING - MASTER LOCK

SWITCH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 2

DOOR LOCK MOTOR

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the door trim panel.
(3) Remove the door lock.
(4) Remove the door lock motor from the door lock.

INSTALLATION

(1) Install the door lock motor to the door lock.
(2) Install the door lock.
(3) Install the door trim panel.
(4) Connect the battery negative cable.

REMOTE KEYLESS ENTRY
TRANSMITTER

DESCRIPTION

Pressing the unlock button on the transmitter will

unlock the drivers door, pressing it a second time
within 2.5 seconds will unlock all other doors. The
transmitter has a range of 10 meters. A key is inte-
gral to the transmitter.

When a transmitter is lost, it is necessary to dis-

able the affected transmitter so that it can no longer
be used to operate the vehicle. It will then be neces-
sary to program a new transmitter to the vehicle.

MASTER LOCK SWITCH

DESCRIPTION

The master lock switch is a momentary contact

switch. Pressing the once in the up direction unlocks
the driver door. Pressing it again in the same direc-
tion unlocks all doors. Pressing the button in the
down direction locks all doors.

DIAGNOSIS AND TESTING - MASTER LOCK
SWITCH

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the switch to be tested.
(3) Using an ohmmeter, test switch for continuity

(Fig. 1).

(4) If test results are not obtained as shown in the

test table, replace the switch.

VA

POWER SYSTEMS

8N - 1

MASTER LOCK SWITCH

SWITCH POSITION

CONTINUITY BETWEEN

OPEN

4 AND 7

4 AND 10

7 AND 10

LOCK/UNLOCK

3 AND 4

3 AND 7

3 AND 10

4 AND 7

4 AND 10

4 AND 8

7 AND 8

7 AND 10

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the instrument panel center bezel

(Refer to 23 - BODY/INSTRUMENT PANEL/IN-
STRUMENT

PANEL

CENTER

BEZEL

-

REMOVAL).

(3) Remove the central locking switch from the

bezel (Fig. 2).

INSTALLATION

(1) Install switch to bezel.
(2) Install instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - INSTALLATION).

(3) Connect battery negative cable.

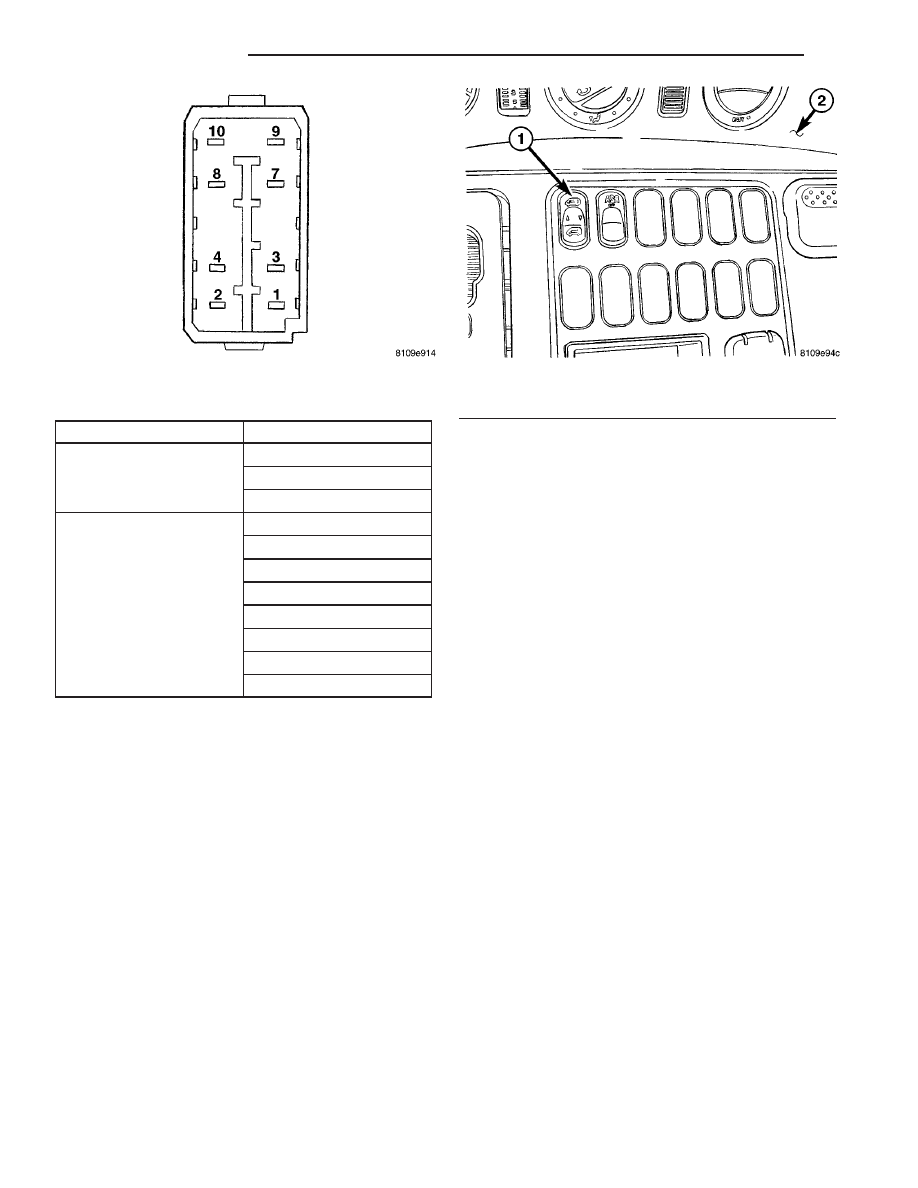

Fig. 1 POWER LOCK SWITCH

Fig. 2 POWER LOCK SWITCH

1 - CENTRAL LOCKING SWITCH
2 - INSTRUMENT PANEL

8N - 2

POWER LOCKS

VA

POWER MIRRORS

TABLE OF CONTENTS

page

page

POWER MIRRORS

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . . 3

POWER MIRROR SWITCH

DIAGNOSIS AND TESTING - POWER MIRROR

SWITCH

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . . 4

POWER MIRRORS

DESCRIPTION

The power operated outside rear view mirrors

allow the driver to adjust both outside mirrors elec-
trically from the driver side front seat position by
operating a switch on the driver side front door trim
panel. The power mirrors receive a non-switched bat-
tery feed through a fuse so that the system will
remain operational, regardless of the ignition switch
position.

POWER MIRROR SWITCH

DIAGNOSIS AND TESTING - POWER MIRROR
SWITCH

(1) Disconnect and isolate the battery negative

cable.

(2) Remove power mirror switch (Refer to 8 -

ELECTRICAL/POWER MIRRORS/POWER MIRROR
SWITCH - REMOVAL).

(3) Using an ohmmeter, test for continuity between

the terminals of the switch (Fig. 1).

MIRROR SWITCH TEST

MIRROR SELECT SWITCH IN “LEFT”
POSITION

BUTTON

POSI-

TION

CONTINUITY BETWEEN

UP

PIN 6 AND 9
PIN 6 AND 8

DOWN

PIN 2 AND 4

PIN 6 AND 10

LEFT

PIN 2 AND 3

PIN 6 AND 10

RIGHT

PIN 2 AND 3
PIN 6 AND 2

MIRROR SELECT SWITCH IN “RIGHT”
POSITION

BUTTON

POSI-

TION

CONTINUITY BETWEEN

UP

PIN 6 AND 8
PIN 6 AND 9

DOWN

PIN 6 AND 3

LEFT

PIN 1 AND 7

RIGHT

PIN 1 AND 8

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the door handle trim.
(3) Remove

the

mirror

switch/power

window

switch trim (Fig. 2).

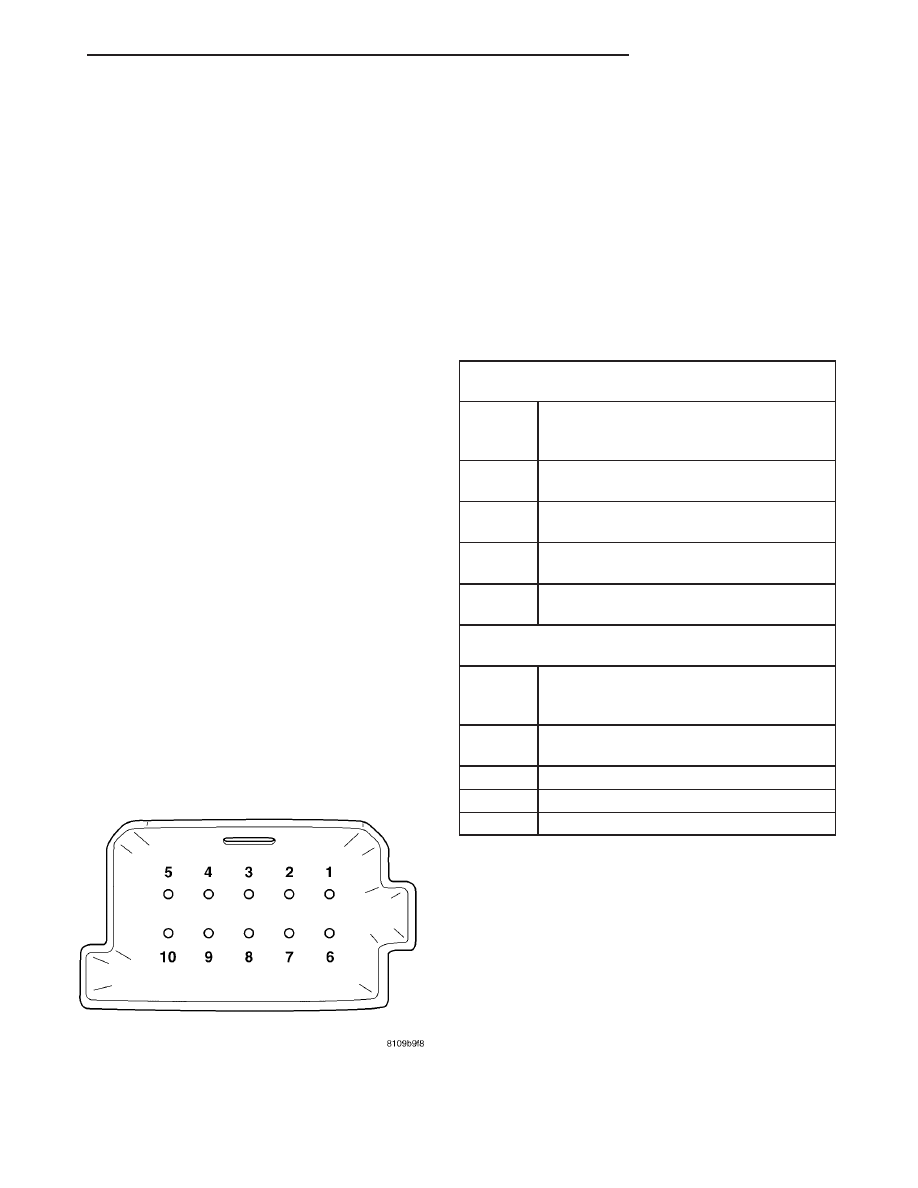

Fig. 1 POWER MIRROR SWITCH

VA

POWER MIRRORS

8N - 3
