INDICATORS

Indicators are located in various positions within

the EMIC and are all connected to the EMIC elec-
tronic circuit board. The ambient temperature indica-
tor (optional), brake indicator, brake wear indicator,
charging indicator, coolant low indicator, high beam
indicator, low fuel indicator, park brake indicator,
seatbelt indicator, turn signal indicators, and washer
fluid indicator operate based upon hard wired inputs
to the EMIC. The airbag (SRS) indicator is normally
controlled by a hard wired input from the Airbag
Control Module (ACM); however, if the EMIC sees an
abnormal or no input from the ACM, it will automat-
ically turn the airbag indicator On until the hard
wired input from the ACM has been restored. The
Malfunction Indicator Lamp (MIL) is normally con-
trolled by CAN data bus messages from the Engine
Control Module (ECM); however, if the EMIC loses
CAN data bus communication, the EMIC circuitry
will automatically turn the MIL on until CAN data
bus communication is restored. The EMIC uses CAN
data bus messages from the ECM, the ACM, and the
Controller Antilock Brake to control all of the
remaining indicators.

The various EMIC indicators are controlled by dif-

ferent strategies; some receive battery feed from the
EMIC circuitry and have a switched ground, while
others are grounded through the EMIC circuitry and
have a switched battery feed. However, all indicators
are completely controlled by the EMIC microproces-
sor based upon various hard wired and electronic
message inputs. Except for the indications provided
by the multi-function indicator Liquid Crystal Dis-
play (LCD) unit, all indicators are illuminated at a
fixed intensity, which is not affected by the selected
illumination intensity of the EMIC general illumina-
tion lamps.

The hard wired indicator inputs may be diagnosed

using conventional diagnostic methods. However,
proper testing of the EMIC circuitry and the CAN
bus message controlled indicators requires the use of
a diagnostic scan tool. Refer to the appropriate diag-
nostic information. Specific details of the operation
for each indicator may be found elsewhere in this
service information.

CLUSTER ILLUMINATION

The EMIC has several general illumination lamps

that are illuminated when the exterior lighting is
turned on with the multi-function switch. The illumi-
nation intensity of these lamps is adjusted by a dim-
ming level input received from the multi-function
indicator “+” (plus) and “–” (minus) switch push but-
tons that extend through the lower edge of the clus-
ter lens below the right end of the multi-function
indicator. When the exterior lighting is turned Off,
the display is illuminated at maximum brightness.
When the exterior lighting is turned On and the

transmission gear selector is in the Park position,
depressing the plus switch push button brightens the
display lighting, and depressing the minus switch
push button dims the display lighting. The EMIC
also provides a Pulse-Width Modulated (PWM) panel
lamps dimmer output that can be used to synchro-
nize the illumination lighting levels of external illu-
mination lamps (up to about 23 to 30 watts) with
that of the EMIC.

The hard wired multi-function switch input and

the EMIC panel lamps dimmer output may be diag-
nosed using conventional diagnostic methods. How-
ever, proper testing of the PWM control of the EMIC
and the electronic dimming level inputs from the
multi-function indicator push buttons requires the
use of a diagnostic scan tool. Refer to the appropriate
diagnostic information.

INPUT AND OUTPUT CIRCUITS

HARD WIRED INPUTS

The hard wired inputs to the EMIC include the fol-

lowing:

NOTE: Final approved circuit names were not yet
available at the time this information was compiled.

• Airbag Indicator Driver

• Ambient

Temperature

Sensor

Signal

(Optional)

• Brake Wear Indicator Sense

• Charging Indicator Driver

• Coolant Level Switch Sense

• Front Door Jamb Switch Sense

• Fuel Level Sensor Signal

• Fused B(+)

• Fused Ignition Switch Output

• High Beam Indicator Driver

• Key-In Ignition Switch Sense

• Left Turn Signal

• Park Brake Switch Sense

• Right Turn Signal

• Seat Belt Switch Sense

• Washer Fluid Switch Sense (Optional)
Refer to the appropriate wiring information for

additional details.

HARD WIRED OUTPUTS

The hard wired outputs of the EMIC include the

following:

• Engine Running Relay Control

• Panel Lamps Driver
Refer to the appropriate wiring information for

additional details.

8J - 6

INSTRUMENT CLUSTER

GROUNDS

The EMIC receives and supplies a ground path to

several switches and sensors through the following
hard wired circuits:

• Ambient

Temperature

Sensor

Return

(Optional)

• Fuel Level Sensor Return

• Ground
Refer to the appropriate wiring information for

additional details.

COMMUNICATION

The EMIC has provisions for the following commu-

nication circuits:

• CAN Data Bus - High

• CAN Data Bus - Low

• Diagnostic Serial Communication Interface

(SCI) Data Bus Line

Refer to the appropriate wiring information for

additional details.

DIAGNOSIS AND TESTING - INSTRUMENT
CLUSTER

The hard wired inputs to and outputs from the

instrument cluster may be diagnosed and tested
using conventional diagnostic tools and procedures.
Refer to the appropriate wiring information. The wir-
ing information includes wiring diagrams, proper
wire and connector repair procedures, details of wire
harness routing and retention, connector pin-out
information and location views for the various wire
harness connectors, splices and grounds.

If the instrument cluster is completely inoperative,

be certain to check the fused B(+) circuit fuses and
wiring for the instrument cluster. If the cluster gen-
eral illumination is inoperative, be certain to check
the instrument lighting fuse and the input circuit to
the instrument cluster from the exterior lighting cir-
cuitry of the multi-function switch on the steering
column.

Conventional diagnostic methods may not prove

conclusive in the diagnosis of the instrument cluster.
In order to obtain conclusive testing of the instru-
ment cluster, the Controller Area Network (CAN)
data bus network and all of the electronic modules
that provide inputs to or receive outputs from the
instrument cluster must also be checked. The most
reliable, efficient, and accurate means to diagnose
the instrument cluster, the CAN data bus network,
and the electronic modules that provide inputs to or
receive outputs from the instrument cluster requires
the use of a diagnostic scan tool and the appropriate
diagnostic information. The diagnostic scan tool can
provide confirmation that the CAN data bus network
is functional, that all of the modules are sending and
receiving the proper electronic messages over the
CAN data bus, and that the instrument cluster is

receiving the proper hard wired inputs and respond-
ing with the proper hard wired outputs needed to
perform its many functions.

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.

STANDARD PROCEDURE

CLUSTER PROGRAMMING

NOTE: After replacing the Instrument Cluster (IC)
according to the service procedures, determine the
optional equipment on the vehicle by accessing the
sales code information using the Vehicle Identifica-
tion Number (VIN) on DealerCONNECT.

(1) Using the DRBIII

t, select MISCELLANEOUS

FUNCTIONS in the Instrument Cluster (IC) section.

(2) Select

MODULE

SERVICE

REPLACE-

MENT.

(3) Following the prompts on the DRBIII

t, enter

the correct parameters that are applicable to the
vehicle. Use the sales code information and visual
inspection to obtain the correct parameters.

CAUTION: Do not lock down the instrument cluster
until the following steps are followed or the instru-
ment cluster may be irreversibly damaged.

(4) After entering the proper parameters into the

IC, turn the ignition switch to the OFF position for
30 seconds, then turn the ignition switch ON.

(5) Test drive the vehicle for at least 10 minutes

before proceeding.

(6) Check ALL modules for any parameterization

DTCs. If any parameterization DTCs are present, one
or more parameters entered into the IC are incorrect.
Verify all parameters entered using the sales code
information and visual inspection of the vehicle.

(7) If the parameters entered are verified as cor-

rect and parameterization DTCs are still present,
refer to the appropriate diagnostic information.

(8) If no parameterization DTCs are present, lock

down the IC.

INSTRUMENT CLUSTER

8J - 7

NOTE: Mileage will not be displayed until the IC has
been locked down.

REMOVAL

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

CAUTION: The following procedure is for replace-
ment of an ineffective and unresponsive Instrument
Cluster (IC) with a new unit. If the IC is ineffective
or damaged but still responsive, it may be replaced
using an automatic replacement procedure that will
upload IC parameterization data from the existing IC
to the diagnostic scan tool, then download that data
to the new IC. Refer to the MISCELLANEOUS FUNC-
TIONS menu item under the IC module in the diag-
nostic

scan

tool,

then

select

MODULE

AUTO

REPLACEMENT and follow the scan tool prompts to
replace the IC. Do not lock down the IC until all of
the steps are followed and completed or the new IC
may be irreversibly damaged. This procedure initial-
izes and configures the IC for certain optional
equipment on the vehicle without the need for per-
forming a separate cluster programming procedure.
Failure to correctly parameterize the IC prior to it
being electronically locked down will result in the
IC being incorrectly and irreversibly configured for
improper vehicle equipment options, which will
require the IC be replaced again with another new
and unused unit to resolve.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the cluster bezel from the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CLUSTER BEZEL - REMOVAL).

(3) Remove the cluster top cover from the instru-

ment panel. (Refer to 23 - BODY/INSTRUMENT
PANEL/TOP COVER - CLUSTER - REMOVAL).

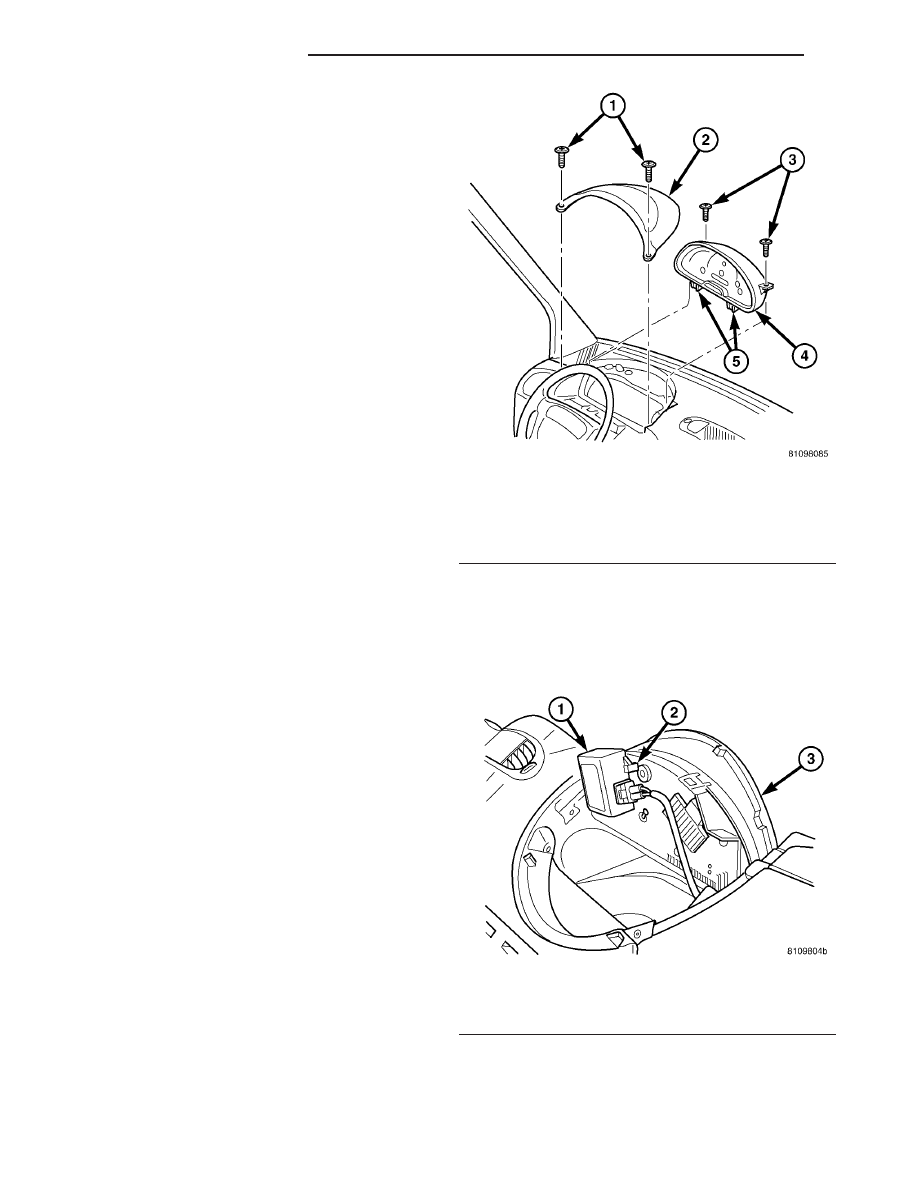

(4) Remove the two screws that secure the instru-

ment cluster mounting ears to the instrument panel
base structure (Fig. 4).

(5) Roll the top of the instrument cluster rearward

far enough to access and release the latch that
secures the Remote Keyless Entry (RKE)/immobilizer
module to the back of the instrument cluster rear
cover and disengage the module from the cluster
(Fig. 5).

Fig. 4 Instrument Cluster Remove/Install

1 - SCREW (2)
2 - COVER
3 - SCREW (2)
4 - INSTRUMENT CLUSTER
5 - LOOP (2)

Fig. 5 RKE/Immobilizer Module

1 - RKE/IMMOBILIZER MODULE
2 - LATCH
3 - INSTRUMENT CLUSTER

8J - 8

INSTRUMENT CLUSTER

(6) Depress the release (Arrow A) and lift the lever

arm (Arrow B) to disconnect each of the two frame
wire harness connectors for the cluster from the con-
nector receptacles on the back of the cluster housing
(Fig. 6).

(7) Lift the instrument cluster upward far enough

to disengage the two molded plastic pivot loops inte-
gral to the base of the cluster hood from the two
pairs of molded plastic pivot hooks that are integral
to the top of the instrument panel base structure.

(8) Remove the instrument cluster from the instru-

ment panel.

INSTALLATION

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

(1) Position the instrument cluster to the instru-

ment panel.

(2) Align the two molded plastic pivot loops inte-

gral to the base of the cluster hood between the two

pairs of molded plastic pivot hooks that are integral
to the top of instrument panel base structure, then
push downward on the top of the cluster until the
loops snap into engagement with the hooks (Fig. 6).

(3) Roll the top of the instrument cluster rearward

to access, reconnect, and latch the two frame wire
harness connectors for the cluster to the connector
receptacles on the back of the cluster housing.

(4) Engage and latch the Remote Keyless Entry

(RKE)/immobilizer module to the back of the instru-
ment cluster rear cover (Fig. 5)

(5) Roll the top of the instrument cluster forward

to position the instrument cluster into the instru-
ment panel.

(6) Install and tighten the two screws that secure

the instrument cluster mounting ears to the instru-
ment panel base structure (Fig. 4). Tighten the
screws to 2 N·m (20 in. lbs.).

(7) Reinstall the cluster top cover onto the instru-

ment panel. (Refer to 23 - BODY/INSTRUMENT
PANEL/TOP COVER - CLUSTER - INSTALLA-
TION).

(8) Reinstall the cluster bezel onto the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CLUSTER BEZEL - INSTALLATION).

(9) Reconnect the battery negative cable.

CAUTION: If an ineffective and unresponsive Instru-
ment Cluster (IC) has been replaced with a new
unit, the new IC must be initialized and configured
for certain optional equipment on the vehicle using
a cluster programming procedure. (Refer to 8 -
ELECTRICAL/INSTRUMENT CLUSTER - STANDARD
PROCEDURE - CLUSTER PROGRAMMING). Failure
to correctly perform this programming procedure
(also referred to as parameterization) prior to the IC
being electronically locked down will result in the
IC being incorrectly and irreversibly configured for
improper vehicle equipment options, which will
require the IC be replaced again with another new
and unused unit to resolve.

ABS INDICATOR

DESCRIPTION

An Anti-lock Brake System (ABS) indicator is stan-

dard equipment on all instrument clusters. The ABS
indicator is located near the lower edge of the instru-
ment cluster, to the right of the multi-function indi-
cator display. The ABS indicator consists of the
International Control and Display Symbol icon for
“Failure of Anti-lock Braking System” imprinted
within a rectangular cutout in the opaque layer of
the instrument cluster overlay. The dark outer layer
of the overlay prevents the indicator from being
clearly visible when it is not illuminated. An amber

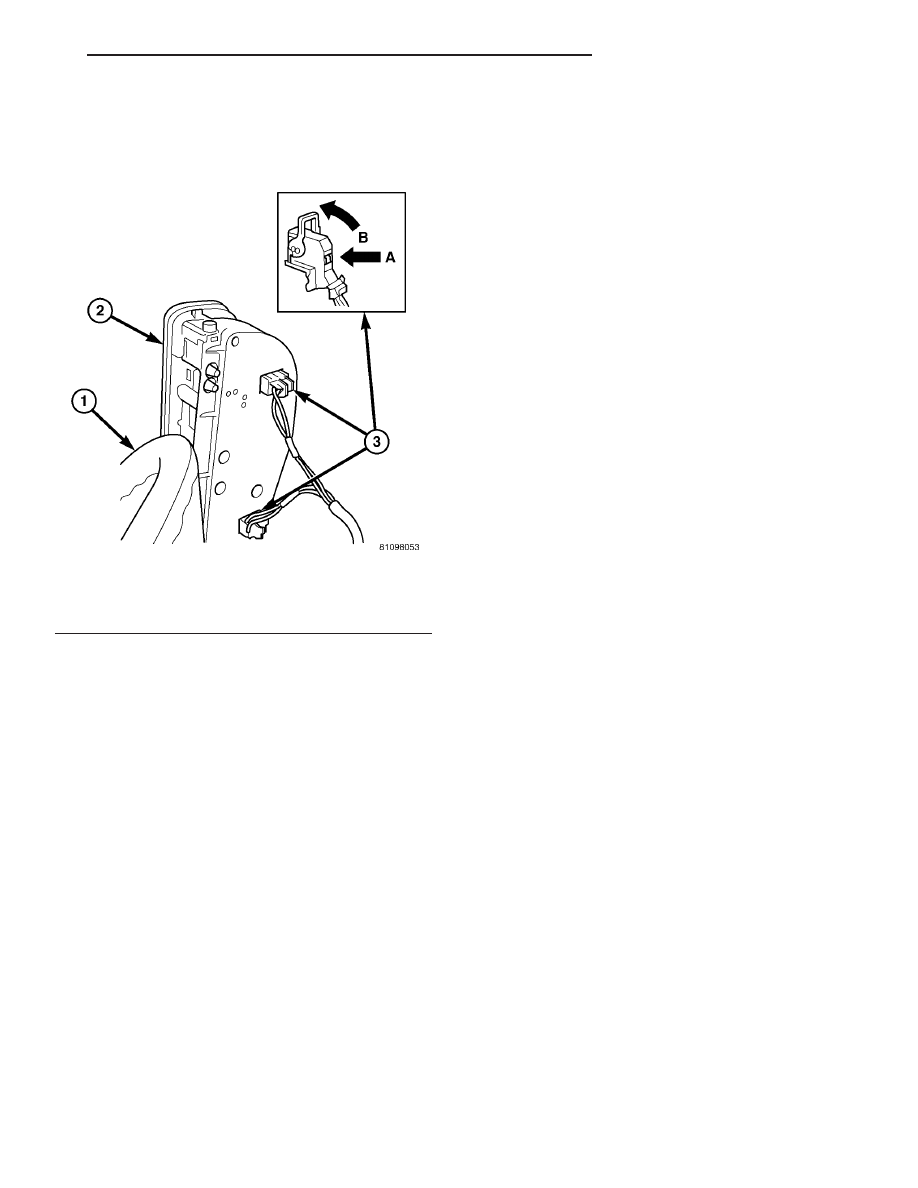

Fig. 6 Cluster Connectors

1 - STEERING WHEEL
2 - INSTRUMENT CLUSTER
3 - CONNECTOR (2)

INSTRUMENT CLUSTER

8J - 9

Content .. 51 52 53 54 ..
