Dodge Caliber. Manual - part 752





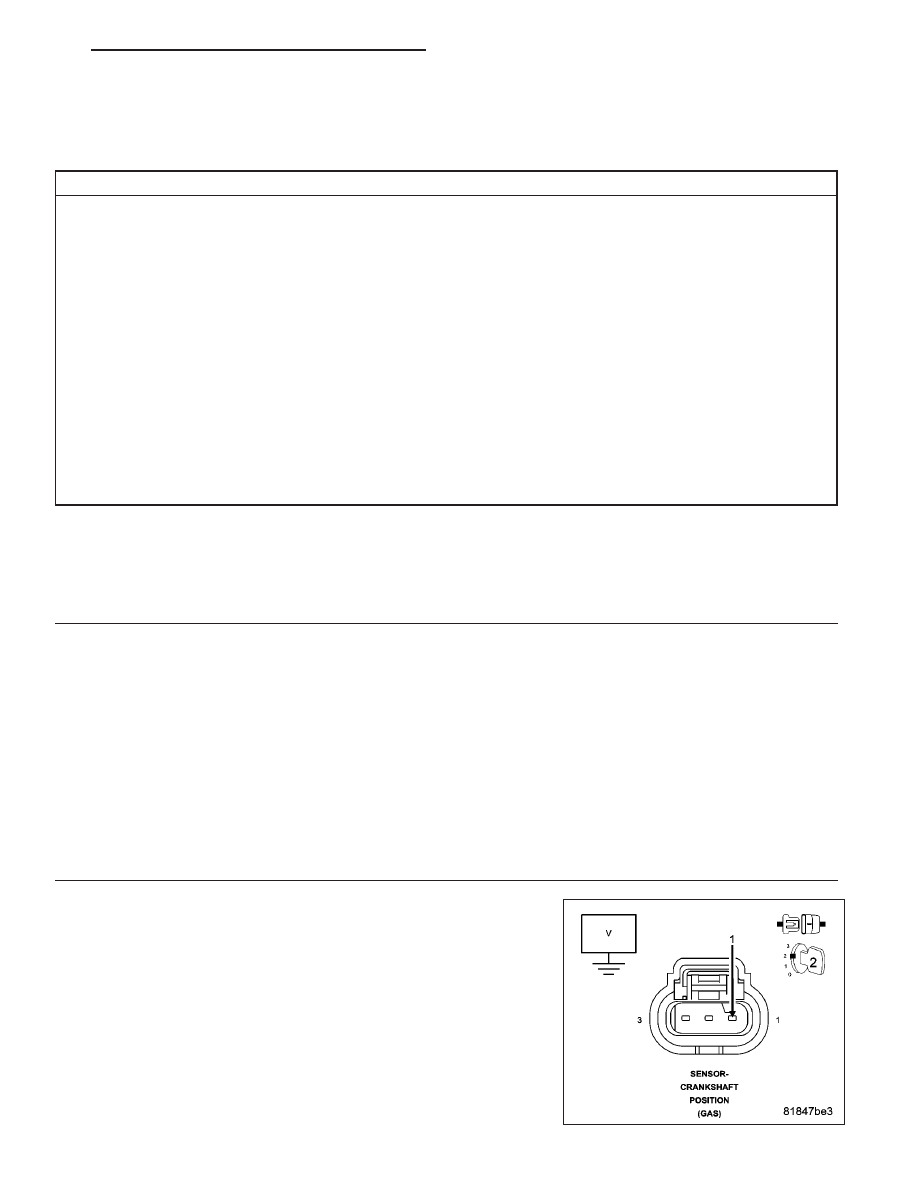

When Monitored:
With the engine cranking.

Set Condition:
The PCM receives either no signal or an incorrect signal from the Crankshaft Position Sensor.

Possible Causes

INTERMITTENT DTC

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

(K24) CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

(K24) CKP SIGNAL CIRCUIT SHORTED TO GROUND

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

(K24) CKP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

(K24) CKP SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

CRANKSHAFT POSITION SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Start the engine and allow it to reach operating temperature. If the engine will not start, crank the engine for several
seconds.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(F855) 5 VOLT SUPPLY CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Crankshaft Position Sensor connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit in the Crank-
shaft Position Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

>> Go to 3

No

>> Go to 7

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 295

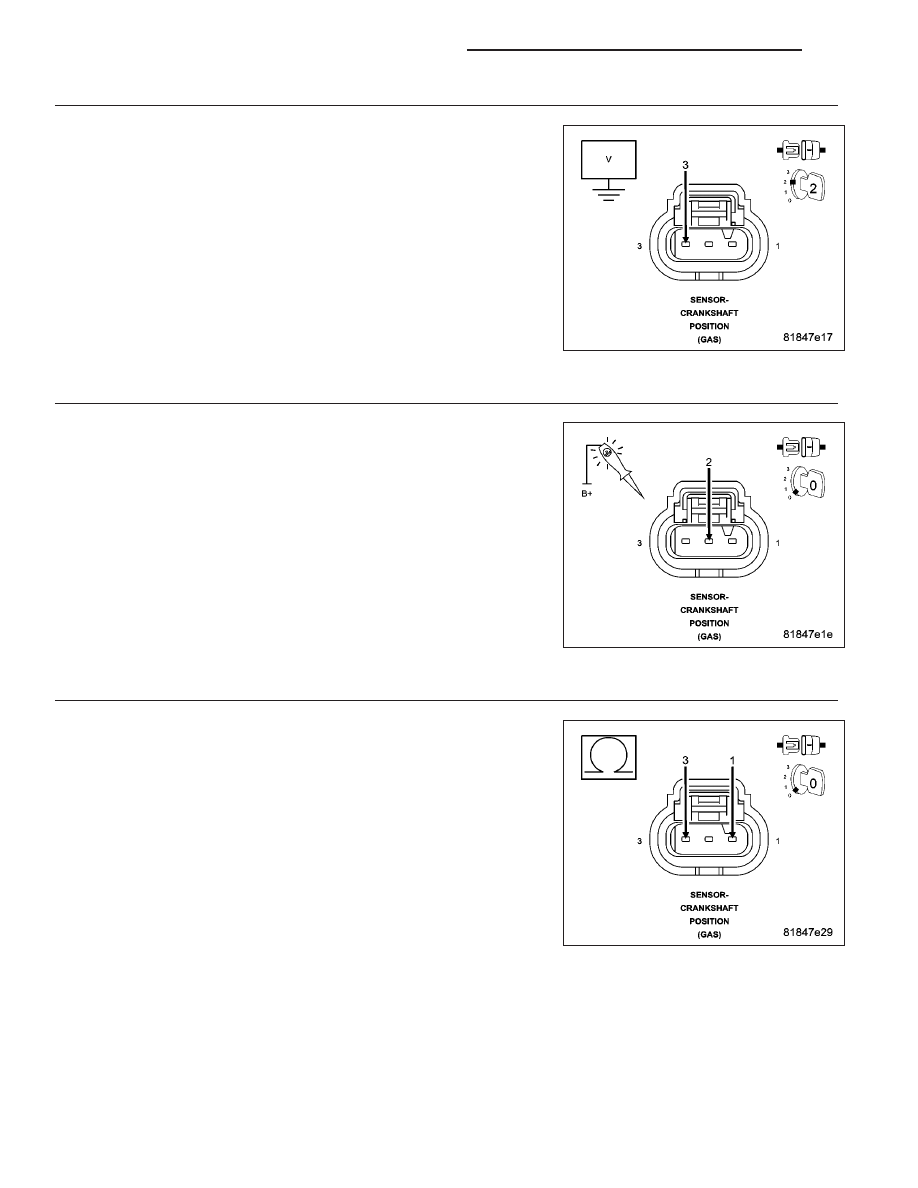

3.

(K24) CKP SIGNAL CIRCUIT VOLTAGE

Measure the voltage of the (K24) CKP Signal circuit in the Crankshaft
Position Sensor harness connector.

Is the voltage between 4.5 and 5.5 volts?

Yes

>> Go to 4

No

>> Go to 11

4.

(K900) SENSOR GROUND CIRCUIT

Turn the ignition off.

Using a 12 volt test light connected to 12 volts, check the (K900) Sen-
sor Ground in the Crankshaft Position Sensor harness connector.

NOTE: The test light should be illuminated and bright. Compare
the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?

Yes

>> Go to 5

No

>> Go to 15

5.

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K24) CKP SIGNAL CIRCUIT

Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K24) CKP Signal circuit in the Crankshaft Position Sensor harness
connector.

Is the resistance above 100 ohms?

Yes

>> Go to 6

No

>> Repair the (F855) 5 Volt Supply circuit for a short to the

(K24) CKP Signal circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 296

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

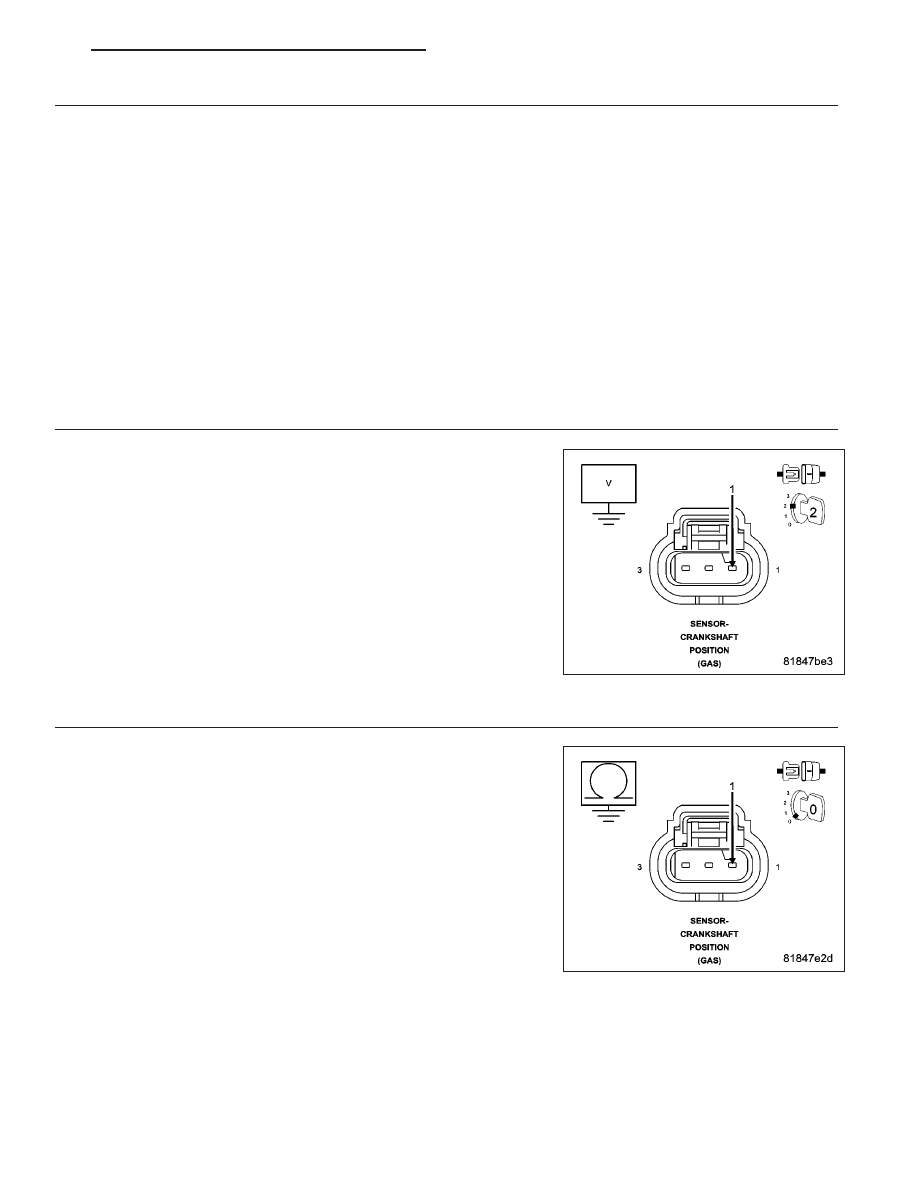

6.

CRANKSHAFT POSITION SENSOR

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Crankshaft Position
Sensor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Inspect the Crankshaft Position Sensor for conditions such as loose mounting screws, damage, or cracks.

If no other problems are found, remove the Crankshaft Position Sensor.

Inspect the Crankshaft Position Sensor and mounting area for any condition that would result in an incorrect signal,
such as damage, foreign material, or excessive movement.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace the Crankshaft Position Sensor.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

7.

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (F855) 5 Volt Supply circuit in the Crank-
shaft Position Sensor harness connector.

Is there any voltage present?

Yes

>> Repair the (F855) 5 Volt Supply circuit for a short to volt-

age.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 8

8.

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Measure the resistance between ground and the (F855) 5 Volt Supply
circuit in the Crankshaft Position Sensor harness connector.

Is the resistance above 100 ohms?

Yes

>> Go to 9

No

>> Repair the (F855) 5 Volt Supply circuit for a short to ground.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 297

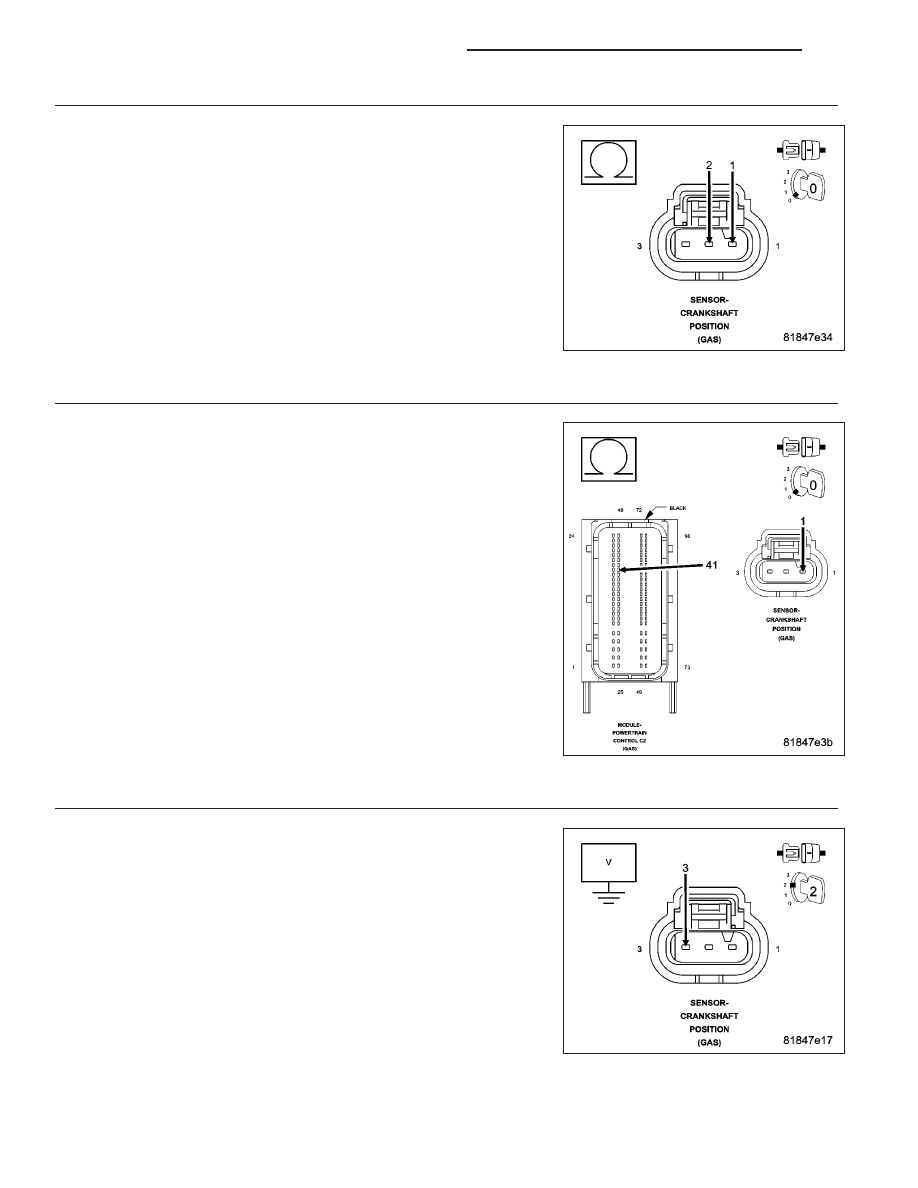

9.

(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT

Measure the resistance between the (F855) 5 Volt Supply circuit and
the (K900) Sensor Ground circuit in the Crankshaft Position Sensor har-
ness connector.

Is the resistance above 100 ohms?

Yes

>> Go to 10

No

>> Repair the (F855) 5 Volt Supply circuit for a short to the

(K900) Sensor Ground circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

10.

(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (F855) 5 Volt Supply circuit between the
Crankshaft Position Sensor harness connector and the Powertrain Con-
trol Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 16

No

>> Repair the (F855) 5 Volt Supply circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

11.

(K24) CKP SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

Measure the voltage of the (K24) CKP Signal circuit in the Crankshaft
Position Sensor harness connector.

Is there any voltage present?

Yes

>> Repair the (K24) CKP Signal circuit for a short to voltage.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 12

9 - 298

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM
