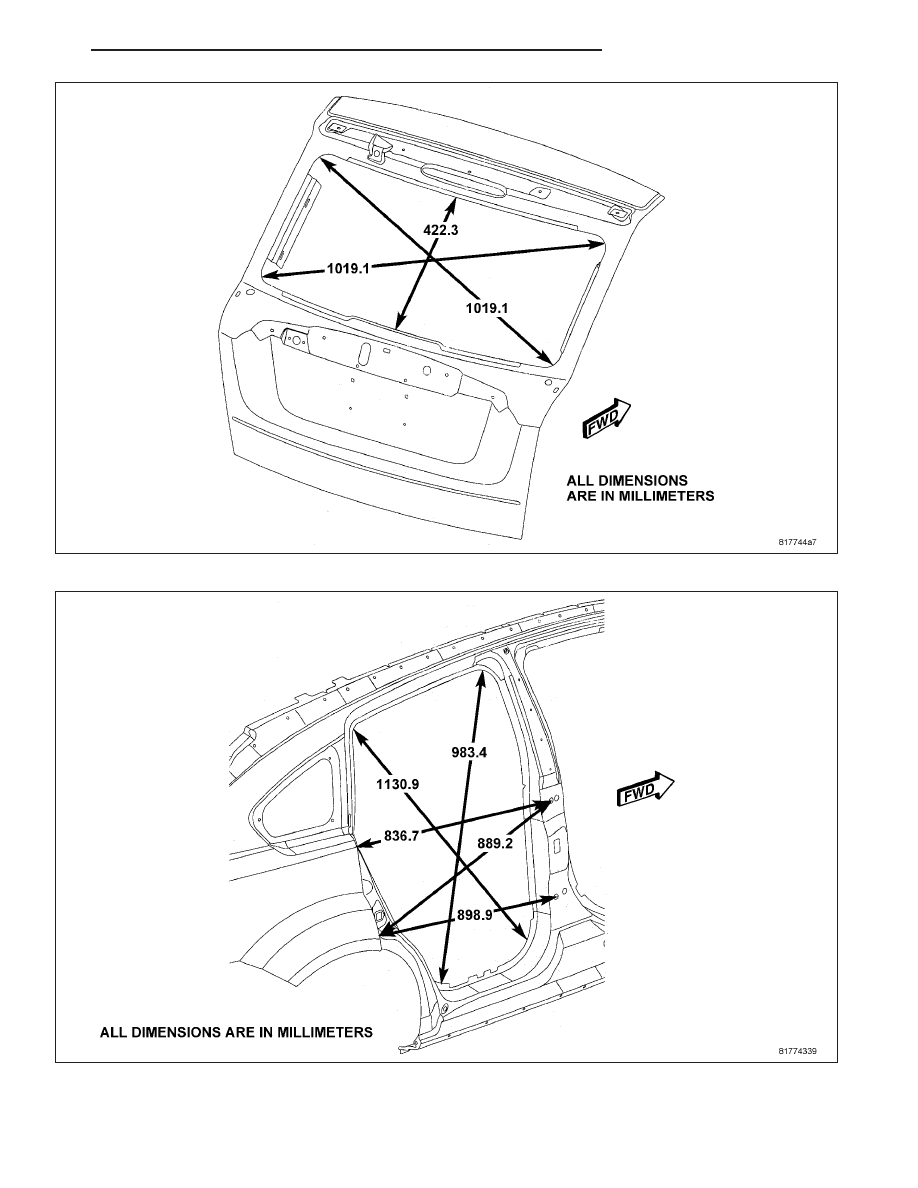

Fig. 5 LIFTGATE WINDOW OPENING

Fig. 6 REAR DOOR OPENING

PM

BODY STRUCTURE

23 - 225

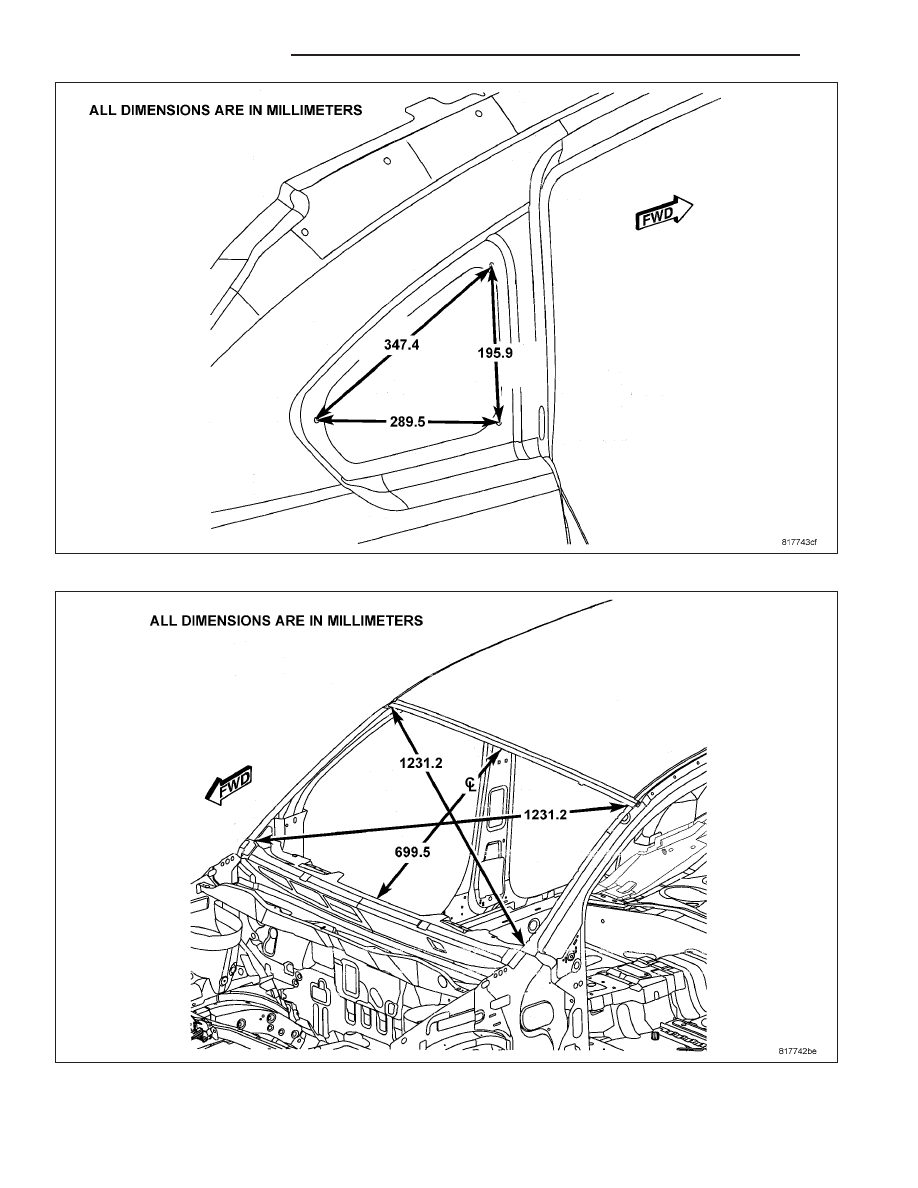

Fig. 7 REAR QUARTER WINDOW OPENING

Fig. 8 WINDSHIELD OPENING

23 - 226

BODY STRUCTURE

PM

SEALER LOCATIONS

SPECIFICATIONS

INDEX

DESCRIPTION

FIGURE

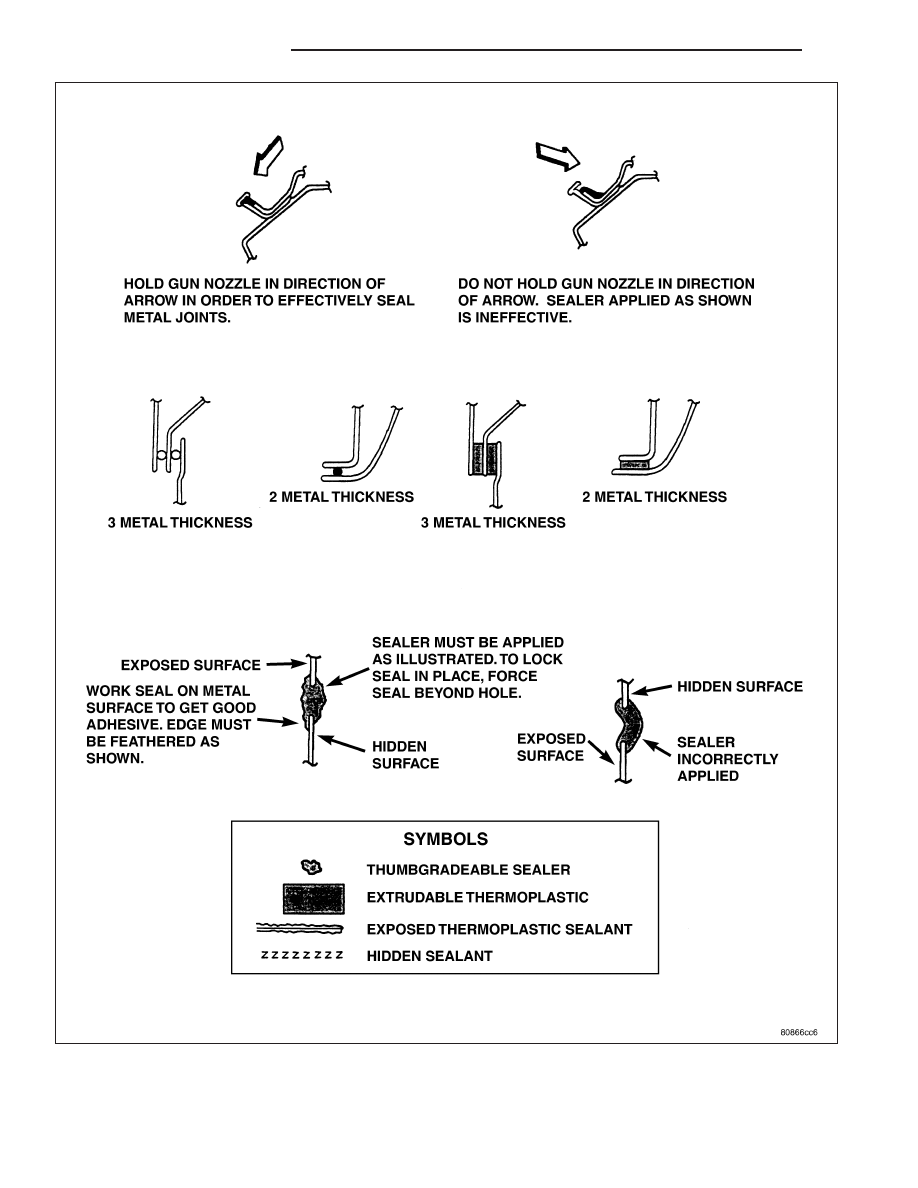

METHODS OF APPLYING AUTO BODY SEALER

9

BODY SIDE APERTURE/LIFTGATE

10

DASH/FRONT FLOOR PLAN

11

DASH/PLENUM/COWL SIDE PANEL

12

DASH/STEERING SHAFT BRACKET

13

FRONT ROOF CORNER/APERTURE PANEL

14

FRONT WHEELHOUSE

15

REAR FLOOR PAN

16

REAR WHEELHOUSES

17

RIGHT REAR INNER QUARTER PANEL

18

ROOF/ROOF REAR UPPER HEADER

19

ROOF/BODY SIDE APERTURE

20

LEFT REAR INNER QUARTER PANEL

21

UNDERBODY

22

UPPER COWL TOP/COWL SIDE

23

TAIL LAMP PANEL

24

PM

BODY STRUCTURE

23 - 227

Fig. 9 BODY LOCATIONS

23 - 228

BODY STRUCTURE

PM
