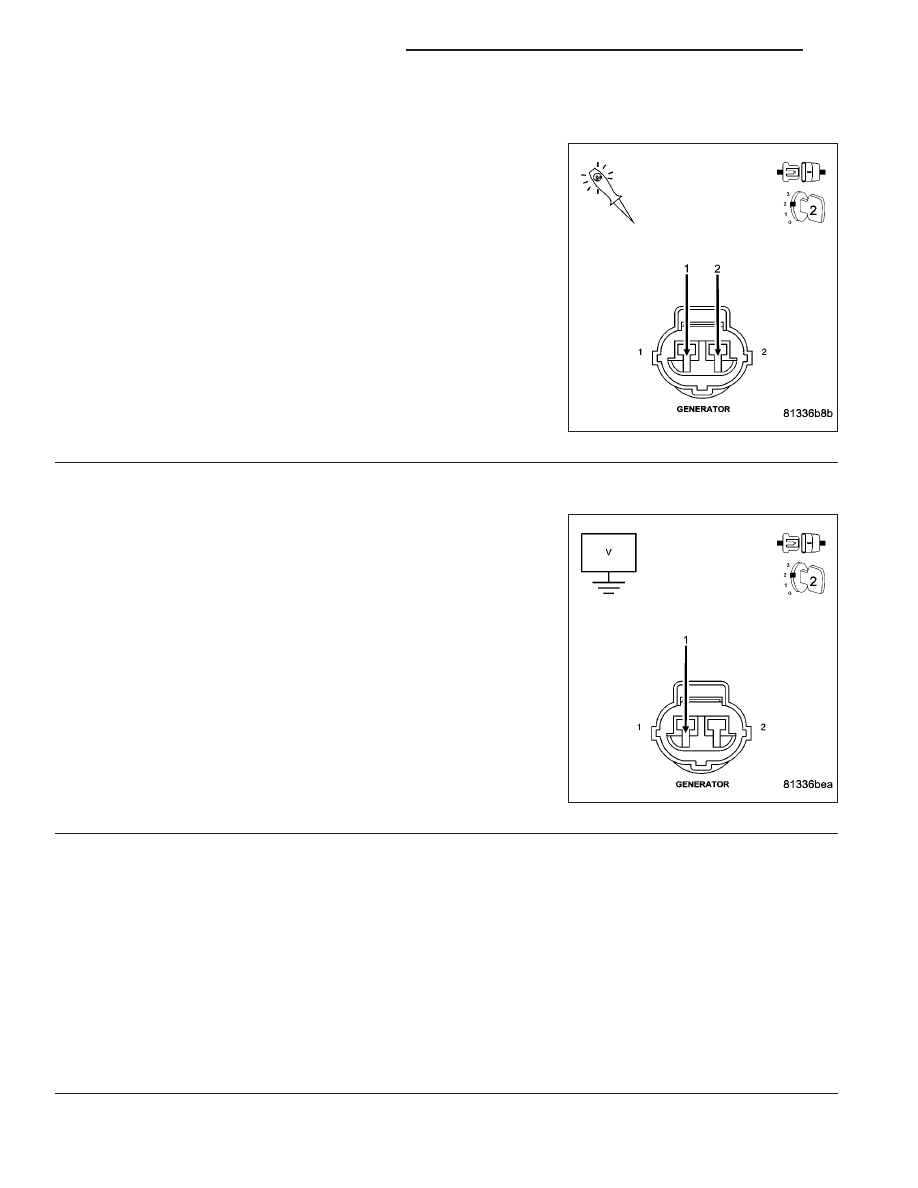

P0563-BATTERY VOLTAGE HIGH (CONTINUED) For the Engine circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (K20) GENERATOR FIELD CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE GENERATOR PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. ACTIVE DTC NOTE: Make sure the Battery is in good condition. Using the Midtronics Battery Tester, test the Battery NOTE: Inspect the vehicle for after market accessories that may exceed the Generator System output. NOTE: Make sure the generator drive belt is in good operating condition. NOTE: Inspect the fuses in the IPM. If a fuse is open use the wire diagram/schematic as a guide, inspect the With a scan tool, read DTCs. Is the DTC active at this time? Yes >> Go To 2 No >> Refer to the INTERMITTENT CONDITION Diagnostic Procedure. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) HB ENGINE ELECTRICAL DIAGNOSTICS 9 - 591 |
