Dodge Durango (HB). Manual - part 594

1. Position the Sentry Key REmote Entry Module

(SKREEM) (1) onto the steering column with the
antenna ring (3) oriented around the ignition lock
cylinder housing (4).

2. Install and tighten the screw (2) that secures the

SKREEM to the steering column housing. Tighten
the screw to 2 N·m (20 in. lbs.).

3. Reconnect the wire harness connector (2) to the

SKREEM (1).

VEHICLE THEFT SECURITY - SERVICE INFORMATION

8Q - 95

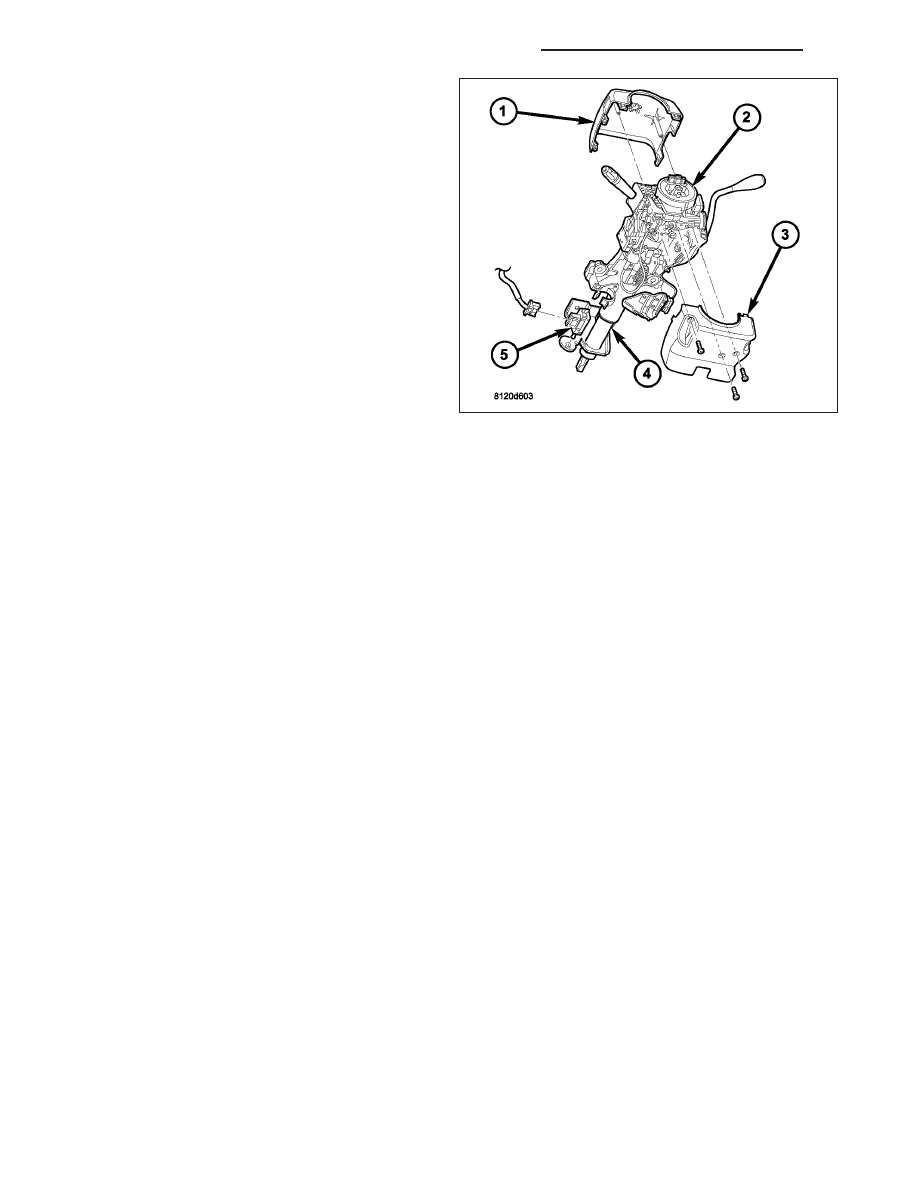

4. Position the lower shroud (3) onto the steering col-

umn (4).

5. From below the steering column, install and tighten

the one center screw that secures the lower shroud
to the steering column. Tighten the screw to 2 N·m
(20 in. lbs.).

6. Position the upper shroud (1) onto the steering col-

umn over the lower shroud. Be certain to engage
the gearshift lever gap hider into the opening in the
right side of both shroud halves.

7. Align the snap features on the upper shroud with

the receptacles in the lower shroud and apply hand
pressure to snap them together.

8. Install and tighten the two outboard screws that

secure the upper shroud to the lower shroud.
Tighten the screws to 2 N·m (20 in. lbs.).

9. Align the tilt steering column knob with the tilt

adjuster lever on the left side of the steering col-
umn and use hand pressure to snap it back into place.

10. Reconnect the battery negative cable.

NOTE: On vehicles equipped with the optional Sentry Key Immobilizer System (SKIS) if the SKREEM is
replaced with a new unit, a diagnostic scan tool MUST be used to initialize the new SKREEM and to pro-
gram at least two Sentry Key transponders before the vehicle can be operated. (Refer to 8 - ELECTRICAL/
VEHICLE THEFT SECURITY - STANDARD PROCEDURE - SKIS INITIALIZATION).

8Q - 96

VEHICLE THEFT SECURITY - SERVICE INFORMATION

WIPERS/WASHERS

TABLE OF CONTENTS

page

FRONT WIPERS/WASHERS - ELECTRICAL

DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

FRONT WIPERS/WASHERS - SERVICE

INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . 33

REAR WIPERS/WASHERS - ELECTRICAL

DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . 58

REAR WIPERS/WASHERS - SERVICE
