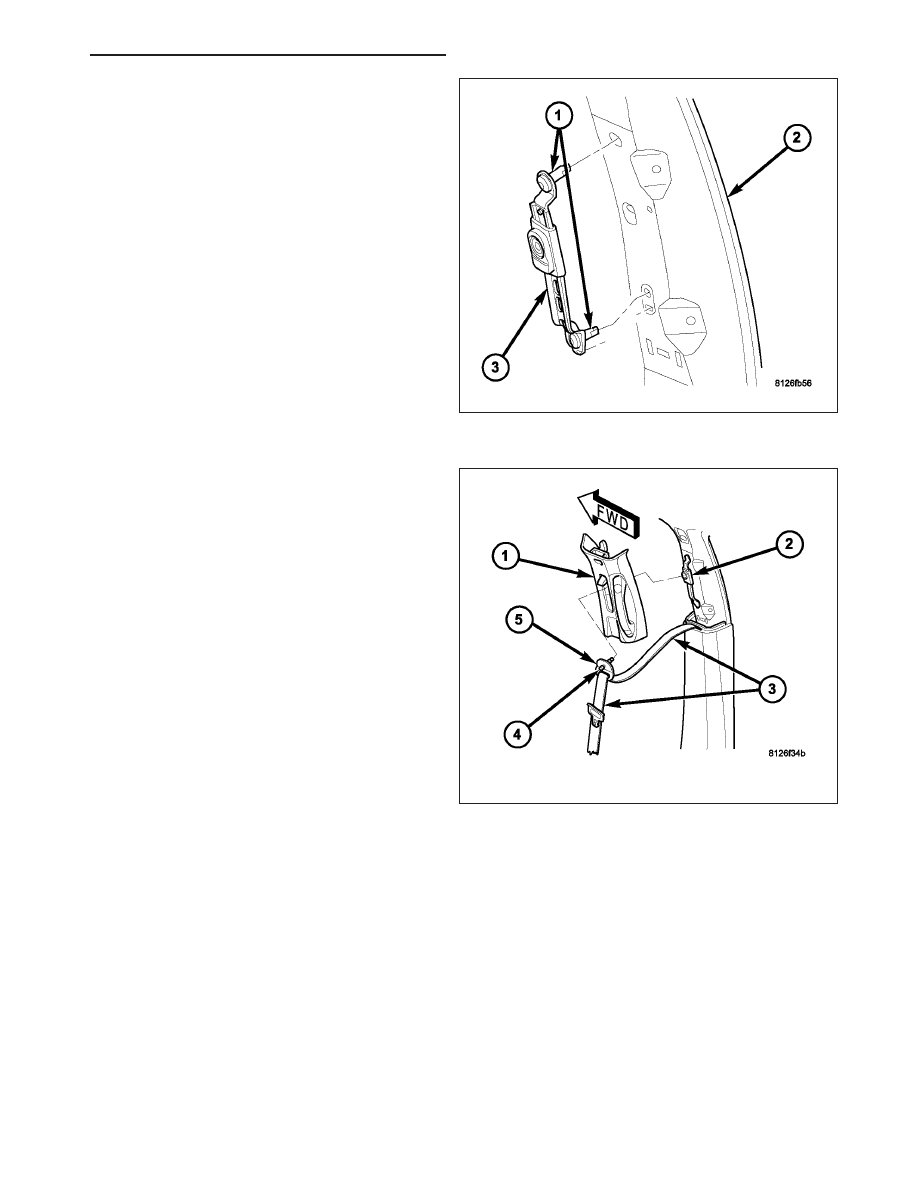

5. Remove the two screws (1) that secure the height

adjuster (3) to the B-pillar (2).

6. Remove the adjuster from the B-pillar.

SECOND ROW - OUTBOARD

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

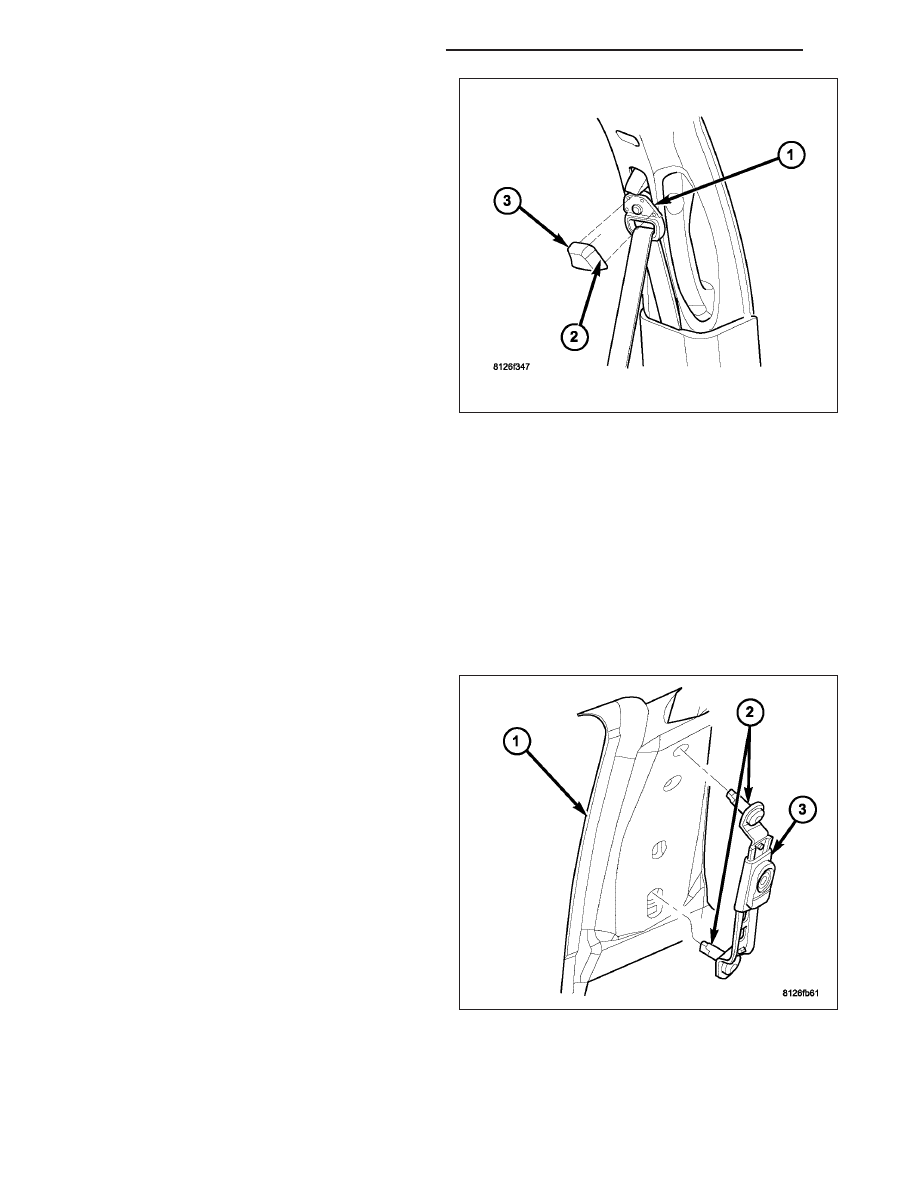

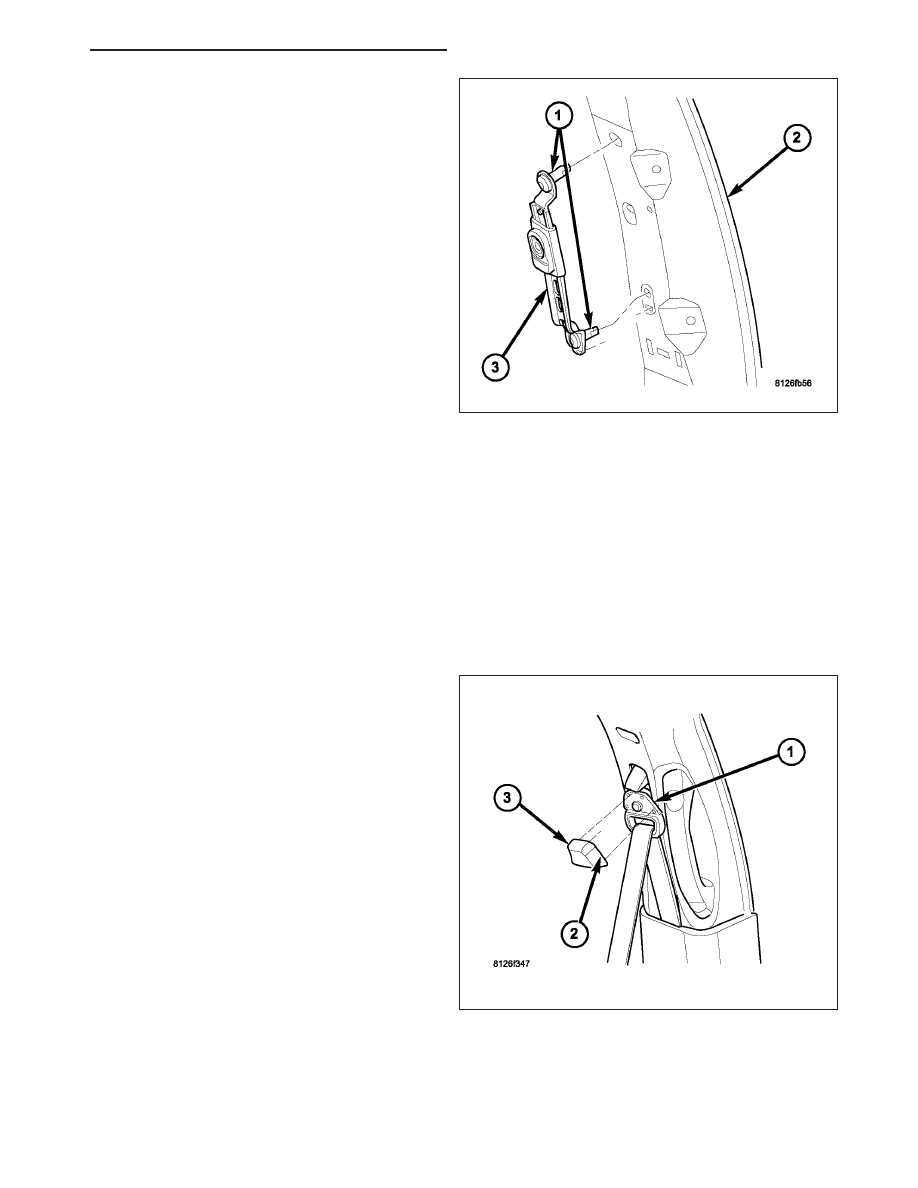

1. Unsnap the upper edge of the trim cover (3) from

the second row outboard seat belt turning loop (1)
and disengage the tab (2) on the lower edge of the
cover to access the turning loop screw.

RESTRAINTS - SERVICE INFORMATION

8O - 529

2. Remove the screw (3) that secures the seat belt

turning loop (4) to the height adjuster (1) on the
upper C-pillar (5).

3. Remove the seat belt turning loop from the height

adjuster.

4. Remove the upper trim (2) from the inside of the

C-pillar. (Refer to 23 - BODY/INTERIOR/C-PILLAR
TRIM - REMOVAL).

5. Remove the two screws (2) that secure the height

adjuster (3) to the C-pillar (1).

6. Remove the adjuster from the C-pillar.

INSTALLATION

FRONT

8O - 530

RESTRAINTS - SERVICE INFORMATION

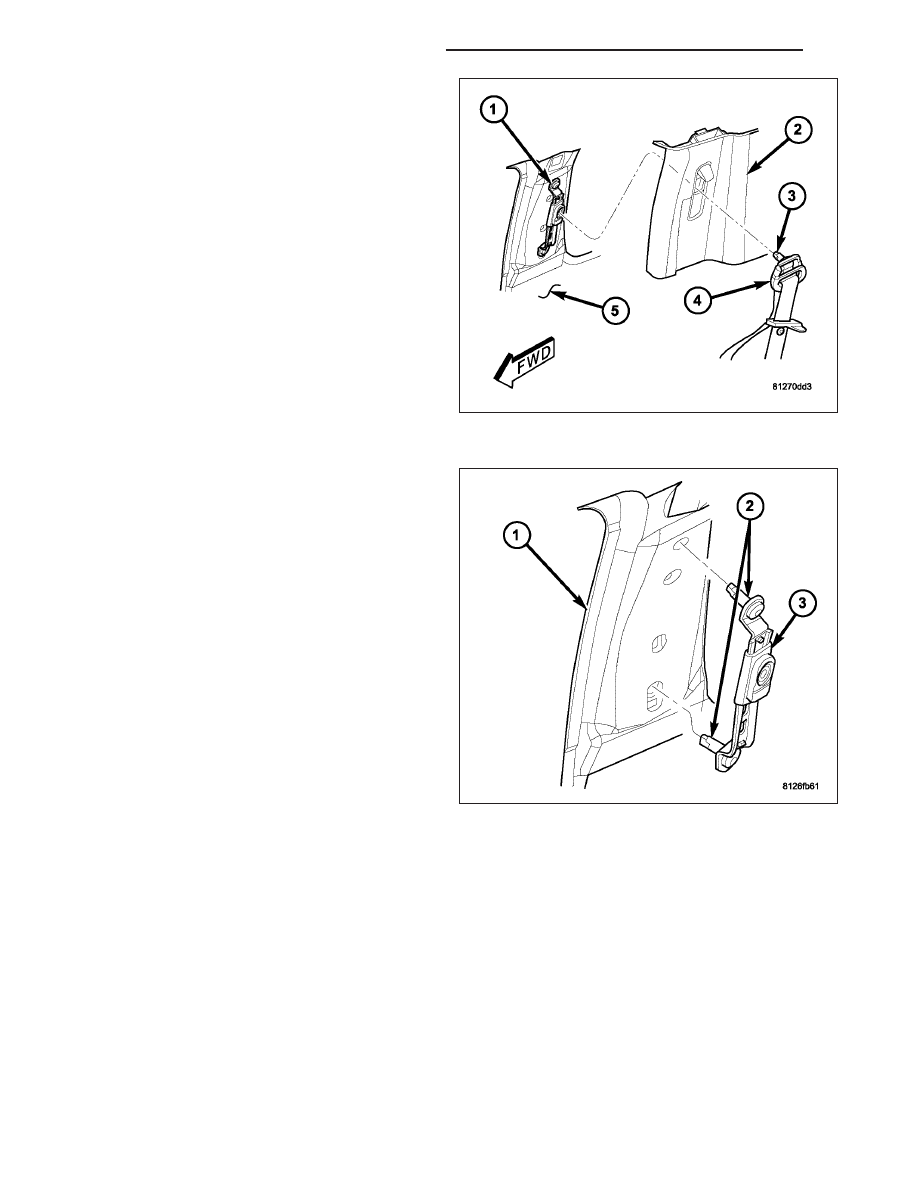

1. Position the seat belt turning loop adjuster (3) to

the B-pillar (2).

2. Install and tighten the two screws (1) that secure

the adjuster to the B-pillar. Tighten the screws to
39 N·m (29 ft. lbs.).

3. Reinstall the upper trim (1) onto the inside of the

B-pillar. (Refer to 23 - BODY/INTERIOR/B-PILLAR
UPPER TRIM - INSTALLATION).

4. Position the seat belt turning loop (5) onto the

height adjuster (2) on the upper B-pillar.

5. Install and tighten the screw (4) that secures the

turning loop to the height adjuster. Tighten the
screw to 39 N·m (29 ft. lbs.).

RESTRAINTS - SERVICE INFORMATION

8O - 531

6. Engage the tab (2) on the lower edge of the trim

cover (3) in the slot below the screw in the turning
loop (1). Then press the upper edge of the trim
cover over the top of the turning loop until it snaps
into place.

SECOND ROW - OUTBOARD

1. Position the seat belt turning loop adjuster (3) to

the C-pillar (1).

2. Install and tighten the two screws (2) that secure

the adjuster to the C-pillar. Tighten the screws to
39 N·m (29 ft. lbs.).

8O - 532

RESTRAINTS - SERVICE INFORMATION
