Dodge Durango (HB). Manual - part 563

SECOND ROW - CENTER

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

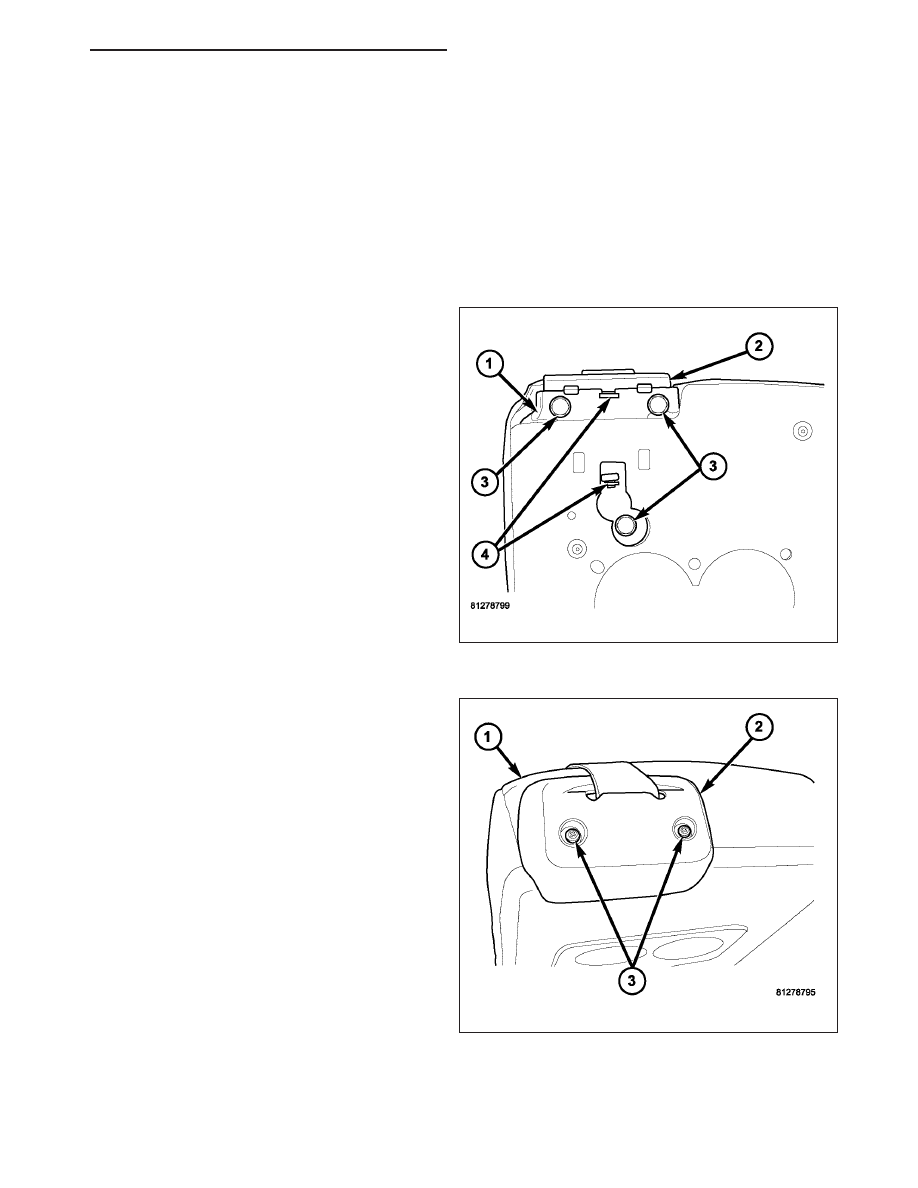

1. Position the second row seat belt and retractor (2)

between the seat back foam pad and frame (1) as
a unit.

2. Engage the two tabs (4) on the retractor bracket

into the keyed slots in the seat back frame.

3. Install and tighten the three screws (3) that secure

the retractor to the seat back frame. Tighten the
screws to 27 N·m (20 ft. lbs.).

4. Reinstall the trim cover (1) onto the center seat

back. (Refer to 23 - BODY/SEATS/2ND ROW
CENTER SEAT BACK COVER - INSTALLATION).

5. Install the seat belt lower anchor through the belt

web guide bezel (2) and position the bezel onto the
top of the center seat back panel.

6. Install and tighten the two screws (3) that secure

the bezel to the top of the seat back. Tighten the
screws to 2 N·m (20 in. lbs.).

RESTRAINTS - SERVICE INFORMATION

8O - 521

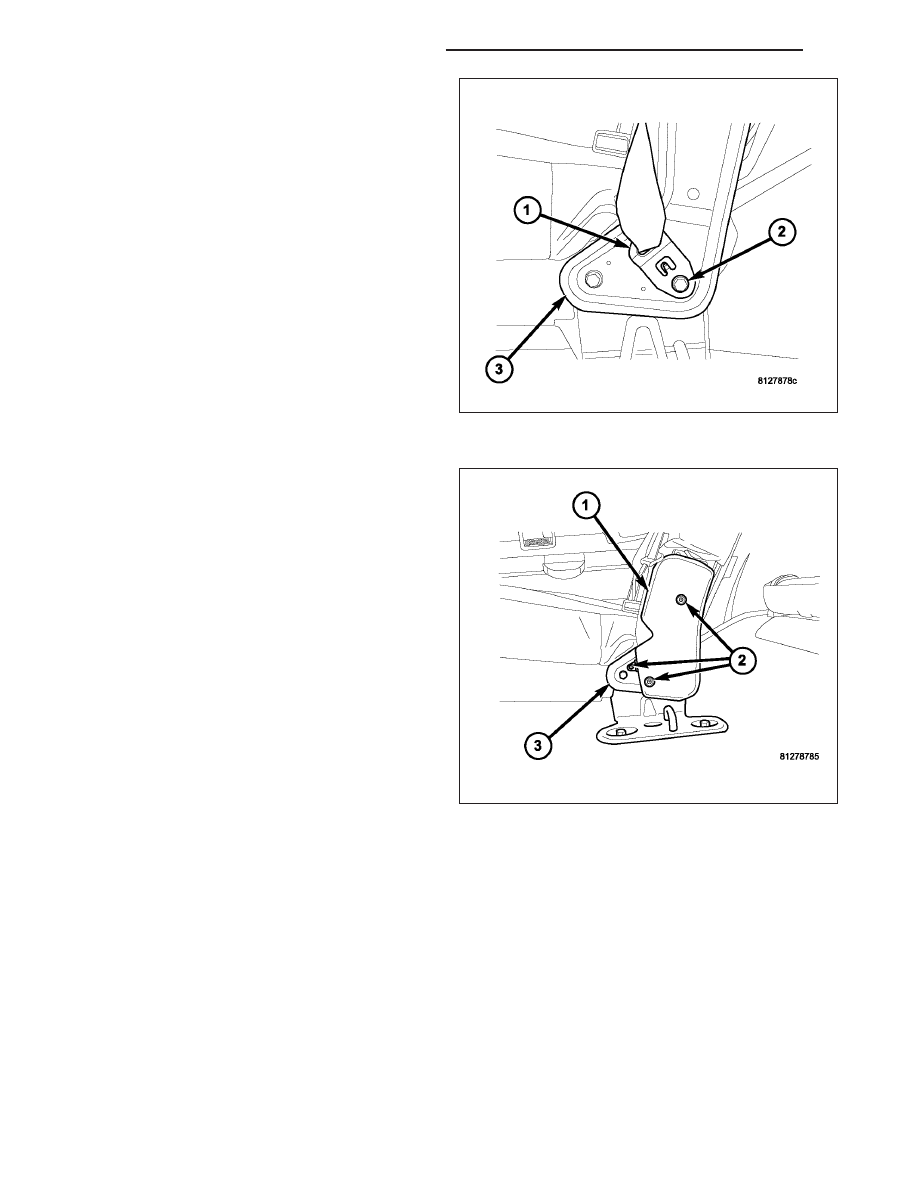

7. Position the second row center seat belt lower

anchor (1) to the hinge bracket (3). Be certain the
anti-rotation tab on the anchor is engaged in the
clearance hole of the bracket.

8. Install and tighten the screw (2) that secures the

lower anchor to the bracket. Tighten the screw to
43 N·m (32 ft. lbs.).

9. Position the center seat back left hinge bracket

cover (1) onto the bracket (3).

10. Install and tighten the three screws (2) that secure

the cover to the bracket. Tighten the screws to 2
N·m (20 in. lbs.).

11. Unfold and restore the left outboard second row

seat to its upright position.

SECOND ROW - OUTBOARD

8O - 522

RESTRAINTS - SERVICE INFORMATION

1. Check to be certain that the molded plastic retrac-

tor cup is properly installed in the retractor mount-
ing hole of the inner C-pillar, and that it is in good
condition.

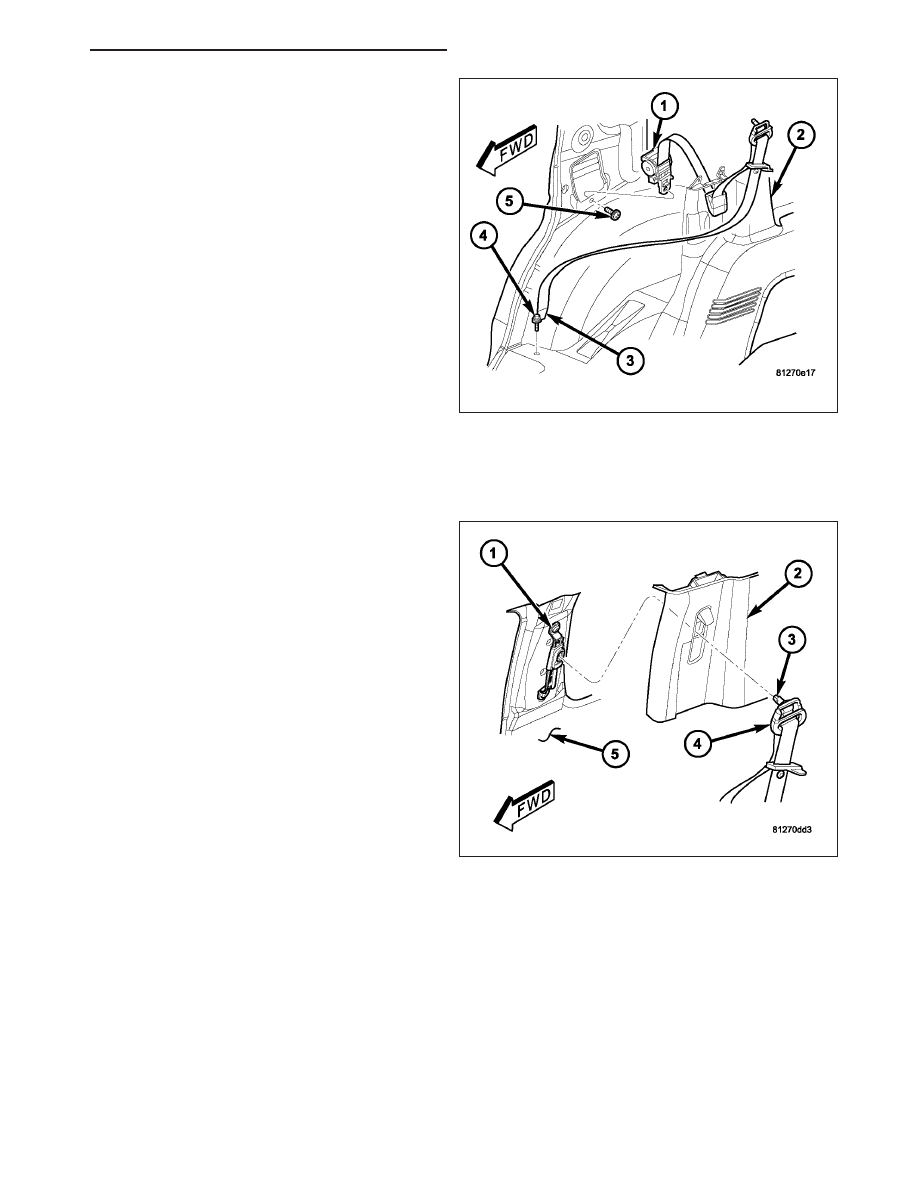

2. Position the second row outboard seat belt and

retractor (1) to the C-pillar as a unit.

3. Engage the tab on the retractor bracket into the

engagement hole in the C-pillar.

4. Install and tighten the screw (5) that secures the

retractor to the lower C-pillar. Tighten the screw to
39 N·m (29 ft. lbs.).

5. Route the seat belt lower anchor and turning loop

through the access hole in the quarter trim panel.

6. Reinstall the quarter trim panel onto the lower

C-pillar. (Refer to 23 - BODY/INTERIOR/QUARTER
TRIM PANEL - INSTALLATION).

7. Position the lower seat belt anchor (3) to the rear

floor panel.

8. Install and tighten the screw (4) that secures the lower seat belt anchor to the floor. Tighten the screw to 39 N·m

(29 ft. lbs.).

9. Reinstall the upper trim (2) onto the inside of the

C-pillar (5). (Refer to 23 - BODY/INTERIOR/C-PIL-
LAR TRIM - INSTALLATION).

10. Position the seat belt turning loop (4) to the height

adjuster (1) on the upper C-pillar.

11. Install and tighten the screw (3) that secures the

turning loop to the height adjuster. Tighten the
screw to 39 N·m (29 ft. lbs.).

RESTRAINTS - SERVICE INFORMATION

8O - 523

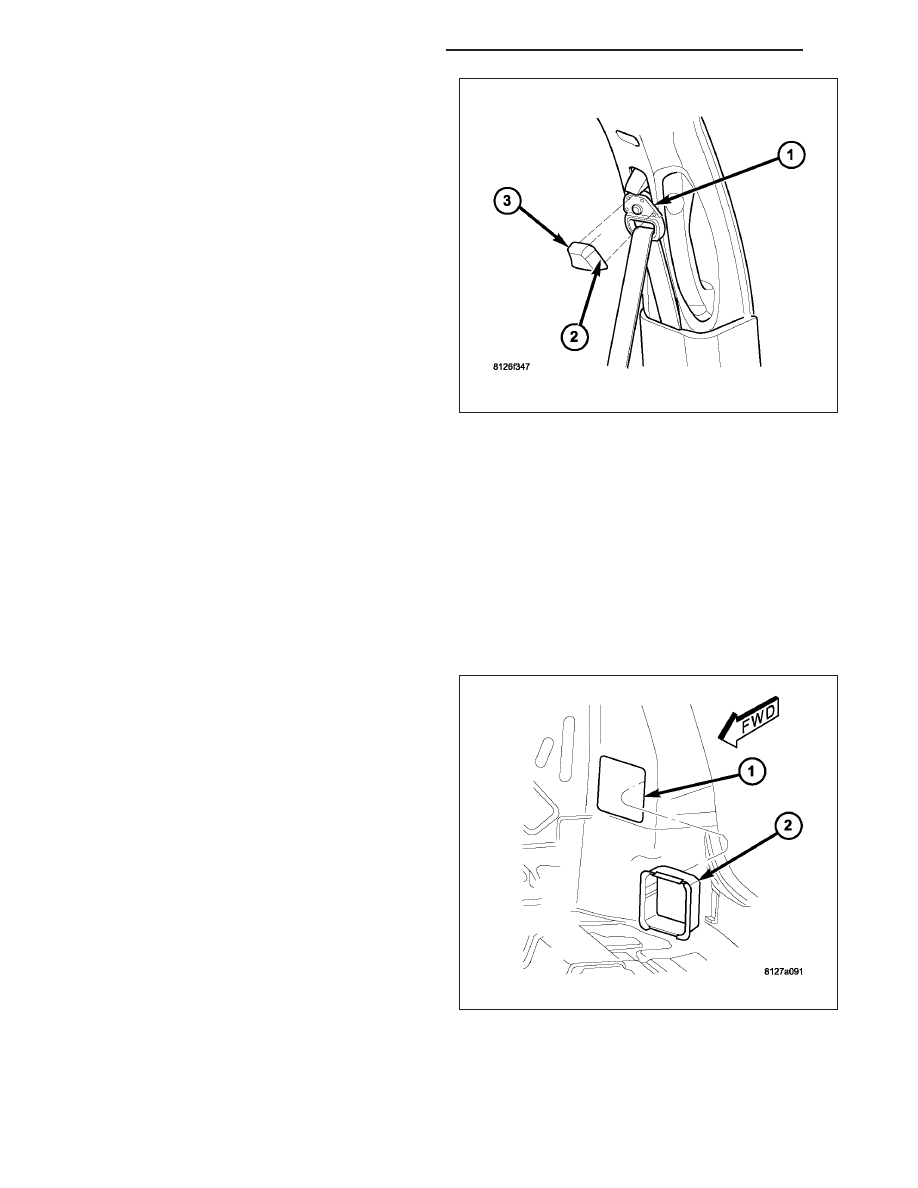

12. Engage the tab (2) on the lower edge of the trim

cover (3) in the slot below the screw in the turning
loop (1). Then press the upper edge of the trim
cover over the top of the turning loop until it
snaps into place.

THIRD ROW

1. Check to be certain that the molded plastic retrac-

tor cup (2) is properly installed in the retractor
mounting hole (1) of the inner D-pillar, and that it is
in good condition.

8O - 524

RESTRAINTS - SERVICE INFORMATION
