*DIAGNOSIS AND CHECKOUT PROCEDURE FOR SEAT WEIGHT SENSORS

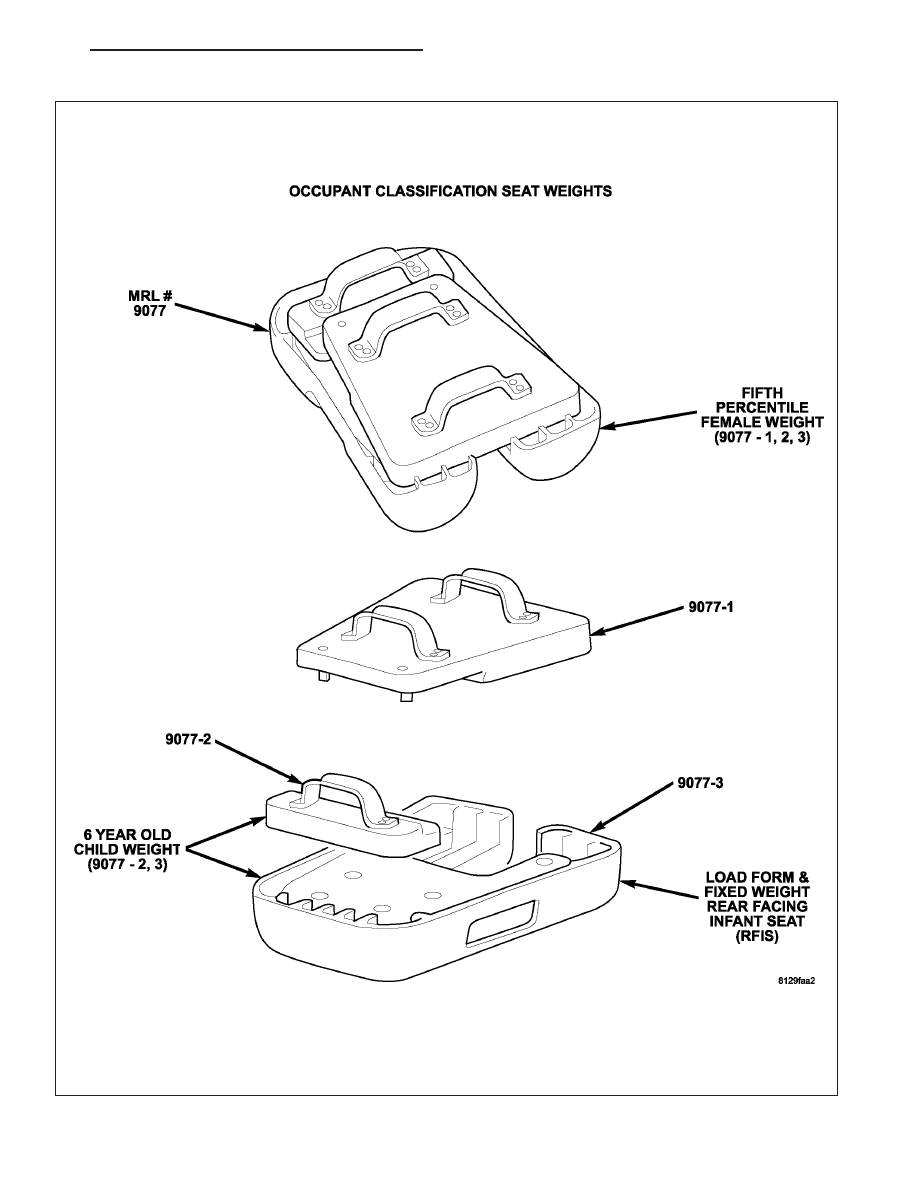

OCS SEAT WEIGHTS MRL #9077

HB

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 441

*DIAGNOSIS AND CHECKOUT PROCEDURE FOR SEAT WEIGHT SENSORS (CONTINUED)

1.

VERIFY COMPLAINT

Turn the ignition off.

Move the front passenger seat to the full rear position. Verify that the
seat is empty, the seat back is in the normal upright position, and that
the seat is not interfering with any interior components.

Verify that all related connectors are properly seated and locked.

Turn the ignition on.

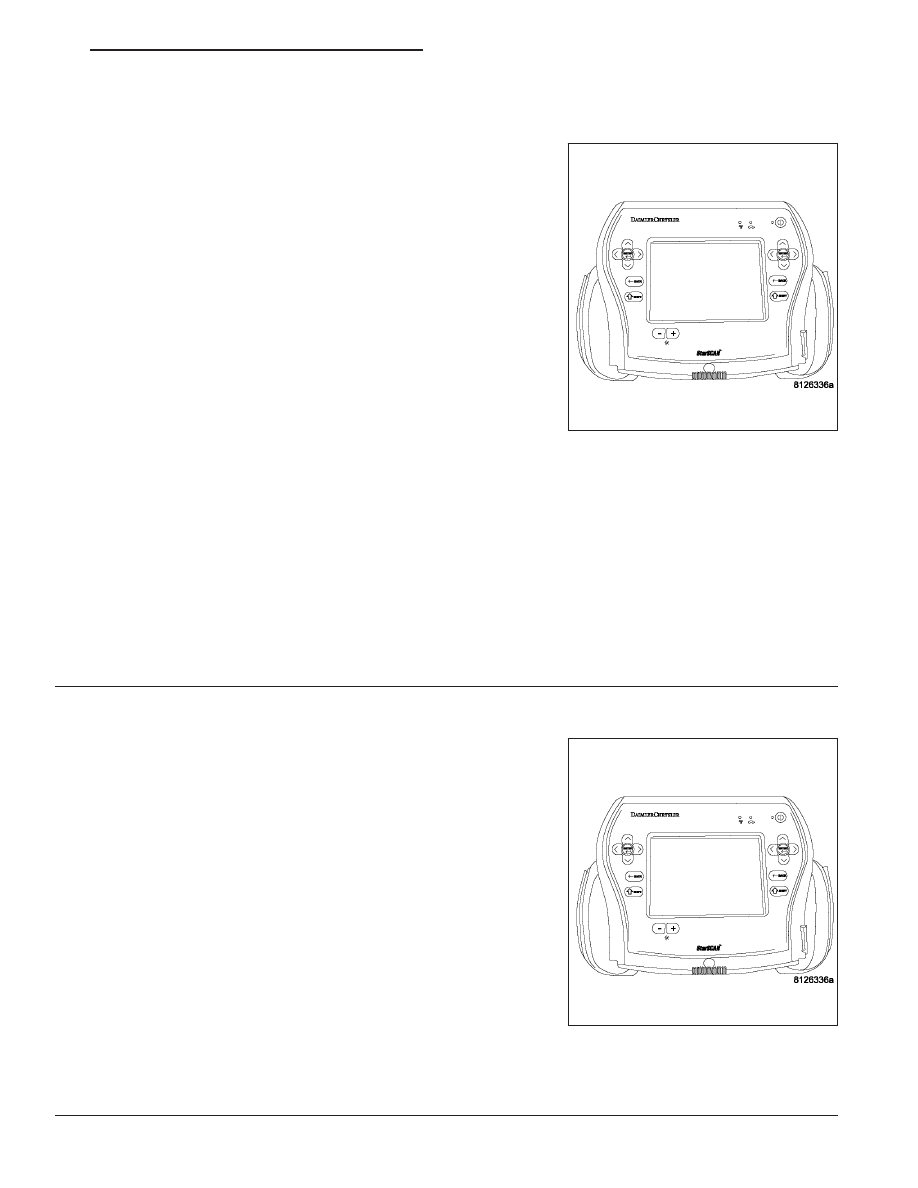

With the scan tool in OCM, select Data Display and note the Passen-
ger Seat Weight Sensor voltage for all four sensors (Left Front, Right
Front, Left Rear and Right Rear).

Move the front passenger seat to the mid track position.

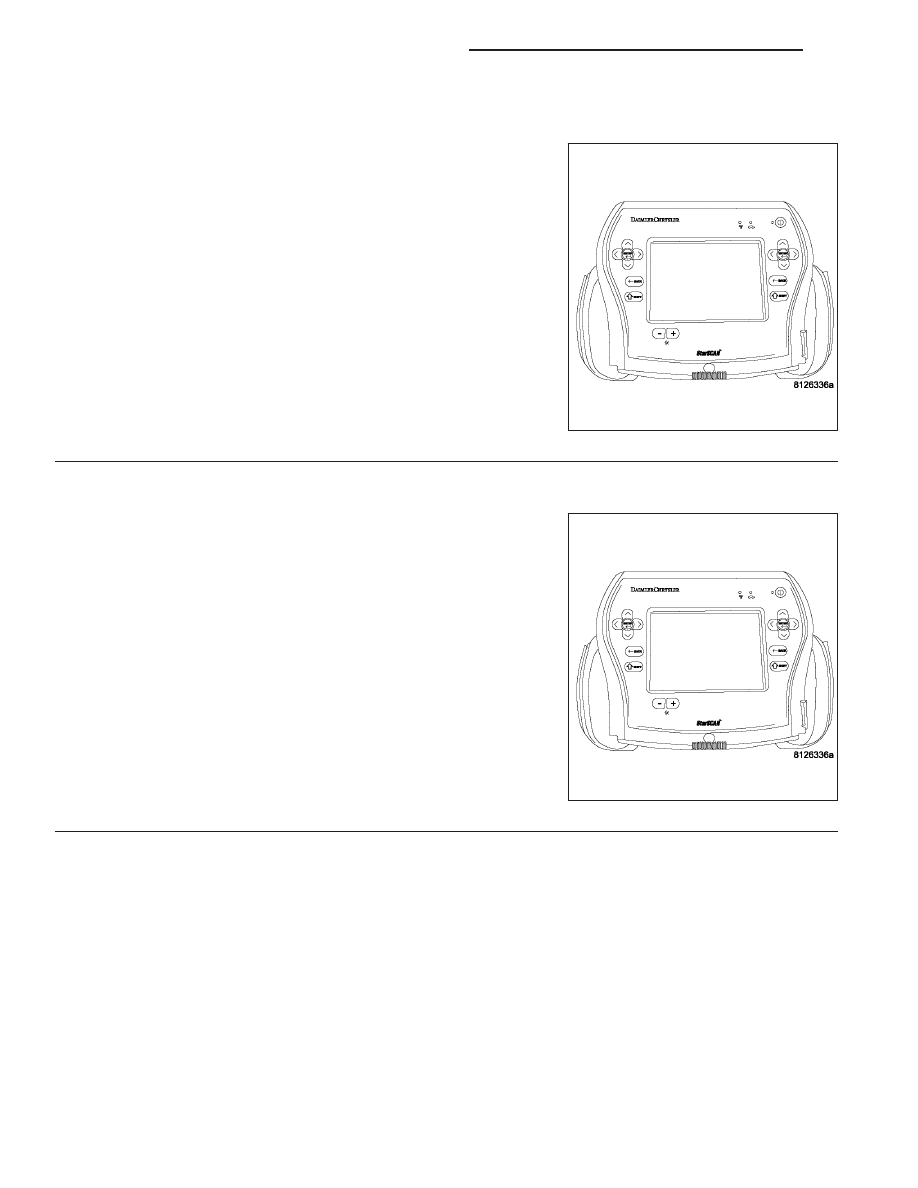

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors.

Move the front passenger seat to the full forward position.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors. The voltage should be from 1.4 to 3.6 volts for
each sensor in each position (full rear, mid track, and full forward).

Is any sensor’s voltage reading out of the acceptable range in any position?

Yes

>> Go To 2

No

>> Perform test B1BA7 Occupant Classification System Verification Required. If the test passes, the seat

weight sensing system is working properly. Return to the procedure that directed you to this procedure.

2.

BENT FLOOR PAN

Turn the ignition off.

Loosen all of the mounting screws retaining the front passenger seat
to the vehicle crossmembers, but do not remove them. Verify that the
seat is loose and that no binding exists between the seat and the
crossmembers.

Move the front passenger seat to the full rear position and then to the
full forward position.

Tighten all of the mounting screws to specification. Refer to 23 -
BODY/SEATS.

Move the front passenger seat to the full rear position.

Turn the ignition on.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors.

Move the front passenger seat to the mid track position.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors.

Move the front passenger seat to the full forward position.

Using the scan tool, note the Passenger Seat Weight Sensor voltage for all four sensors. The voltage should be
from 1.4 to 3.6 volts for each sensor in each position.

Is any sensor’s voltage reading out of the acceptable range in any position?

Yes

>> Go To 3

No

>> Perform test B1BA7 Occupant Classification System Verification Required. If the test passes, the seat

weight sensing system is working properly. Return to the procedure that directed you to this procedure.

8O - 442

RESTRAINTS - ELECTRICAL DIAGNOSTICS

HB

*DIAGNOSIS AND CHECKOUT PROCEDURE FOR SEAT WEIGHT SENSORS (CONTINUED)

3.

SEAT TO RISER STRESS

Turn the ignition off.

Loosen all of the mounting screws retaining the front passenger seat
track to the riser, but do not remove them. Verify that the seat track is
loose and that no binding exists between the seat track and the risers.

Turn the ignition on.

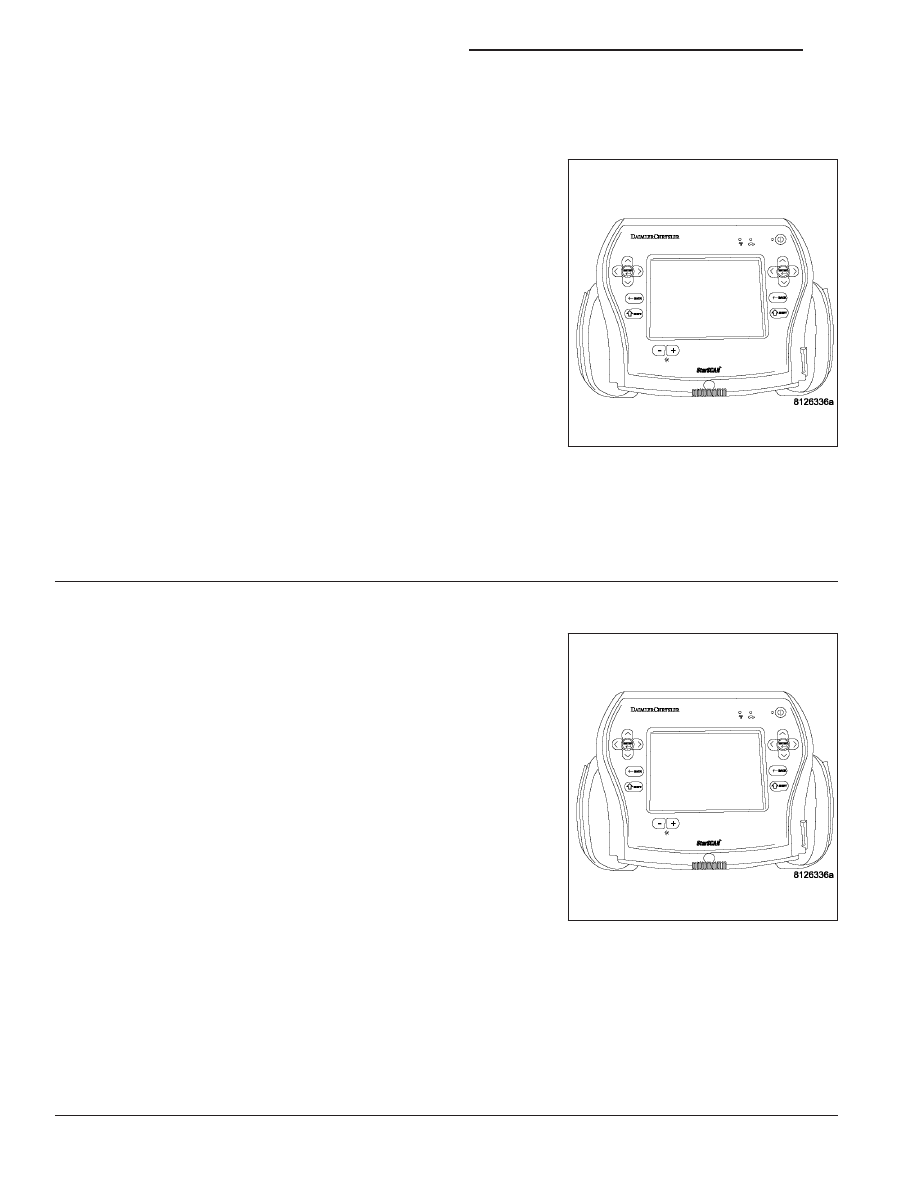

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors. The voltage should be from 1.5 to 3.5 volts for
each sensor.

Is any sensor’s voltage reading out of the acceptable range?

Yes

>> Go To 4

No

>> Visually inspect for damaged or bent risers and cross-

members. Also, verify that the riser holes line up with the
seat mounts in the crossmembers.

If riser damage is apparent, replace the risers in accor-
dance with the Service Information. Then, reinstall the
Seat Weight Sensors, and Go To 6.

NOTE: Failure to follow test instructions or aborting the test will cause faults to set when performing the
Occupant Classification Module System Verification Test. To prevent faults due to process errors: Verify
That All Tests Steps That Led You Here Were Performed As Directed; Verify That The Ignition Is In Run; Wait
30 Seconds After Changing The Seat Weight Before Proceeding To Allow The System To Stabilize; Only
Press Scan Tool Buttons When Directed To Do So; & Perform The Occupant Classification Module System
Verification Test To Completion.

If crossmember or floorpan damage is present, repair or replace the components as necessary in accor-
dance with the Service Information. Reinstall the seat in the vehicle in accordance with the Service
Information. Turn the ignition on. With the scan tool in OCM, select More Options, select System Tests,
and select Occupant Classification Module System Verification Test. Run the test by following the direc-
tions displayed on the scan tool. When the test is complete, Go To 1.

4.

SEAT FRAME

Turn the ignition off.

Remove the front passenger seat from the risers in accordance with
the Service Information. Return the risers to their normal mounting
position.

Turn the ignition on.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors. The voltage should be from 1.4 to 3.6 volts for
each sensor.

Is any sensor’s voltage reading out of the acceptable range?

Yes

>> Go To 5

No

>> Visually inspect for damaged or bent risers, a damaged or

bent seat and seat structure, and damaged or bent seat
tracks. Also, verify that the holes in the center of the sen-
sors line up with the seat track holes.

If riser damage is apparent, replace the risers in accor-
dance with the Service Information. Then, reinstall the Seat Weight Sensors, and Go To 6.

If seat or seat track damage is present, replace the components as necessary in accordance with the
Service Information. Then, Go To 7.

HB

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 443

*DIAGNOSIS AND CHECKOUT PROCEDURE FOR SEAT WEIGHT SENSORS (CONTINUED)

5.

SENSOR TEST

Turn the ignition off.

Loosen the mounting screws of all of the Seat Weight Sensors, but do
not remove them. Verify that the sensors are loose and that no binding
exists between the sensors and the risers.

Turn the ignition on.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors. The voltage should be from 1.4 to 3.6 volts for
each sensor.

Is any sensor’s voltage reading out of the acceptable range?

Yes

>> Replace any Seat Weight Sensors that have an unaccept-

able voltage reading in accordance with the Service Infor-
mation. Then, Go To 6.

No

>> Replace the risers in accordance with the Service Informa-

tion. Then, reinstall the Seat Weight Sensors, and Go To
6.

6.

TORQUE SEAT WEIGHT SENSORS

Turn the ignition off.

Tighten all of the Seat Weight Sensor mounting screws to specifica-
tion. Refer to 23 - BODY/SEATS.

Turn the ignition on.

Using the scan tool, note the Passenger Seat Weight Sensor voltage
for all four sensors. The voltage should be from 1.4 to 3.6 volts for
each sensor.

Is any sensor’s voltage reading out of the acceptable range?

Yes

>> Loosen the mounting screws of all Seat Weight Sensors

with an unacceptable voltage reading, and repeat Steps 5
and 6.

No

>> Go To 7

8O - 444

RESTRAINTS - ELECTRICAL DIAGNOSTICS

HB
