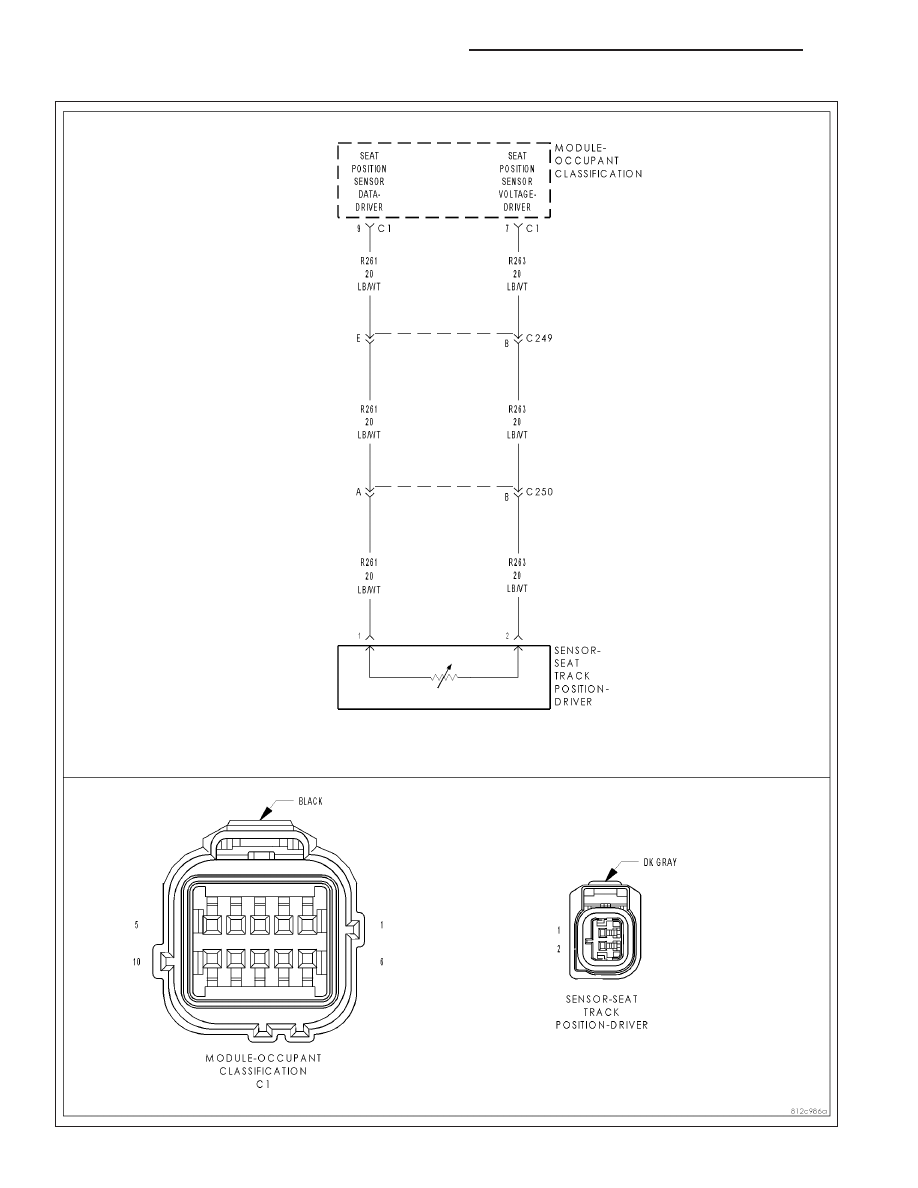

B1B8C-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT PERFORMANCE (CONTINUED) For the Occupant Classification System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes DRIVER SEAT TRACK POSITION SENSOR OCCUPANT CLASSIFICATION MODULE (OCM) Diagnostic Test 1. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, BATTERY FAULTS, & SEAT TRACK NOTE: Ensure the battery is fully charged. NOTE: When reconnecting Airbag system components, the igni- With the scan tool, read Occupant Classification Module (OCM) DTCs. Does the scan tool display any active DTCs relating to internal Yes >> Diagnose and repair the DTCs. Refer to the Table of Con- tents in this Section for a complete list of symptoms. No >> Go To 2 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 269 |
