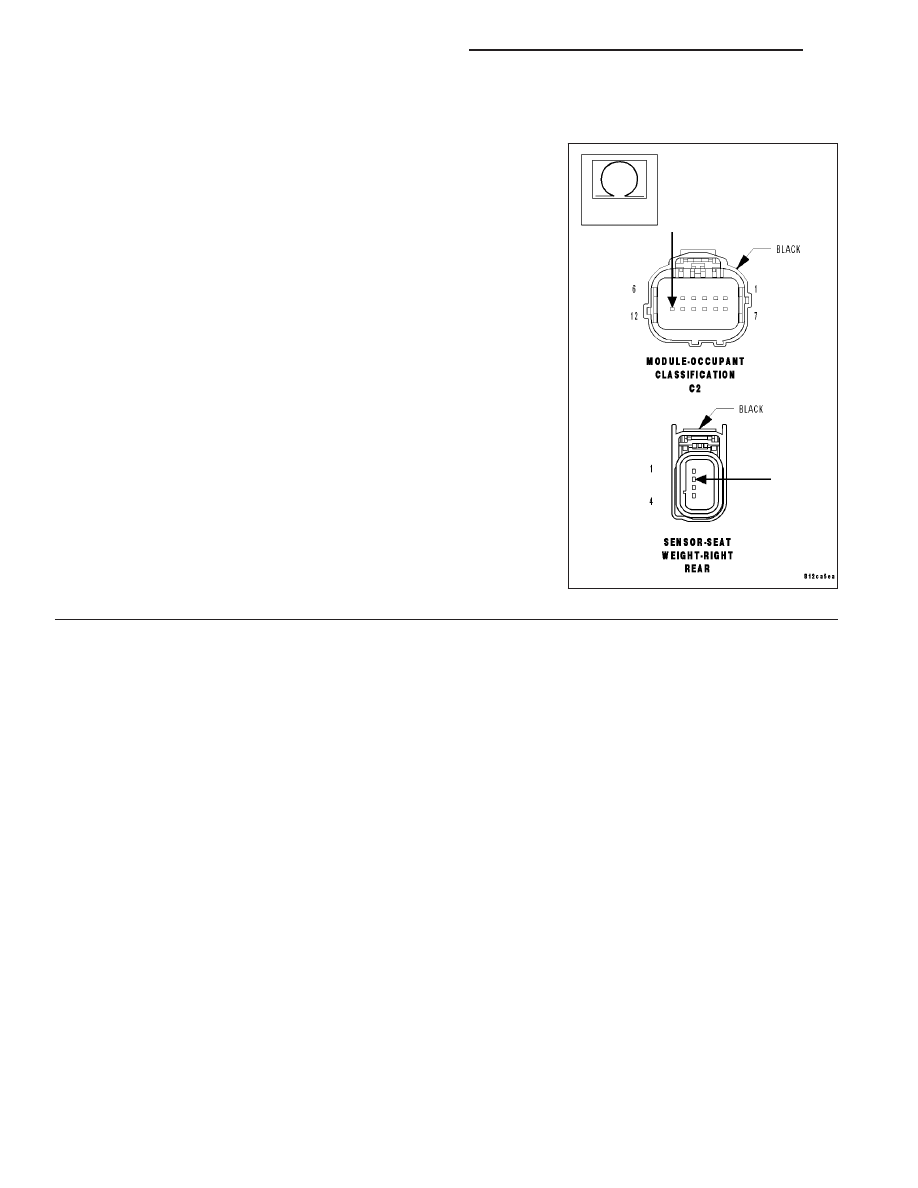

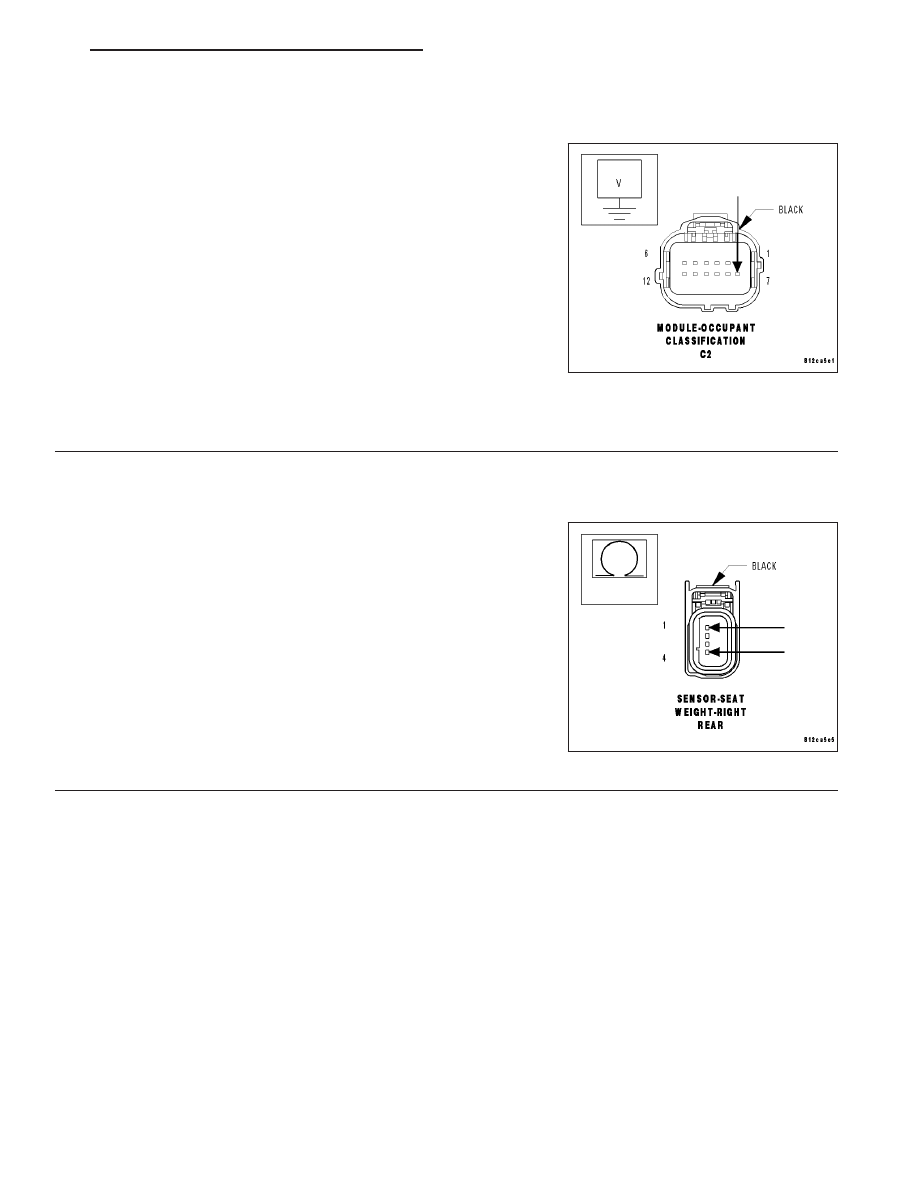

B1B89-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT HIGH (CONTINUED) 6. CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE WARNING: To avoid personal injury or death, turn the ignition off, Measure the voltage of the (R706) RT-RR Seat Weight Sensor Signal Is the voltage above 0.2 volts? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. No >> Go To 7 7. CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO (R701) SEAT WEIGHT Disconnect the Right-Rear Seat Weight Sensor connector. Measure the resistance between the (R706) RT-RR Seat Weight Sen- Is the resistance below 10K ohms? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. No >> Go To 8 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 265 |
