Dodge Durango (HB). Manual - part 395

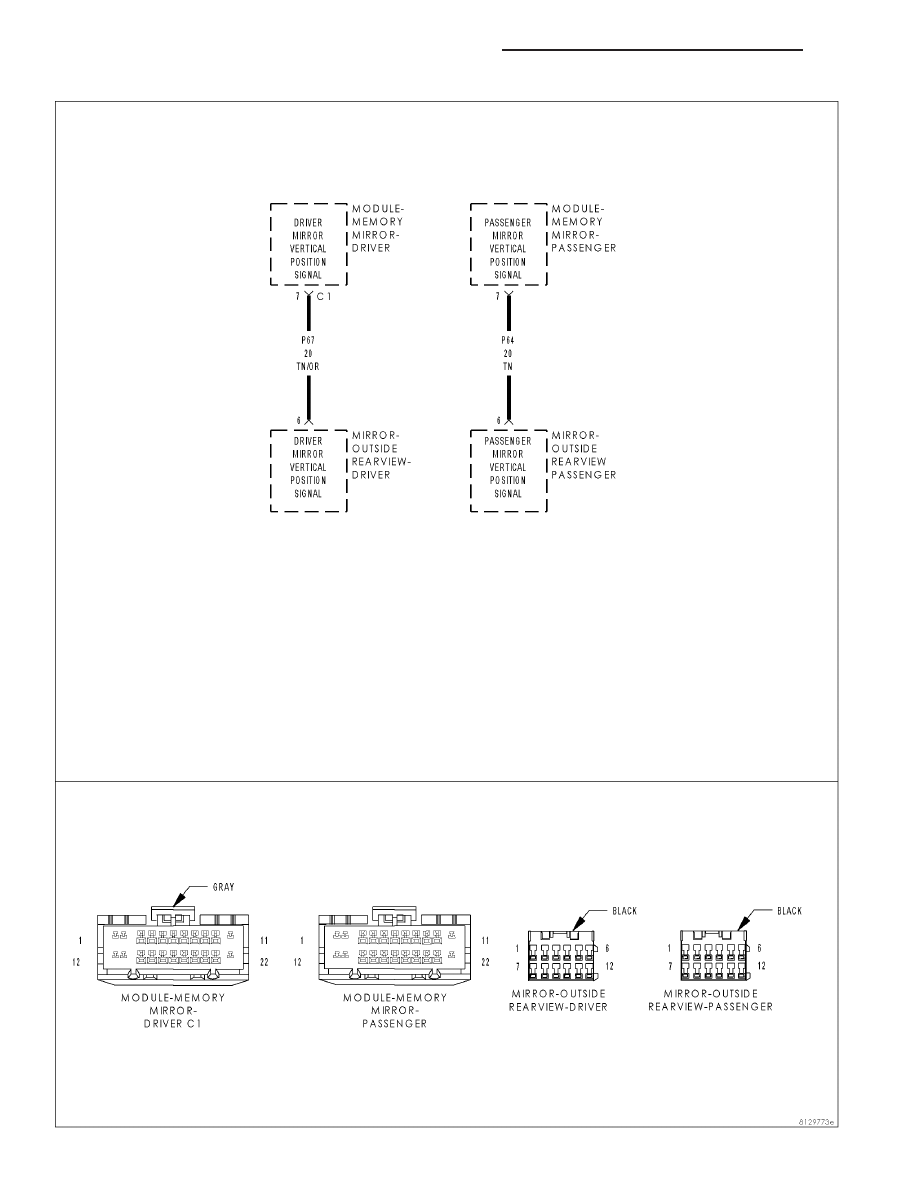

For the Power Memory Mirror System circuit diagram(Refer to 8 - ELECTRICAL/POWER MIRRORS - SCHEMAT-
ICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Memory Mirror Module senses a value below the parameter of the mirror sensor on the Mirror
Vertical Position Signal circuit for over 60ms., this code will set.Note: This test covers both the Driver
and Passenger code depending on the side the code appeared in.

Possible Causes

(P67) OR (P64) MIRROR VERTICAL POSITION SIGNAL CIRCUIT SHORT TO GROUND

(P67) OR (P64) MIRROR VERTICAL POSITION SIGNAL CIRCUIT SHORTED TO (P69) OR (P66) MIRROR
SENSOR GROUND CIRCUIT.

MIRROR SHORTED

DRIVER MEMORY MIRROR MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Mirror Switch in all directions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D0C or B1D15–MIRROR VERTI-
CAL POSITION SENSOR INPUT CIRCUIT LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

HB

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 93

B1D0C,B1D15–MIRROR VERTICAL POSITION SENSOR INPUT CIRCUIT LOW – MEMORY MIRROR MODULE — (CONTINUED)

2.

TEST FOR A SHORTED MIRROR

Disconnect the appropriate mirror connector.

With the scan tool, erase DTC’s.

Operate the Mirror Switch in all directions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D0C or B1D15–MIRROR VERTI-
CAL POSITION SENSOR INPUT CIRCUIT LOW?

No

>> Replace the Mirror.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go to 3

3.

TEST THE (P67) OR (P64) MIRROR VERTICAL POSITION
SIGNAL WIRE FOR A SHORT TO GROUND

Turn the ignition off.

Disconnect the appropriate Memory Mirror Module connector.

Measure the resistance between ground and the (P67) or (P64) Mirror
Vertical Position Signal circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P67) or (P64) Mirror Vertical Position Signal

circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go to 4

8N - 94

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

HB

B1D0C,B1D15–MIRROR VERTICAL POSITION SENSOR INPUT CIRCUIT LOW – MEMORY MIRROR MODULE — (CONTINUED)

4.

TEST THE (P67) OR (P64) MIRROR VERTICAL POSITION
SIGNAL CIRCUIT SHORTED TO THE (P69) OR (P66) MIRROR
SENSOR GROUND CIRCUIT.

Measure the resistance between the (P67) or (P64) Mirror Vertical
Position Signal circuit and the (P69) or (P66) Mirror Sensor Ground
circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P67) or (P64) Mirror Vertical Position Signal

circuit for a short to the (P69) or (P66) Sensor Ground
Circuit..

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the appropriate Memory Mirror Module.

Perform BODY VERIFICATION TEST - VER 1.
