BULB - SIDE MARKER

1. Disconnect and isolate the battery negative cable.

2. Remove the front lamp unit (1) from the front

fender. (Refer to 8 - ELECTRICAL/LAMPS/LIGHT-
ING

-

EXTERIOR/FRONT

LAMP

UNIT

-

REMOVAL).

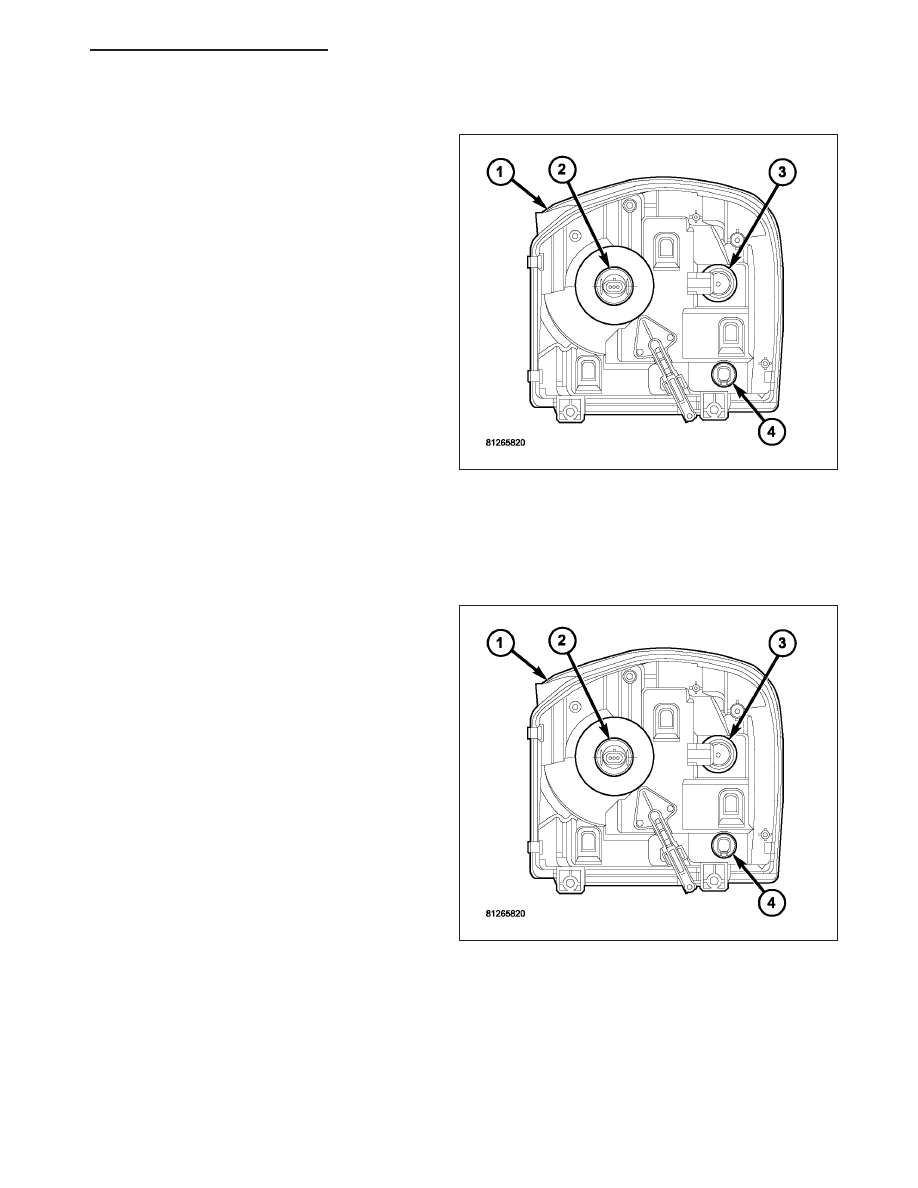

3. Firmly grasp the front side marker bulb socket (4)

on the back of the front lamp unit housing and
rotate it counterclockwise about 30 degrees to
unlock it.

4. Pull the socket and bulb straight out from the

keyed opening in the housing.

5. Pull the base of the bulb straight out of the socket.

BULB - HEADLAMP

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact
other oily surfaces. Shortened bulb life will result.

1. Disconnect and isolate the battery negative cable.

2. Remove the front lamp unit (1) from the front

fender. (Refer to 8 - ELECTRICAL/LAMPS/LIGHT-
ING

-

EXTERIOR/FRONT

LAMP

UNIT

-

REMOVAL).

3. Firmly grasp the headlamp bulb socket (2) on the

back of the front lamp unit housing and rotate it
counterclockwise about 30 degrees to unlock it.

4. Pull the socket and bulb straight out from the

keyed opening in the housing.

5. Pull the base of the bulb straight out of the socket.

HB

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 99

INSTALLATION

LAMP

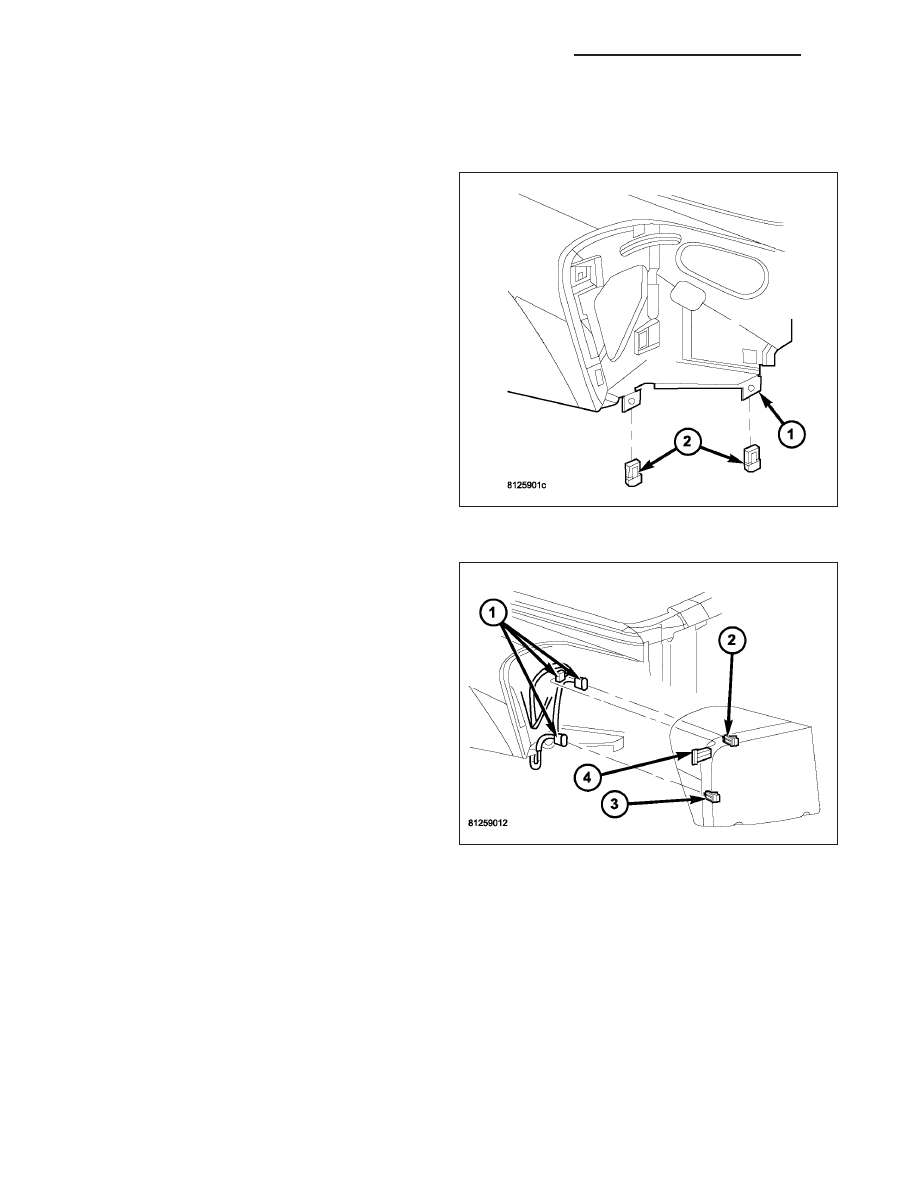

1. Check to be certain that the two front lamp unit

U-nuts (2) are properly positioned on the fender
lower reinforcement (1).

2. Position the lamp close enough to the front fender

to access and reconnect three wire harness con-
nections (1) to the following bulb sockets on the
back of the lamp:

a. headlamp bulb socket (2)

b. front park/turn signal bulb socket (4)

c. front side marker bulb socket (3)

3. Rearrange the wire harnesses as necessary to pre-

vent them from becoming pinched between the
back of the lamp housing and the fender.

8L - 100

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

HB

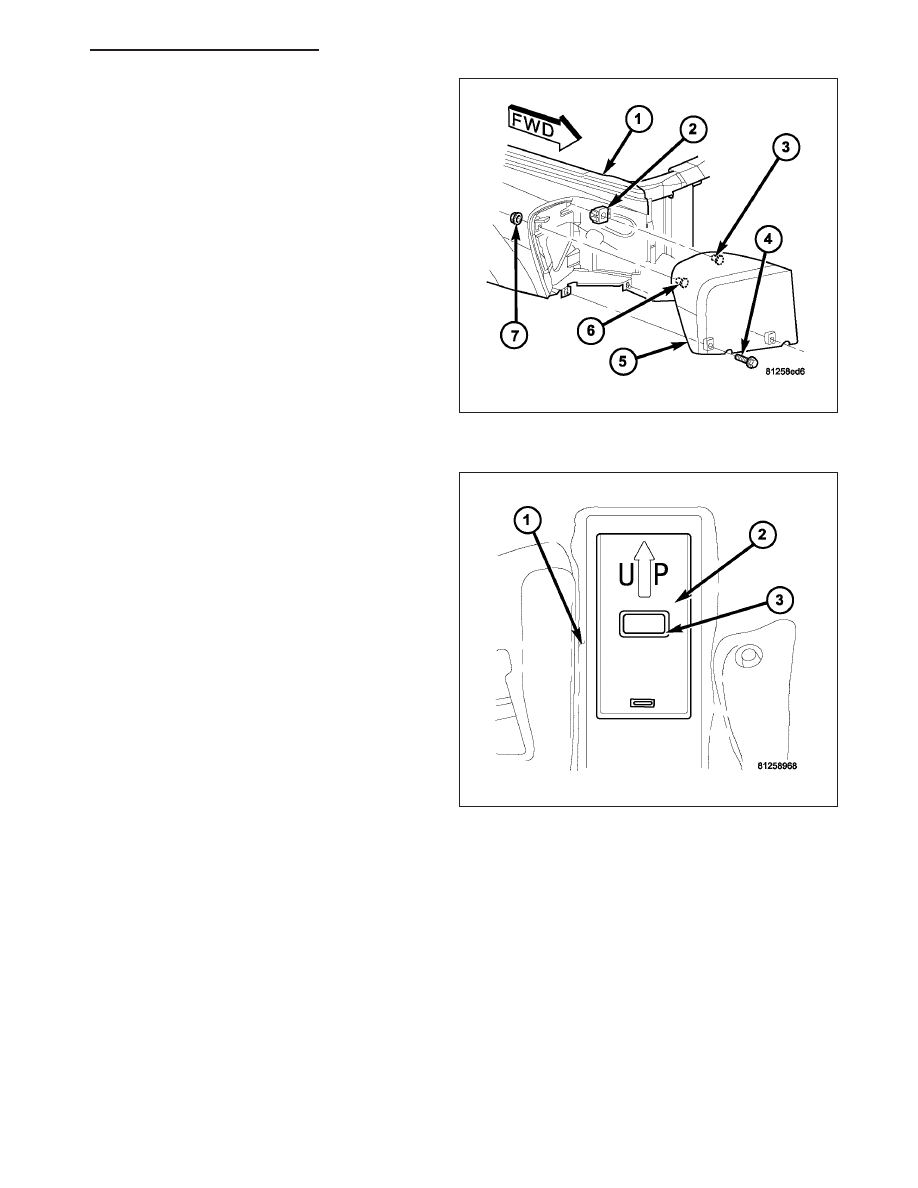

4. Insert the stud (6) on the back of the lamp (5) into

the hole in the upper reinforcement of the fender
(1).

5. Align the ball stud (3) on the back of the lamp with

the plastic grommet (2) in the upper fender rein-
forcement.

6. Using hand pressure, press the lamp firmly and

evenly rearward until the ball stud snaps into the
grommet.

7. Install and tighten the two screws (4) that secure

the lower edge of the lamp to the U-nuts on the
lower fender reinforcement. Tighten the screws to 7
N·m (65 in. lbs.)

8. Reach through the front fender liner access open-

ing to install and tighten the nut (7) that secures
the stud on the back of the lamp to the upper
fender reinforcement. Tighten the nut to 5 N·m (45
in. lbs.).

9. Reinstall the access panel (2) into the access

opening in the front fender liner (1). To install the
panel:

a. Engage the long slotted tabs on the back of

the upper edge of the panel with the upper
edge of the hole.

b. Slide the panel upward to its travel limit then

push the lower edge of the panel forward until
the short slotted tabs on the back of the panel
engage the lower edge of the hole.

c. Using the recessed pull cup (3) for leverage,

slide the panel downward to its travel limit.

10. Reconnect the battery negative cable.

11. Confirm proper headlamp alignment. (Refer to 8 -

ELECTRICAL/LAMPS/LIGHTING - EXTERIOR -
STANDARD

PROCEDURE

-

FRONT

LAMP

AIMING).

BULB - PARK/TURN SIGNAL

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

HB

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

8L - 101

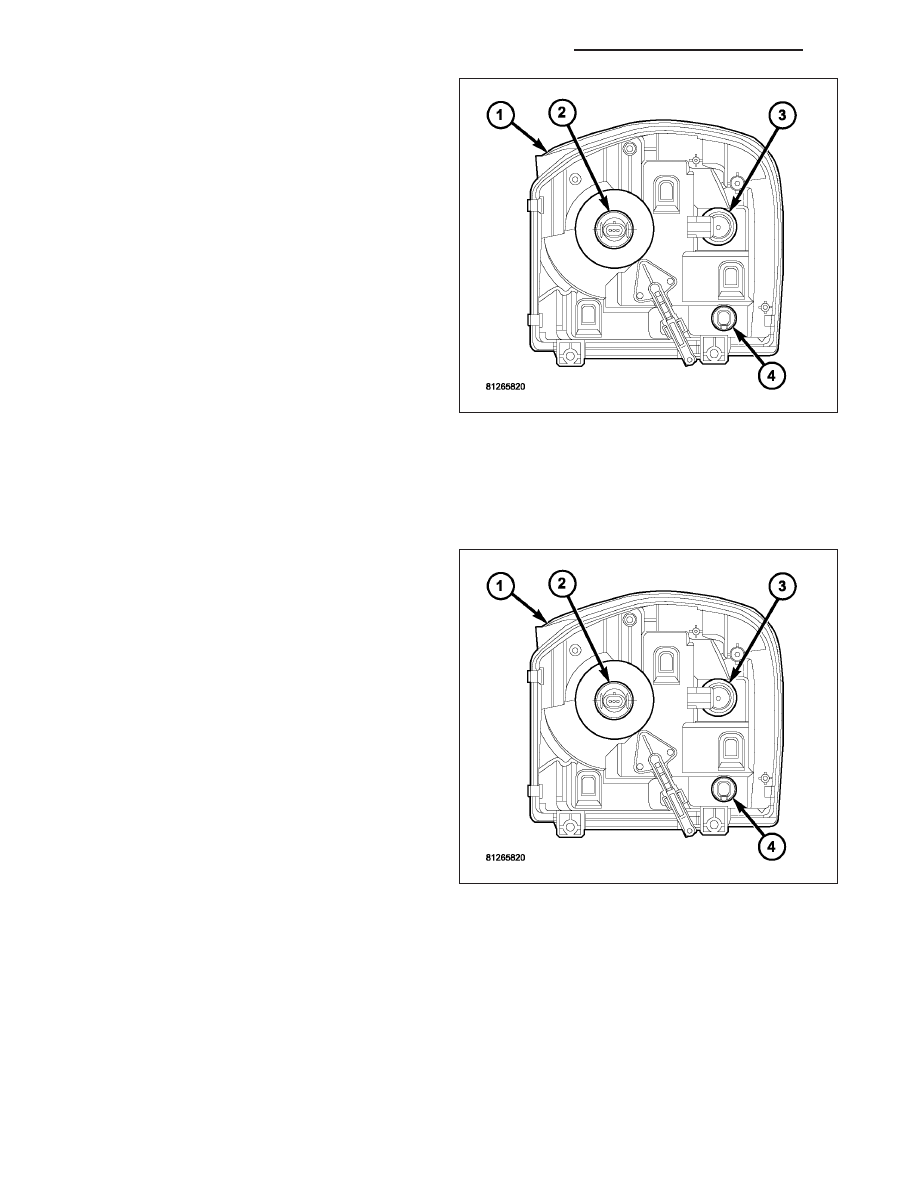

1. Align the base of the bulb with the park/turn signal

bulb socket (3).

2. Push the bulb straight into the socket until the base

is firmly seated.

3. Align the socket and bulb with the keyed opening

on the back of the front lamp unit housing (1).

4. Insert the socket and bulb into the housing until the

socket is firmly seated.

5. Rotate the socket clockwise about 30 degrees to

lock it into place.

6. Reinstall the front lamp unit onto the front fender.

(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
EXTERIOR/FRONT LAMP UNIT - INSTALLATION).

7. Reconnect the battery negative cable.

BULB - SIDE MARKER

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

1. Align the base of the bulb with the front side

marker bulb socket (4).

2. Push the bulb straight into the socket until the base

is firmly seated.

3. Align the socket and bulb with the keyed opening

on the back of the front lamp unit housing (1).

4. Insert the socket and bulb into the housing until the

socket is firmly seated.

5. Rotate the socket clockwise about 30 degrees to

lock it into place.

6. Reinstall the front lamp unit onto the front fender.

(Refer to 8 - ELECTRICAL/LAMPS/LIGHTING -
EXTERIOR/FRONT LAMP UNIT - INSTALLATION).

7. Reconnect the battery negative cable.

BULB - HEADLAMP

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact
other oily surfaces. Shortened bulb life will result.

8L - 102

LAMPS/LIGHTING - EXTERIOR - SERVICE INFORMATION

HB
