Dodge Durango (HB). Manual - part 264





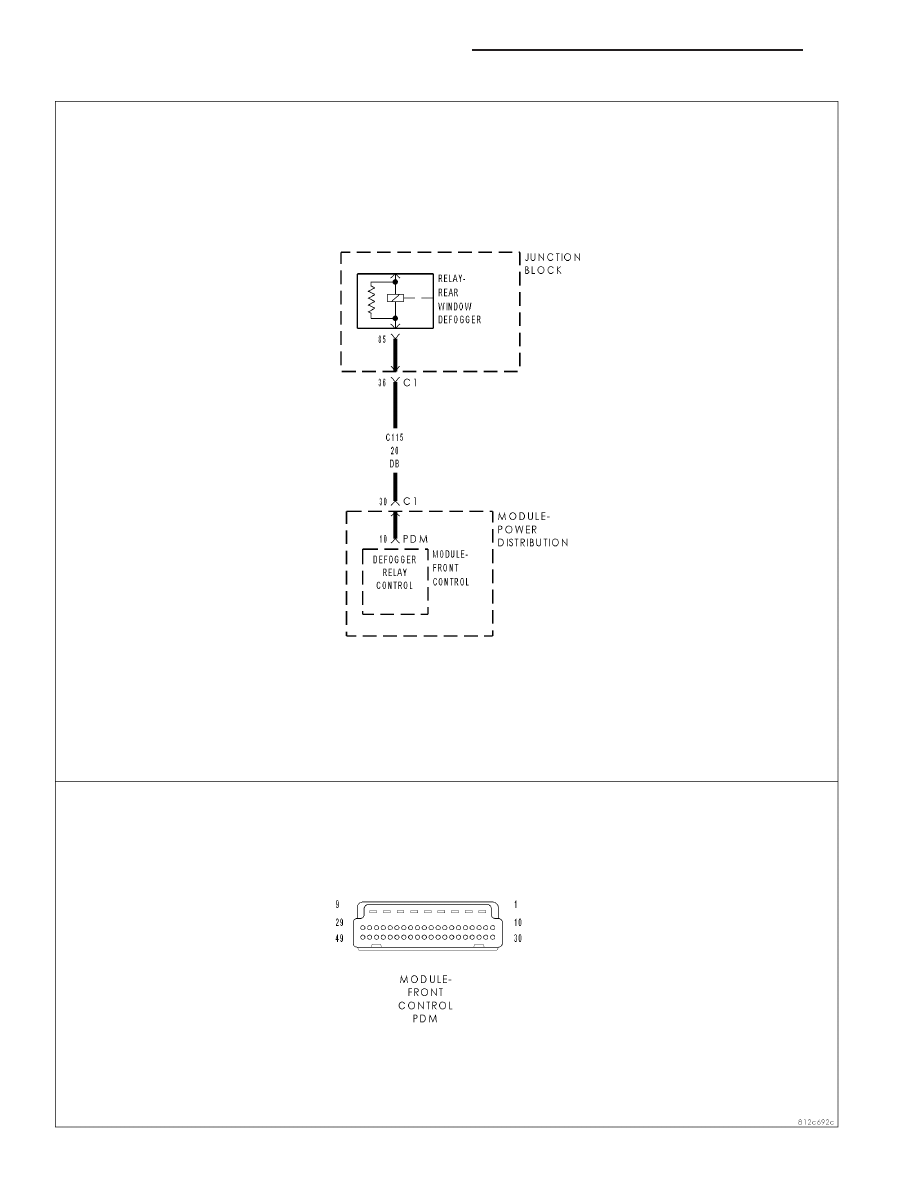

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Front Control Module does not detect voltage on the Defogger Relay Control circuit.1

Possible Causes

REAR DEFOGGER J/B FUSE

REAR WINDOW DEFOGGER RELAY

IGNITION SWITCH OUTPUT OPEN

DEFOGGER RELAY CONTROL CIRCUIT SHORTED TO GROUND

DEFOGGER RELAY CONTROL CIRCUIT OPEN

FRONT CONTROL MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

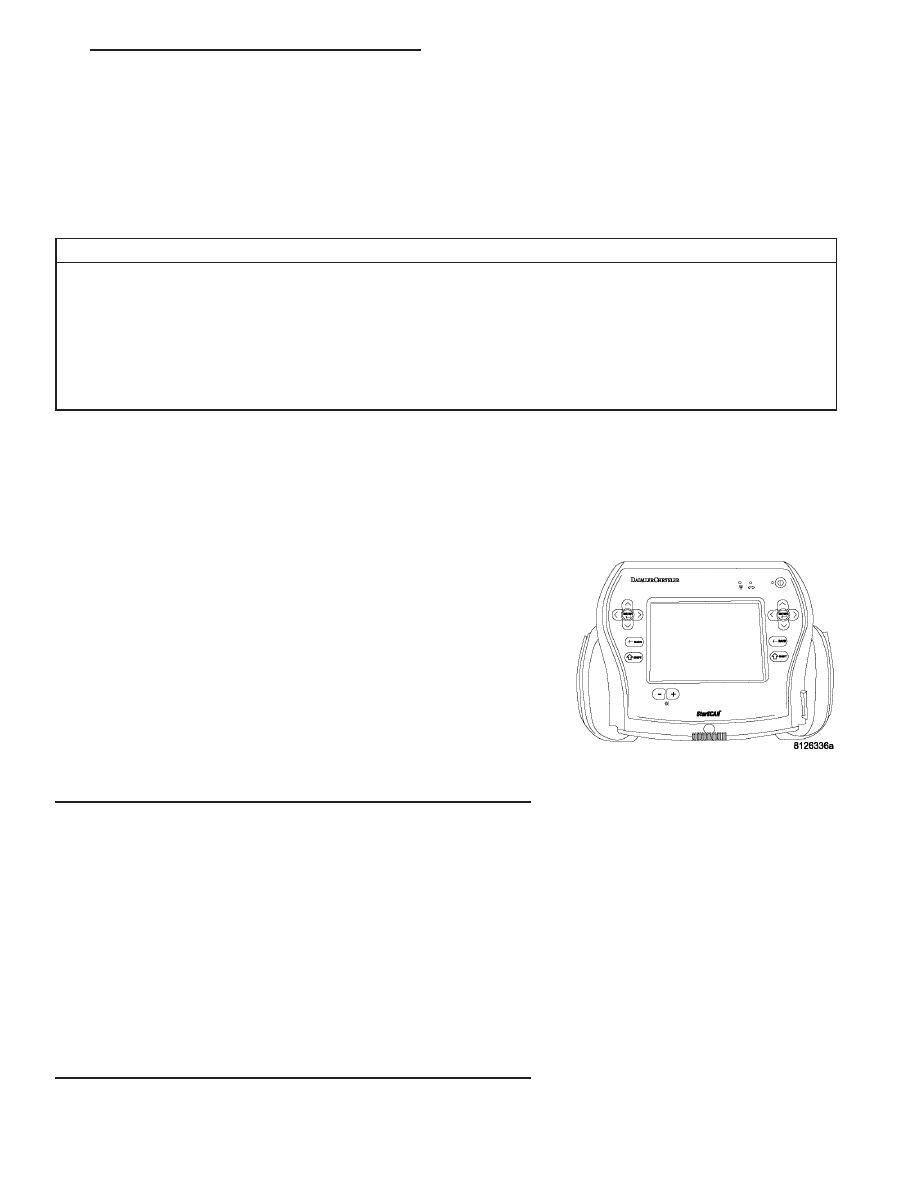

With the scan tool, record and erase DTC’s

Operate the Rear Defogger Switch several times.

Cycle the ignition from on to off 3 times and leave on.

With the scan tool, read DTC’s.

Does the scan tool display the same DTC?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

2.

JUNCTION BLOCK FUSE

Turn the ignition on.

Using a 12-volt test light connected to ground, check the Rear Window
Defogger fuse in the Junction Block.

Does the test light illuminate and was the fuse OK?

No

>> Repair the Ignition Switch Output (Run) circuit for an open

or replace the fuse if open and check for a shorted Defog-
ger Relay.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go To 3

HB

HEATED GLASS - ELECTRICAL DIAGNOSTICS

8G - 3

B106B,B106D–REAR DEFROST CONTROL CIRCUIT LOW/OPEN – FCM — (CONTINUED)

3.

OPEN IGNITION SWITCH OUTPUT (RUN) TO RELAY

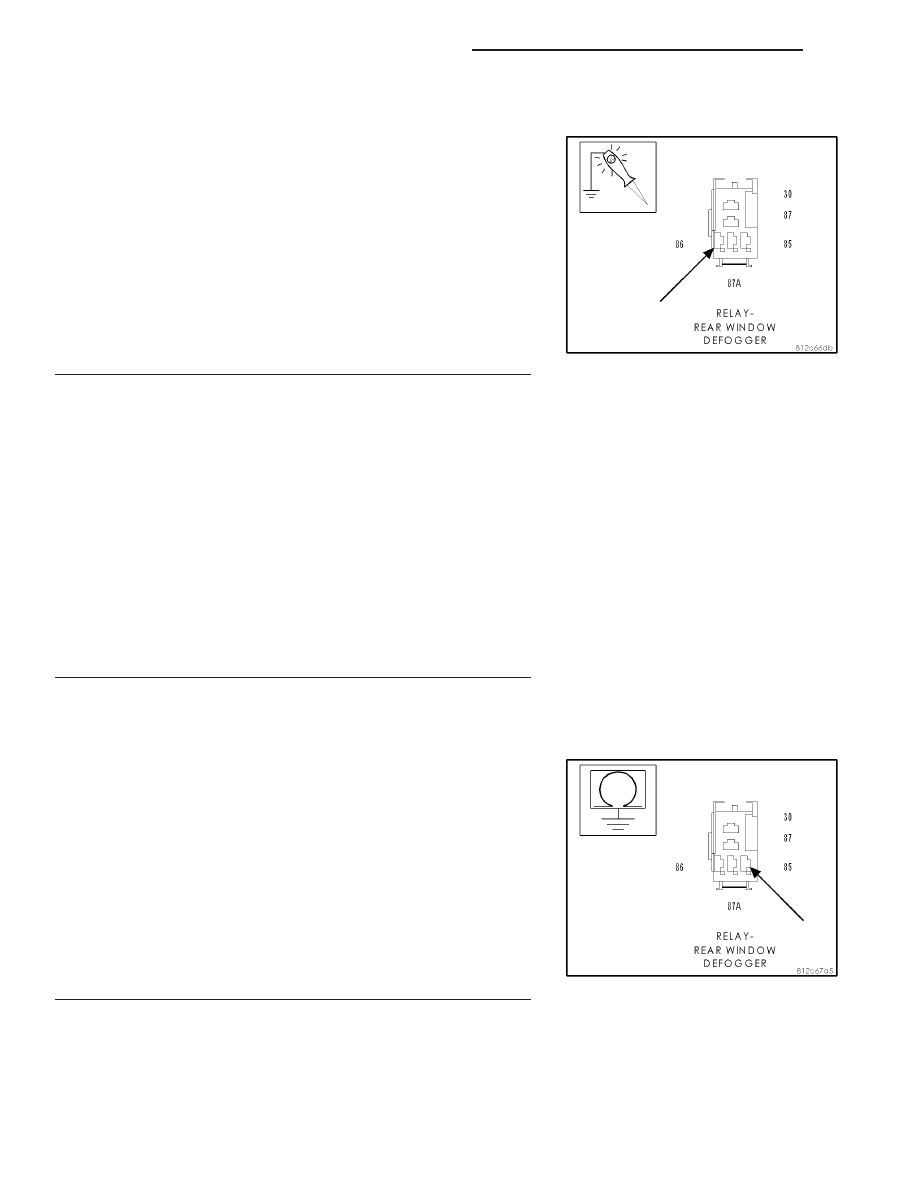

Remove the Rear Defogger Relay from the Junction Block.

Using a 12-volt test light connected to ground, check the Ignition
Switch Output circuit at the relay connector.

Does the test light illuminate?

No

>> Replace the Junction Block.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go To 4

4.

REAR WINDOW DEFOGGER RELAY

Install a known good relay in place of the Rear Window Defogger
Relay.

With the scan tool erase DTC’s

Operate the Rear Window Defogger several times.

Cycle the ignition from on to off 3 times and leave on.

With the scan tool, read DTC’s.

Does the scan tool display the same DTC?

No

>> Replace the original Rear Window Defogger Relay.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go To 5

5.

CHECK THE (C115)DEFOGGER RELAY CONTROL CIRCUIT
FOR A SHORT TO GROUND

Remove the Rear Window Defogger Relay from the junction block.

Disconnect the Front Control Module from the PDC 49 – way connec-
tor.

Measure the resistance between ground and the (C115) Defogger
Relay Control circuit at the relay.

Is the resistance below 1000.0 ohms?

Yes

>> Repair the (C115) Defogger Relay Control circuit for a

short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go To 6

8G - 4

HEATED GLASS - ELECTRICAL DIAGNOSTICS

HB

B106B,B106D–REAR DEFROST CONTROL CIRCUIT LOW/OPEN – FCM — (CONTINUED)

6.

CHECK THE (C115)DEFOGGER RELAY CONTROL CIRCUIT
FOR AN OPEN

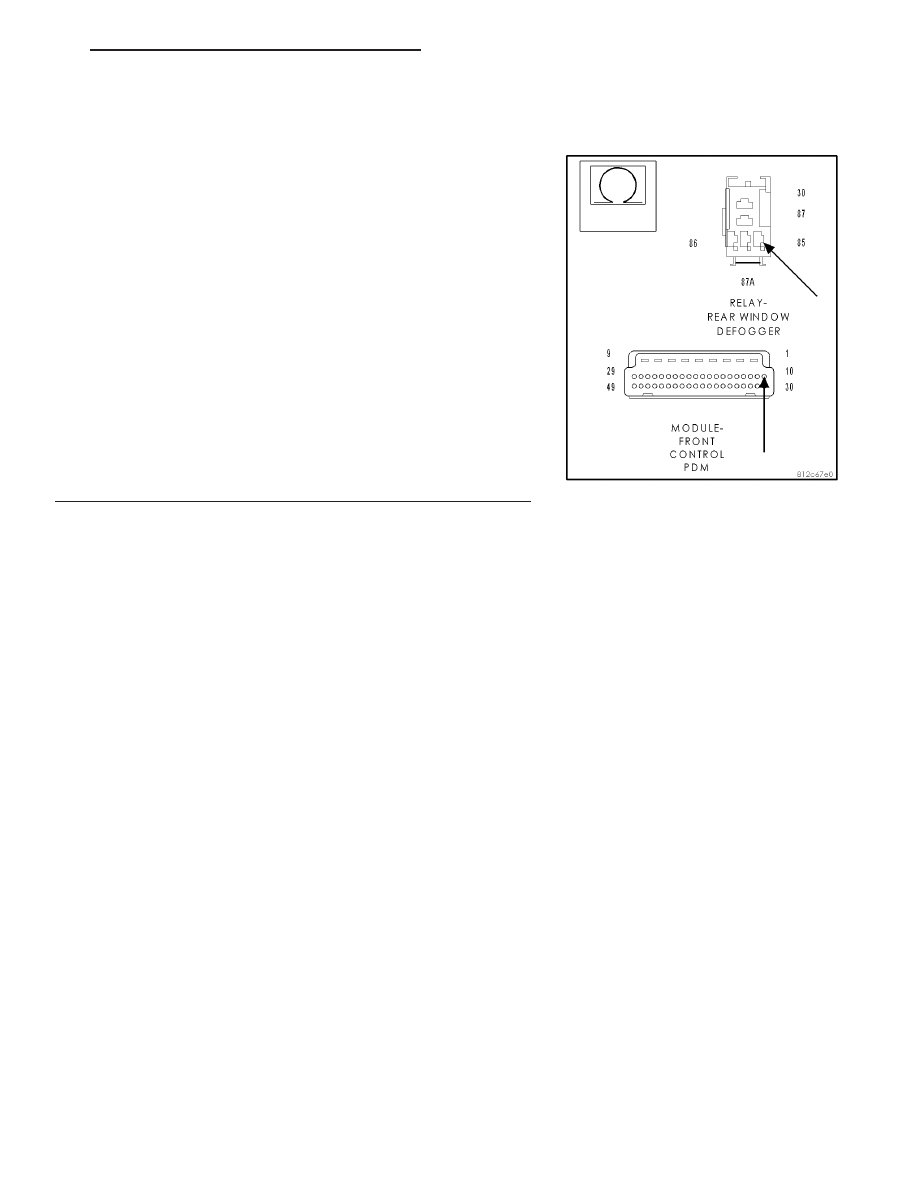

Measure the resistance of the (C115) Defogger Relay Control circuit
from the relay connector to FCM connector.

Is the resistance below 3.0 ohms?

Yes

>> Replace the Front Control Module.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Repair the (C115) Defogger Relay Control circuit for an

open.

Perform BODY VERIFICATION TEST - VER 1.

HB

HEATED GLASS - ELECTRICAL DIAGNOSTICS

8G - 5

B106B,B106D–REAR DEFROST CONTROL CIRCUIT LOW/OPEN – FCM — (CONTINUED)

8G - 6

HEATED GLASS - ELECTRICAL DIAGNOSTICS

HB
