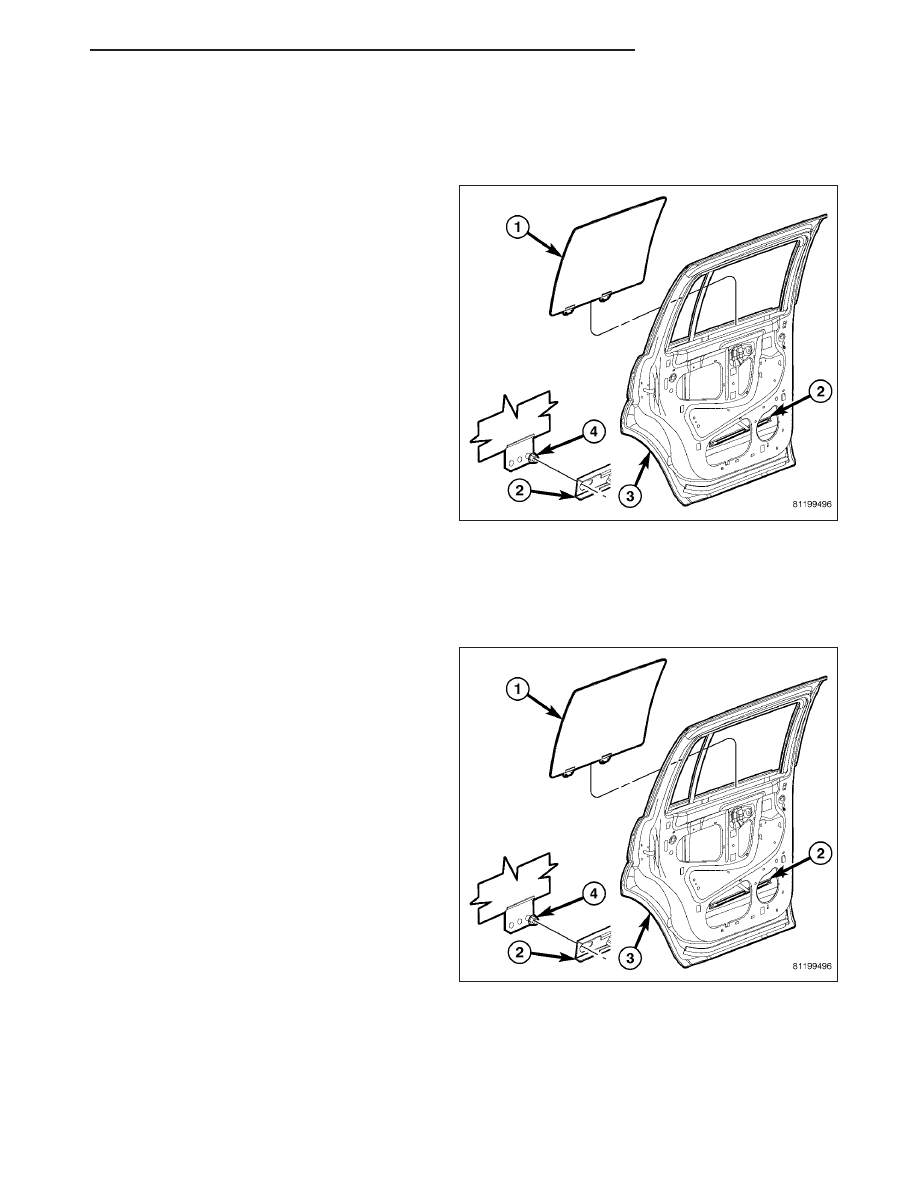

NOTE: When removing the quarter glass, remove rear glass run channel and weather strip and separate the INSTALLATION NOTE: When installing the quarter glass, position 1. Position the glass into the door and install onto the regulator. 2. Install the nuts (4) and tighten to 9 N·m (80 in. lbs.). 3. Position the outer belt molding onto the door and seat the molding fully starting at the back of the 4. Position the inner belt molding onto the door and seat fully starting at the back of the door. 5. Install the watershield. (Refer to 23 - BODY/ DOORS - REAR/WATERSHIELD - INSTALLATION) REGULATOR-WINDOW REMOVAL 1. Remove the watershield. (Refer to 23 - BODY/ DOORS - REAR/WATERSHIELD - REMOVAL) 2. Temporarily install the window switch and position the glass (1) to gain access to the regulator nuts 3. Remove the nuts (4). 4. Secure the glass in the up position using a wood wedge or equivalent. HB DOORS - REAR 23 - 49 |
