Dodge Durango (HB). Manual - part 1284





P0934-LINE PRESSURE SENSOR CIRCUIT LOW (CONTINUED)

4.

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

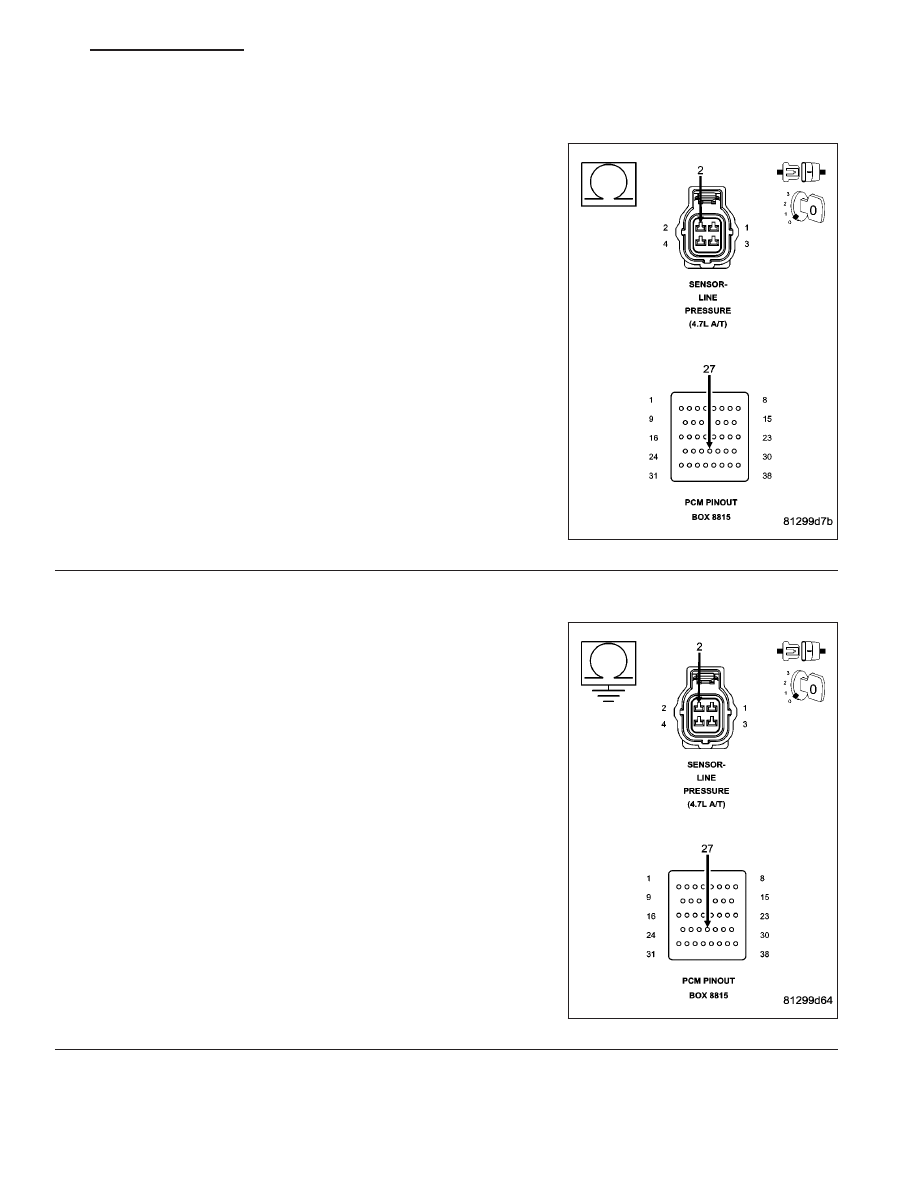

Disconnect the PCM C1 harness connector and connect Miller tool
#8815.

Measure the resistance of the (F856) 5-volt Supply circuit between
Line Pressure sensor harness connector and the appropriate terminal
of Miller tool #8815.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (F856) 5-volt Supply circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Go To 5

5.

(F856) 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

Disconnect the PCM C1 harness connector and connect Miller tool
#8815.

Measure the resistance between ground and the (F856) 5-volt Supply
circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (F856) 5-volt Supply circuit for a short to

ground.

Perform (NGC) 45RFE/545RFE TRANSMISSION VERIFI-
CATION TEST - VER 1.

No

>> Using the schematics as a guide, check the Powertrain

Control Module (PCM) terminals for corrosion, damage, or
terminal push out. Pay particular attention to all power and
ground circuits. If no problems are found, replace the PCM
per the Service Information. With the scan tool, perform
QUICK LEARN.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

HB

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 541

P0934-LINE PRESSURE SENSOR CIRCUIT LOW (CONTINUED)

6.

INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorted and open circuits.

With the scan tool, check the EATX DTC EVENT DATA to help identify the conditions in which the DTC was set.

Where there any problems found?

Yes

>> Repair as necessary.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Test Complete.

21 - 542

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

HB

P0935-LINE PRESSURE SENSOR CIRCUIT HIGH

HB

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 543

P0935-LINE PRESSURE SENSOR CIRCUIT HIGH (CONTINUED)

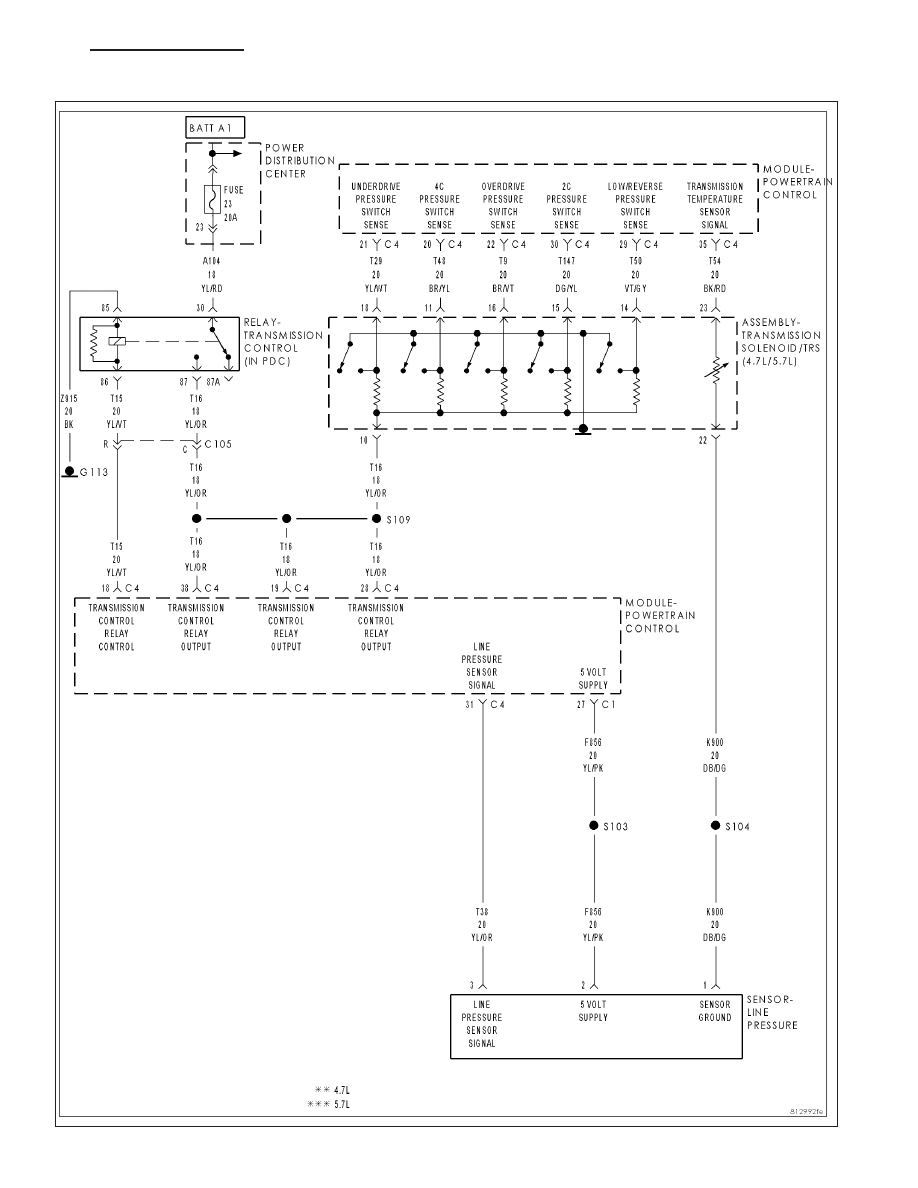

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE -
SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W

When Monitored:
Continuously with ignition on and engine running.

Set Condition:This DTC will set if the monitored Line Pressure Sensor voltage is greater than or equal to 4.75
volts for the period of 0.18 seconds

Possible Causes

(T38) LINE PRESSURE SENSOR SIGNAL CIRCUIT OPEN

(K900) SENSOR GROUND CIRCUIT OPEN

(T38) LINE PRESSURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

LINE PRESSURE SENSOR

POWERTRAIN CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - DIAGNOSIS AND TESTING).

Theory of Operation

Line pressure is electronically controlled by the Transmission Control System and is measured by the Line Pressure
Sensor (LPS). The desired line pressure is continuously being compared to the actual line pressure and is regulated
by electronically changing the duty cycle of the Pressure Control Solenoid (PCS). (5% duty cycle = solenoid off =
max line pressure, 62% duty cycle = solenoid on = min line pressure).

The Transmission Control System calculates the desired line pressure based on inputs from the transmission and
engine. A calculated torque input to the transmission is used as the primary input of the desired line pressure cal-
culation and is called Torque Based Line Pressure. In addition, the line pressure is set to a preset level 827 to 931
kPa (120 to 135 PSI) during shifts and in Park and Neutral to ensure consistent shift quality.

The monitored Line Pressure Sensor voltage should always be between 0.35 and 4.75 volts. Any monitored volt-
ages outside these parameters indicate an Line Pressure Sensor or wiring problem and will cause either DTC
P0934 or P0935 to set.

Diagnostic Test

1.

CHECK TO SEE IF DTC IS CURRENT

With the scan tool, Check the STARTS SINCE SET counter for P0935.

NOTE: This counter only applies to the last DTC set.

Is the STARTS SINCE SET counter 2 or less?

Yes

>> Go To 2

No

>> Go To 6

21 - 544

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

HB
