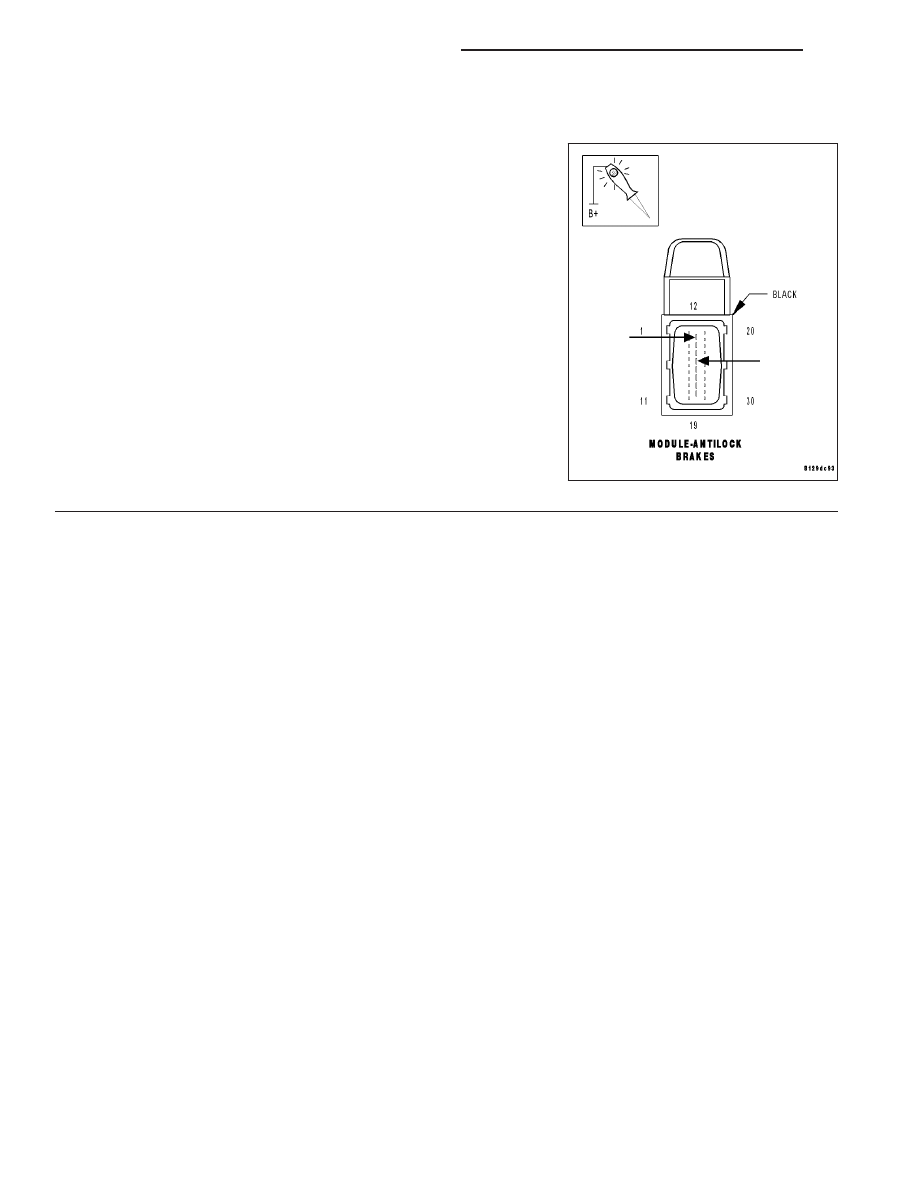

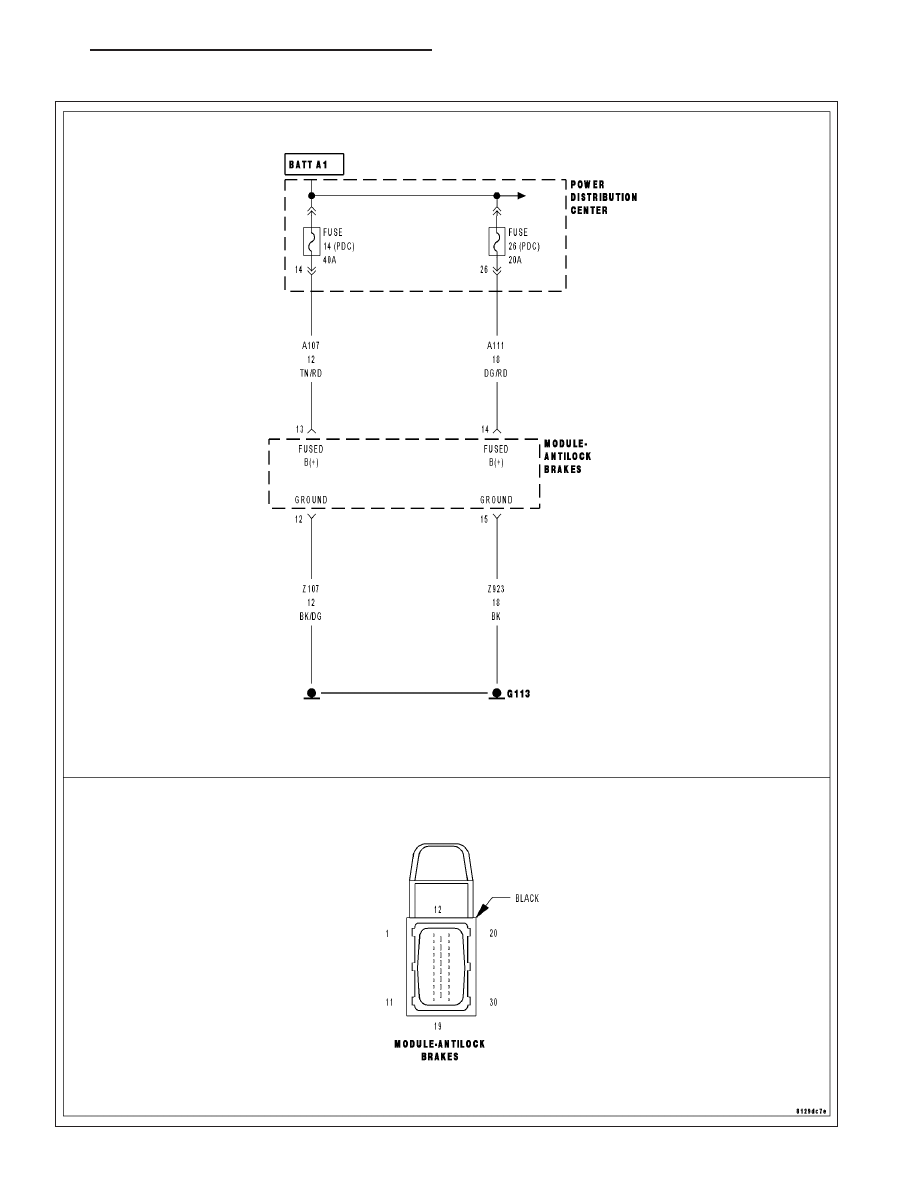

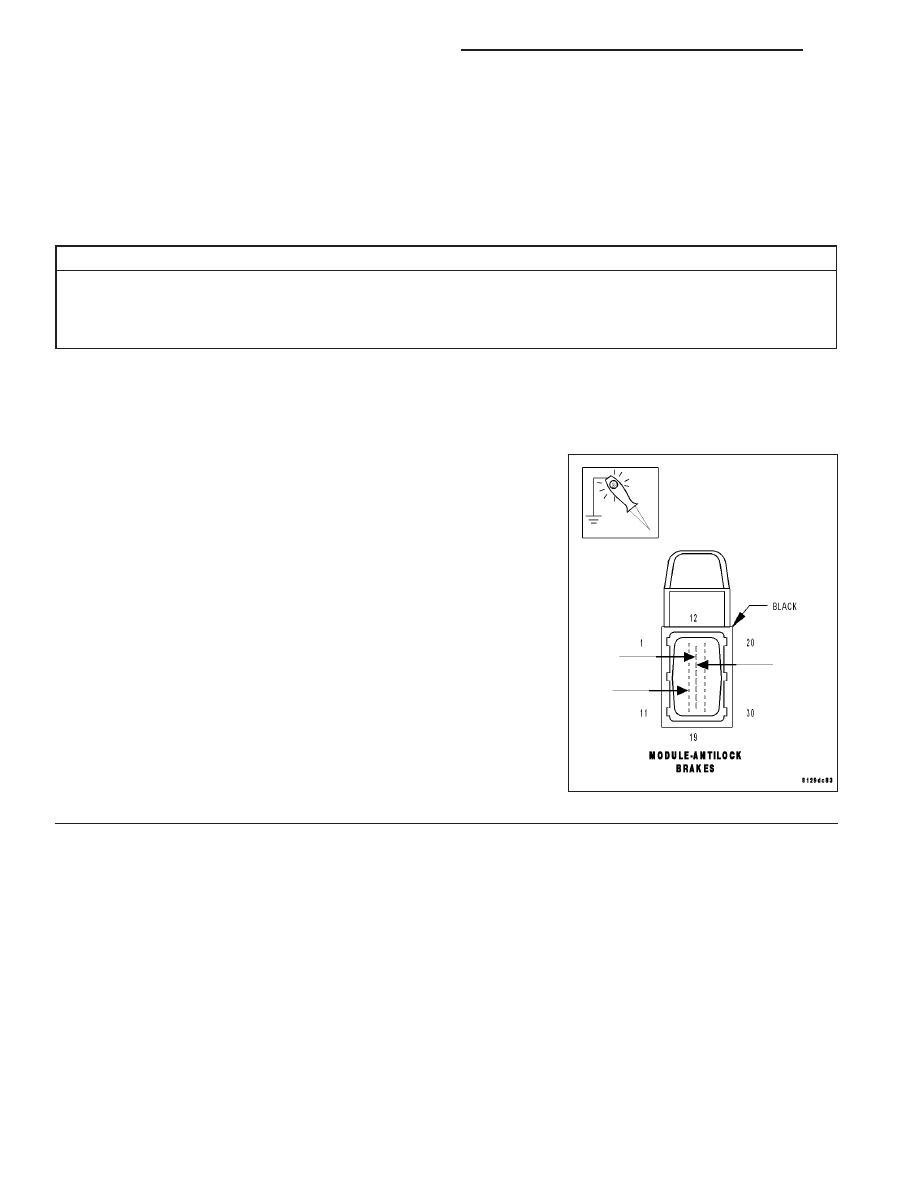

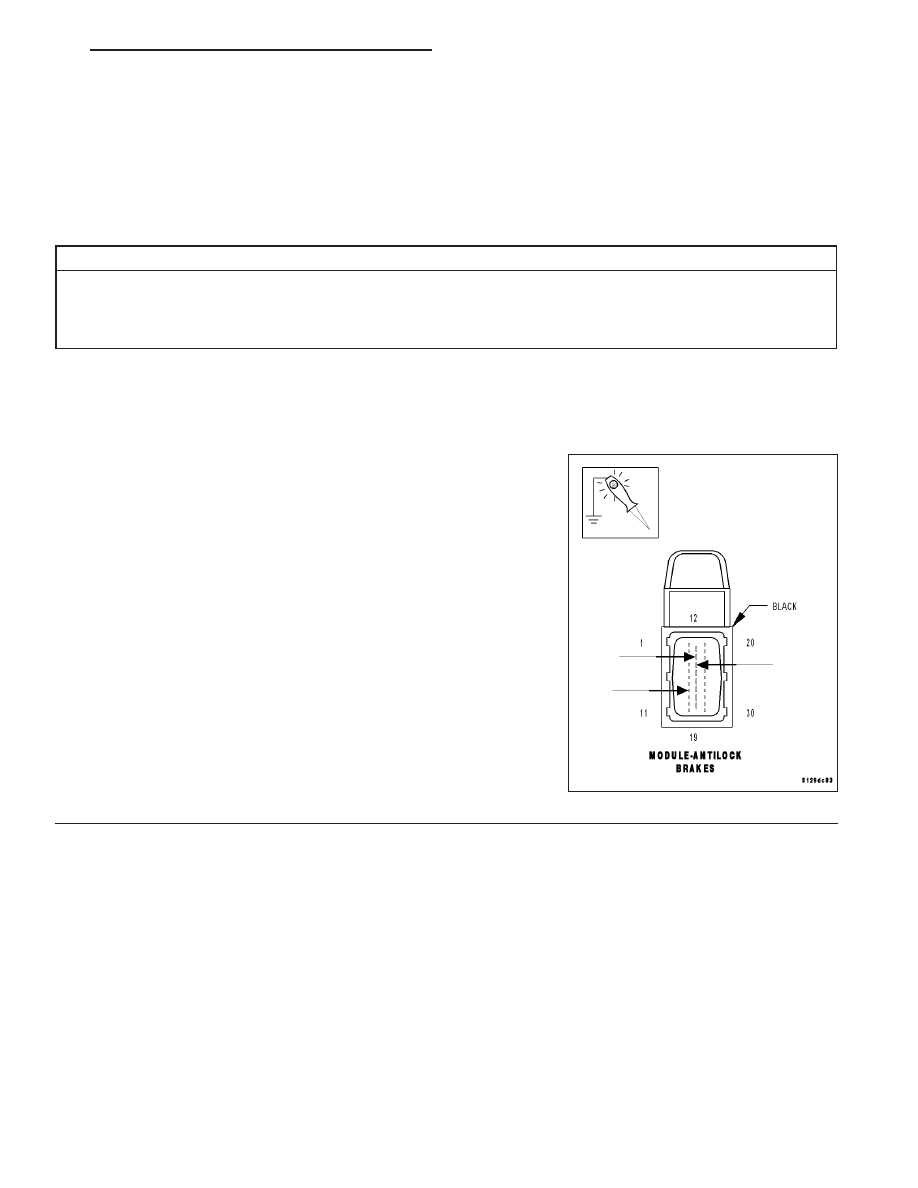

C1060-LEFT FRONT OUTLET VALVE CONTROL CIRCUIT LOW (CONTINUED) For the ABS circuit diagram (Refer to 5 - BRAKES - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes HIGH RESISTANCE IN B+ CIRCUITS HIGH RESISTANCE IN GROUND CIRCUITS ABM INTERNAL Diagnostic Test 1. HIGH RESISTANCE IN B+ CIRCUITS Turn key off. Disconnect the ABM harness connector. NOTE: Check connector - Clean/repair as necessary. With a test light connected to ground check (A107) Fused B+, (A111) Is the test light bright like when connected to the battery? Yes >> Go to 2 No >> Repair the high resistance in the circuits. Perform ABS VERIFICATION TEST — VER 1. HB BRAKES - ABS ELECTRICAL DIAGNOSTICS 5 - 207 |
