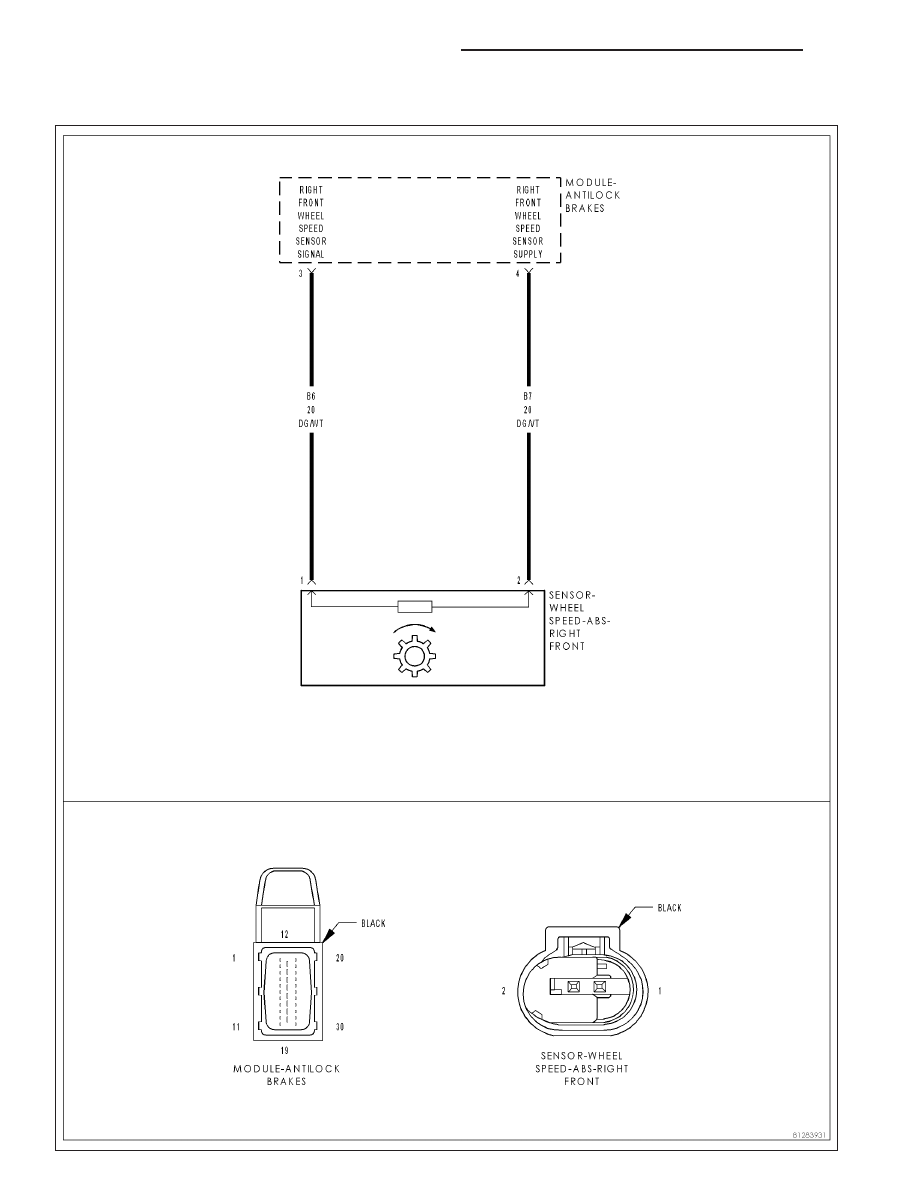

C1015–RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

7.

CHECK (B6) LEFT FRONT WSS SIGNAL CIRCUIT SHORT TO GROUND

Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the Right Front WSS harness connector.

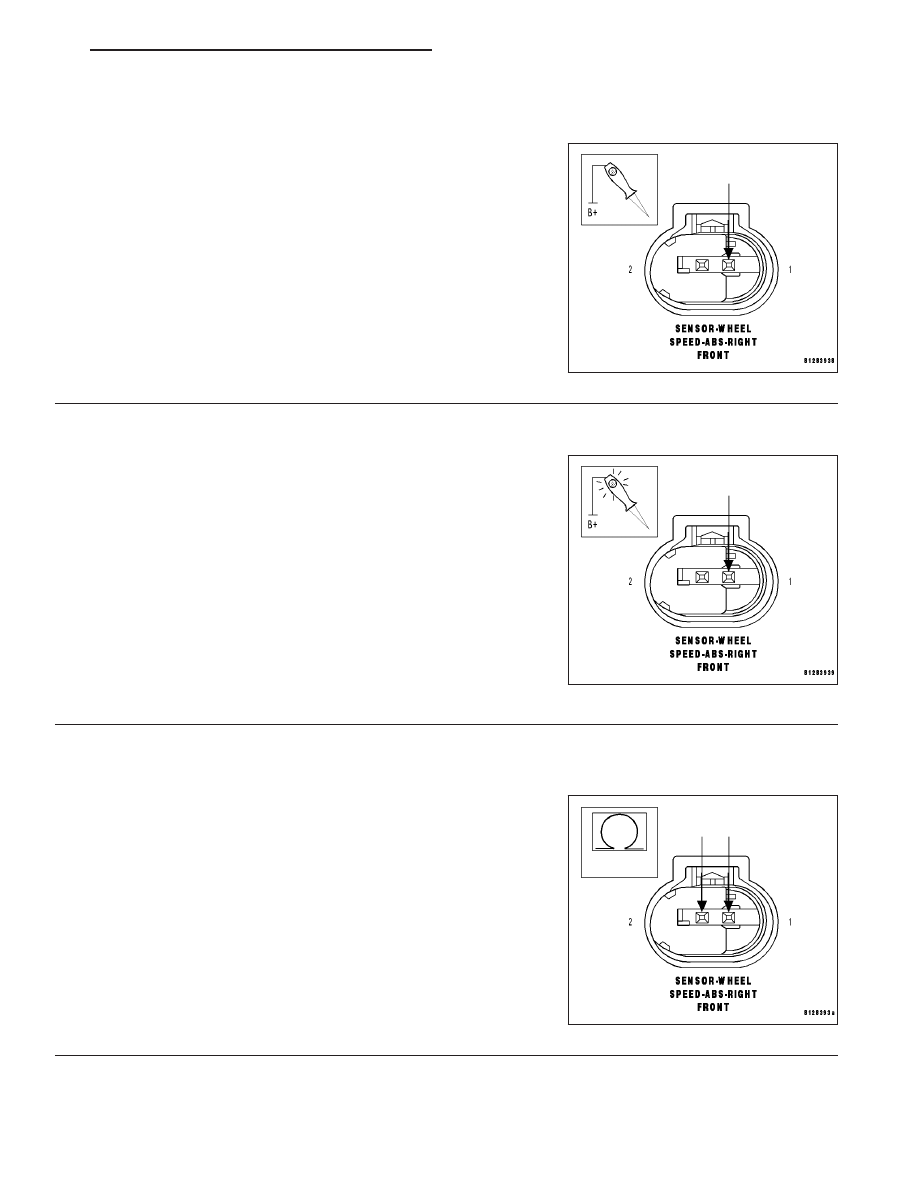

Using a 12-volt test light connected to 12-volts, probe the (B6) Right
Front WSS Signal circuit.

Does the test light illuminate brightly?

Yes

>> Repair the (B6) Right Front WSS Signal circuit for a short

to ground.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 8

8.

CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT OPEN

Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the Right Front WSS harness connector.

Connect a jumper wire between the (B6) Right Front WSS Signal cir-
cuit and ground.

Using a 12-volt test light connected to 12-volts, probe the (B6) Right
Front WSS Signal circuit.

Does the test light illuminate brightly?

Yes

>> Go To 9

No

>> Repair the (B6) Right Front WSS Signal circuit for an

open.

Perform ABS VERIFICATION TEST - VER 1.

9.

CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT AND (B7) RIGHT FRONT WSS SUPPLY CIRCUIT
SHORT TOGETHER

Turn the ignition off.

Disconnect the Anti-Lock Brake Module harness connector.

Disconnect the Right Front WSS harness connector.

Measure the resistance between the (B6) Right Front WSS Signal cir-
cuit and the (B7) Right Front WSS Supply circuit.

Is the resistance above 5.0 ohms?

Yes

>> Go To 10

No

>> Repair the (B6) Right Front WSS Signal circuit and the

(B7) Right Front WSS Supply circuit for a short together.

Perform ABS VERIFICATION TEST - VER 1.

HB

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 131

C1015–RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

10.

CHECK RIGHT FRONT WSS

Turn the ignition off.

Reconnect all connectors.

Disconnect the Right Front WSS harness connector.

Turn the ignition on.

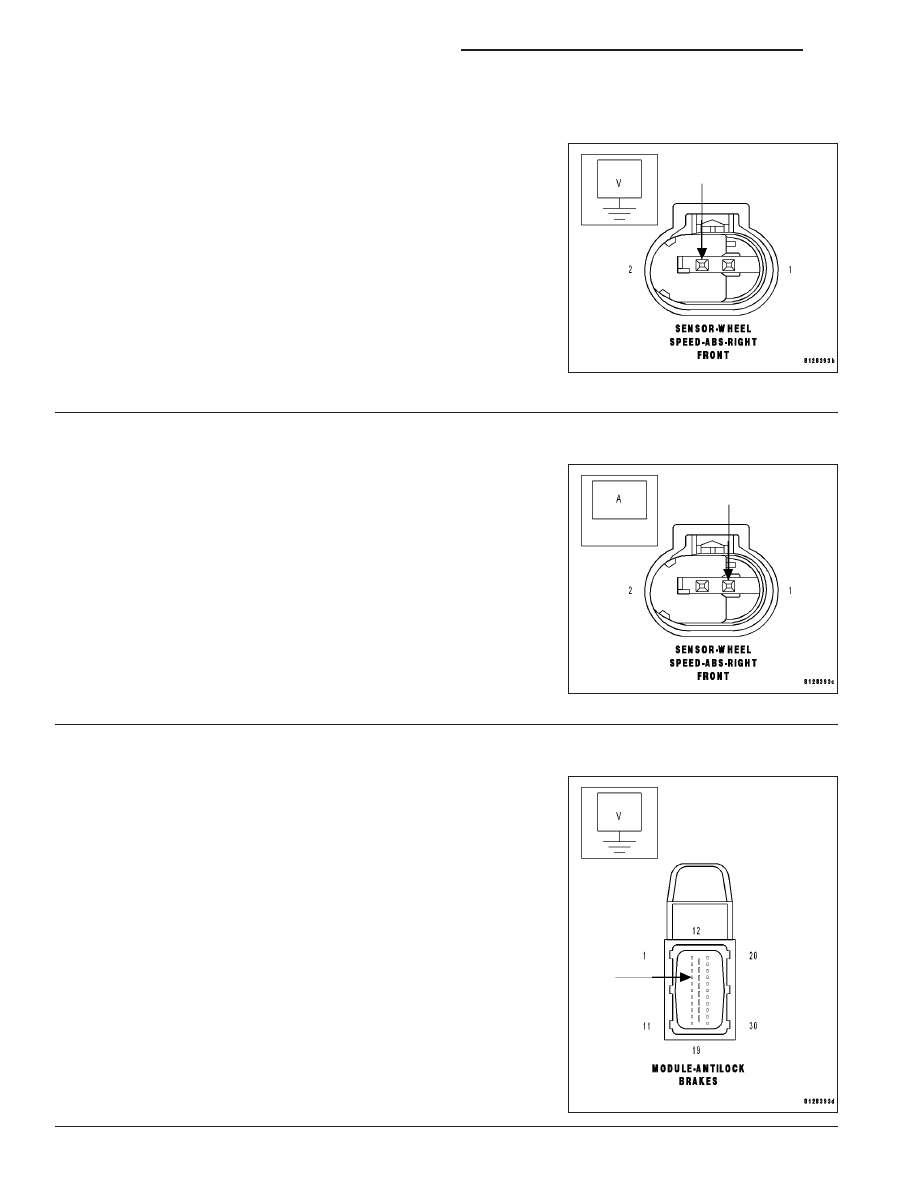

Measure the voltage of the (B7) Right Front WSS Supply circuit while
reconnecting the Right Front WSS harness connector.

Did the (B7) Right Front WSS Supply circuit drop voltage to 0
volts?

Yes

>> Replace the Right Front WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Go To 11

11.

CHECK RIGHT FRONT WSS OUTPUT

Turn the ignition off.

Reconnect all connectors.

Turn the ignition on.

Measure the amperage of the (B6) Right Front WSS Signal circuit in
the Right Front WSS harness connector.

Slowly rotate the Right Front wheel.

Does the amperage toggle between 7 mA to 14 mA?

Yes

>> Go To 12

No

>> Replace the Right Front WSS in accordance with the Ser-

vice Information.

Perform ABS VERIFICATION TEST - VER 1.

12.

ANTI-LOCK BRAKE MODULE INTERNAL FAULT - (B7) RIGHT FRONT WSS SUPPLY CIRCUIT

Turn the ignition off.

Remove the Anti-Lock Brake Module harness connector strain relief to
access wires.

Reconnect the Anti-Lock Brake Module harness connector.

Turn the ignition on.

Measure the voltage between the (B7) Right Front WSS Supply circuit
and ground.

Is the voltage above 10 volts?

Yes

>> Go To 13

No

>> Replace the Anti-Lock Brake Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1.

5 - 132

BRAKES - ABS ELECTRICAL DIAGNOSTICS

HB

C1015–RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT (CONTINUED)

13.

ANTI-LOCK BRAKE MODULE INTERNAL FAULT - (B6) RIGHT FRONT WSS SIGNAL CIRCUIT

Turn the ignition off.

Remove the Anti-Lock Brake Module harness connector strain relief to
access wires.

Reconnect the Anti-Lock Brake Module harness connector.

Turn the ignition on.

Measure the voltage between the (B7) Right Front WSS Supply circuit
and the (B6) Right Front WSS Signal circuit.

Is the voltage above 10 volts?

Yes

>> Refer to the INTERMITTENT CONDITION diagnostic pro-

cedure.

Perform ABS VERIFICATION TEST - VER 1.

No

>> Replace the Anti-Lock Brake Module in accordance with

the Service Information.

Perform ABS VERIFICATION TEST - VER 1.

HB

BRAKES - ABS ELECTRICAL DIAGNOSTICS

5 - 133
