Dodge Dakota (R1). Manual - part 781





ASSIST HANDLE

REMOVAL

(1) Using a trim stick, remove the trim covering

the assist handle attachment screws (Fig. 5).

(2) Remove the screw attaching the assist handle

to the roof structure.

(3) Remove the assist handle.

INSTALLATION

(1) Position the assist handle on the roof structure

and headliner.

(2) Install the screws attaching the assist handle

to the headliner and roof structure.

(3) Snap in the trim covers.

B-PILLAR TRIM

REMOVAL

The B-pillar trim panel is attached to the B-pillar

with push-in fasteners.

(1) Remove door sill cover as necessary to clear

B-pillar trim.

(2) Remove shoulder belt turning loop.
(3) Grasp B-pillar trim panel and firmly pull out-

ward.

(4) Disconnect

speaker

harness

connector,

if

equipped.

(5) Route shoulder belt through access slots in

B-pillar trim panel.

(6) Separate B-pillar trim panel from B-pillar (Fig.

6).

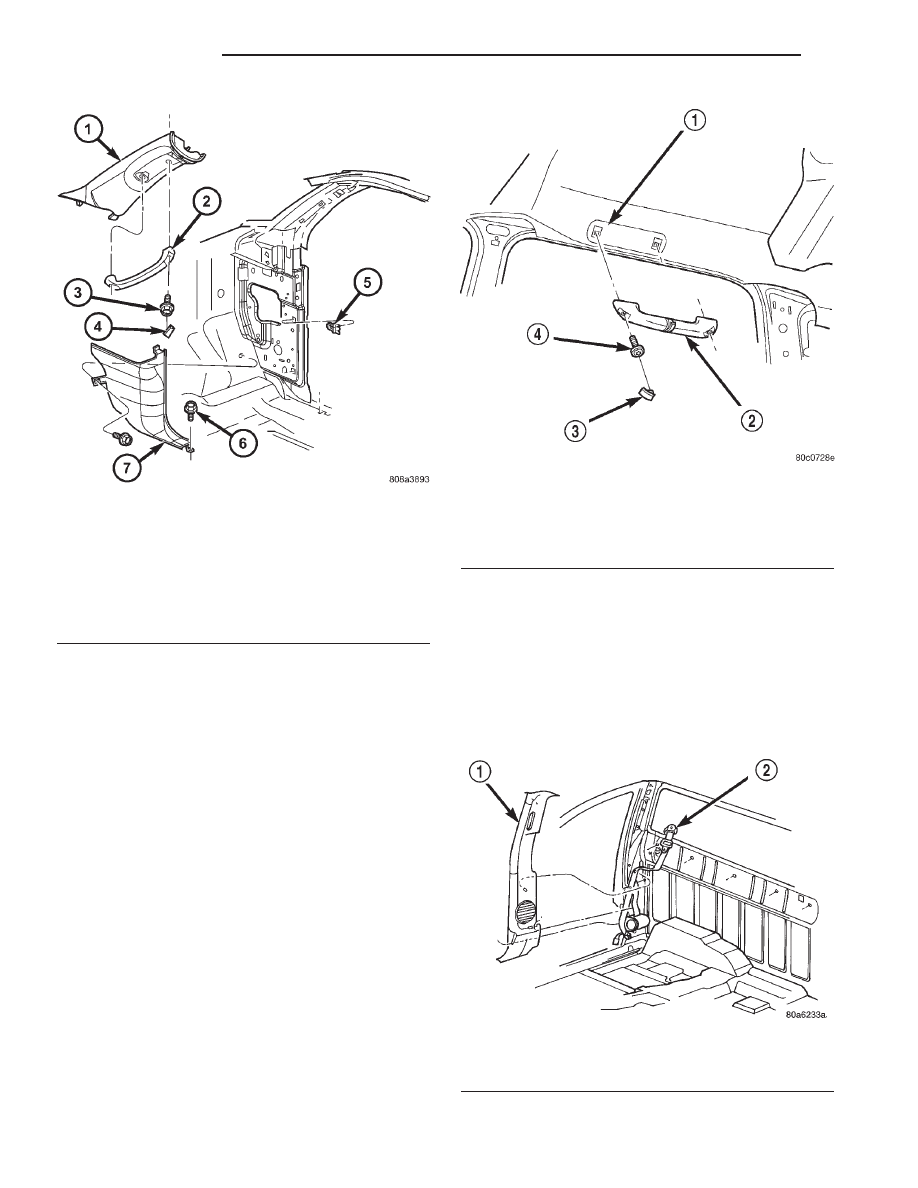

Fig. 4 A-Pillar Trim

1 - A-PILLAR TRIM
2 - ASSIST HANDLE
3 - ASSIST HANDLE BOLTS
4 - PUSH IN COVER
5 - COWL TRIM CLIP
6 - COWL TRIM PANEL BOLT
7 - COWL TRIM PANEL

Fig. 5 Assist Handle

1 - HEADLINER
2 - GRAB HANDLE
3 - PUSH IN COVER
4 - SCREW

Fig. 6 B-Pillar Trim

1 - B-PILLAR TRIM
2 - TURNING LOOP

23 - 112

INTERIOR

AN

A-PILLAR TRIM (Continued)

INSTALLATION

(1) Position trim panel in vehicle.
(2) Route shoulder belt through access slots in

B-pillar trim panel.

(3) Connect

speaker

harness

connector,

if

equipped.

(4) Position B-pillar trim panel on B-pillar and

press to seat push-in fasteners.

(5) Install shoulder belt turning loop.
(6) Install door sill cover as necessary.

C-PILLAR TRIM

REMOVAL

(1) Remove the seat belt turning loop. (Refer to 8 -

ELECTRICAL/RESTRAINTS/SEAT

BELT

&

RETRACTOR - REMOVAL)

(2) Using a trim stick C-4755 or equivalent,

remove the upper c-pillar trim panel (Fig. 7).

(3) Remove the screws and remove position the

lower c-pillar aside.

(4) Remove the seat belt anchor and route seat

belt though the lower c-pillar trim panel.

(5) Remove the lower c-pillar trim.

INSTALLATION

(1) Place the lower c-pillar trim into the vehicle

and route the seat belt through the trim.

(2) Install the seat belt anchor. (Refer to 8 - ELEC-

TRICAL/RESTRAINTS/SEAT BELT & RETRACTOR
- INSTALLATION)

(3) Install the lower c-pillar trim and install the

screws.

(4) Install the upper c-pillar trim.
(5) Install the seat belt turning loop.

CARPETS AND FLOOR MATS

REMOVAL

(1) Remove seat.
(2) Remove door sill and cowl trim covers.
(3) Remove seat belt anchors.
(4) Remove

floor

shift

boot/floor

console,

if

equipped.

(5) Remove rear stowage tray/storage box.
(6) Pull carpet out from under quarter panel trim

and cab back panel trim.

(7) Fold carpet or mat toward center of cab.
(8) Remove carpet or mat through door opening

(Fig. 8).

INSTALLATION

(1) Position the carpet in the cab and align all

holes.

(2) Slide carpet under quarter panel trim and cab

back panel trim.

(3) Install rear stowage tray/storage box.
(4) Install floor shift boot/floor console, if equipped.
(5) Install seat belt anchors.
(6) Install door sill and cowl trim covers.
(7) Install seat.

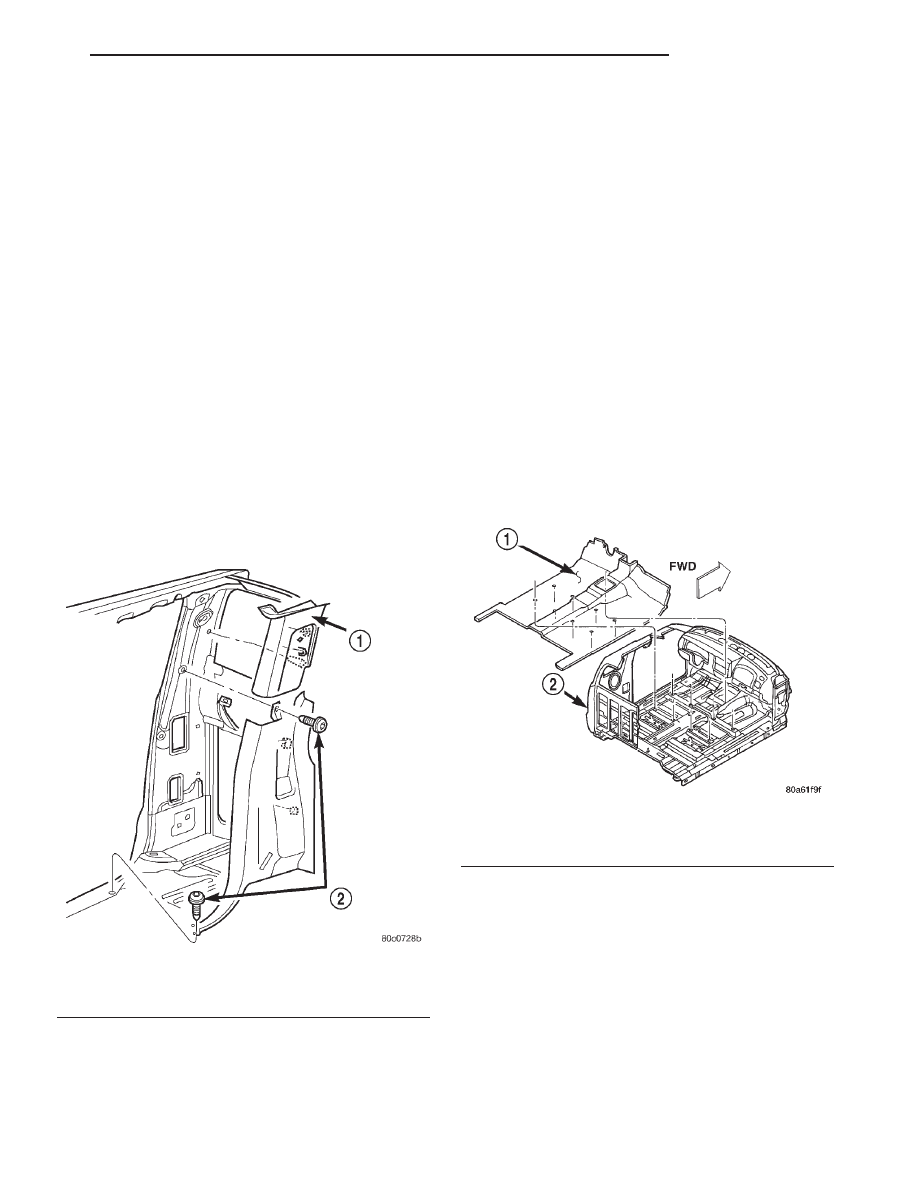

Fig. 7 Upper C Pillar Trim

1 - UPPER C PILLAR TRAY
2 - LOWER C PILLAR TRIM SCREWS

Fig. 8 Floor Carpet or Mat

1 - CARPET
2 - CAB

AN

INTERIOR

23 - 113

B-PILLAR TRIM (Continued)

COAT HOOK

REMOVAL

(1) Grasp both sides of the coat hook base and

firmly pull outward to disengage the coat hook cover
from the base (Fig. 9) and (Fig. 10).

(2) Lift/rock the coat hook upward to disengage it

from the roof panel.

INSTALLATION

(1) Position coat hook in roof panel.
(2) Push the coat hook cover inward and secure

the coat hook to the roof panel.

COWL TRIM COVER

REMOVAL

(1) Using a trim stick, pry cowl trim cover from

cowl to disengage clips.

(2) Separate cowl trim cover from vehicle.

INSTALLATION

(1) Position cowl trim cover on cowl.
(2) Press cowl trim cover into place to engage clips.

DOOR SILL TRIM

REMOVAL

(1) Using a trim stick, pry up sill trim cover from

door sill.

(2) Separate sill trim cover from vehicle (Fig. 11).

INSTALLATION

(1) Position front edge of sill cover over cowl trim

cover and align tab.

(2) Align sill cover and press into place.

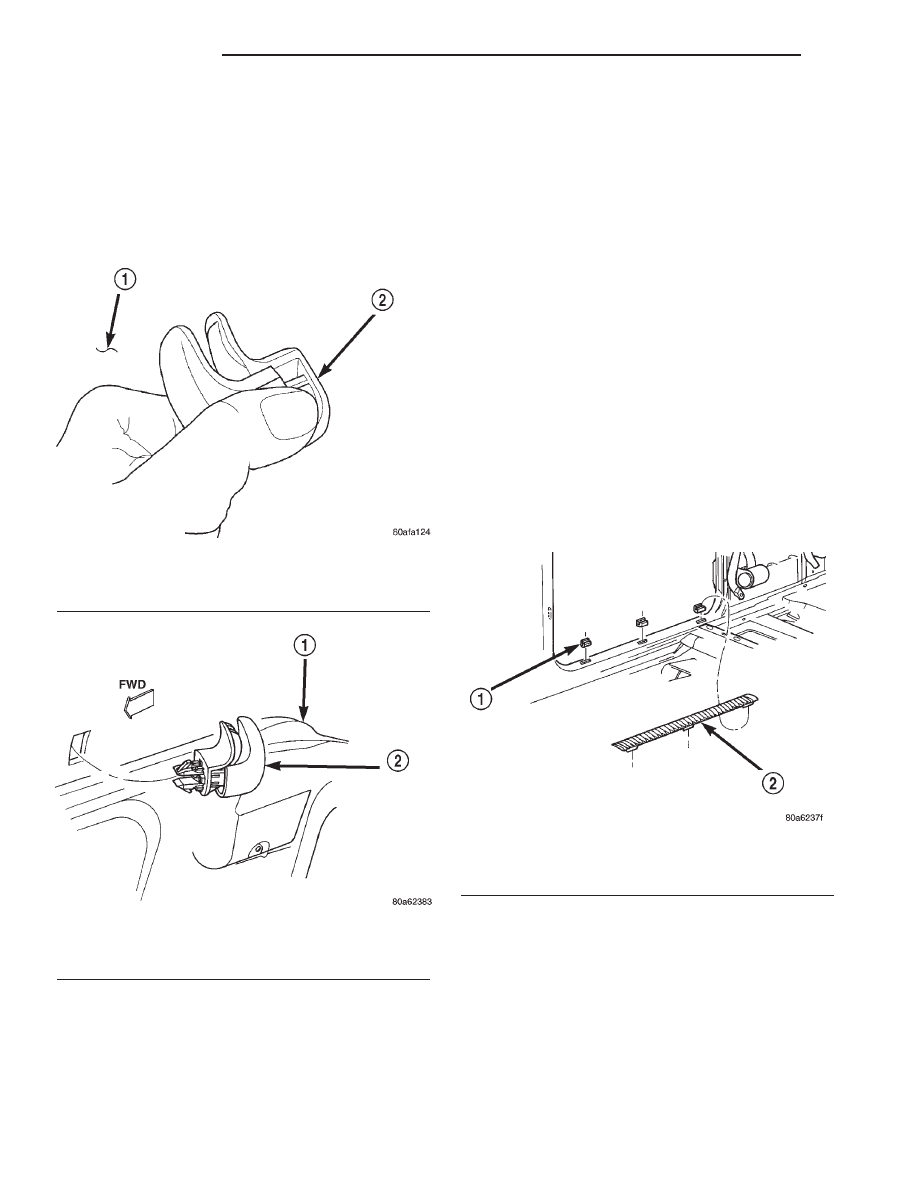

Fig. 9 Coat Hook Removal

1 - HEADLINER
2 - COAT HOOK

Fig. 10 Coat Hook

1 - CAB
2 - COAT HOOK

Fig. 11 Sill Trim Cover

1 - CLIP
2 - SILL TRIM COVER

23 - 114

INTERIOR

AN

FLOOR CONSOLE

REMOVAL

(1) Open console lid and remove bolts attaching

console to floor pan (Fig. 12).

(2) Lift the cup holder bin mat and remove bolt

attaching the console to the floor pan.

(3) Lift the cup holder mat and remove the bolts

attaching the console to the floor pan.

(4) Lift the rear of the console and pull the console

rearward to separate from the shift bezel.

(5) Remove the console from the vehicle.

INSTALLATION

(1) Position the console in the vehicle.
(2) While holding the console with the front of the

console pointing downward, position the front of the
console on top of the shift bezel.

(3) Align

rear

of

console

with

the

mounting

bracket.

(4) Install bolts attaching console to floor pan.

HEADLINER

REMOVAL

(1) Remove sun visors and visor hooks.
(2) Remove coat hooks.
(3) Remove overhead console, if equipped. Refer to

Group 8V, Overhead Console for removal procedure.

(4) Remove A-pillar trim.
(5) Remove quarter trim/B-pillar trim panels.
(6) Remove dome lamp. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING - INTERIOR/DOME LAMP
- REMOVAL).

(7) Separate headliner from roof panel (Fig. 13)

and (Fig. 14).

(8) Extract headliner through door opening.

INSTALLATION

(1) Position headliner in vehicle.
(2) Install quarter/B-pillar trim panels.
(3) Install A-pillar trim.
(4) Install overhead console, if equipped.
(5) Install dome lamp. (Refer to 8 - ELECTRICAL/

LAMPS/LIGHTING - INTERIOR/DOME LAMP -
INSTALLATION).

(6) Install coat hooks.
(7) Install sun visors and visor hooks.

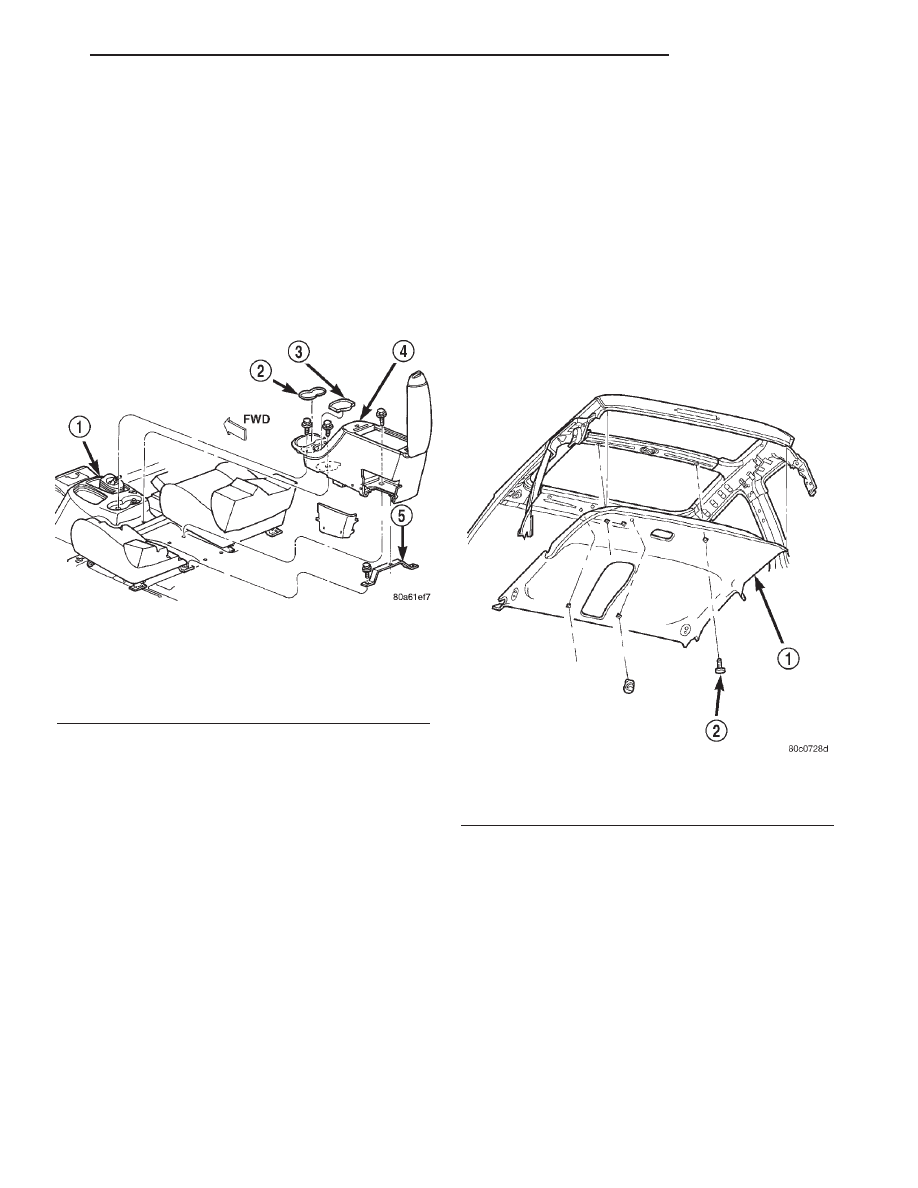

Fig. 12 Floor Console

1 - SHIFT BEZEL
2 - CUP HOLDER MAT
3 - ACCESSORY BIN MAT
4 - FLOOR CONSOLE
5 - BRACKET

Fig. 13 Quad Cab Headliner

1 - HEADLINER
2 - PUSH IN FASTENER

AN

INTERIOR

23 - 115
