SPECIFICATIONS
TRANSMISSION
GENERAL
Component
Metric
Inch
Output Shaft End Play
0.22-0.55
mm
0.009-0.021
in.
Input Shaft End Play
0.46-0.89
mm
0.018-0.035
in.
2C Clutch Pack
Clearance
0.53-1.27
mm
0.021-0.050
in.
4C Clutch Pack
Clearance
0.81-1.35
mm
0.032-0.053
in.
L/R Clutch Pack
Clearance
1.14-1.91
mm
0.045-0.075
in.
OD Clutch Pack
Clearance
1.016-1.65
mm
0.040-0.065
in.
Component
Metric
Inch
UD Clutch Pack
Clearance
0.76-1.160
mm
0.030-0.063
in.
Reverse Clutch Pack
Clearance
0.81-1.24
mm
0.032-0.049
in.
Recommended fluid
Mopar® ATF Plus 4, type
9602
GEAR RATIOS
1ST
3.00:1
2ND
1.67:1
2ND Prime
1.50:1
3RD
1.0:1
4TH
0.75:1
REVERSE
3.00:1

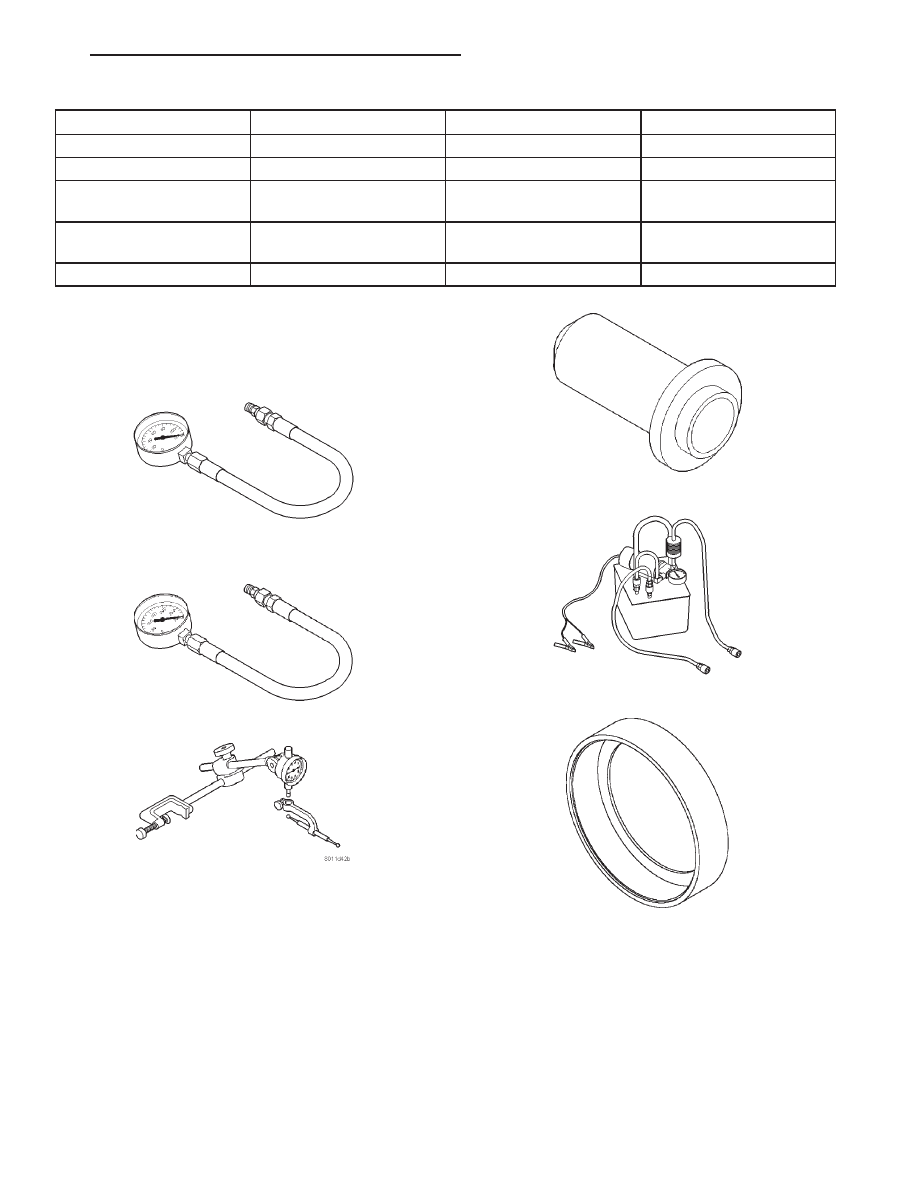

TORQUE SPECIFICATIONS
DESCRIPTION
N·m
Ft. Lbs.
In. Lbs.
Fitting, cooler line at trans
17.5
-
155
Bolt, torque convertor
31
23
-
Bolt/nut, crossmember
68
50
-
Bolt, driveplate to
crankshaft
75
55
-
Bolt, oil pan
11.8
-
105
Screw, primary fluid filter
4.5
-
40
Bolt, oil pump
28.2
-
250
Bolt, oil pump body to
cover
4.5
-
40
Screw, plate to oil pump
body
4.5
-
40
Bolt, valve body to case
11.8
-
105
Plug, pressure test port
5.1
-
45
Bolt, reaction shaft
support
11.8
-
105
Screw, valve body to
transfer plate
5.6
-
50
Screw, solenoid module to
transfer plate
5.7
-
50
Screw, accumulator cover
4.5
-
40
Screw, detent spring
4.5
-
40
Bolt, input speed sensor
11.8
-
105
Bolt, output speed sensor
11.8
-
105
21 - 480
AUTOMATIC TRANSMISSION - 45RFE
