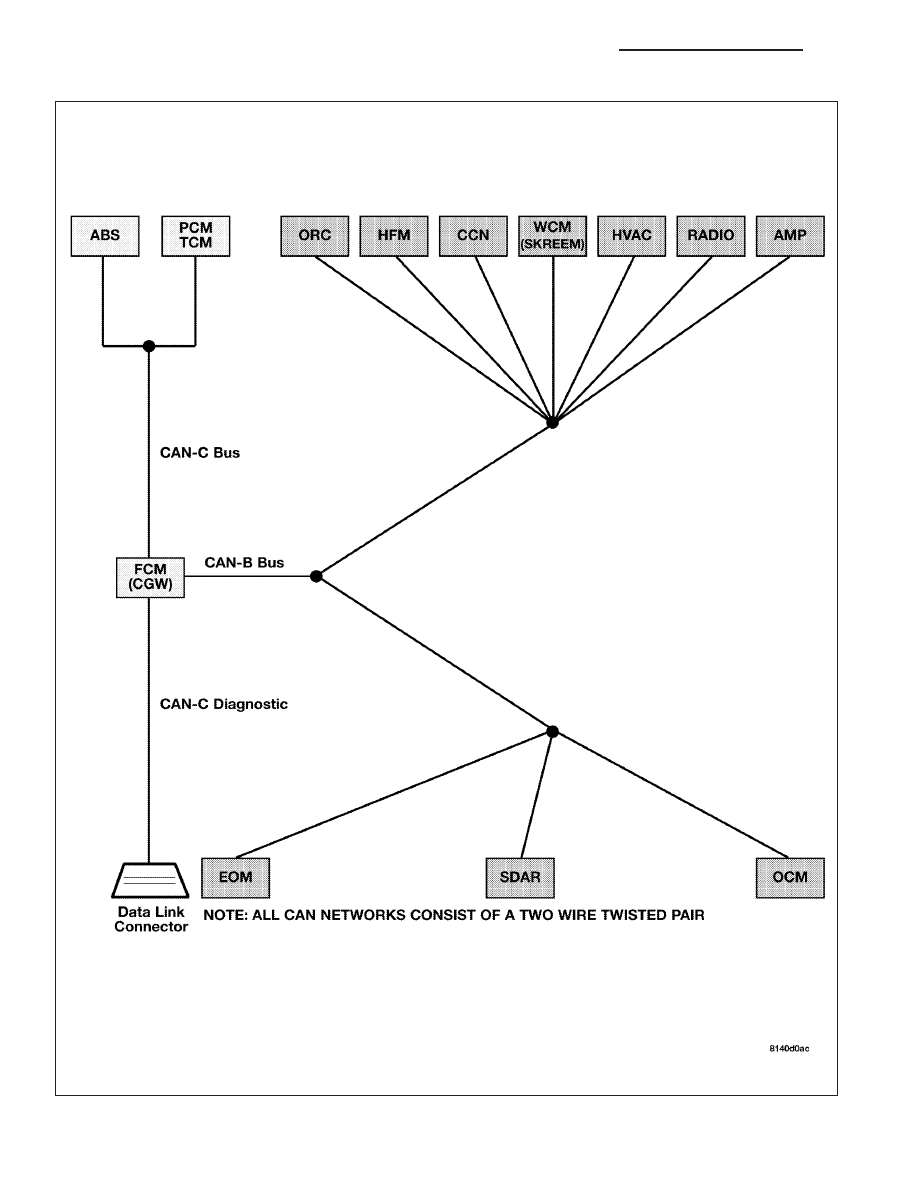

U0184-LOST COMMUNICATION WITH RADIO (CONTINUED) For a complete wiring diagram Refer to Section 8W. • When Monitored: • With the ignition on • Battery voltage between 10 and 16 volts • IOD fuse installed • FCM is configured correctly • Set Condition: Possible Causes CAN B BUS CIRCUITS OPEN OR SHORTED DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES FCM NOT CONFIGURED CORRECTLY RADIO POWER AND GROUND RADIO MODULE THAT SET THIS DTC Diagnostic Test 1. VERIFY DTC IS ACTIVE NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding. Is this DTC active? Yes >> Go To 2 No >> Refer to the Stored Lost Communication test procedure. Refer to the table of contents in this section. 2. CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS With the scan tool, read active DTCs from all modules. NOTE: Check for FCM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or igni- Does the scan tool display any active DTCs to the conditions listed above? Yes >> Diagnose and repair the DTC. Refer to the Index for a complete list of the symptoms. No >> Go To 3 3. VERIFY THAT THE RADIO IS ACTIVE ON THE BUS Turn the ignition on. With the scan tool, select Network Diagnostics. Verify that the Radio is active on the bus. Is the Radio active on the bus? Yes >> Go To 4 No >> Refer to the No Response test procedure. Refer to the table of contents in this section. 8E - 72 ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS ND |
