C140C- TRANSFER CASE MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

3.

(T316) SHIFT MOTOR CONTROL B CIRCUIT SHORTED TO VOLTAGE

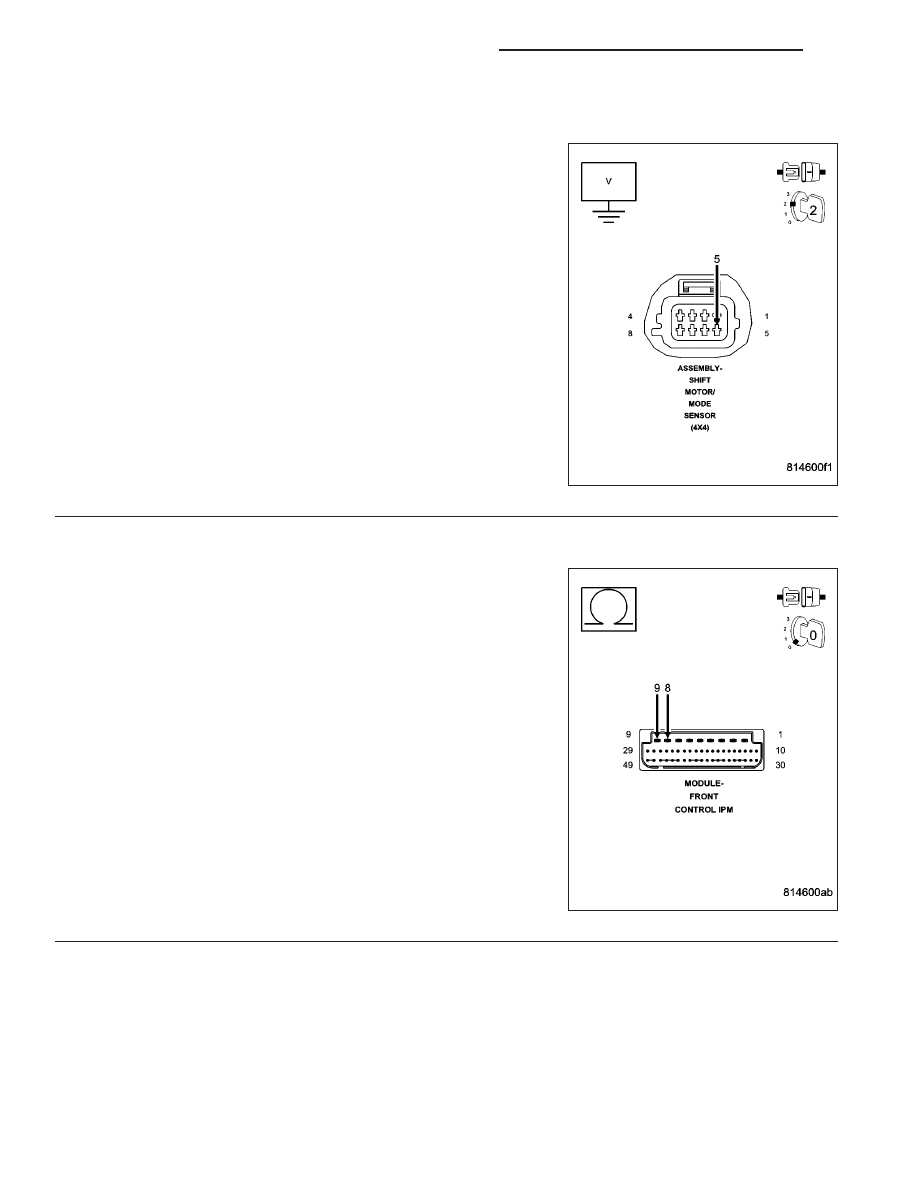

Measure the voltage of the (T316) Shift Motor Control B circuit at the
Shift Motor/Mode Sensor Assembly connector.

Is there any voltage present?

Yes

>> Repair the (T316) Shift Motor Control B circuit for a short

to voltage.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/TRANSFER CASE CONTROL MODULE
- DIAGNOSIS AND TESTING)

No

>> Go to 4

4.

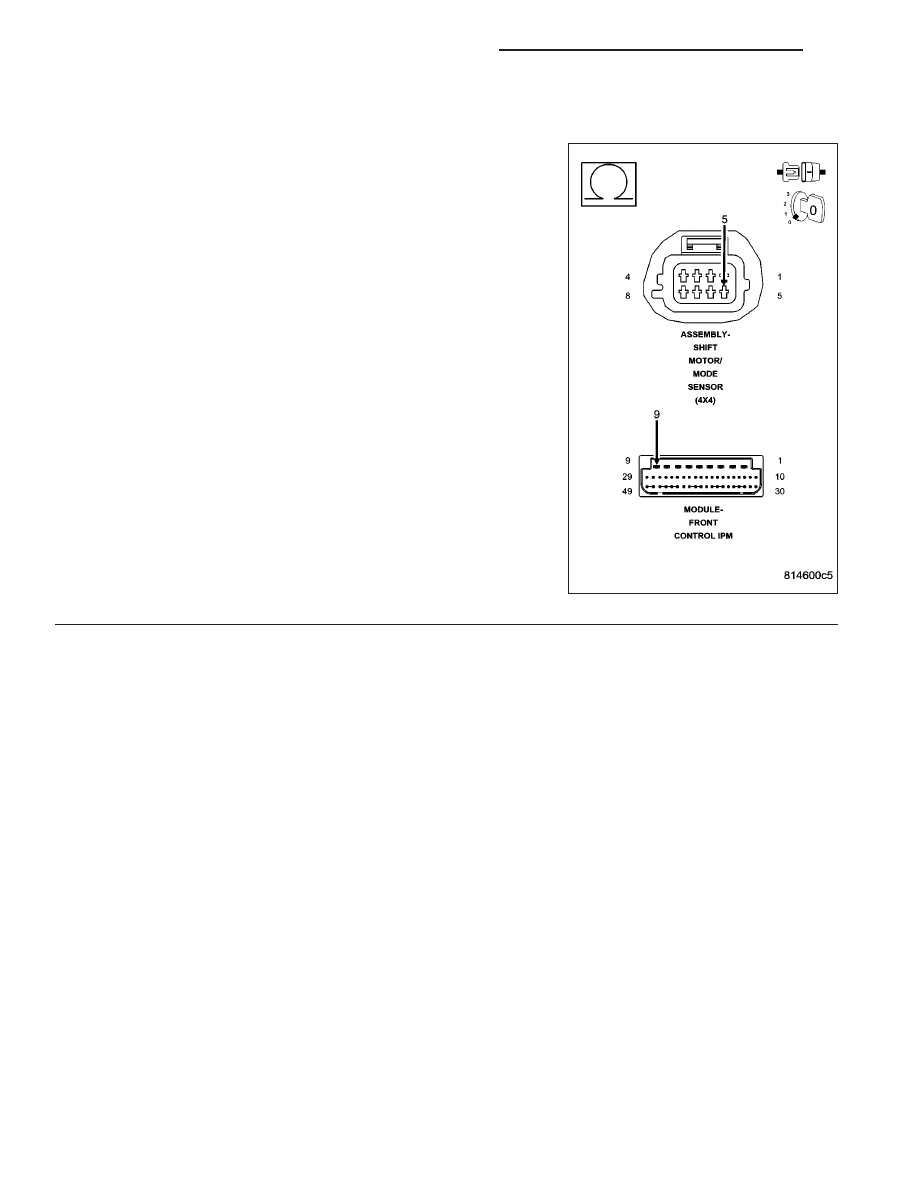

SHIFT MOTOR CIRCUIT RESISTANCE AT FCM CONNECTOR

Turn the ignition off.

Connect the Shift Motor/Mode Sensor Assembly connector.

Measure the resistance between the (T315) Shift Motor Control A cir-
cuit and the (T316) Shift Motor Control B circuit in the FCM connector
of the IPM.

Is the resistance between 40 and 100 ohms?

Yes

>> Go to 13

No

>> Go to 5

21 - 860

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

ND

C140C- TRANSFER CASE MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

5.

(T315) SHIFT MOTOR CONTROL A CIRCUIT OPEN

Disconnect the Shift Motor/Mode Sensor Assembly harness connector.

Measure the resistance of the (T315) Shift Motor Control A circuit from
the Shift Motor/Mode Sensor Assembly harness connector to the FCM
connector in the IPM.

Is the resistance above 5.0 ohms?

Yes

>> Go to 6

No

>> Go to 7

6.

(T315) SHIFT MOTOR CONTROL A CIRCUIT OPEN (IPM)

Disconnect the Integrated Power Module C5 harness connector.

Measure the resistance of the (T315) Shift Motor Control A circuit from
the Shift Motor/Mode Sensor Assembly harness connector to the Inte-
grated Power Module C5 harness connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T315) Shift Motor Control A circuit for an open.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/TRANSFER CASE CONTROL MODULE
- DIAGNOSIS AND TESTING)

No

>> Go to 12

ND

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

21 - 861

C140C- TRANSFER CASE MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

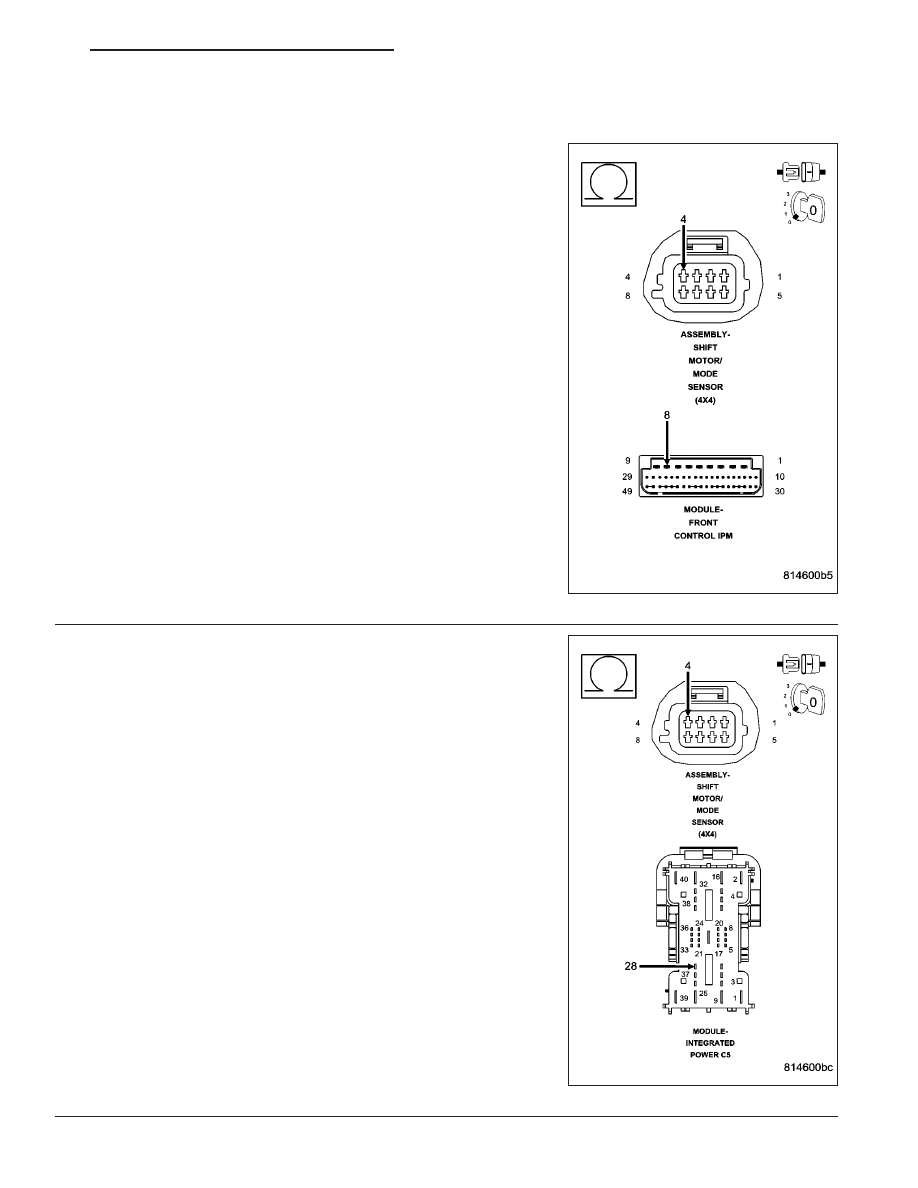

7.

(T316) SHIFT MOTOR CONTROL B CIRCUIT OPEN

Measure the resistance of the (T316) Shift Motor Control B circuit from
the Shift Motor/Mode Sensor Assembly harness connector to the FCM
connector in the IPM.

Is the resistance above 5.0 ohms?

Yes

>> Go to 8

No

>> Go to 9

21 - 862

TRANSFER CASE - ELECTRICAL DIAGNOSTICS

ND

C140C- TRANSFER CASE MOTOR CONTROL CIRCUIT HIGH (CONTINUED)

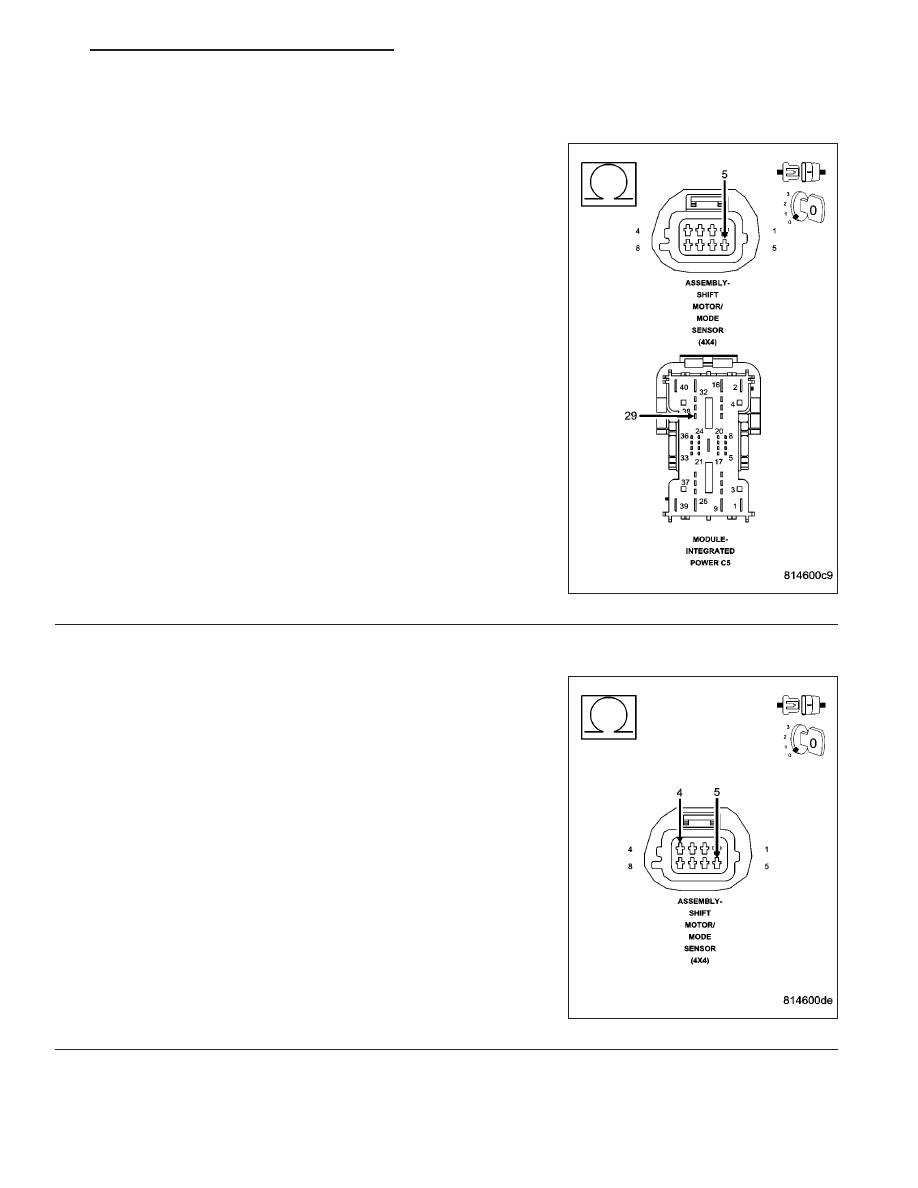

8.

(T316) SHIFT MOTOR CONTROL B CIRCUIT OPEN (IPM)

Disconnect the Integrated Power Module C5 harness connector.

Measure the resistance of the (T316) Shift Motor Control B circuit from
the Shift Motor/Mode Sensor Assembly harness connector to the Inte-
grated Power Module C5 harness connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T316) Shift Motor Control B circuit for an open.

Perform the TRANSFER CASE VERIFICATION TEST-
VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CON-
TROL MODULES/TRANSFER CASE CONTROL MODULE
- DIAGNOSIS AND TESTING)

No

>> Go to 12

9.

(T315) SHIFT MOTOR CONTROL A CIRCUIT SHORTED TO (T316) SHIFT MOTOR CONTROL B CIRCUIT

Measure the resistance between (T315) Shift Motor Control A circuit
and the (T316) Shift Motor Control B circuit at the Shift Motor/Mode
Sensor Assembly harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 10

No

>> Go to 11
