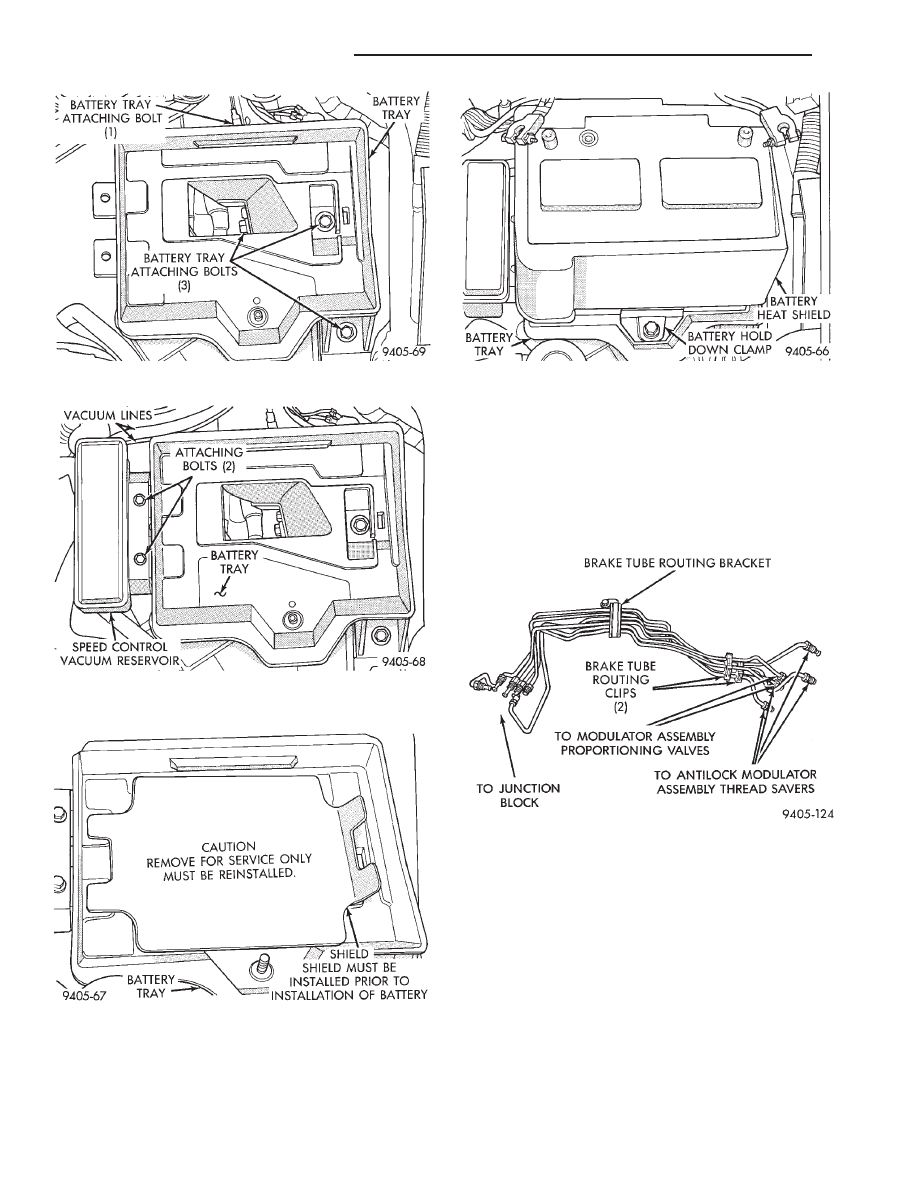

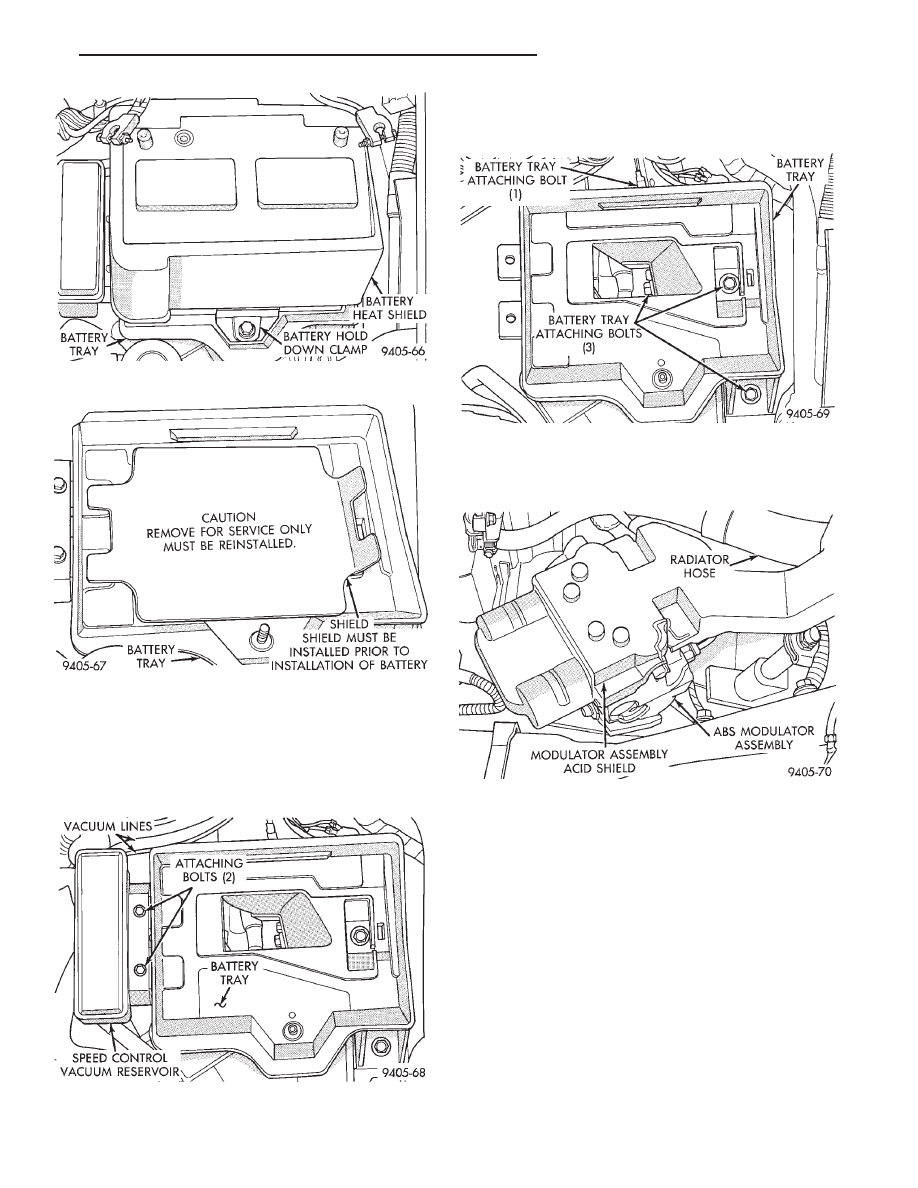

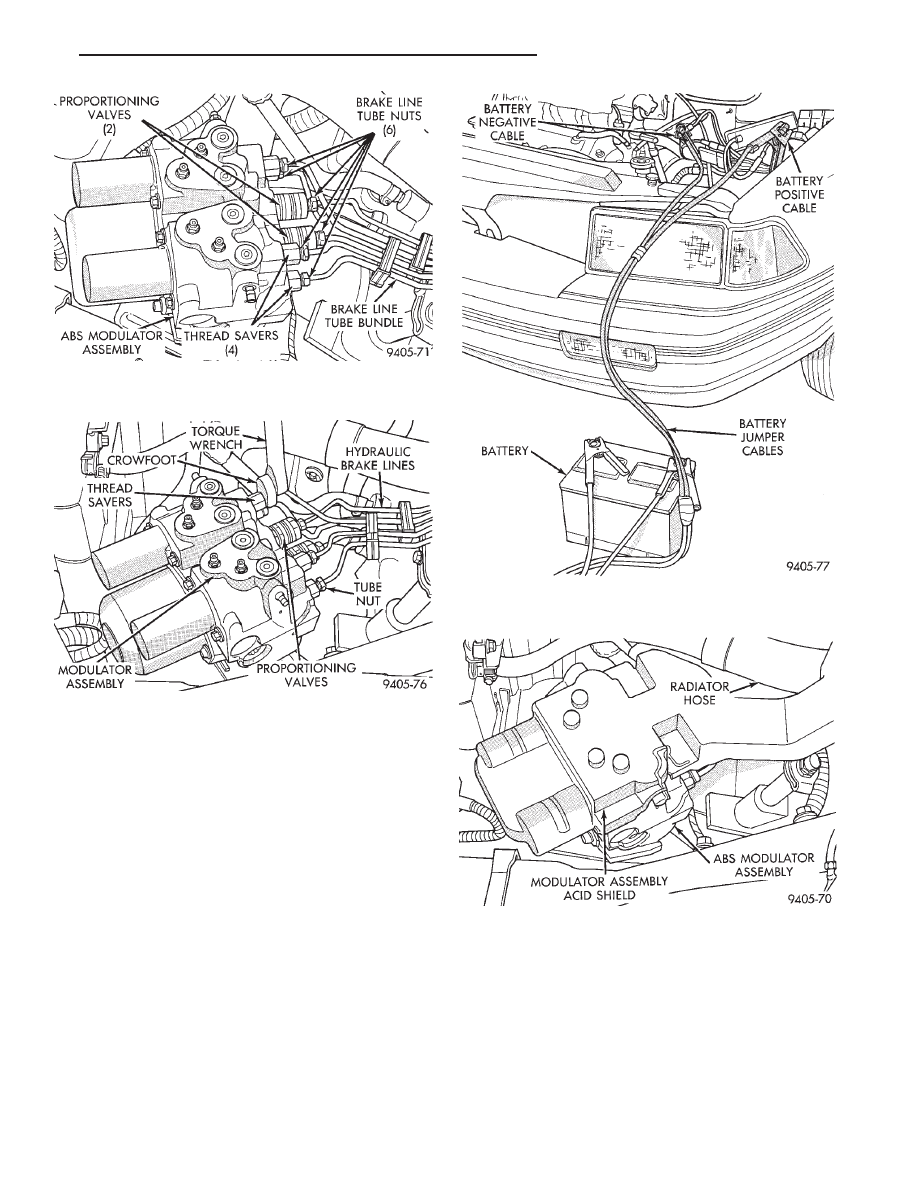

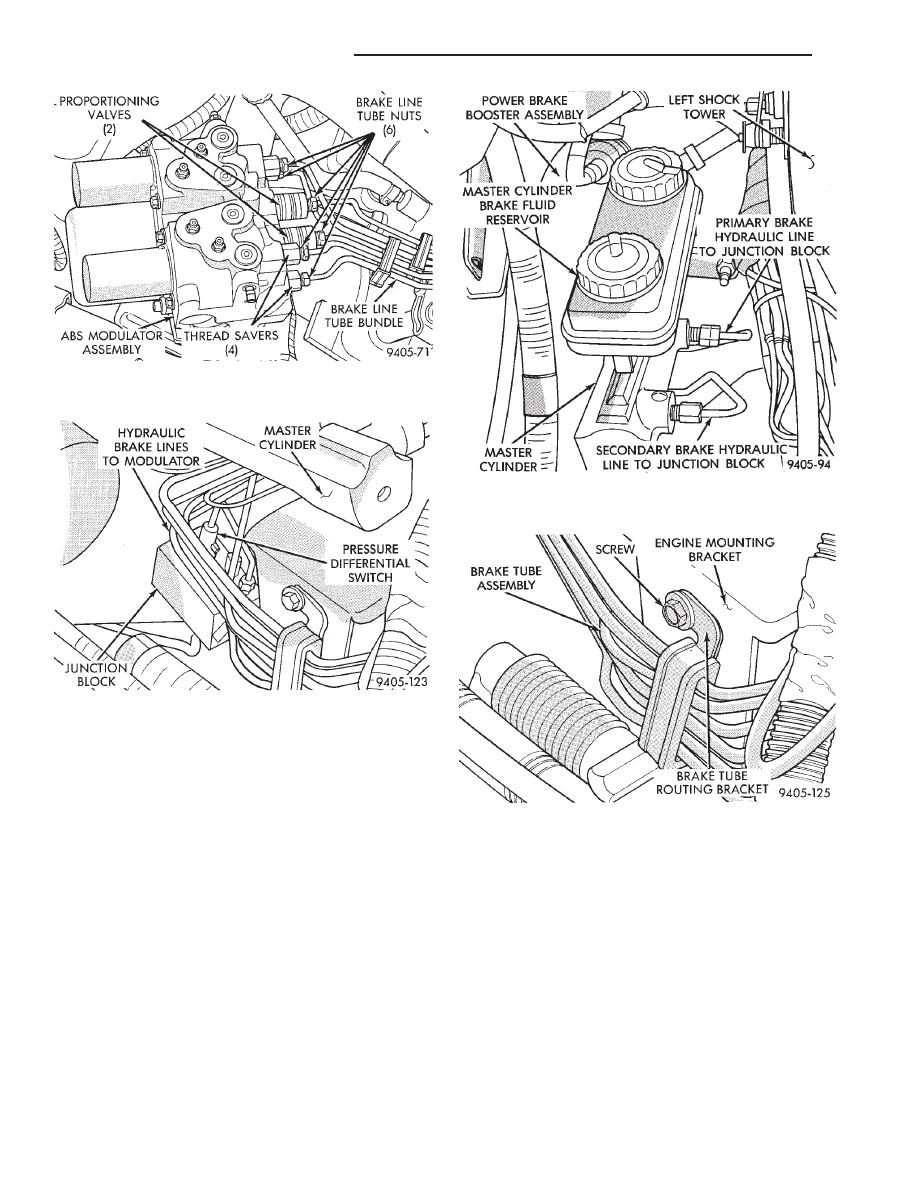

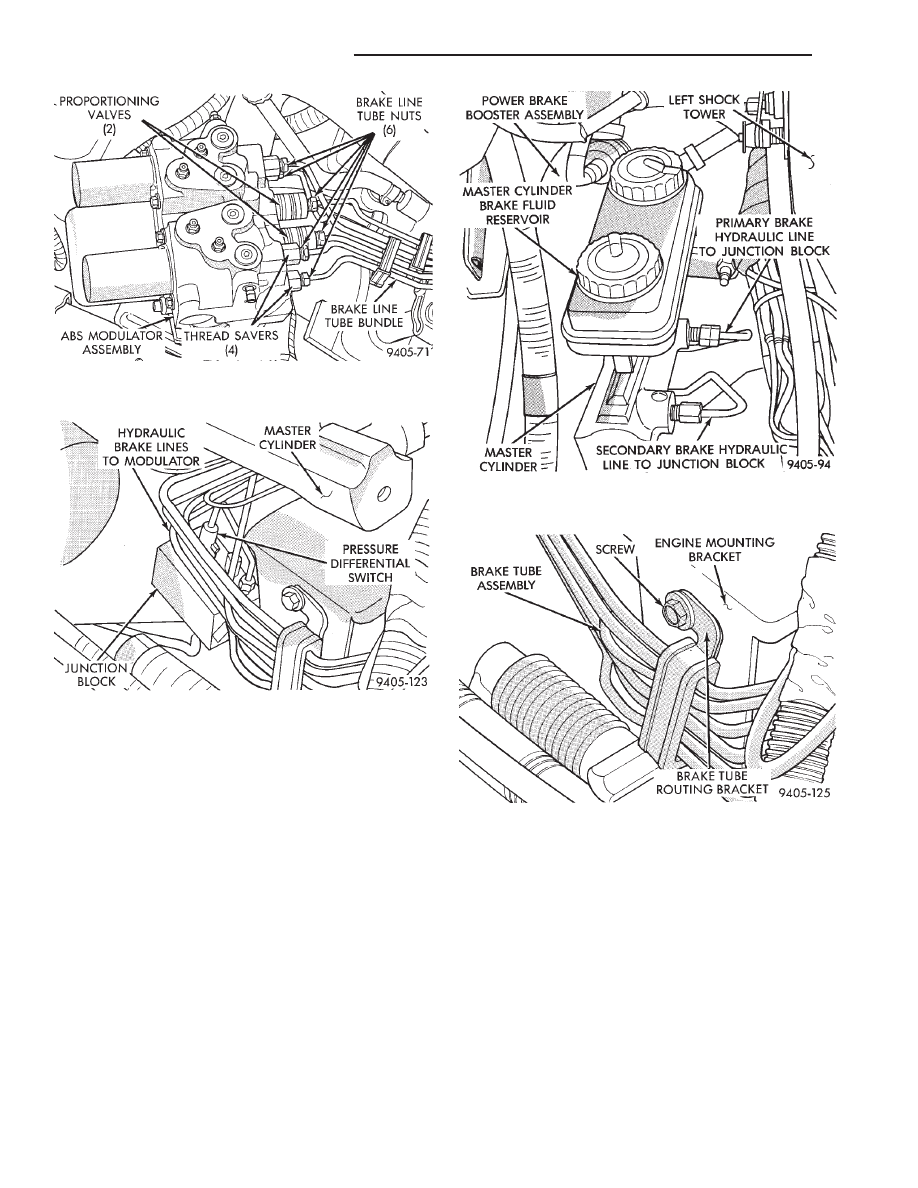

(18) Reset any electrical components of the vehicle which were affected by the removal of the battery. (19) Road test vehicle to verify correct operation of the vehicles’s base and Antilock brake systems. HYDRAULIC BRAKE TUBE ASSEMBLY (JUNC- The hydraulic brake tubes from the Antilock modu- lator assembly to the junction block (Fig. 1) are ser- REMOVE (1) Disconnect and remove both battery cables from battery. (2) Remove heat shield (Fig. 2) from battery. Then remove battery hold down clamp (Fig. 2) and battery (3) Remove battery tray access cover (Fig. 3) from battery tray. Do not discard, access cover MUST be Fig. 19 Battery Tray Installation And Attaching Bolts Fig. 20 Vacuum Reservoir Installation And Attaching Bolts Fig. 21 Battery Tray Access Shield Installed Fig. 22 Battery Hold Down Clamp And Heat Shield Installed Fig. 1 Hydraulic Brake Tube Bundle Assembly 5 - 34 ANTILOCK 4 BRAKE SYSTEM Ä |
