MODULATOR ASSEMBLY (FIG. 1)

REMOVE

(1) Raise vehicle on jackstands or position vehicle

centered on a frame contact hoist. See Hoisting in the
Lubrication and Maintenance section of this manual.

(2) Disconnect and remove both battery cables from

battery.

(3) Remove heat shield (Fig. 2) from battery. Then

remove battery hold down clamp (Fig. 2) and battery
from battery tray.

(4) Remove battery tray access cover (Fig. 3) from

battery tray. Do not discard, access cover MUST be
put back on battery tray, when battery is rein-
stalled.

(5) If equipped, remove the 2 bolts (Fig. 4) attaching

speed control vacuum reservoir to battery tray. Then
remove speed control system vacuum reservoir (Fig. 4)
from battery tray. Vacuum lines (Fig. 4) do not need
to be removed from vacuum reservoir.

(6) Remove the 4 bolts attaching battery tray (Fig.

5) to the frame rail and fender shield of vehicle.
Then remove battery tray from vehicle.

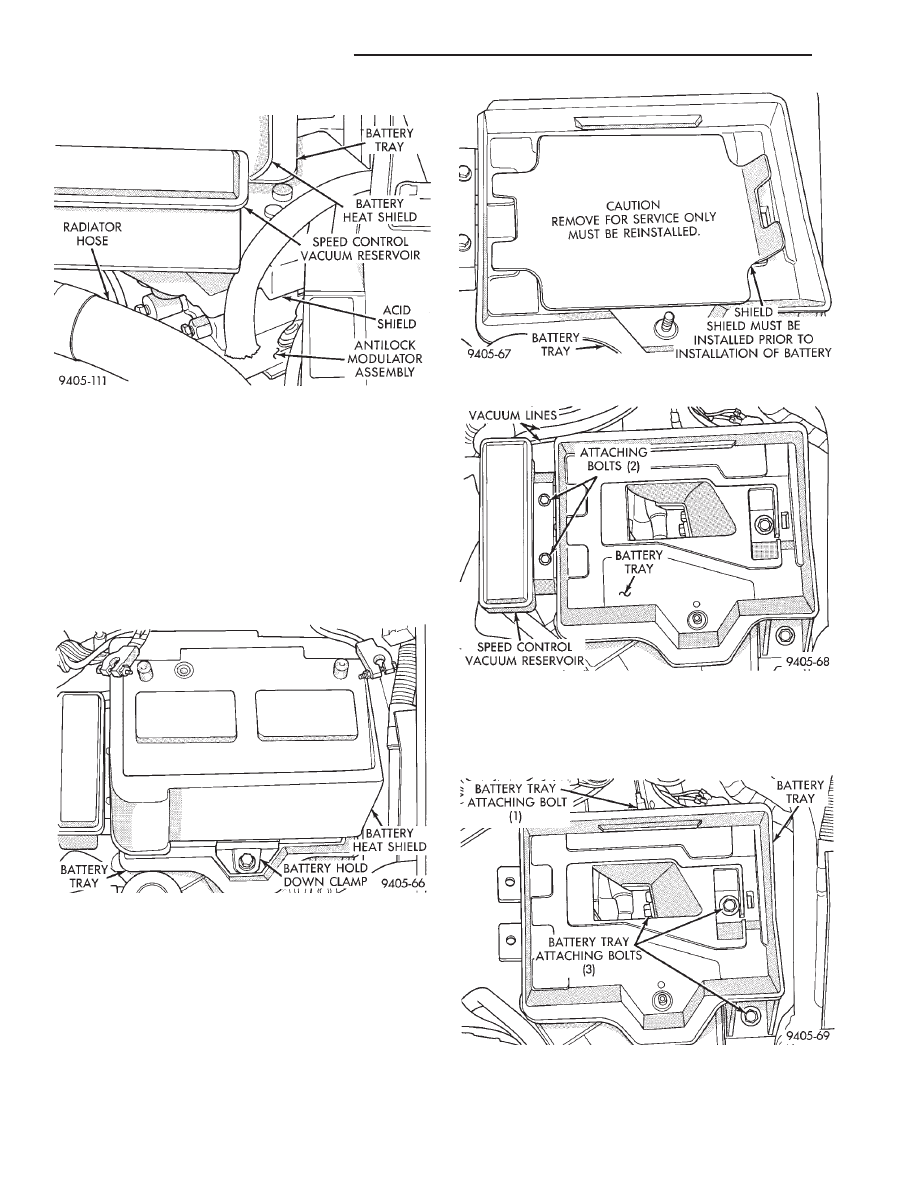

Fig. 3 Battery Tray Shield

Fig. 4 Speed Control System Vacuum Reservoir

Fig. 5 Battery Tray And Attaching Bolts

Fig. 1 Antilock Modulator Assembly Location In

Vehicle

Fig. 2 Battery Heat Shield And Hold Down Clamp

5 - 30

ANTILOCK 4 BRAKE SYSTEM

Ä

(7) Remove battery acid shield, (Fig. 6) from the ABS

modulator assembly.

(8) Remove the 6 tube nuts (Fig. 7), attaching hy-

draulic brake line tube bundle to modulator assembly,
thread savers and proportioning valves. Then remove
the hydraulic brake lines as an assembly, from the
modulator assembly. Brake lines do not need to be
loosened at junction block.

(9) Raise vehicle.
(10) Remove the vehicle’s wiring harness 10 way

connector, from the modulator assembly (Fig. 8).

(11) Remove 2 bolts (Fig. 9) attaching bottom of

modulator assembly to its mounting bracket.

(12) Lower vehicle.
(13) Remove bolt (Fig. 10) attaching front of modu-

lator assembly to mounting bracket.

(14) Remove modulator assembly from mounting

bracket and remove from vehicle.

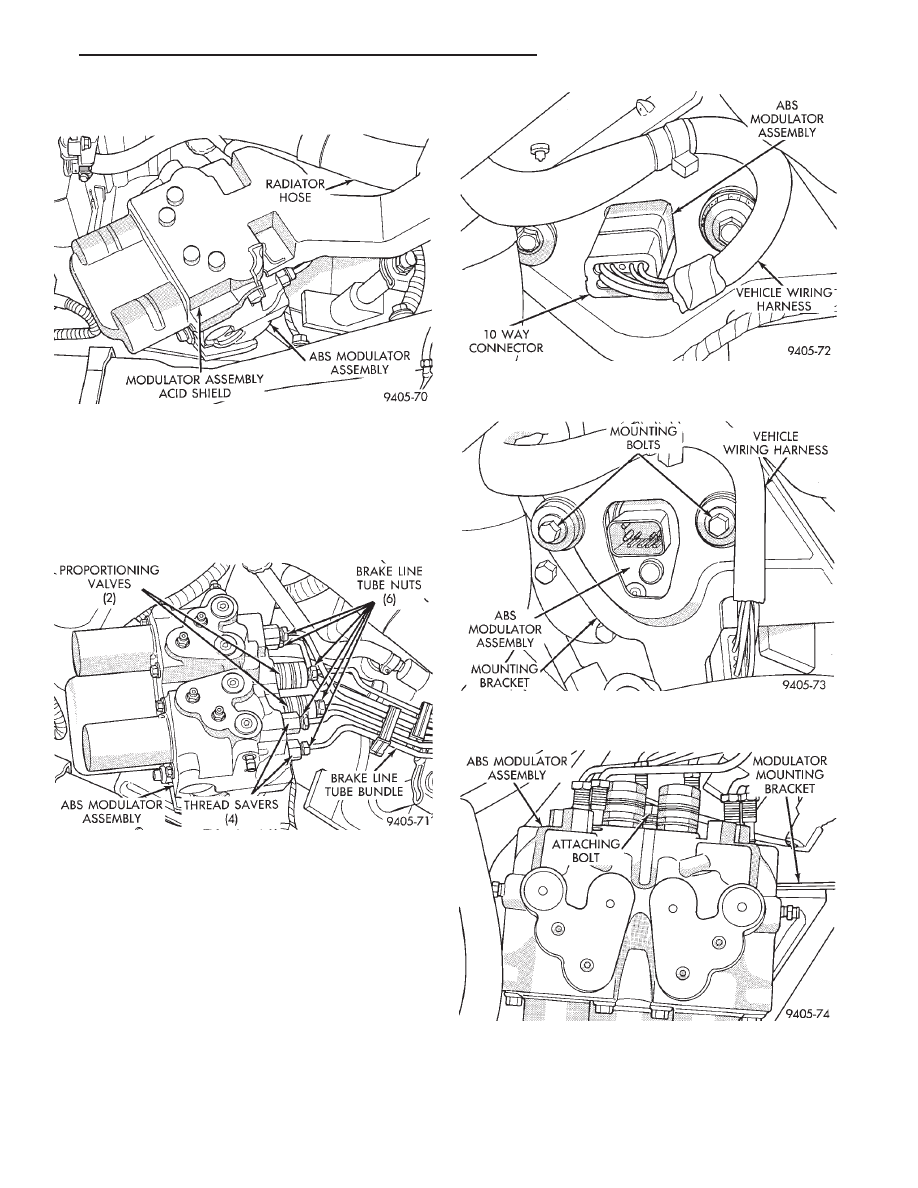

Fig. 8 Vehicle Wiring Harness Connection To

Modulator Assembly

Fig. 9 Modulator Assembly To Mounting Bracket

Attaching Bolts

Fig. 10 Front Modulator Assembly To Bracket Bolt

Fig. 6 ABS Modulator Assembly Acid Shield

Fig. 7 Hydraulic Brake Line Connections To Modula-

tor Assembly

Ä

ANTILOCK 4 BRAKE SYSTEM

5 - 31

INSTALL

NOTE: Before installing modulator assembly

back on mounting bracket, inspect the 3 modu-
lator assembly to bracket isolators (Fig. 11) for
any signs of deterioration or damage. Replace all
3 isolators if any show signs of damaged or
deterioration, before mounting modulator as-
sembly on bracket.

(1) Install

modulator

assembly

on

mounting

bracket.

(2) Install bolt (Fig. 12) attaching side of modulator

assembly to mounting bracket. Only loosely install
bolt at this time, do not tighten or torque.

(3) Raise vehicle.

CAUTION: Be sure mounting isolators are correctly
positioned on mounting bracket and modulator as-
sembly, before installing and torquing modulator
mounting bolts.

(4) Install the 2 modulator assembly to mounting

bracket attaching bolts (Fig. 13). Torque the 2 mount-
ing bolts to 28 N

Im (21 ft. lbs.).

(5) Install vehicle’s wiring harness 10 way connector

onto the modulator assembly (Fig. 14). Be sure lock
on vehicle wiring harness connector is fully en-
gaged with tab on modulator assembly electrical
connector.

(6) Lower vehicle.
(7) Torque front modulator assembly to mounting

bracket attaching bolt (Fig. 12) to 28 N

Im (21 ft. lbs.)

(8) Align the 6 disconnected hydraulic brake lines

with their appropriate fitting locations on modulator
assembly (Fig. 15). Then thread the 6 brake line tube
nuts by hand into the proportioning valves and thread
savers on modulator assembly.

(9) Using a crow foot and torque wrench (Fig. 16),

torque the 6 hydraulic brake line tube nuts to 18 N

Im

(159 in. lbs.).

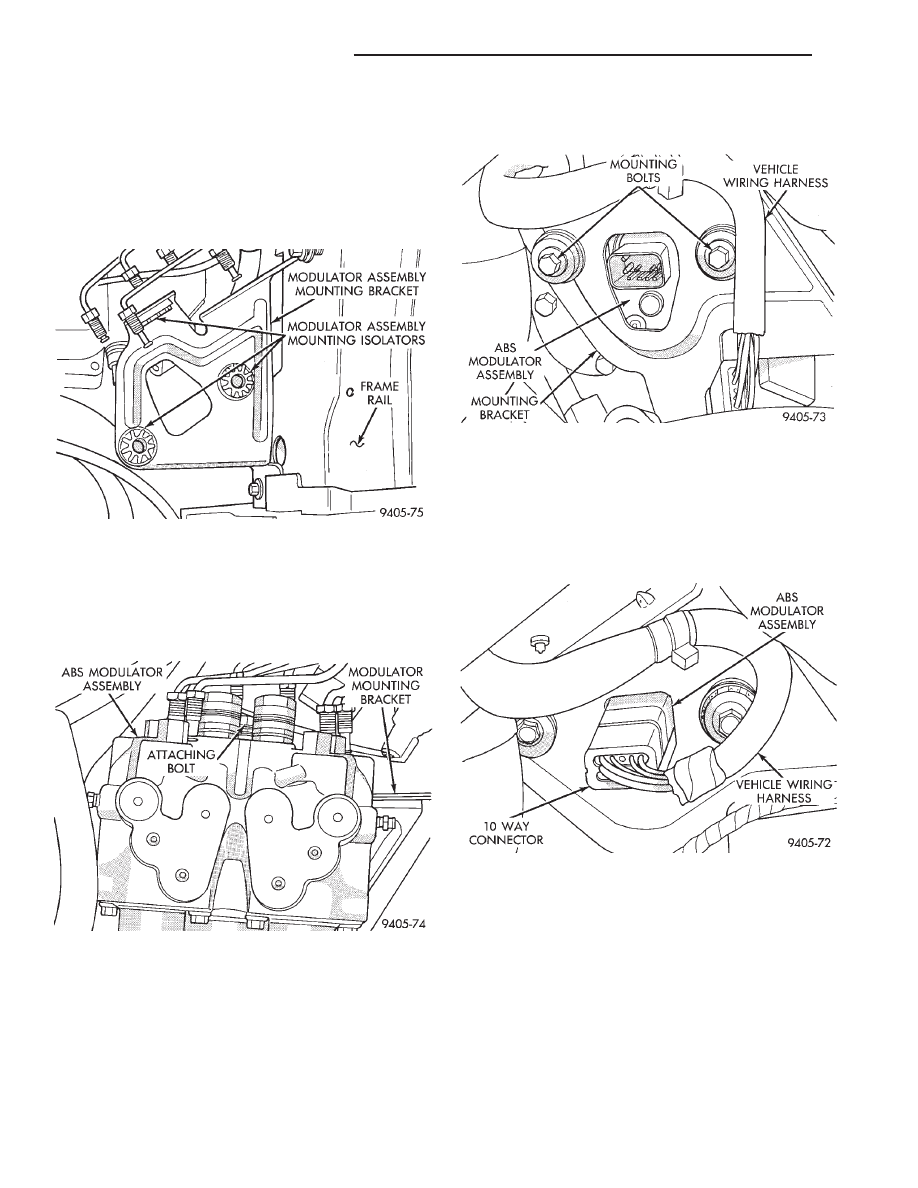

Fig. 11 Modulator Assembly Mounting Isolators

Fig. 12 Front Modulator Assembly To Bracket Bolt

Fig. 13 Modulator Assembly To Bracket Attaching

Bolts.

Fig. 14 Electrical Connection To Modulator

Assembly

5 - 32

ANTILOCK 4 BRAKE SYSTEM

Ä

(10) Using approved battery jumper cables, attach

battery, to the vehicles negative and positive battery
cables (Fig. 17).

(11) Bleed the vehicles base brake and Antilock

brake hydraulic systems. Refer to Bleeding Bendix
Antilock 4 Brake System in this service manual
supplement for required bleeding procedure.

(12) Install the battery acid shield (Fig. 18) onto

modulator assembly. Be sure acid shield is securely
attached to modulator assembly before installing
battery tray.

(13) Install battery tray in vehicle. Then install the 4

bolts (Fig. 19) attaching battery tray to inner fender
and frame rail. Torque the 4 attaching bolts to 20 N

Im

(175 in.lbs.).

(14) If equipped, install speed control vacuum reser-

voir on battery tray. Then install the 2 speed control
vacuum reservoir attaching bolts (Fig. 20). Torque the
vacuum reservoir to attaching bolts to 4 N

Im (30 in.

lbs.).

(15) Install battery tray access cover (Fig. 21) on

battery tray. The access cover MUST be back on
battery tray, before battery is installed in battery
tray.

(16) Install battery on battery tray. Then install and

securely tighten battery hold down clamp (Fig. 22).
Then install battery heat shield, on battery (Fig. 22).

(17) Install battery cables on battery. Securely

tighten clamping bolts on battery cable terminals.

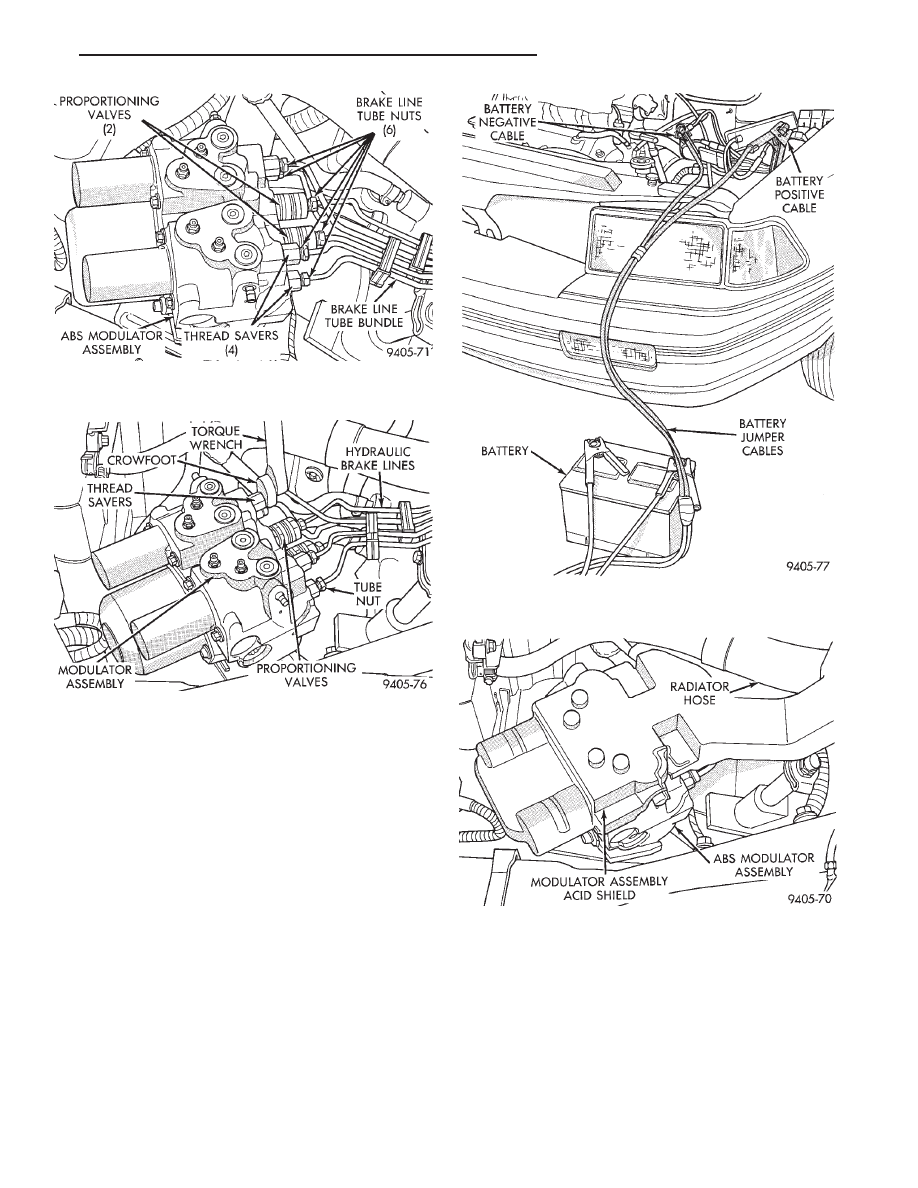

Fig. 15 Hydraulic Brake Line Connections at

Modulator Assembly

Fig. 16 Torquing Brake Line Connections To

Modulator Assembly

Fig. 17 Battery Connected To Vehicle For Bleeding

Modulator Assembly

Fig. 18 Modulator Assembly Acid Shield Installed

Ä

ANTILOCK 4 BRAKE SYSTEM

5 - 33
