WIPERS/WASHER SYATEM  9D-3

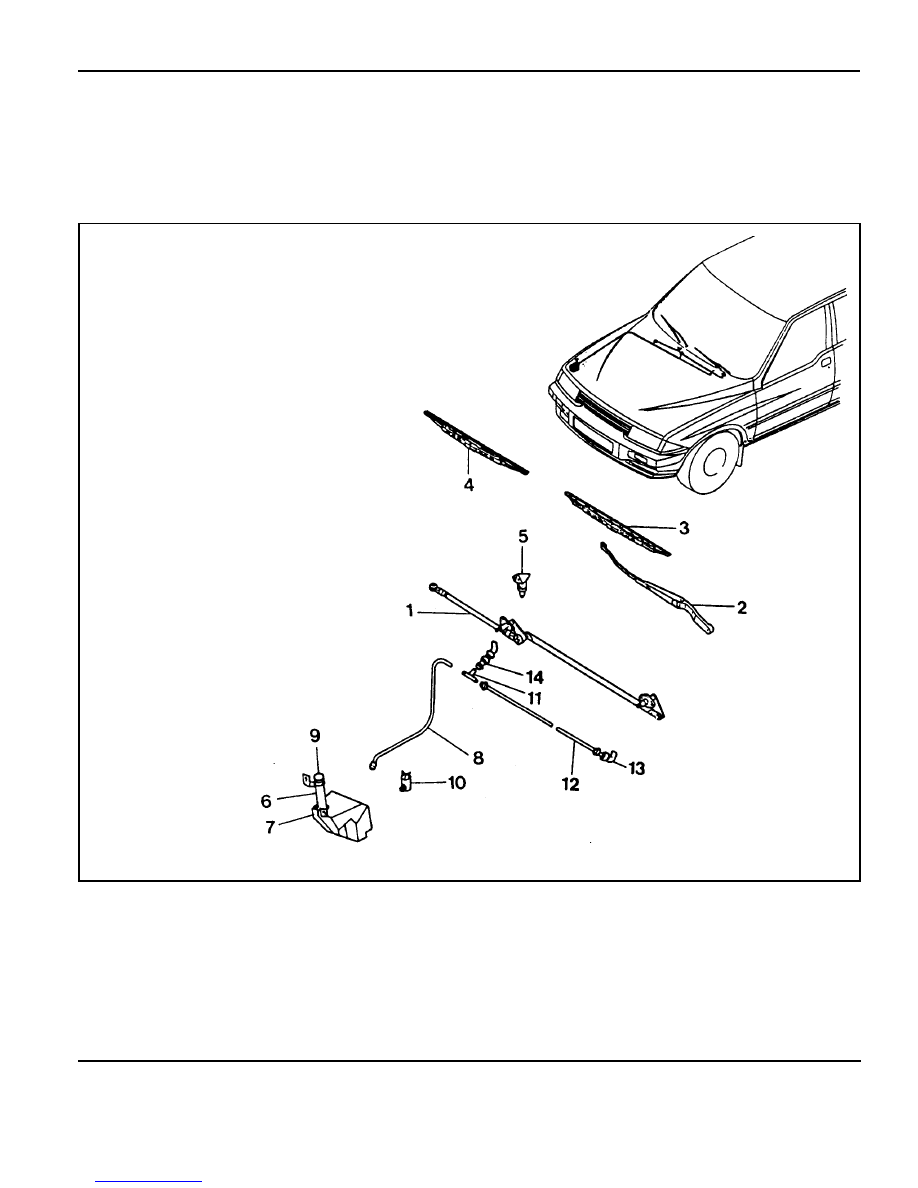

FRONT WIPER AND WASHER

1 Windshield Linkage
2 Wiper Arm
3 Wiper Blade (Left)
4 Wiper Blade (Right)
5 Washer Nozzle
6 Reservoir Tank Guide
7 Reservoir Tank

8 Washer Hose
9 Cap

10 Washer Motor

11 Hose Connector (Y- type)

12 Washer Hose (Left)
13 Nozzle Pipe
14 Washer Hose

MAINTENANCE AND REPAIR

ON VEHICLE SERVICE

9D-4  WIPERS/WASHER SYSTEM

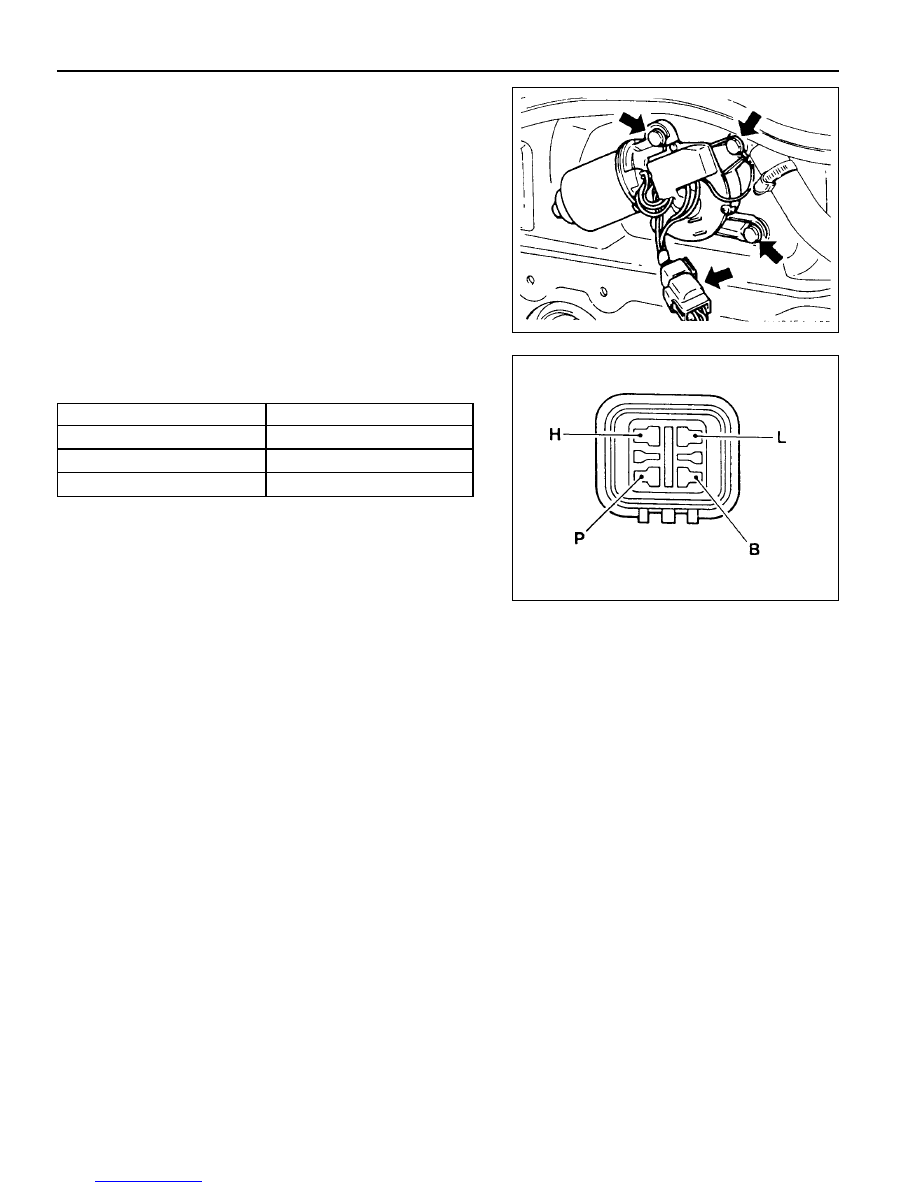

Removal & Installation Procedure

1. Remove the wiper arm and blade.

2. Remove the linkage connected to the wiper motor.

3. Disconnect the connector from the wiper motor.

4. Unscrew the locking bolts from wiper motor.

5. Installation is reverse order of removal

Connector Appearance and Connecting Circuit

Connector Terminal

H

P

B

L

HI(high speed)

Intermittent

Ground

Low(low speed)

WIPERS/WASHER SYSTEM  9D-5

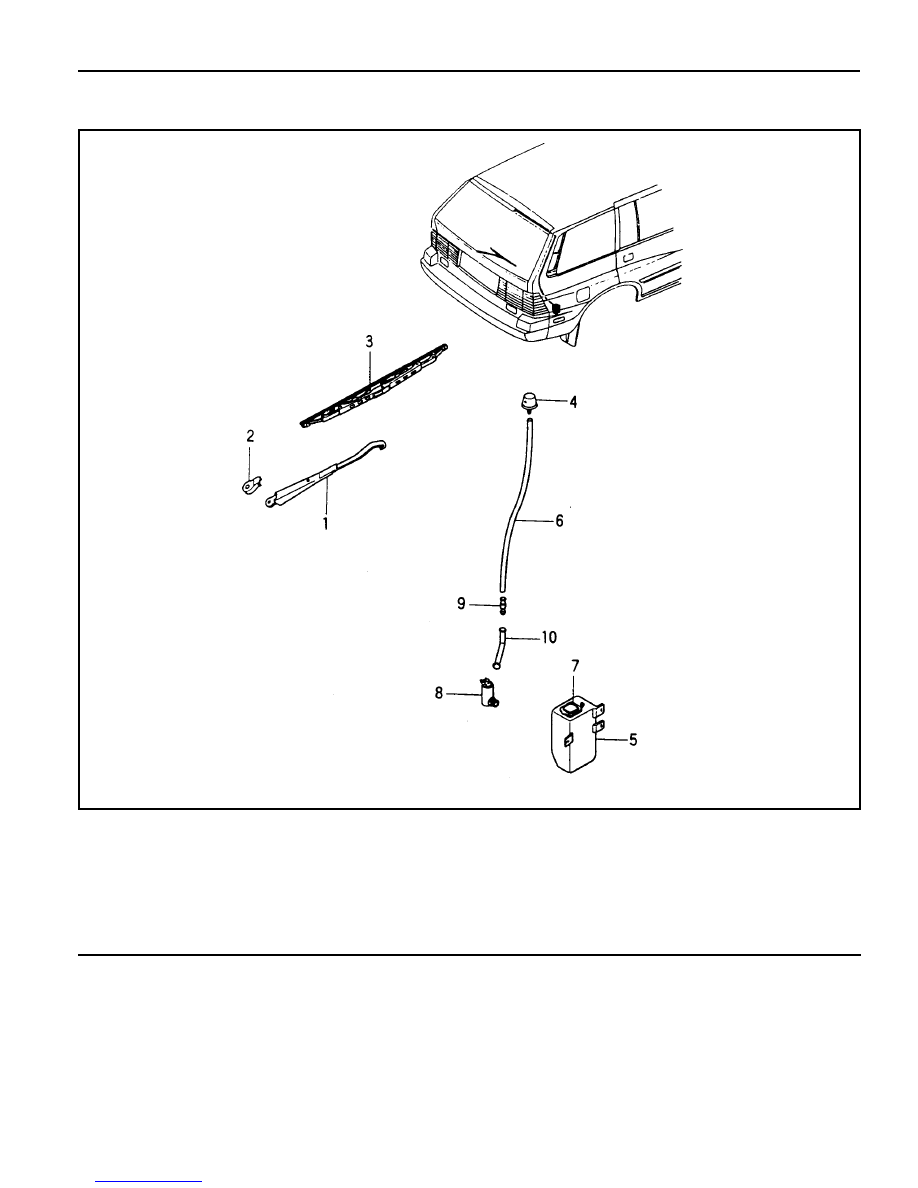

REAR WIPER AND WASHER

1 Wiper Arm
2 Wiper Cap
3 Wiper Blade
4 Washer Nozzle
5 Reservoir Tank

6 Wiper Hose
7 Cap
8 Washer Motor
9 Wiper Hose Socket

10 Outer Joint

Notice

Removal and installation is as shown in upper drawings.

9D-6  WIPERS/WASHER SYSTEM

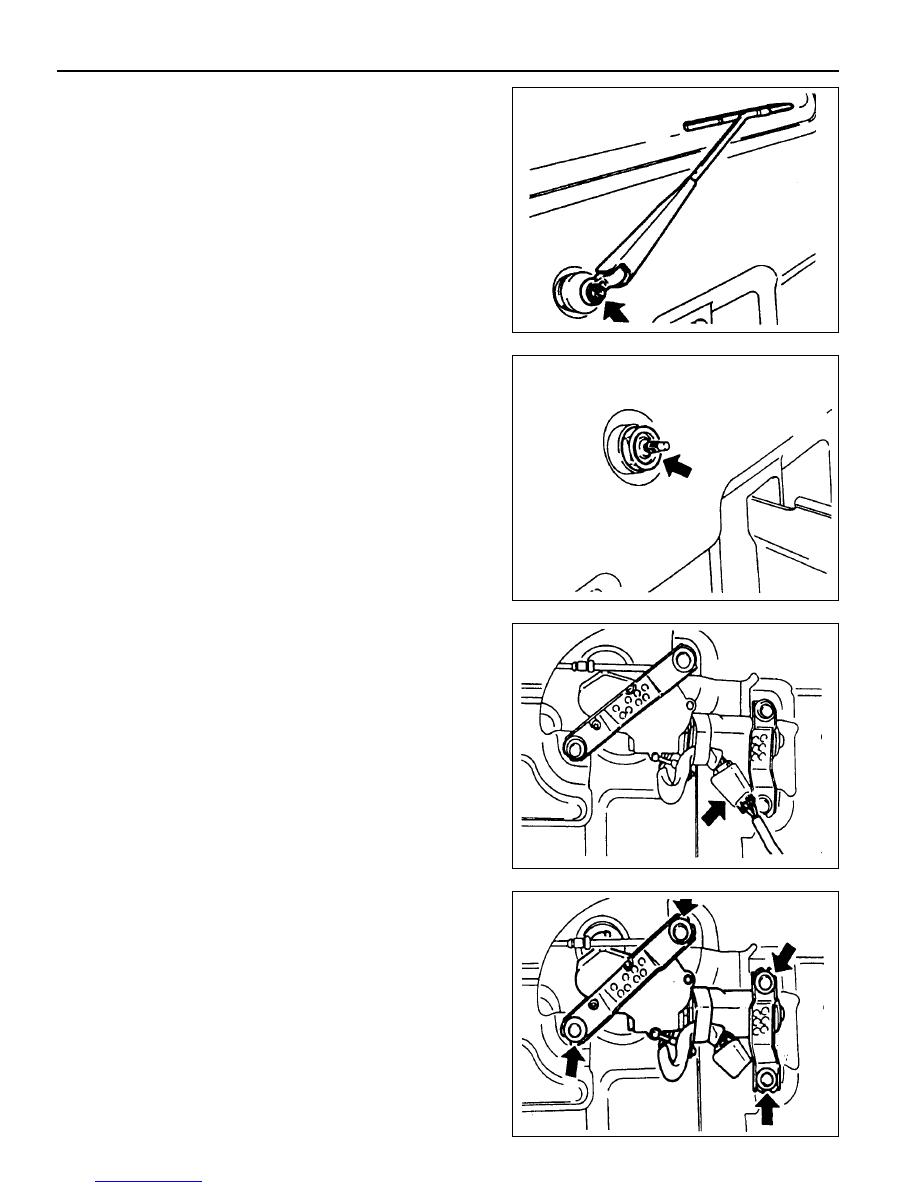

Removal & Installation Procedure

1. Remove the spare tire.

2. Unscrew the locking nut and remove the wiper.

3. Unscrew the locking nut of wiper motor.

4. Remove the tailgate trim panel.

5. Dieconnect the connector from the wiper motor.

6. Unscrew four screws(arrows) and remove the wiper motor.
