LIGHTING SYSTEM  9B-9

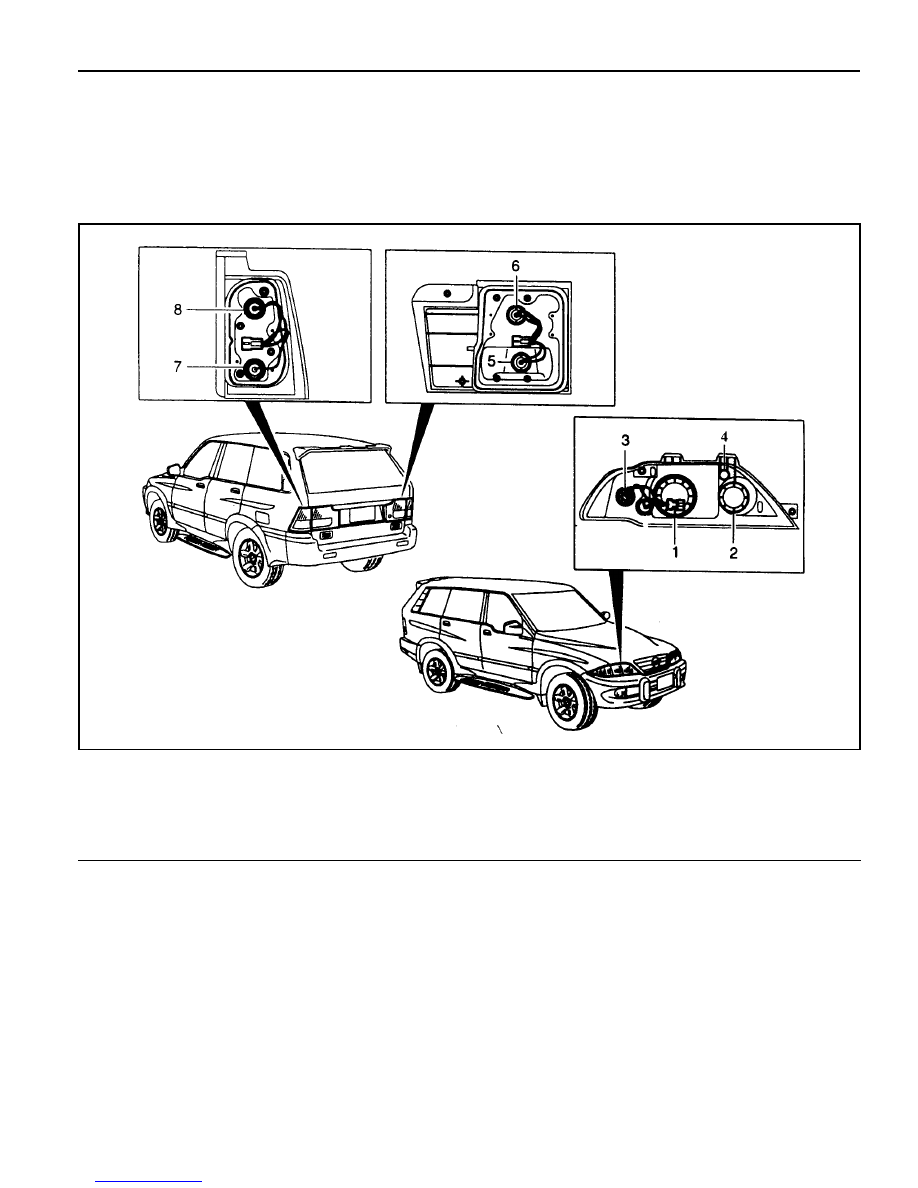

FRONT AND REAR LAMPS

1 Low-beam Head Lamp
2 High-beam Head Lamp
3 Turn Signal Lamp
4 Position Lamp

5 Back-up Lamp
6 Tail / Stop Lamp
7 Turn Signal Lamp
8 Tail / Stop Lamp

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

9B-10  LIGHTING SYSTEM

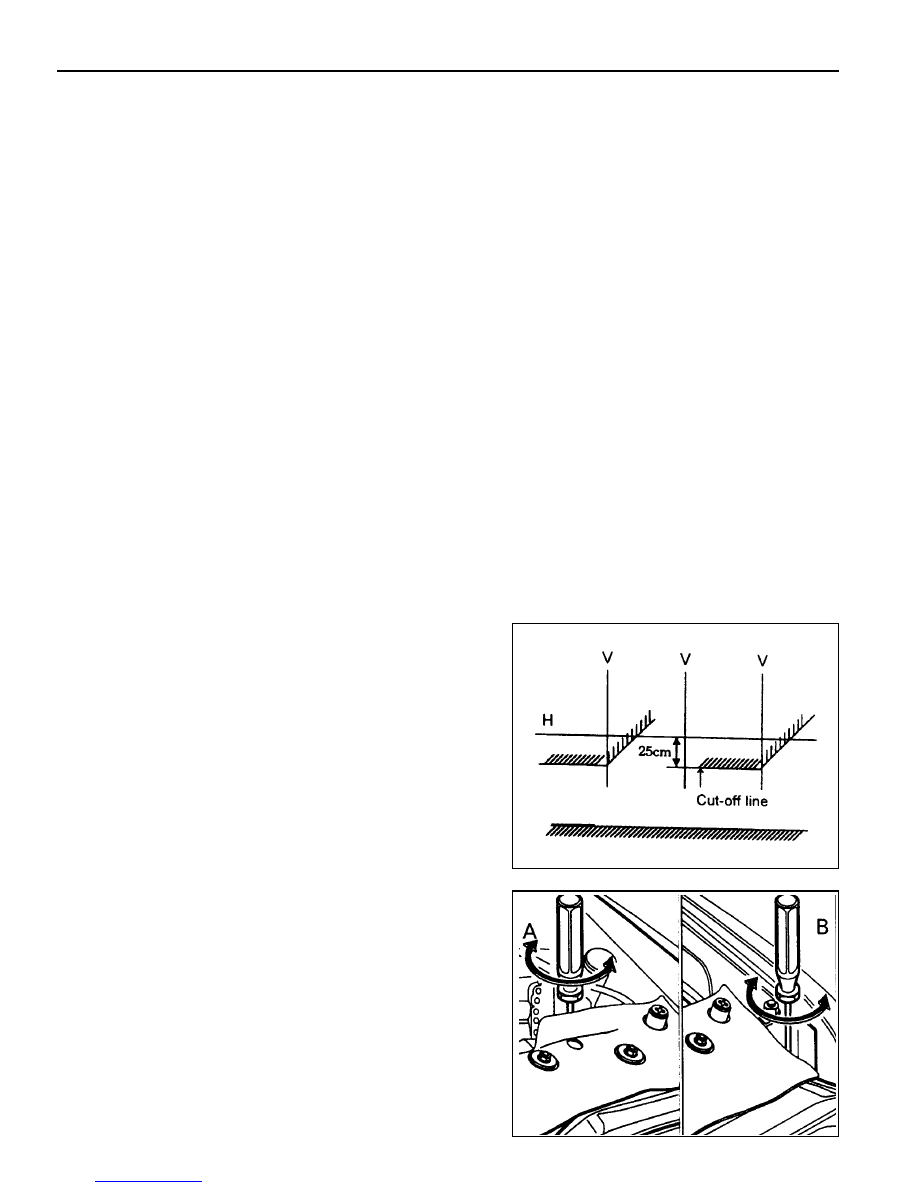

Head Lamp Focusing

When using the beam setting device

1. The head lamp focus should be adjusted by using a proper

beam setting device.

2. Adjust the head lamp focus by using Up/Down, Left/Right

adjusting screws.

When using the screen

1. Put the vehicle on the leveling surface.

2. One person is needed to seat on the driver's seat without

other loads(CVW) and check the tire pressure if it is in the
specification.

3. The distance between the headlamp and the screen is 25m.

4. Draw the vertical line (crossing the center of each headlamp)

on the screen.

5. Start the engine.

6. Check if the cut-off line of the headlamp on the screen is in

the specification.

1) Left/right direction

- The degree of the cross point at the cut-off line of the

headlamp and the vertical line should be 15.

2) Up/down direction

- The distance between the cut-off line of the headlamp

and the horizontal line should be 25cm.

7. Adjust the focus if the cut-off line of the headlamp is out of

the specification by using up/down, left/right adjusting
screws.

A : Up/down direction adjusting screw

B : Left/right direction adjusting secrw

LIGHTING SYSTEM  9B-11

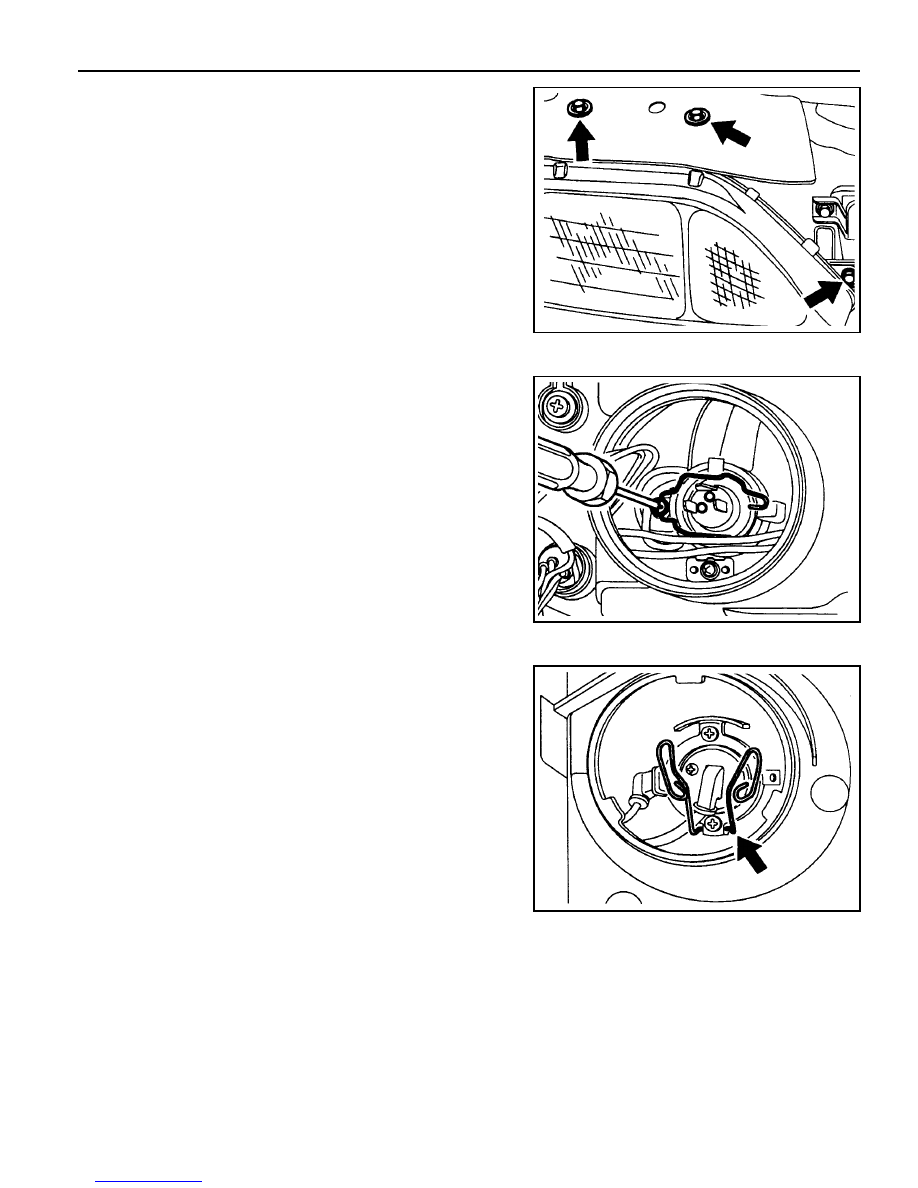

Head Lamp

Removal & Installation Procedure

1. Unscrew upper 2(10mm) bolts and lower 1(10mm) bolt of

head lamp.

2. Disconnect connector and remove the headlamp.

3. Installation should follow the removal procedure in the

reverse order.

Bulb Replacement

1. Turn the dust cap of the head lamp to the left and remove

it.

2. If it is high/low head lamp, loosen the screw and pull out the

return spring and replace the bulb.

Notice

For correct installation, check the original position of the
return spring and remove.

High/low-beam head lamp replacement

High-beam head lamp replacement

3. If it is high-beam head lamp, pull out the return spring

and replace the bulb.

Notice

Refern to lamp specifications.

9B-12  LIGHTING SYSTEM

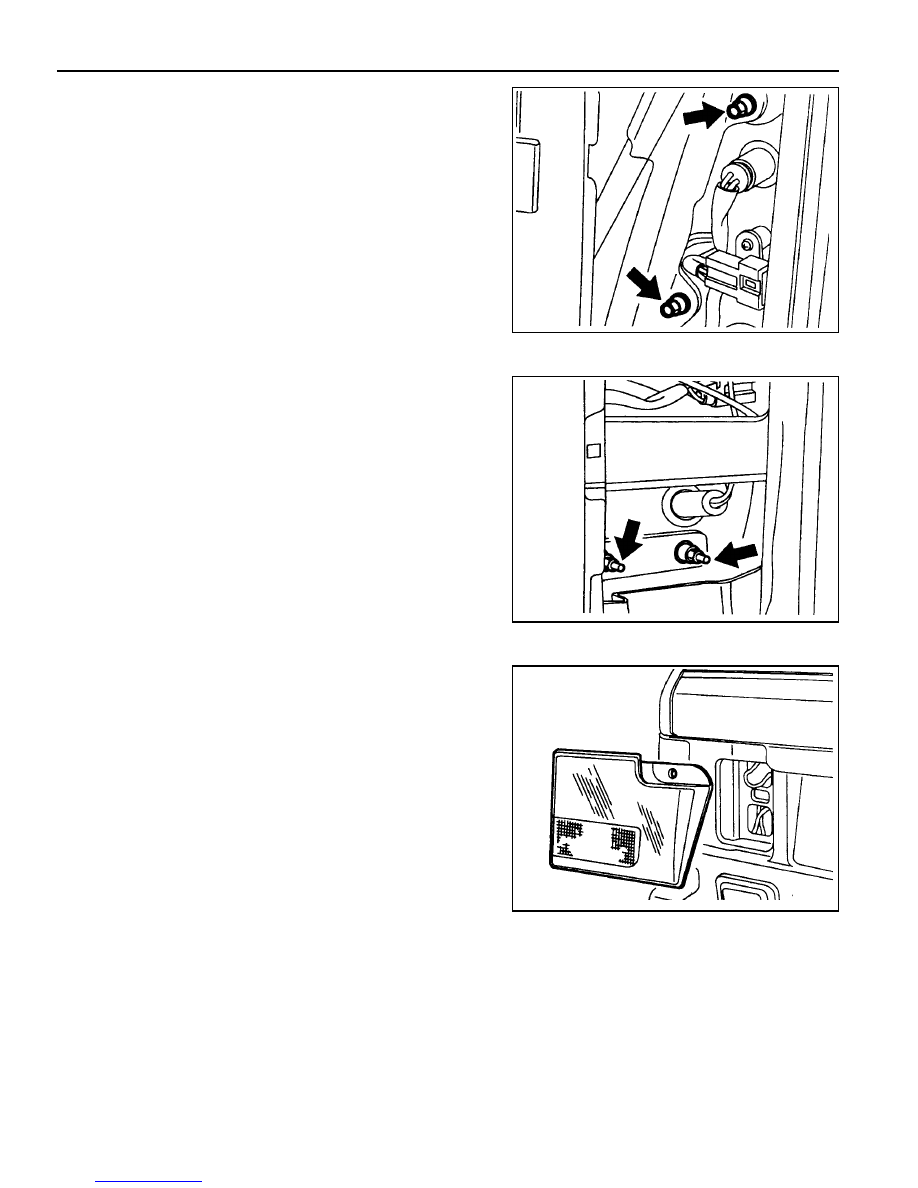

Tail/stop and turn signal lamp

Tail/stop Lamp and backup lamp

Rear Combination Lamp

Removal & Installation Procedure

1. Open the tailgate and remove the inner cover of the rear

combination lamp.

2. Unscrew 4(8mm) nuts of tail/stop lamp and turn signal lamp

assembly.

3. Unscrew 6(8mm) nuts of tail/stop lamp and back-up

lamp assembly.

4. Disconnect each connectors and remove the rear

combination lamp. Replace with specified bulb, if
necessary.

Notice

Refer to lamp specification.
